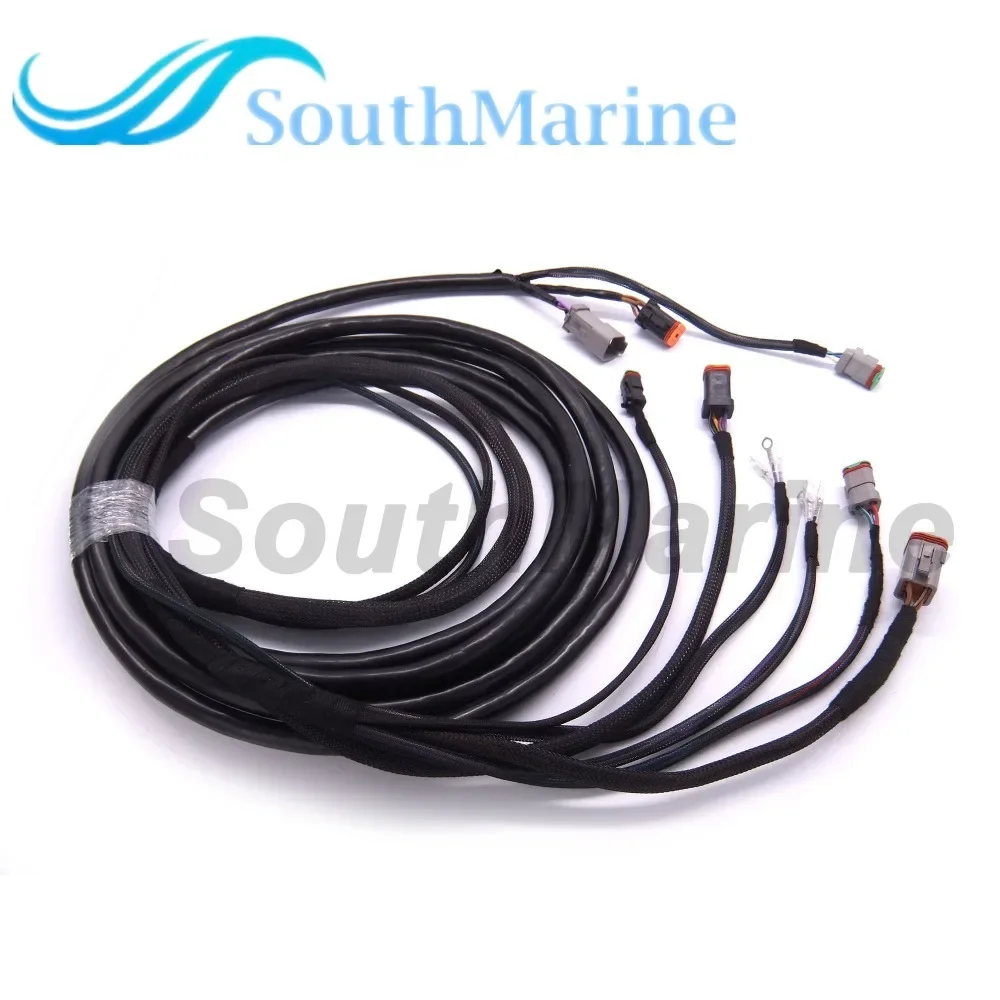

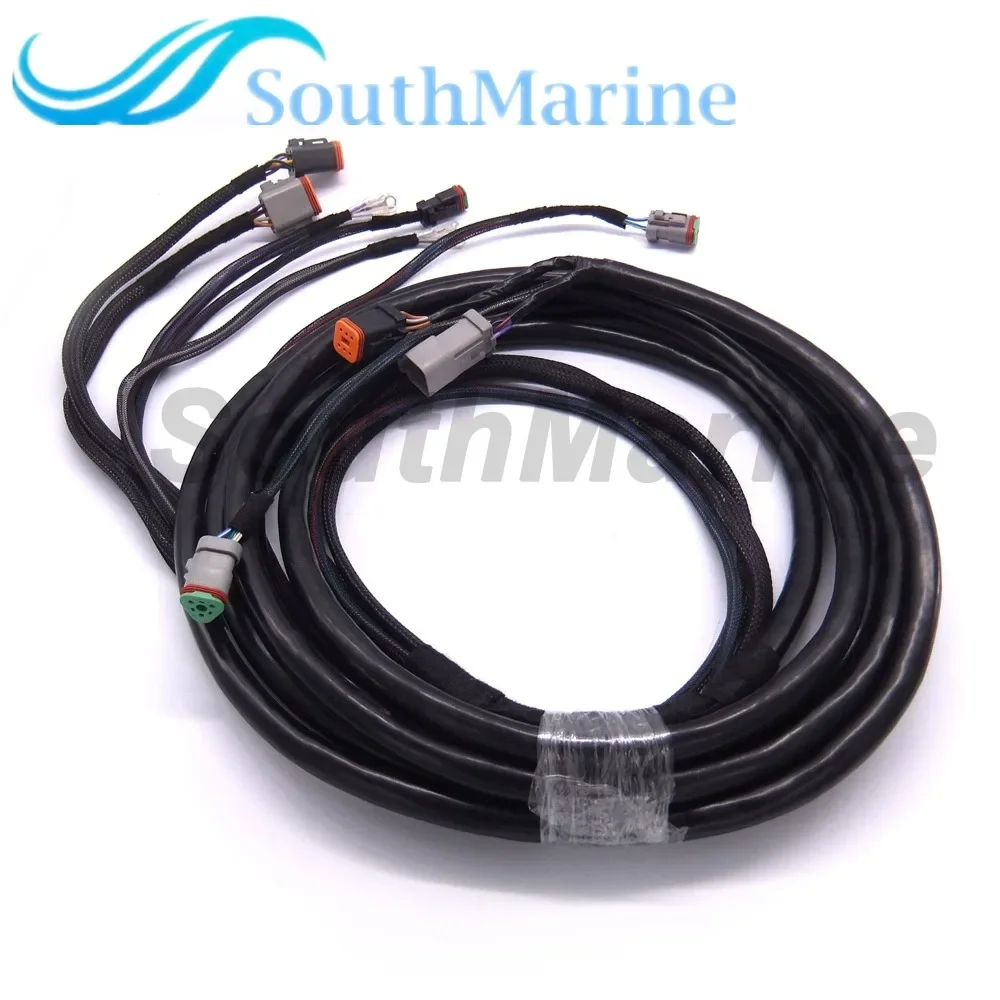

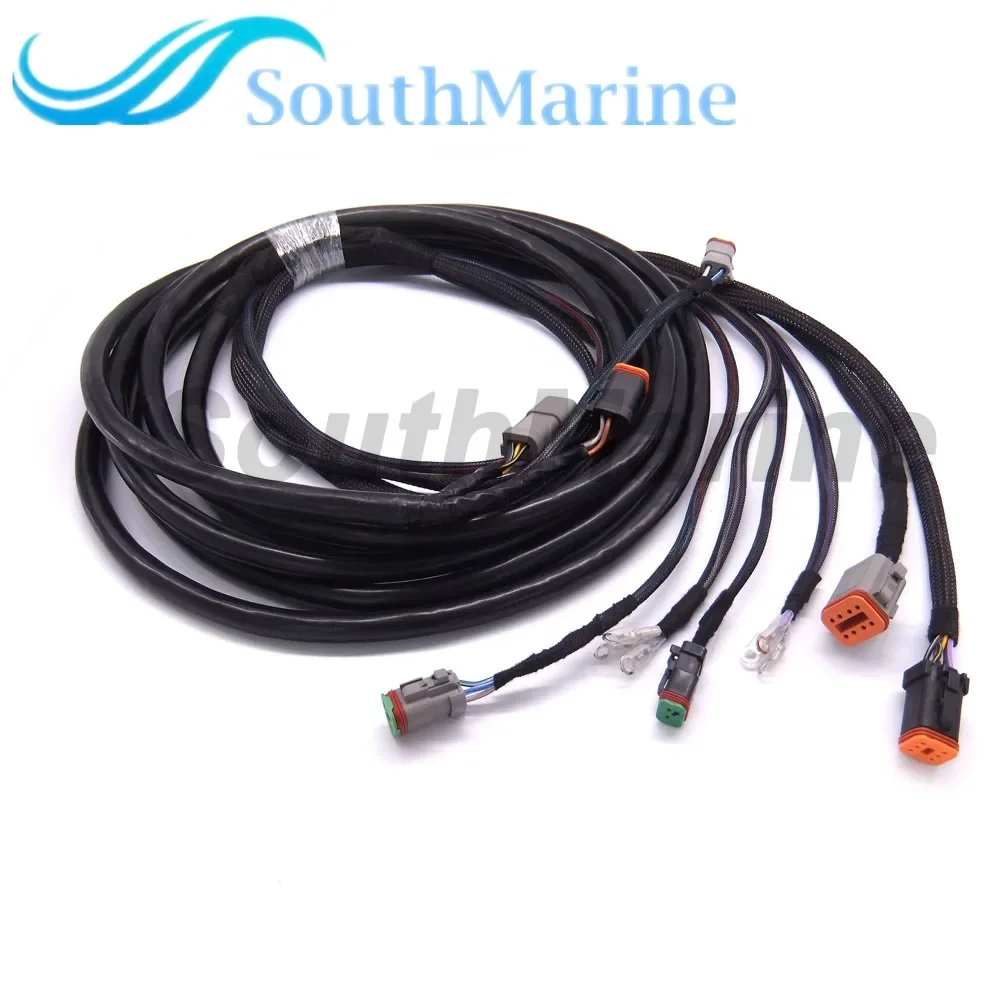

0176341 176341 New System Check 20ft/6.1m Main Modular Ignition Wiring Harness Cable for Evinrude Johnson OMC Outboard Motor

0176341 176341New SystemCheck 20ft/6.1m Main Modular Ignition Wiring Harness Cable for Evinrude Johnson OMC Outboard Motor Remote Control Box 5006180

Applications:

The instrument cable kit is compatible with the 1996 and newer Modular Wiring Systems, it can also be installed on certain 1991 through 1995 outboards using a cable adapter which is sold separately.

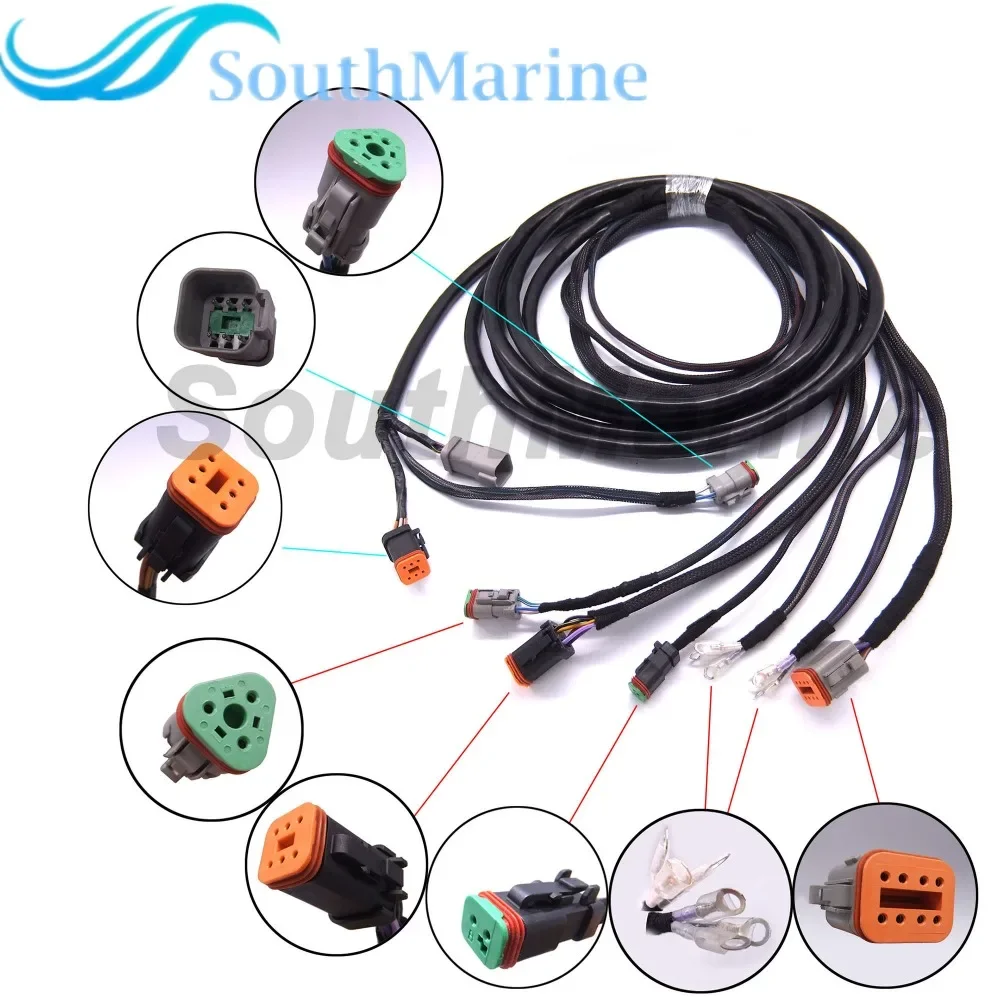

Description:

(1) Wiring Harness MWS 20ft/6.1m for 1996 & newer models, System Check;
(2) Conventional Tach Leads - when the System Check engine monitor tach is not used;
(3) Trim gauge Leads;
(4) Ignition - connect to a pre-wired control or Key Switch kit;
(5) Trim Switch Connection - connect to Trim Switch in control handle or dash mounted (6) Trim Switch;
(7) System Check Connection - Connect to a 2" gauge, tach with lights or horn driver module;
(8) Horn Connection - horn is supplied with pre-wired controls and Key Switch kits.
