Product description
1. Please confirm whether the positive and negative are reversed before powering on!
2. Please do not plug and unplug the motor and drive when the power is on, which may cause the drive to burn out; also do not adjust the motor while the motor is running.
Current!
3. Do not plug in the reverse drive, otherwise it will burn out the drive and even the motherboard!
4. It is recommended not to connect the USB cable and 12V power supply at the same time during the firmware burning process. After burning through the USB cable, connect to 12V make a connection.
Features and advantages
1. Combine 2560 and ramps1.4 on one board, which solves the problem of cumbersome and easy failure of Ramps1.4 combination interface.
2. Users can replace the motor drive by themselves, supporting 4988 drive, 8825 drive, and TMC2100 drive.
3. Reserve an external drive signal, and an external large drive can be used to drive the 57.86 motor.
4. Using high-quality MOSFET tubes, the heat dissipation effect is better, and the long-term work is stable.
5. Use a dedicated power chip, support 12V-24V power input, to solve the problem of heating and insufficient power supply of the Ramps voltage conversion chip.
6. The stable and reliable filter circuit greatly reduces the possibility of interference, and avoids crashes and random running during the printing process.
7. Adopting CH340 serial chip, under the premise of ensuring stability and reliability, reducing costs, and solving the problem of difficult installation of drivers in the past 16U2
8. It can accept 24V input. Under the same system power, the hot bed current can be reduced to 1/4, which effectively solves the heating problem of the hot bed MOS tube.
9.Using the open source firmware Marlin, the configuration is exactly the same as ramps1.4, which can directly replace Ramps1.4.
10. It can be directly connected to 2004LCD display and 12864LCD display, which can support the TFT28 and TFT32 touch screens developed by the maker. 11. XYZ axis uses terminals of different colors to correspond to the motor and limit switch, which is convenient for wiring.
12. Humanized design, use different colors of terminals to distinguish the drive direction, reduce the probability of reverse insertion, and prevent damage to the motherboard due to reverse drive insertion.

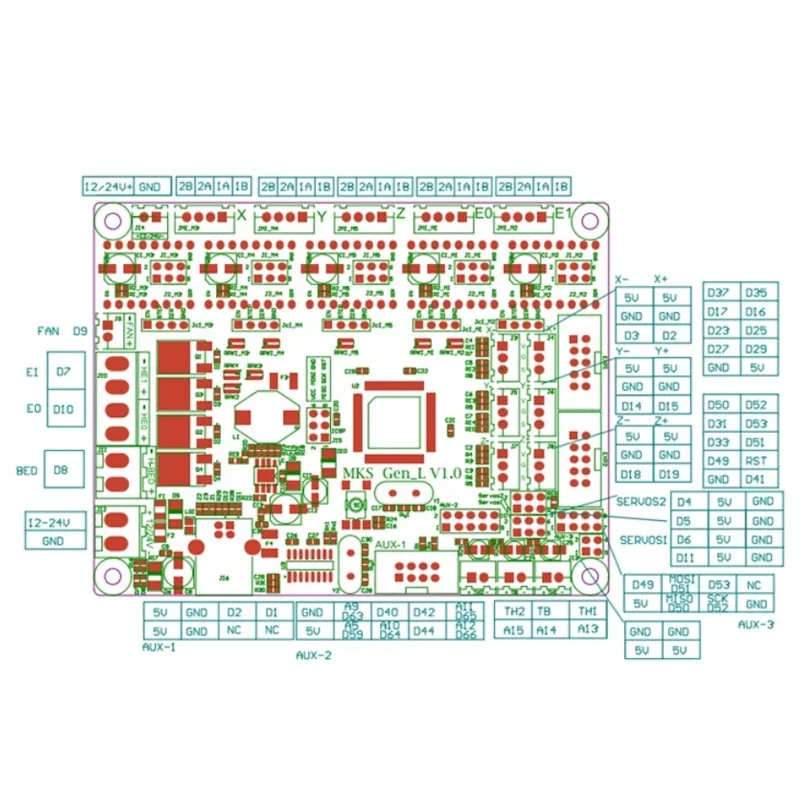

Package Included:1PCS*3D Printer Accessories MKS GEN L V1.0 Control Board
