Note1:
Pls Use the vehicle fitment we've provided within the body of the listing to confirm vehicle fitment.
Note2:
【No sensor programming Required】 : The Tire Pressure Sensor is 100% new and come pre-programmed specifically for your make/model/year of vehicle,need activate them by Right scan tool or "re-learning" Right Activation tool is important , if you wanna Your vehicel Relearn Procedure Description , Pls email us ...
1.Stationary Relearn: Requires the vehicle be placed in the "Learn Mode".
2.Automatic Relearn: For some vehicles, can be completed by driving.
3.OBD Relearn: Directly writes TPMS sensor IDs to the TPMS module via the OBD connector.
Installation of TPMS is recommended to be performed only by trained professionals.
Specification:
Condition: Brand New&High Quality
Manufacture Part Number: 3AA907275B 3AA907275D 3AA907275
Replacement Part Number: 3AA907275B 3AA907275D 3AA907275
Operating Frequency: 433MHz
Fitment Type: Direct Replacement
Color: As the pictures show
Easy to install
Package You Will Receive: 4Pcs Tire Pressure Sensor
Vehicle Fitment
For Volkswagen CC(from 2012-01 to 2017-12)
For Volkswagen Passat(from 2010-10 to 2014-09)
For Volkswagen Passat CC(from 2008-03 to 2018-02)
For Volkswagen Tiguan(from 2007-08 to 2015-12)
Product Features:
★Safe and Reliable --- It is suitable for monitoring the internal pressure,temperature and other information of the tire,avoiding traffic accidents caused by tire failure,provide you with a better safety in the driving process.
★No programming required --- The tire pressure monitor system (TPMS) come pre-programmed specifically for your make/model/year of vehicle.
Order Notes:
★Before placing the order,please check your car VIN code,model,year.Please view product description including the notes,or contact us.
★Your vehicle will require programming after installation of new sensors (in most circumstances).
★Consult your owner's manual to see what procedure is required for your particular vehicle when installing new TPMS.
★If you would like some specific information on the programming procedure for your vehicle or have any other TPMS related questions we are happy to offer our expert advice!
Please make sure your existing part number matches one of the numbers listed above.If the number(s) do not match,then the part will not work with your vehicle.

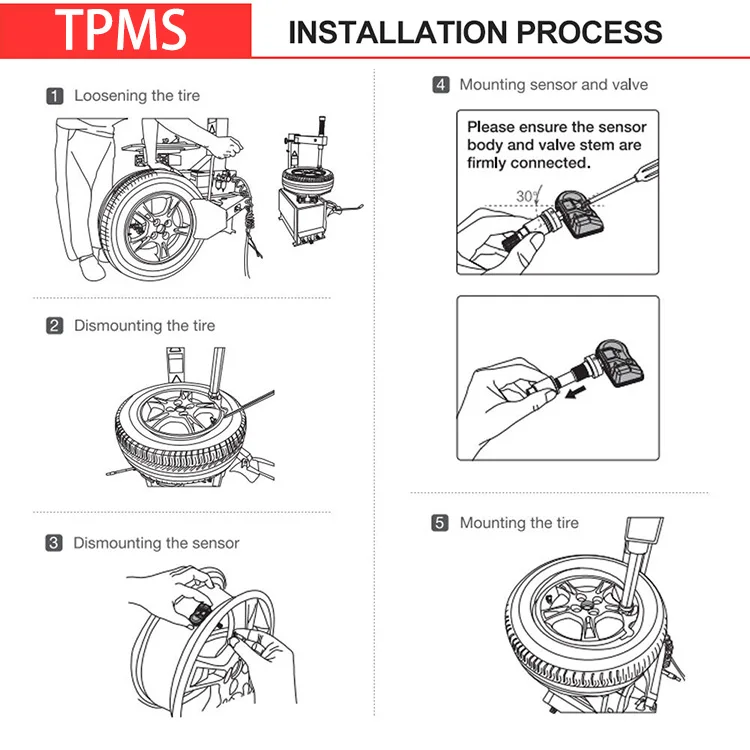

■ Installation Process for reference only :
1. Loose the tire: Remove the valve cap and core and deflate the tire.
2. Dismount the tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o'clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.
3. Dismount the sensor: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.
4. Mount sensor and valve: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.
5. Mount the tire: Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.
