Name: 50cmX4m 2m2 Infrared Graphene PTC Heating Film Warm Floor Mat With WiFi Thermostat Temperature Controller
Brand: FikFis
SKU: c50ead05-5868-46ff-8845-bc09e8ea7bf0
Price: 70.06 GBP
Availability: InStock

Notice: Based on the cutting line of the "no word" side, the cutting line of the "scissor mark" shall prevail.

Product Information

Type: Graphene PTC heating film

Rated power: 240w/m2 (+-10%)

Working voltage: 200~240V; AC 50/60Hz

Width: 50cm

Infrared wave length: 8~15um

Thickness: 0.4mm

Place of origin: South Korea

Feature: self regulating output power; energy saving; anti-overheat, healthy to human.

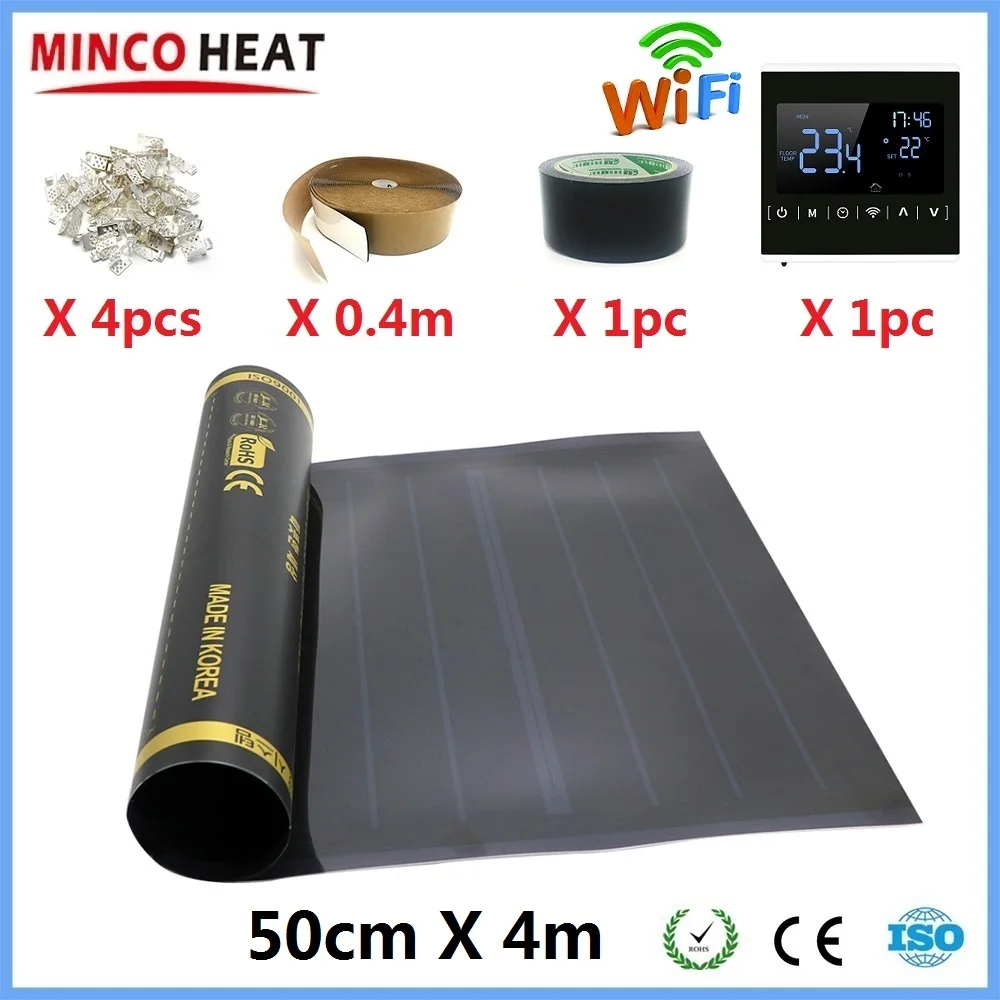

Package includes:

- 2m2 (50cmX4m) Heating Film

- 1pc x thermostat (external sensor is included)

- 4 pcs x clamps

- 0.4m insulation paste

- 1pc x duct tape

What is PTC Heating Film?

The PTC means Positive Temperature Coefficient, it refers to kinds of specia materials, the electrical resistance of the PTC materials will increase when the temperature of the material is raised, and also the electrical resistance of the material will reduce when the temperature is reduced. The PTC heating film is a new type and updated warm floor product based on the ordinary heating film. Temperature limiting function of electric heating film. The working principle is that if the temperature rises, the resistance will increase, so that the current will decrease, and the temperature will not increase endlessly. Conversely, if the temperature drops, the resistance will decrease, the current will increase, and the temperature will not decrease endlessly. Thus, the temperature is controlled within a safe and reasonable safety range. To achieve the effect of energy saving and power saving.

Compared with Ordinary Heating film

Why choose PTC Heating Film

- Self regulating heating, no over heating risk.

- New energy graphene heating film. More energy saving than ordinary heating film, traditional water heating system.

- Economic heating with partial heating.

– unnecessary heating areas can be turned off.

- Easy to install and maintain. Clean, noiseless, maintenance

-free operation and space-saving.

- Creates a healthy and confortable environment, no electromagnetic radiation, the length of the far infrared wave is 9.5um, it's good for human healthy.

- The heating film is suitable to use under various of floors: Composite Floor, Laminate Floor, Wooden Floor, Marble, Tiles, Carpet, PVC Flooring and so on.

Graphene PTC Heating Film
