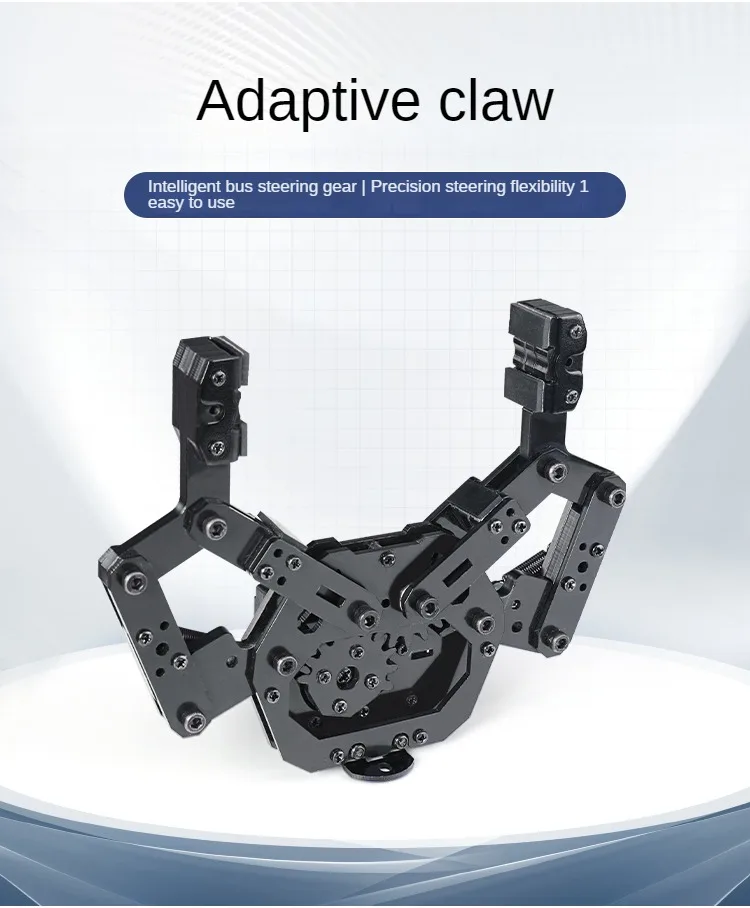

Adaptive Manipulator Claw 82mm Opening 1Kg Load Flexible Servo Gripper FOR Manipulator Robot Arm DIY Kit Drone Servo Accessories

Future Robot Store

     Welcome to our store. We bring you highly innovative robotic technology products, suitable for users of all ages for learning or daily use. We not only provide high-quality products but also have a perfect after-sales service. After purchase, we provide professional technical support to ensure that any problems you encounter during use can be resolved in a timely manner. At the same time, we also have a long-term warranty service to make your shopping worry-free.Let us add more excitement to your life. Follow us!

By the way, if you like our store, Please add our store to your Favorite Stores, You can getour New arrival and Discount information in time.

Adaptive Manipulator Claw 82mm Opening 1Kg Load Flexible Servo Gripper FOR Manipulator Robot Arm DIY Kit Drone Servo Accessories

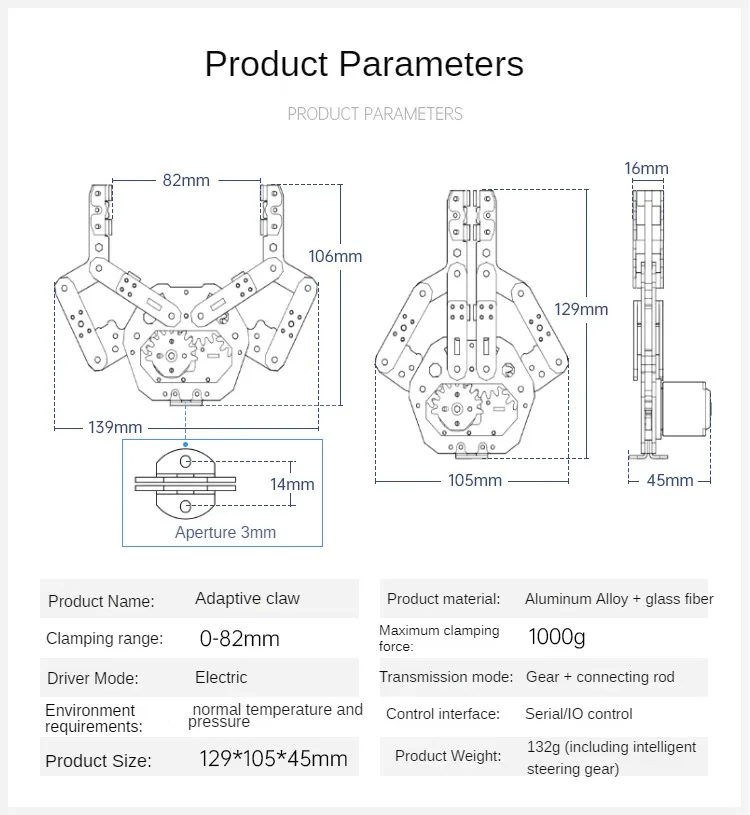

Specification:

Product name: adaptive claw

Clamping range :0-82mm

Drive mode: electric

Operating environment requirements: normal temperature and pressure

Product size :129*105*45mm

Material: Aluminum alloy + glass fiber

Maximum clamping force :1000g

Transmission mode: gear + connecting rod

Control interface: serial /IO control

Product weight :132g(including intelligent steering gear)

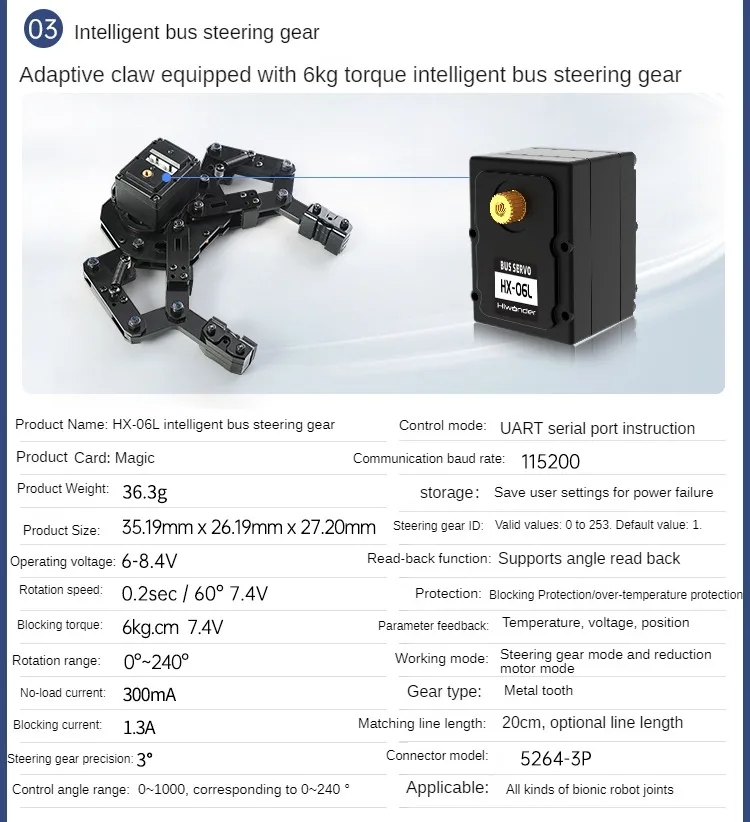

Bus Servo parameters:

Product name: HX-06L intelligent bus servo

Product weight: 36.3g

Product size :35.19mmx26.19mm x27.20mm

Operating voltage: 6-8.4V

Rotation speed :0.2sec/60°7.4V

Lock torque: 6kg.cm 7.4V

Rotation range: 0°~240°

No-load current: 300mA

Lock current: 1.3A

Steering gear accuracy :0.3

Control Angle range :0 to 1000, corresponding to 0 to 240

Control mode: UART serial port command

Communication baud rate: 115200

Save: Power failure saves user Settings

Rudder ID: 0~253 User configurable, default is 1

Read back function: Supports Angle read back

Protection: locked-rotor protection/over-temperature protection

Parameter feedback: temperature, voltage, position

Working mode: steering gear mode and gear motor mode

Gear type: metal teeth

Supporting cable length :20cm, other cable length is optional

Suitable for: all kinds of bionic robot joints

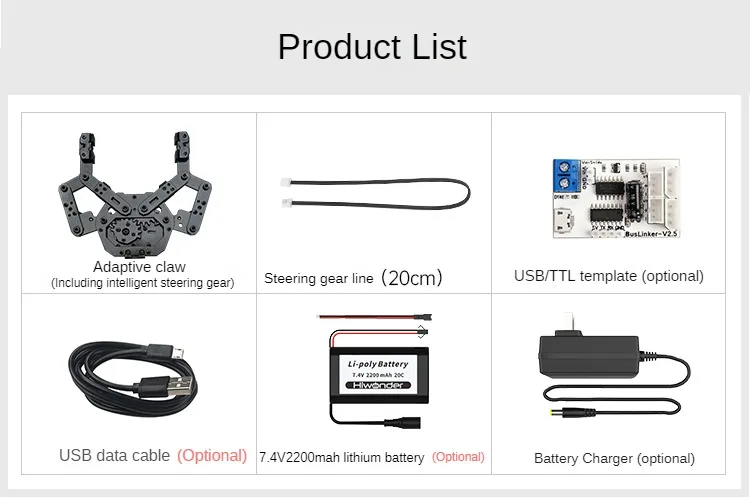

Product list:

Adaptive gripper (including servo)

Steering line (20cm)

USB/TTL Debugging board (optional)

USB cable (optional)

Note:

1.This is unassembled, you need to assemble it, we provide installation tutorials for free，Please leave your email address

2.Due to the customs policy, the product is mailed without a battery, and 7.4V lithium battery is recommended
