M126T Global Version

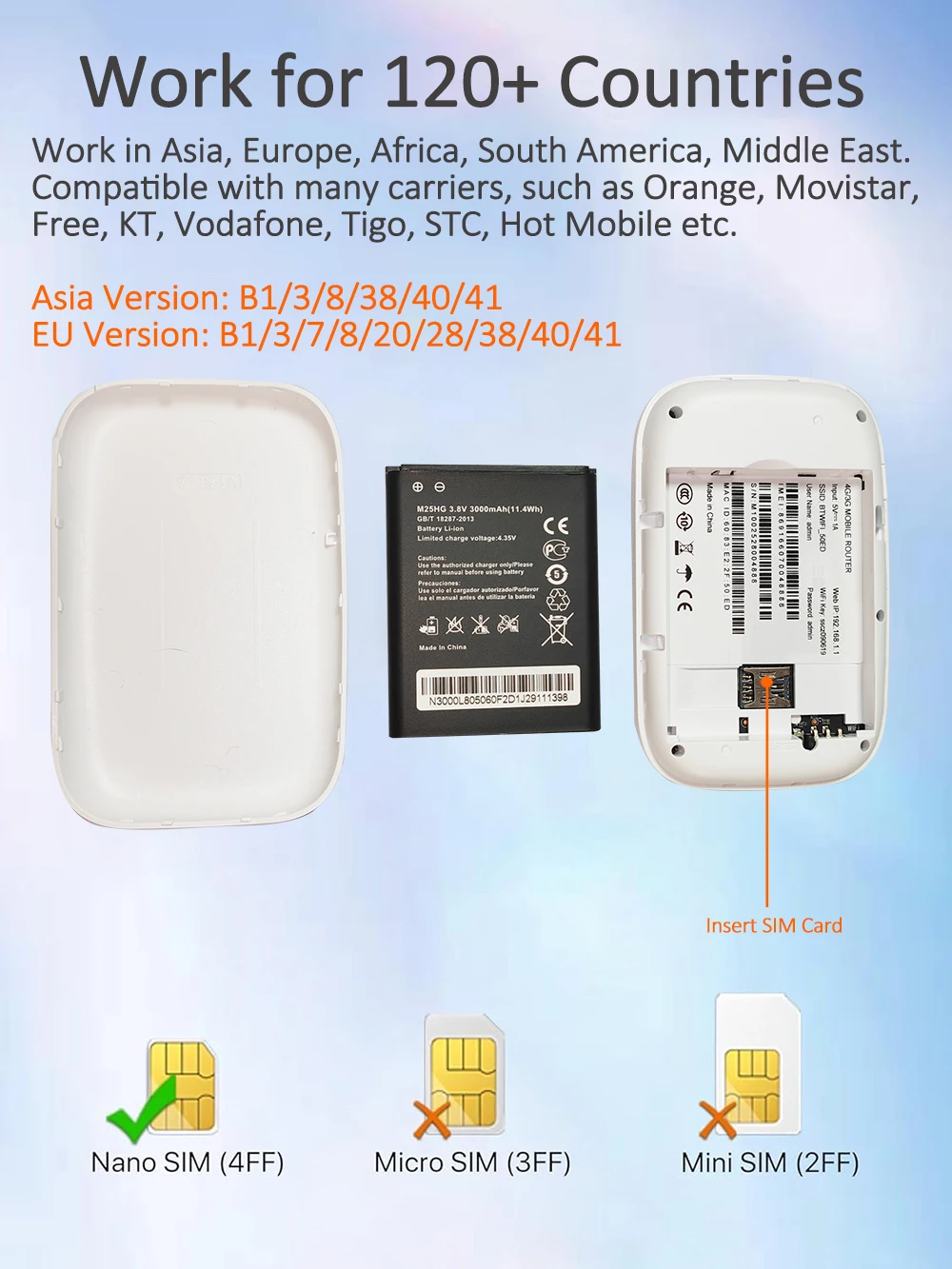

4G FDD: B1/B3/B7/B8/B20/B28

4G TDD: B38/B40/B41

For Asia: South Korea, Israel, Saudi Arabia, Japan, Thailand, Singapore, Pakistan and most

Asian countries.

For Europe: France, Russia, Spain, Netherlands, Poland, Italy, United Kingdom, Bulgaria, Belgium, Portugal and most European countries

For South America: Brazil and Chile

For Africa: Morocco, Ethiopia, Egypt, Angola, South Africa and most African countries.

M126T Specifications

Type: 4G Router

4G Chip: ASR1803S

Power By:  3000mAh detachable Rechargeable battery

Required SIM Card: 4G/4G+/5G Nano SIM

Antennas: Internal 2 4G antennas+2 WiFi antennas

2.4GHz WiFi Transmission Rate: 2.4GHz WiFi 150Mbps

WiFi Transmission Standard: 802.11 ax WiFi6

CAT Grade: CAT4

Max Connected Devices: 10

Security: WPA/WPA2

WAN: NO

LAN: NO

SMS Function: Can receive, write and send messages

Online Reboot/Factory Reset: Support

APN Profile Setup: Support

Open VPN: NO

WPS: NO

Parental Control: Support(Restart the router to get wifi again)

Lock LTE Frequency Band: NO

Working Temperature: 0℃-45℃

Product Size: 100*64*16mm

Weight: 105g

Package: Router*1+User Manual*1+USB Charging Cable*1(NO SIM)

How to Use:1) Disable the PIN code by inserting the SIM card into the phone. 2) Visit router service website page. 3) Review the APN settings with the network operator. 4) Restart the router after saving all settings.

M100 Asian Version works in below countries only

Attention

1)Not support special sim cards like eSIM, IOT SIM and Roaming SIM. For example, you're in France and you need to use French SIM cards. You're in Morocco and you need to use Moroccan SIM cards.

2)If your SIM card has PIN code/lock, you need to disable PIN code/lock on your phone or via communication operator. It can help the router get access to recognize your SIM card and connect network. Otherwise, the router shows no SIM and its WiFi can be connected but no network.

Main Features

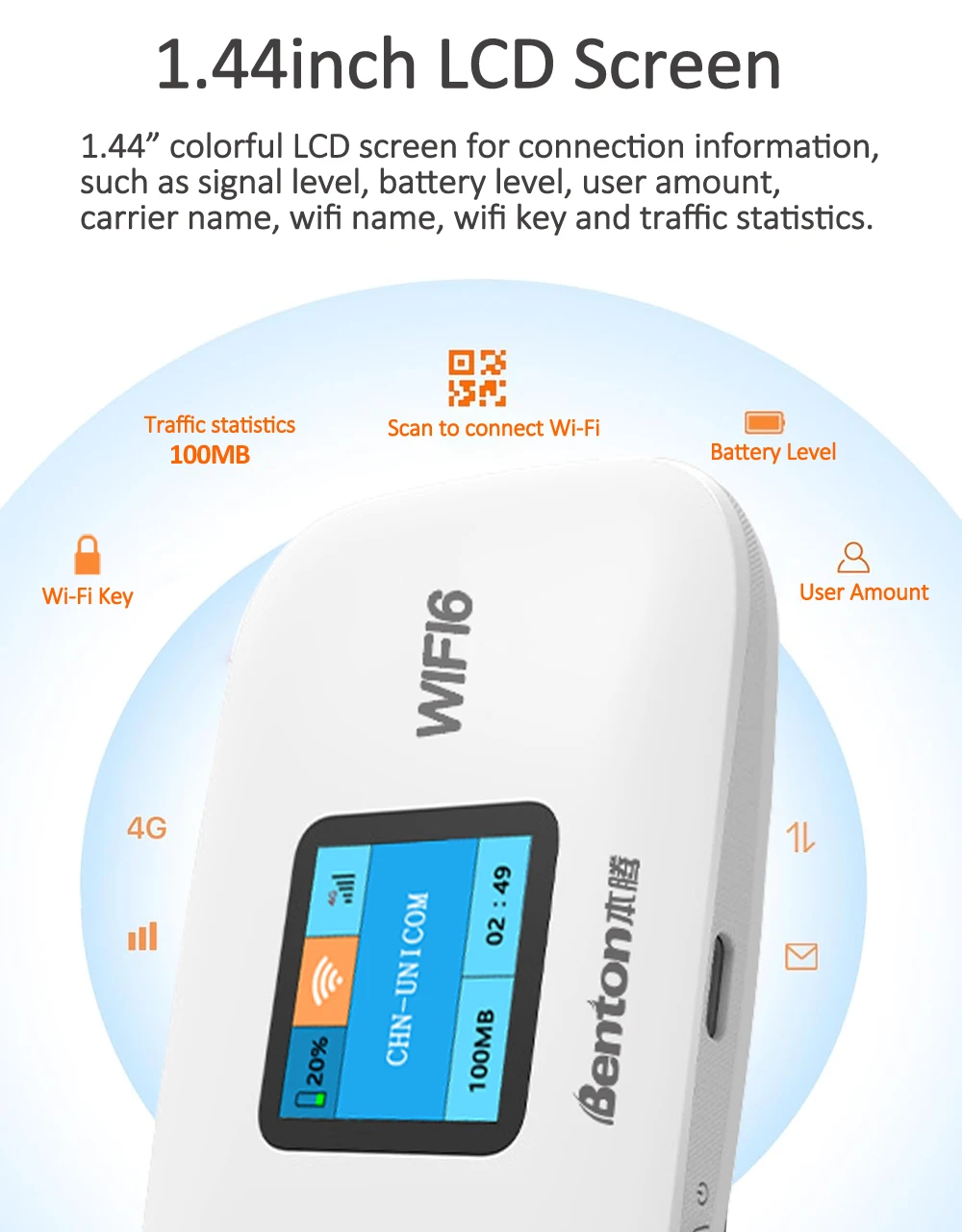

【Color-Status Display at a Glance】 The router is equipped with a 1.44-inch color LCD display showing data consumption, signal strength, connected devices and more. Easily view the status of your network at a glance, without using your phone.

【Faster speeds with Wi-Fi 6】Wi-Fi6 delivers speeds several times faster than Wi-Fi 4. It ensures seamless use of multiple devices for navigation, streaming and video calls in shared spaces.

【Compact Wi-Fi & Portable】About the size of a credit card, with a slim size of 100×64×16mm, it fits easily into any pocket or bag. Take it as your wallet or keys—the perfect Wi-Fi companion for travel, remote work and everyday mobile connection.

【Plug & Play-Online in Seconds】Simply insert any unlocked Nano SIM card and turn on the device to enjoy an immediate 4G LTE connection, without technicians. Ideal for travel, camping or emergency situations where reliable Wi-Fi is a must. (No eSIM support)

【Long Battery Life】 The 3000 mAh battery provides up to 8 hours of continuous use, enough for a whole day on the go. Ideal for cafes, commuting and outdoor activities and easily extended with a power bank if needed.

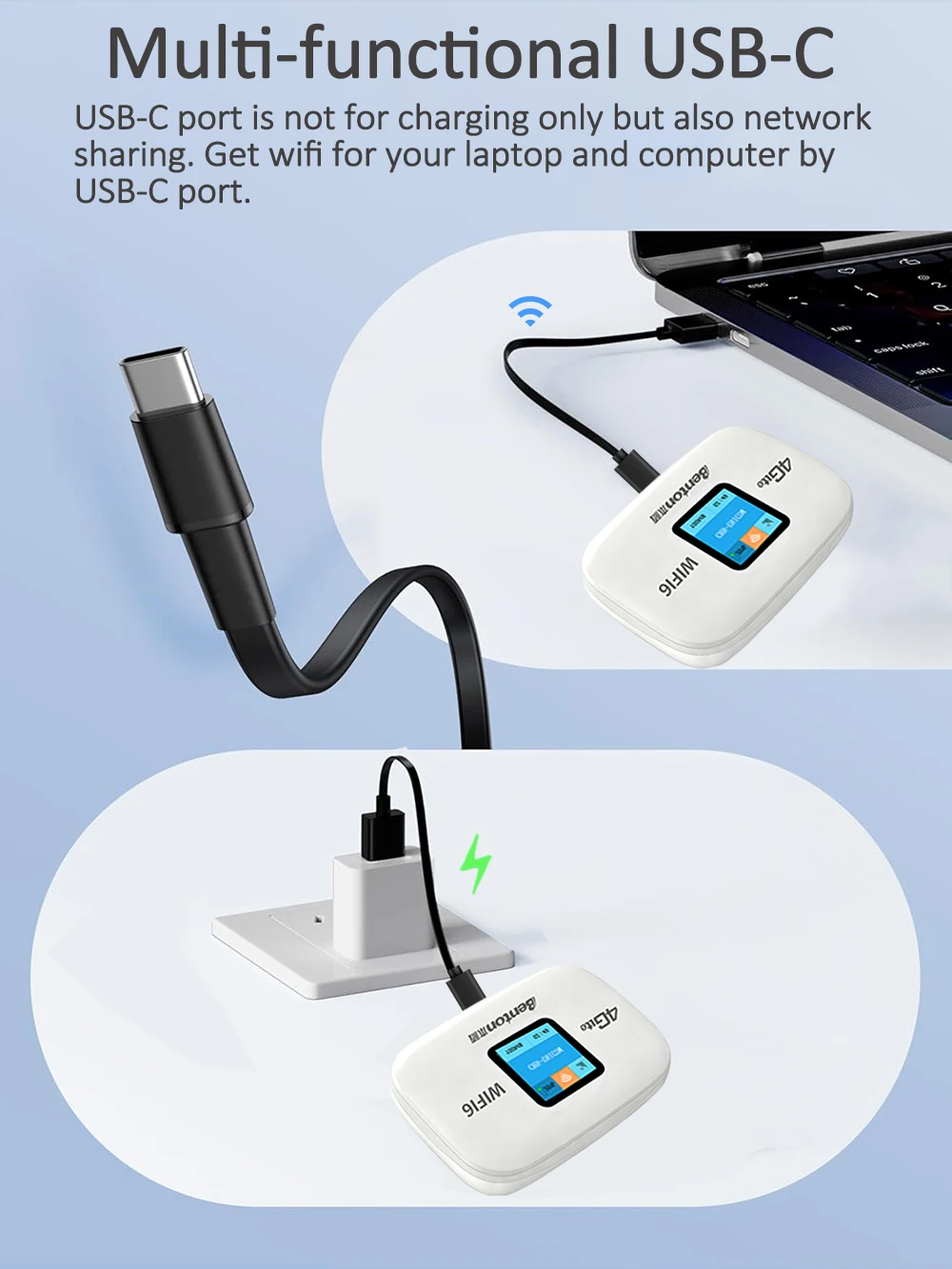

【Versatile USB-C Interface】The router's USB-C port supports two functions: charging via a power bank or power outlet, as well as connecting directly to your laptop for reliable internet access when needed. Your work stays smooth wherever you are.

【Smart Management & Multi-Scenarios】Instantly creates shared Wi-Fi for multiple devices. Manage data limits and guest Wi-Fi directly through the browser, with no app needed. Ideal for road trips, outdoor events and pop-up shops all over the world.

4G/5G LET Frequency Bands of Different CountriesPoduct Display
