4G FDD: B1/B3/B5/B8

4G TDD: B38/B39/B40/B41

For Asia: South Korea, Israel, Saudi Arabia, Japan, Thailand, Singapore, Pakistan and most Asian countries.

For Europe: France, Russia, Spain, Netherlands, Poland, Italy, United Kingdom, Bulgaria, Belgium, Portugal, Romania, Ukraine

For Africa: Morocco, Ethiopia, Egypt, Angola, South Africa and most African countries.

R01/R06 EU Version

4G FDD: B1/B3/B5/B7/B8/B20

4G TDD: B38/B39/B40/B41

For Asia: South Korea, Israel, Saudi Arabia, Japan, Thailand, Singapore, Pakistan and most Asian countries.

For Europe: France, Russia, Spain, Netherlands, Poland, Italy, United Kingdom, Bulgaria, Belgium, Portugal and most European countries

For South America: Brazil and Chile

For Africa: Morocco, Ethiopia, Egypt, Angola, South Africa and most African countries.

Specifications

Type: 4G Router

4G Chip: ASR1803

WiFi Chip: MTK7628

Power Plug: EU Plug/US Plug/UK plug

Working Power: DC12V/1A

Required SIM Card: 4G/4G+/5G Standard SIM 25*15mm

Antennas: Internal 2 4G antennas+2 WiFi antennas

2.4GHz WiFi Transmission Rate: 2.4GHz WiFi DL 300Mbps

WiFi Transmission Standard: 802.11 b/g/n

CAT Grade: CAT4

Max Connected Devices: 32

Security: WPA/WPA2

WAN: 10/100Mbps*1

LAN: 10/100Mbps*1

SMS Function: Can receive, write and send messages

Online Reboot/Factory Reset: Support

APN Profile Setup: Support

Open VPN: NO

Lock LTE Frequency Band: NO

Working Temperature: 0℃-45℃

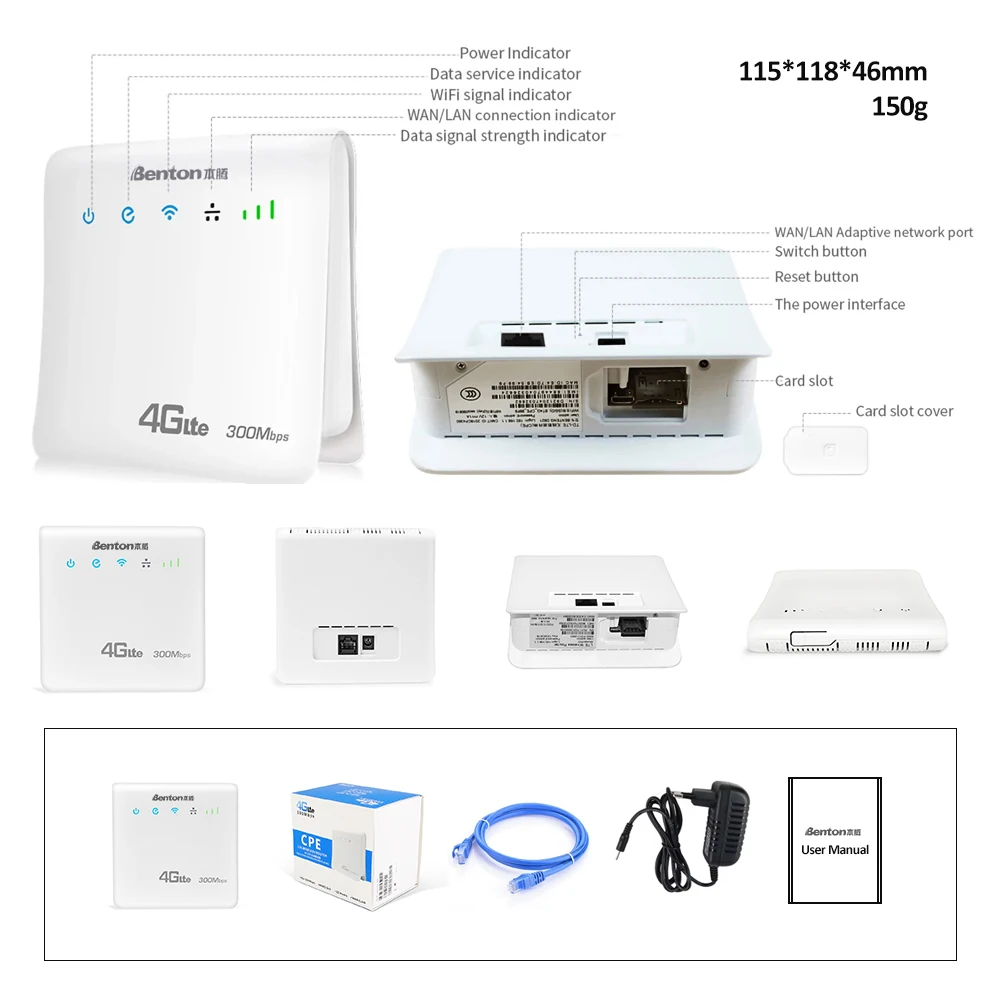

Indicator Lights: Power/Internet/WiFi/LAN/Signal Strength

Product Size: 115*118*46mm

Weight: 150g

Package: Router*1+EU/US/UK Plug*1+User Manual*1+RJ45 Cable*1(NO SIM)

How to Use:1) Disable the PIN code by inserting the SIM card into the phone. 2) Visit router service website page. 3) Review the APN settings with the network operator. 4) Restart the router after saving all settings.

Attention

1)Not support special sim cards like eSIM, IOT SIM and Roaming SIM. For example, you're in France and you need to use French SIM cards. You're in Morocco and you need to use Moroccan SIM cards.

2)If your SIM card has PIN code/lock, you need to disable PIN code/lock on your phone or via communication operator. It can help the router get access to recognize your SIM card and connect network. Otherwise, the router shows no SIM and its WiFi can be connected but no network.

Main Features

【PLUG & PLAY】Simply insert a Standard SIM card, connect the power and turn on the 4G SIM router, no configuration required, to enjoy fast and stable WiFi on a 4G LTE network.

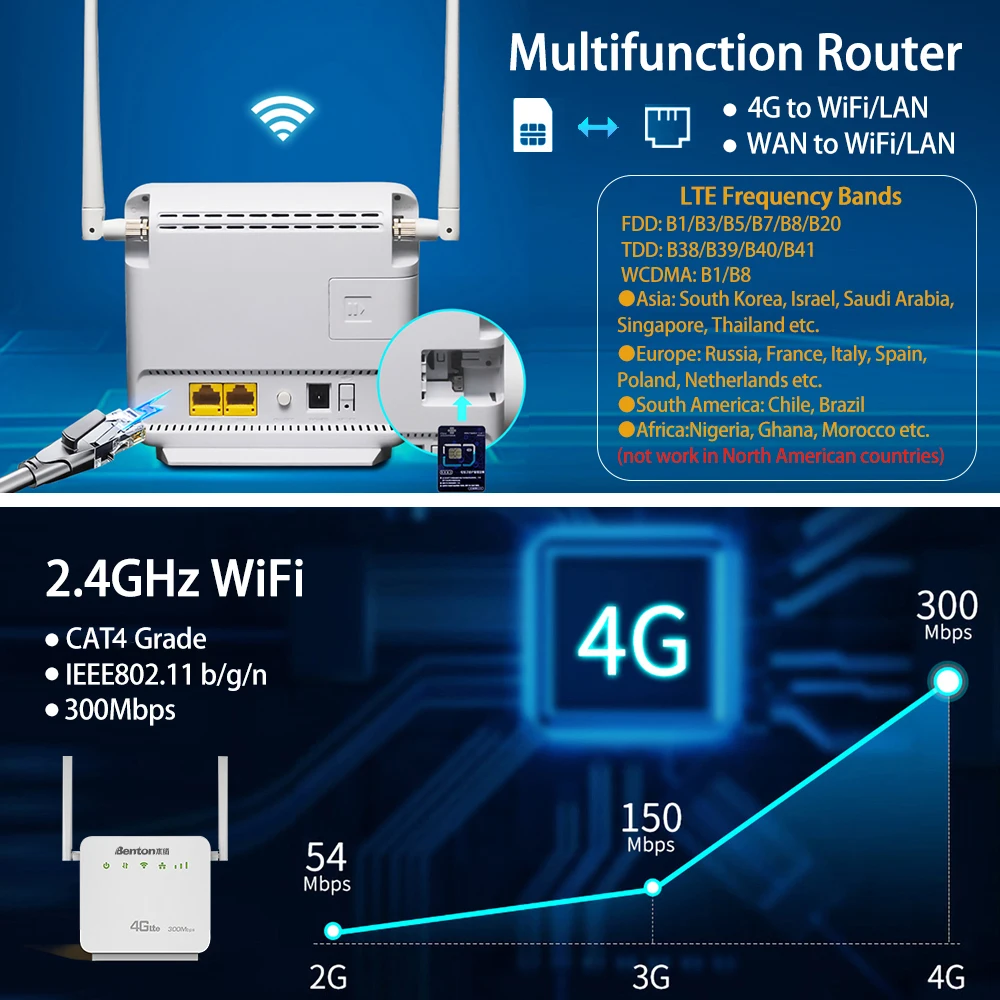

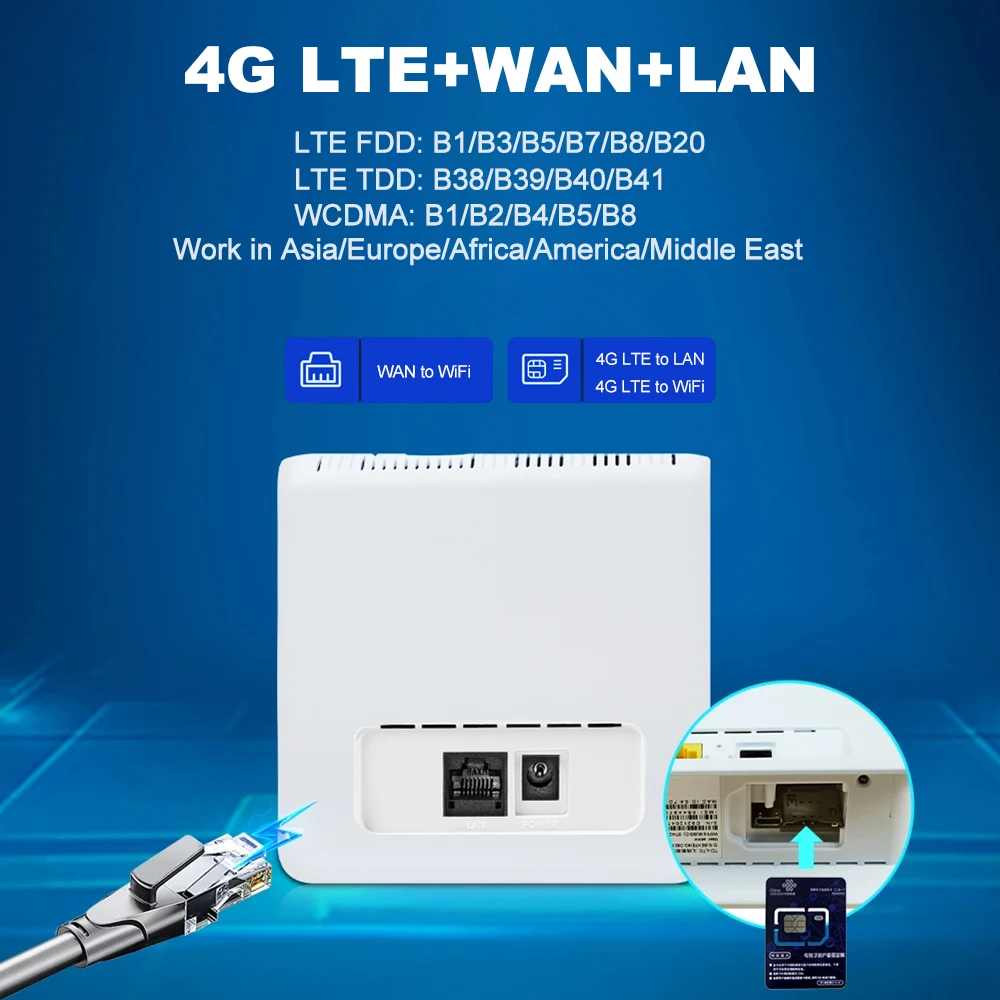

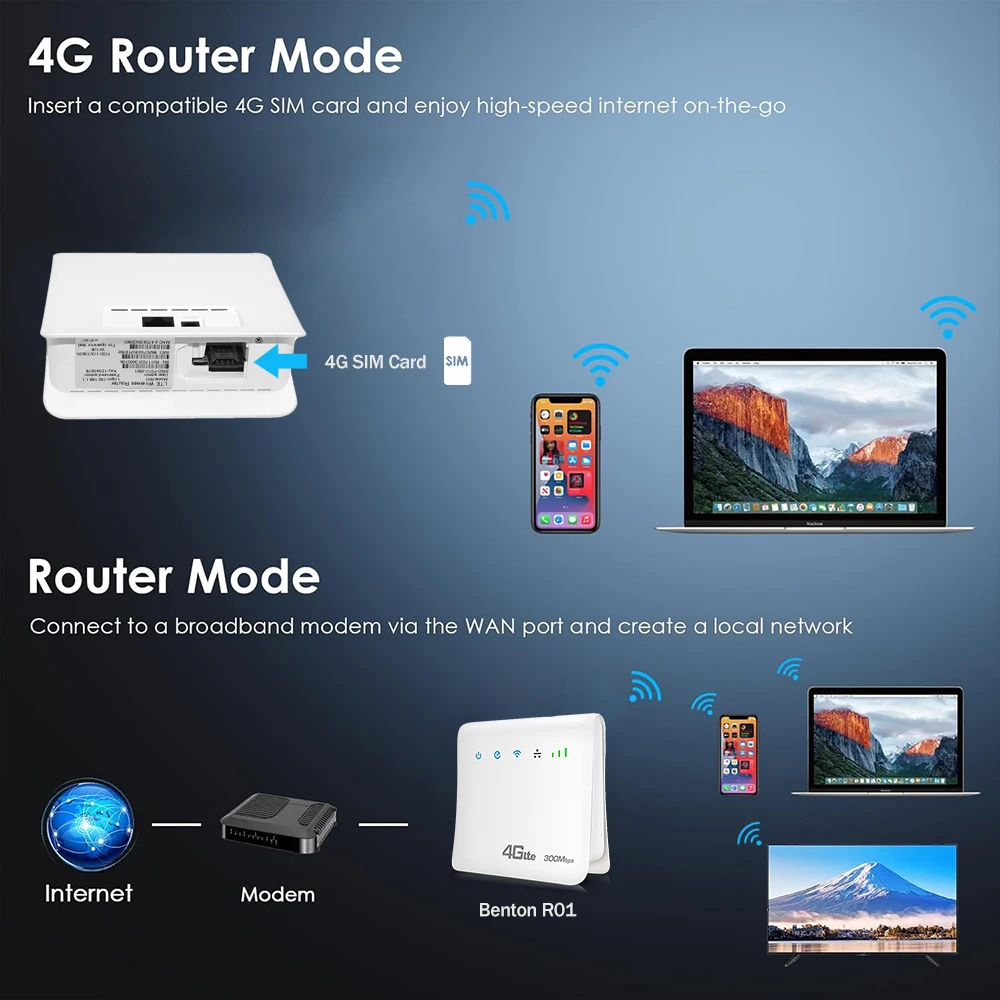

【MULTI-FUNCTIONAL ROUTER】Come with SIM Card slot and 10/100Mbps WAN/LAN port, easily to realize 4G to WiFi, 4G to LAN and WAN to WiFi.

【COMPATIBLE WITH VARIOUS OPERATORS】The wifi sim router is compatible with SIM cards of various operators in more than 100 countries, supports AUTO/Manual APN.

【4G HIGH VINES NETWORK】Share a 4G LTE cellular network up to 300Mbps with multiple WiFi devices and enjoy HD movies, fast file downloads and smooth video conferencing.

【2.4GHz Wi-Fi 300Mbps SPEED】Connect multiple devices simultaneously with 2.4GHz WiFi speed of up to 300Mbps.

【LAN/WAN FAST ETHERNET port】WAN/LAN ports are ready to provide Internet to wired devices, such as laptops, computers or game consoles, to provide a more flexible and convenient network experience.

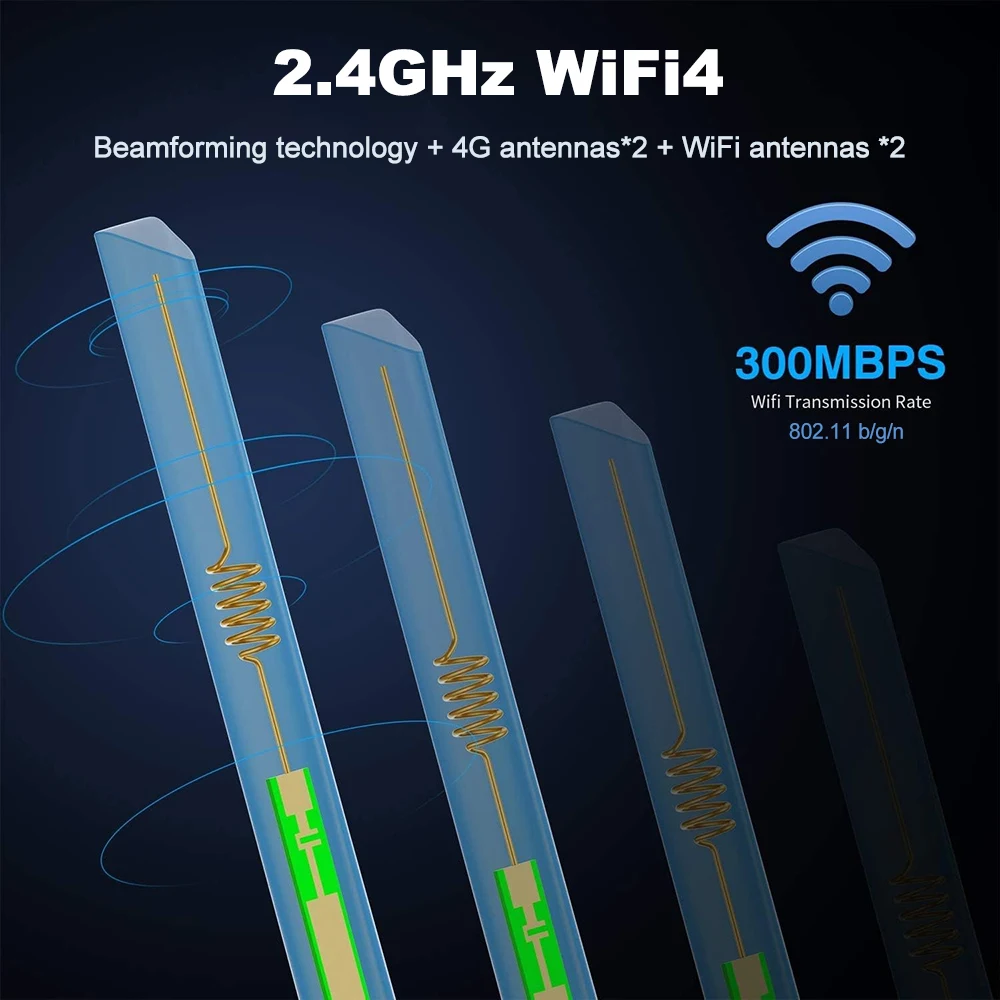

【4G ANTENNA】With 2 fixed internal 4G antennas and 2 internal Wi-Fi antennas, they make Wi-Fi connections more stable and reliable.

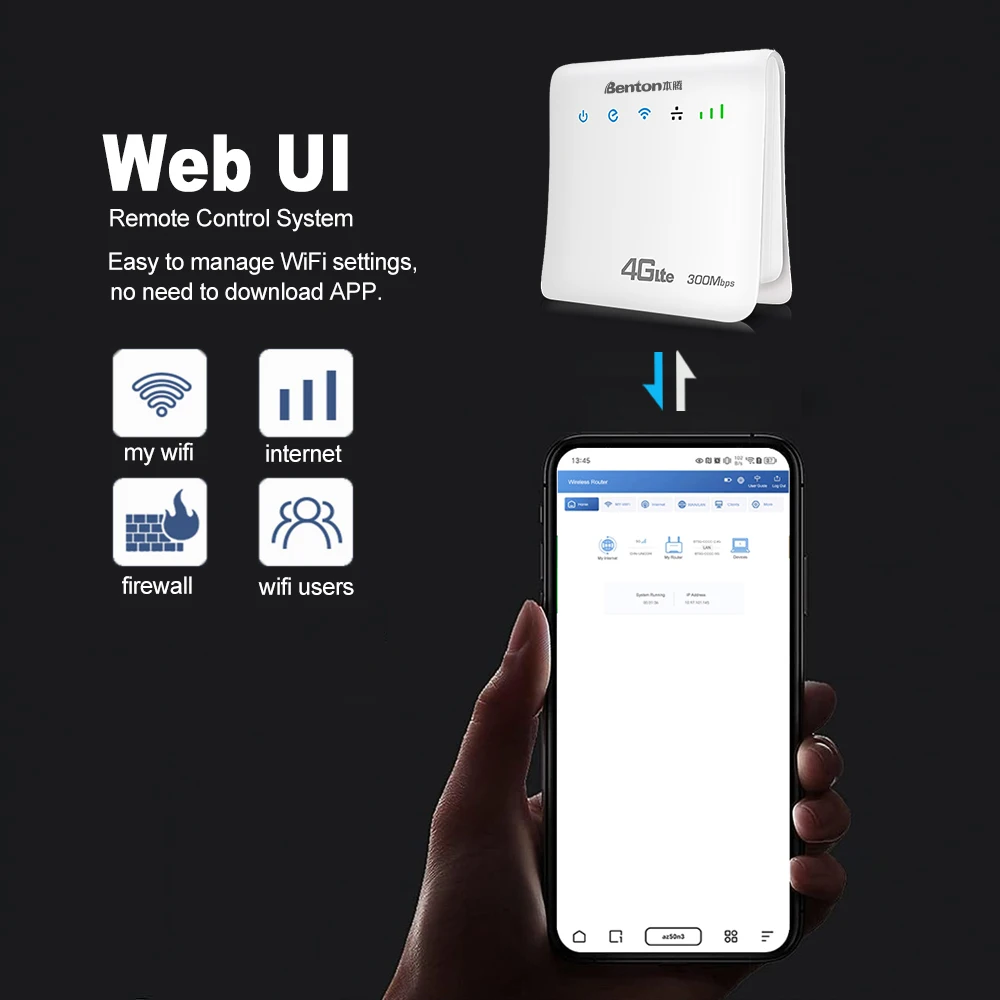

【ONLINE MANAGEMENT】Easy to operate the router via router sevice website, no need to download any APP or software.

【SMS FUNCTION】Support SMS function, convenient to receive, write and send messages via router service website.

【COMPACT DESIGN】 its small design allows it to be portable, save more space and easily carry it wherever you go.

【MULTIPLE USE SCENARIOS】Wireless broadband access anywhere, suitable for groups/teleworking, home/vacation use, travel/remote areas and retail/small businesses, and provides a mobile network for monitoring.

4G/5G LET Frequency Bands of Different CountriesBenton R01Benton R06
