1. Plug and play: Use the original car audio host's disc box interface to install in place, simple and fast, and integrate perfectly with the original car.
2. Support HFP Bluetooth hands-free calling: You can control the operation of answering / hanging up the phone through the original car audio host and the steering wheel buttons.
3. Support A2DP Bluetooth music player: Bluetooth device audio can be easily played through the original car audio
4. Bluetooth AVRCP control technology: You can use the car audio host (or steering wheel) to control song selection / fast forward / rewind / pause, easy and safe control.
5. High-fidelity sound quality: The Bluetooth host is output to the car audio through a wired connection, eliminating any interference and sound quality loss, and the sound quality is comparable to CD.
Product Description:
- Input voltage: 12V DC
- supports HiFi, A2DP, AVRCP and HFP
- Frequency response: 20Hz to 20kHz, ± 2dB
- Frequency Range: 2.402~2.480GHz
- Power: ≤ 5W
- Distortion: 0.01%
- SN Ratio: 95dB
- Working temperature: -35C-85C

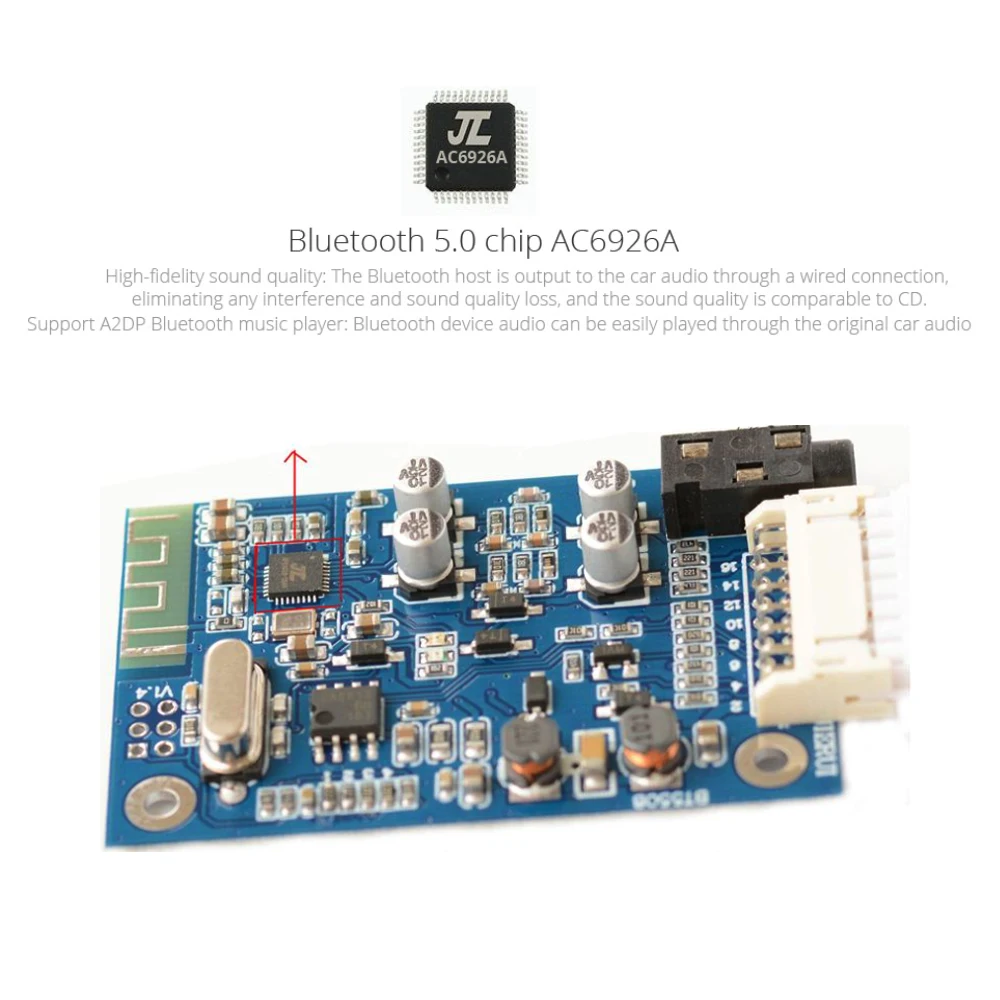

- AC6926A stereo bluetooth chip.
- Integreated intelligent voice noise reduction tenology to reduce for echo and noise
- Support Button control on radio/steering wheel
for Volkswagen
original radio
for Skoda
original radio
for Audi
original radio
for Seat
original radio
Note: NOT compatible with Navigator or XM radio.
Installation Guide
1. Power off the car, remove the radio
2. plug the device into the CDC port ( at the back of radio )
3. Connect your Ipod or Iphone by include ipod cable.
4. For Bluetooth, plug the included MIC phone into the device and fix the microphone on a good position. then open the BT in your mobile,
5. After connecting, turn on your radio and press CD/AUX to switch to the ipod aux adapter, Then you could listen the music from the ipod, Control the music from the audio button by pressing DISC +/-, TRACK +/-
6. For BT, when the call is coming the device will switch form IPOD mode to BT mode, Press TRACK +/- to answer or end call, when you hang up the call, it will continue to play the ipod music automatically.

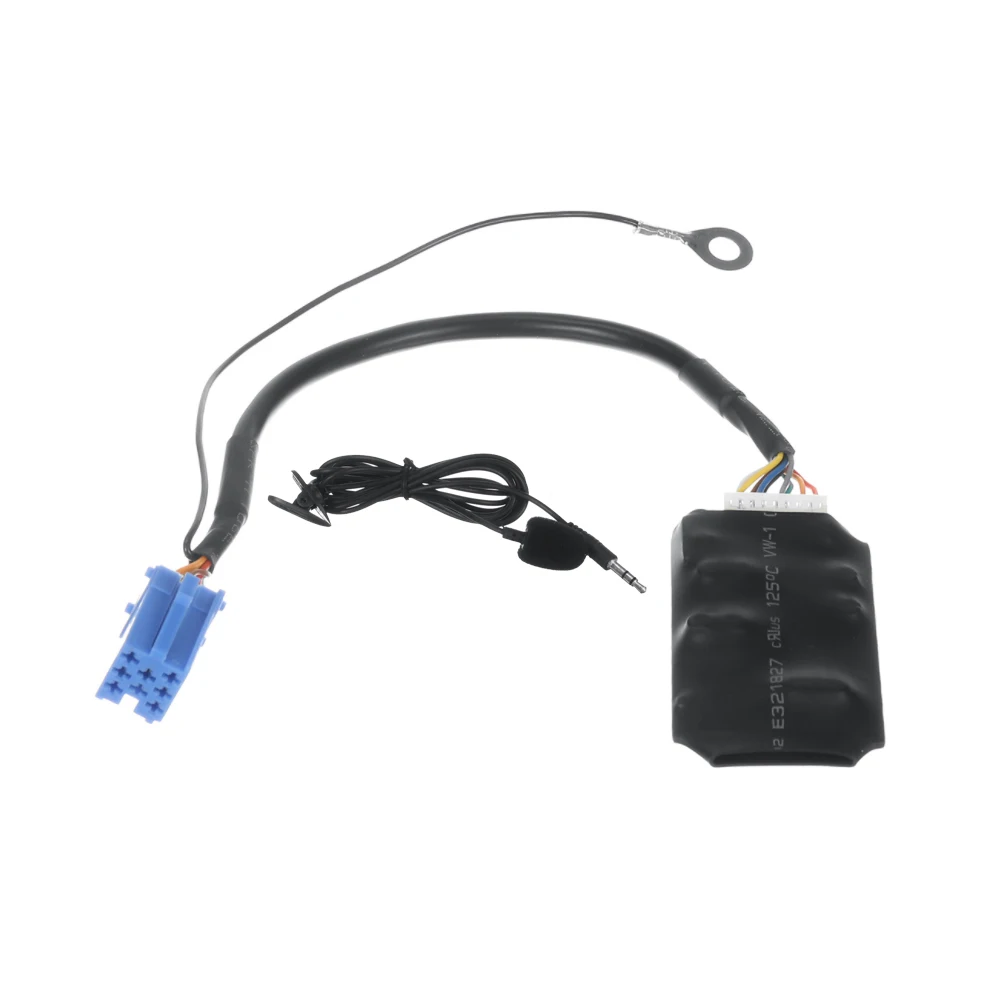

Package List:
1 x bluetooth module
1 x bluetooth microphone
1 x User Manual
1 x Cd Cable
