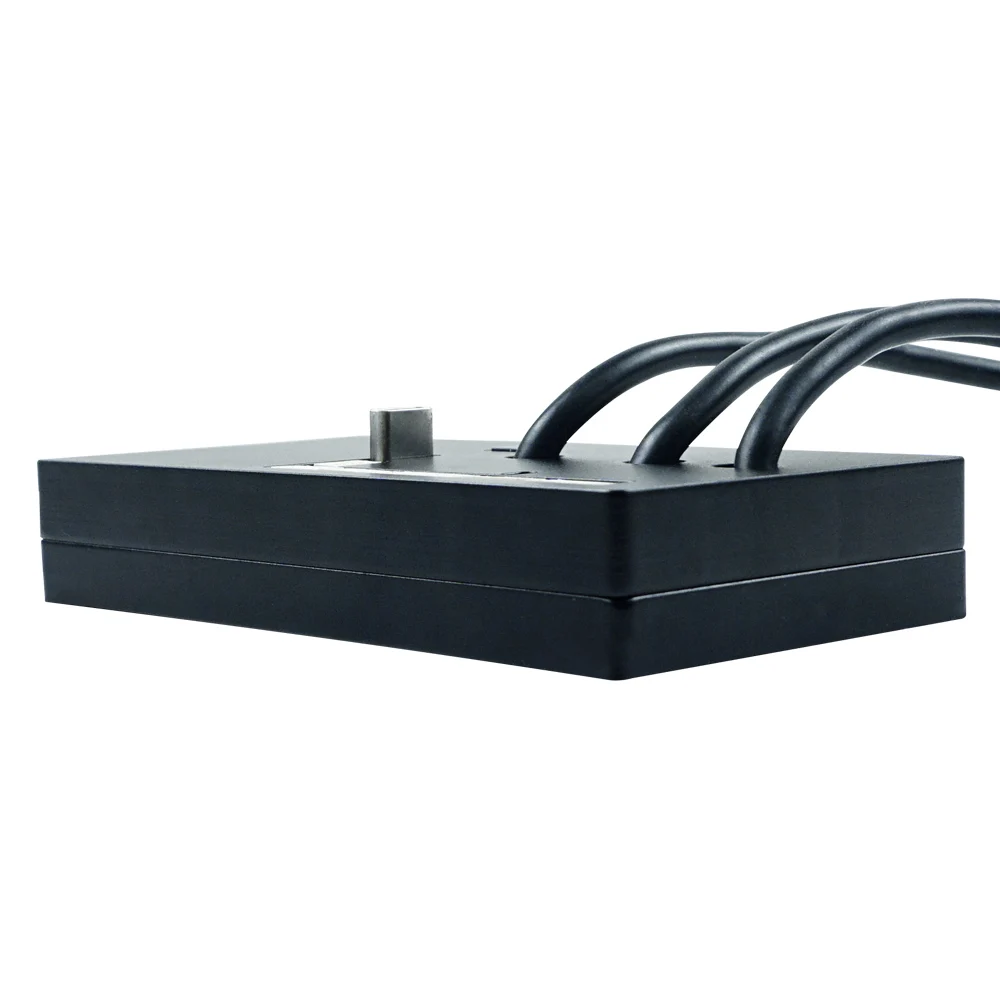

Flipsky 75100 With Aluminum PCB Based on VESC For Electric Skateboard / Scooter / Ebike Speed Controller

It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Warm tips:

Please be careful to limit the Absolute Maximum Current below 250A,setting page

Specs:

• Size:L85mm*W50.7mm*H33.8mm*H18.5mm+5.9mm USB TYPE

• Voltage:14-84V (4-20S)

• Current:100A Continuous,burst 120A

• BEC:5V@1.5A

• Support BLDC square wave mode control and FOC sine wave mode

• Firmware: latest (firmware update supported)

• ERPM:150000

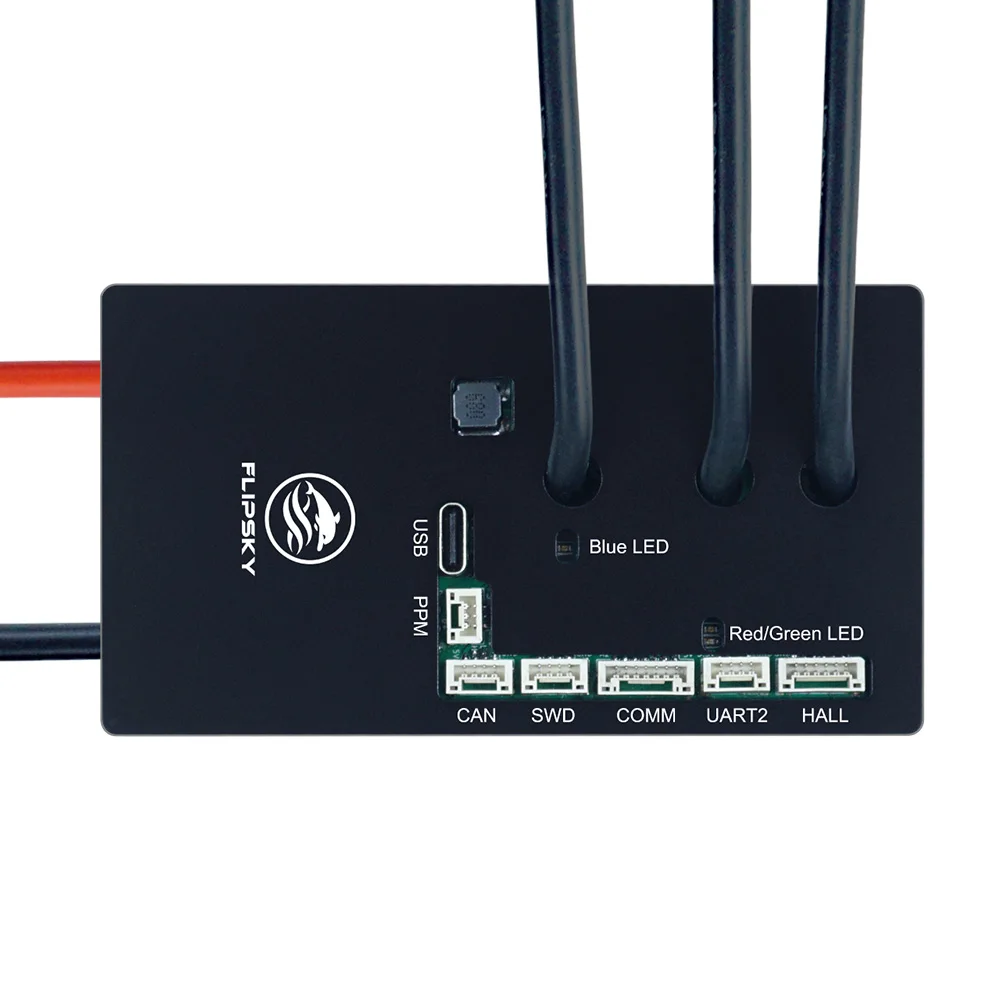

• Control Interface Ports:USB,CAN,UART

• Supported Sensors:ABI，HALL，AS5047，AS5048A

• Input Set Support:PPM，ADC，NRF,UART

• Wire Size: 12AWG

• Programmable: Yes

• Regenerative Capacity: Yes

Warm tips:

Wiring diagram：
