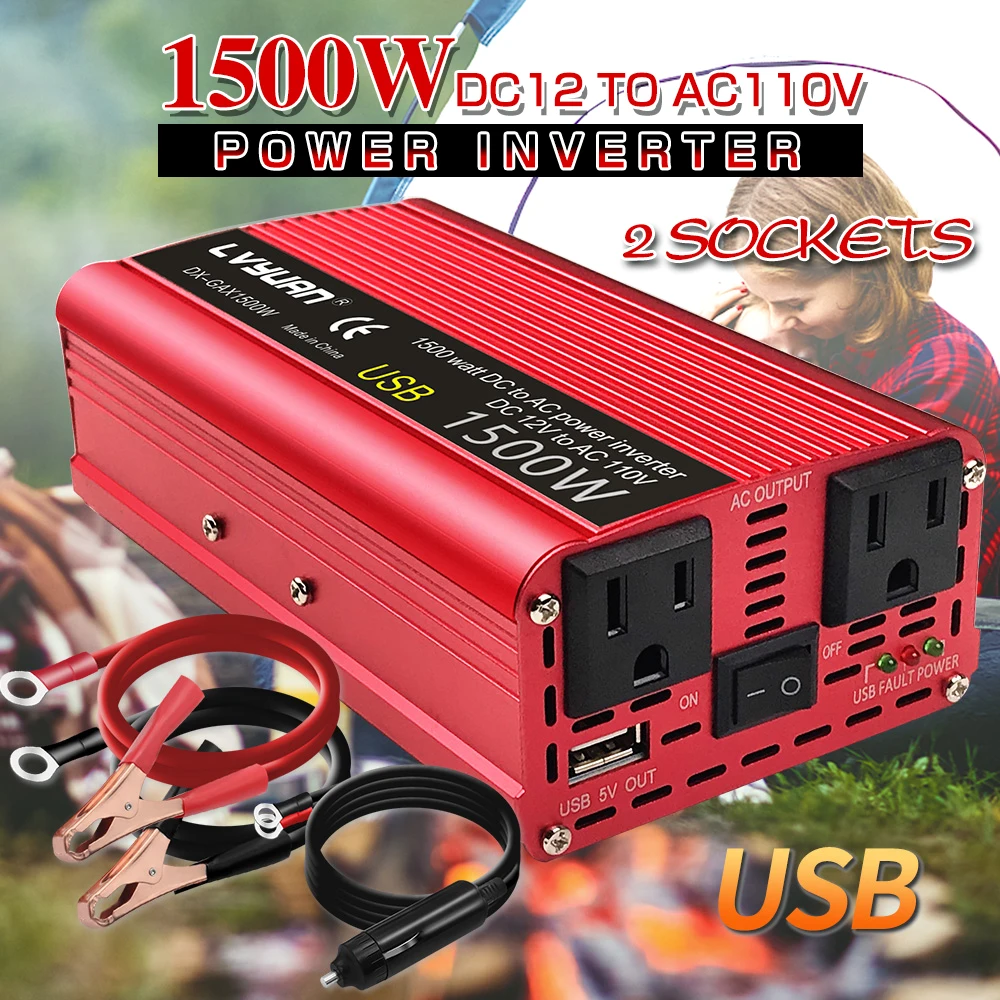

Inverter 12V 110V 60hz 1500W 2000W 2600W portable household converter us socket automotive accessories

Specifications

Output Waveform : Modified Sine Wave

Peak power:1500W/2000W/2600W

Continues Output Power:750W/1000W/1300W

Frequency:60HZ士0.2HZ

Inversion Efficiency :>90%

Input DC Voltage :12V

DC Voltage Range:10V-15V

Output AC Voltage : 110V

AC Voltage Range :100V-120V

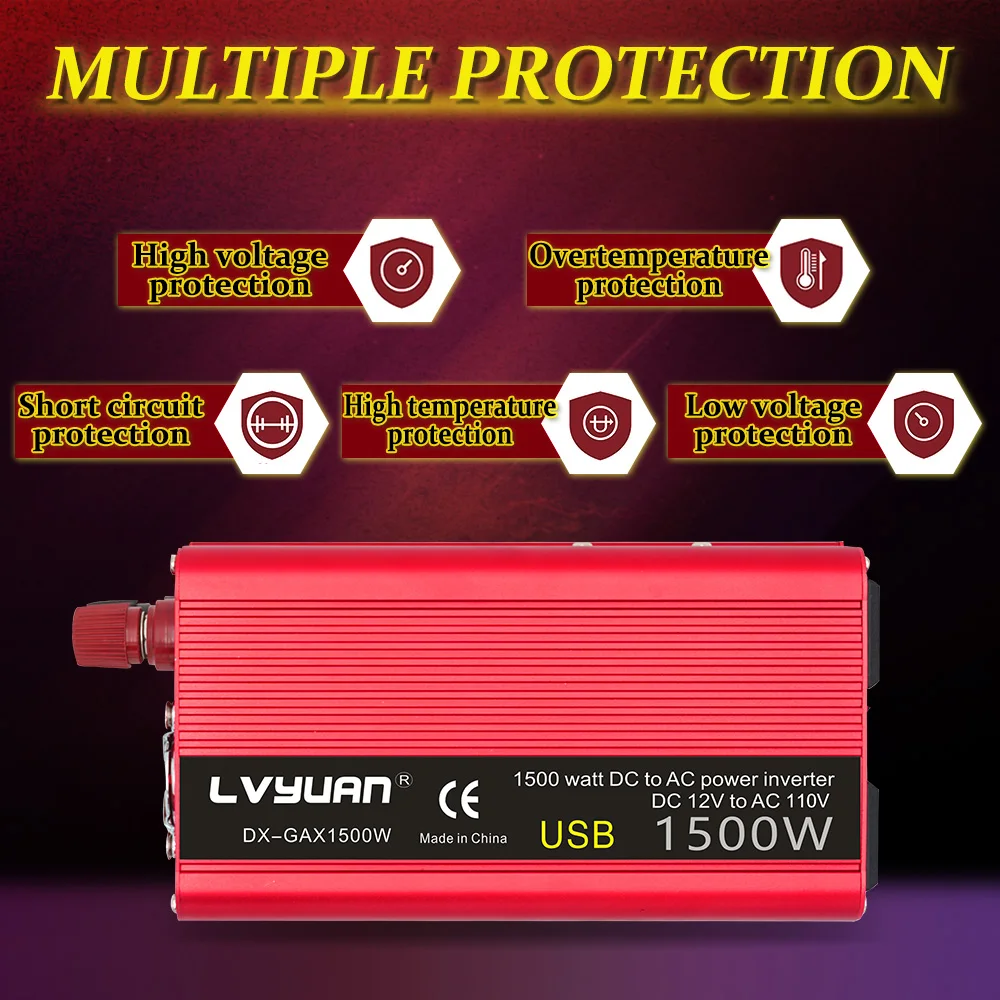

Low Voltage Shut Down:10V DC0.5V

Over Load :Shut Off Output

Over Voltage Shut Down:15V0.5V

Over Thermal : Shut Off Output Automatically

Fuses : Short Circuit

Start : Soft Start

After-sales service : One year warranty

No load current: the no-load consumption current is depends on the size ofinverterMaterial:Aluminum AlloySocket Stvle :US Socket

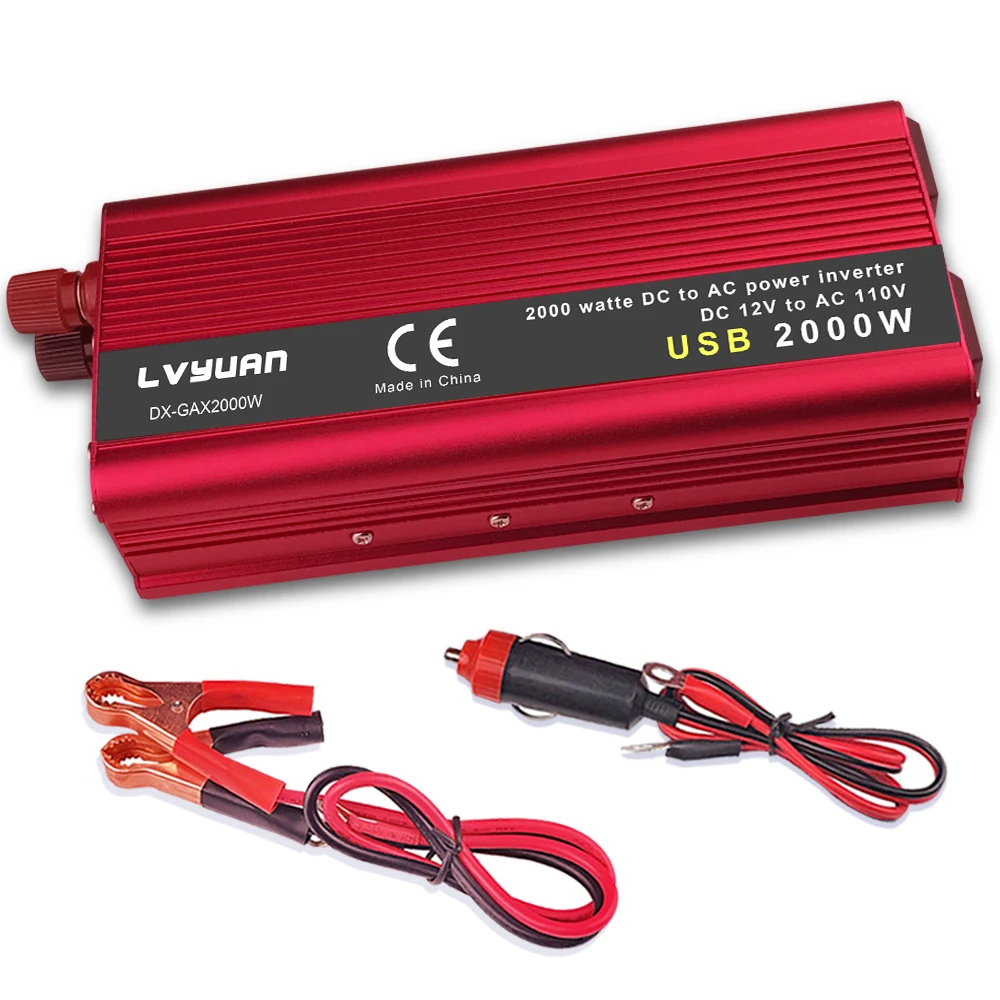

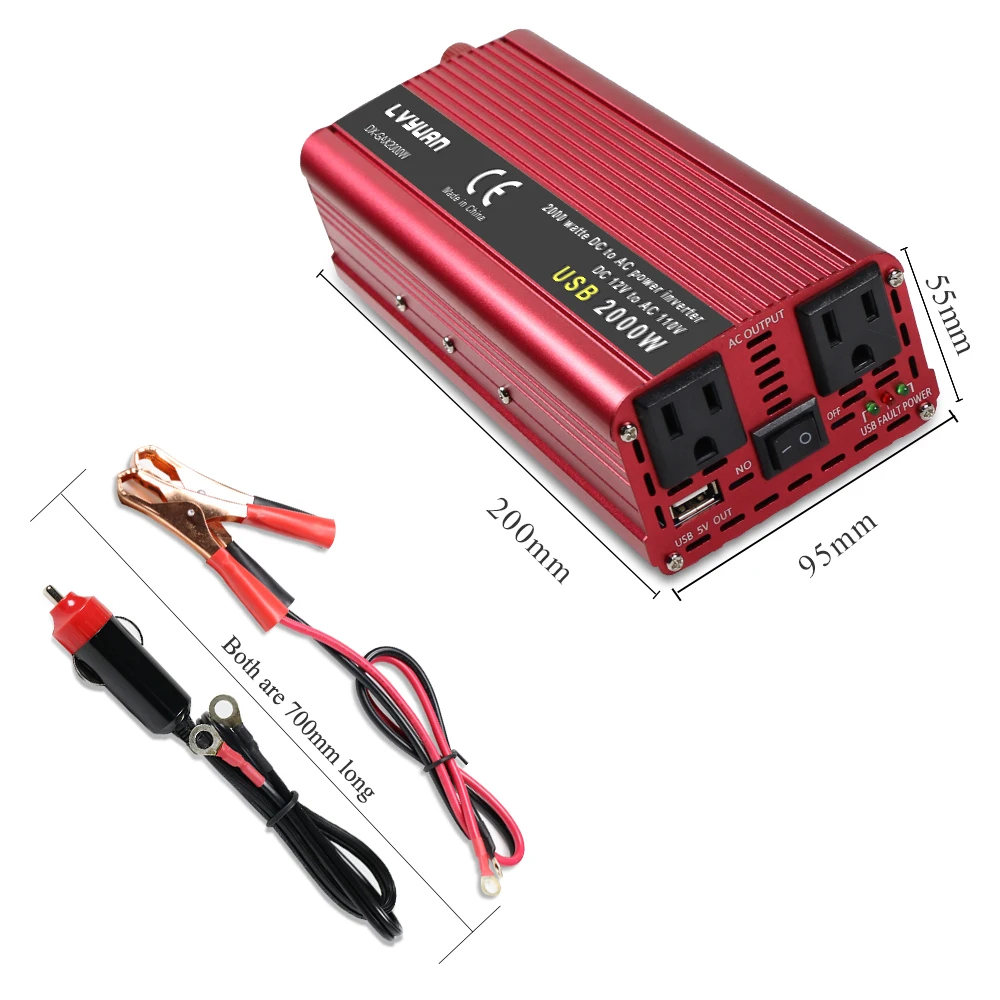

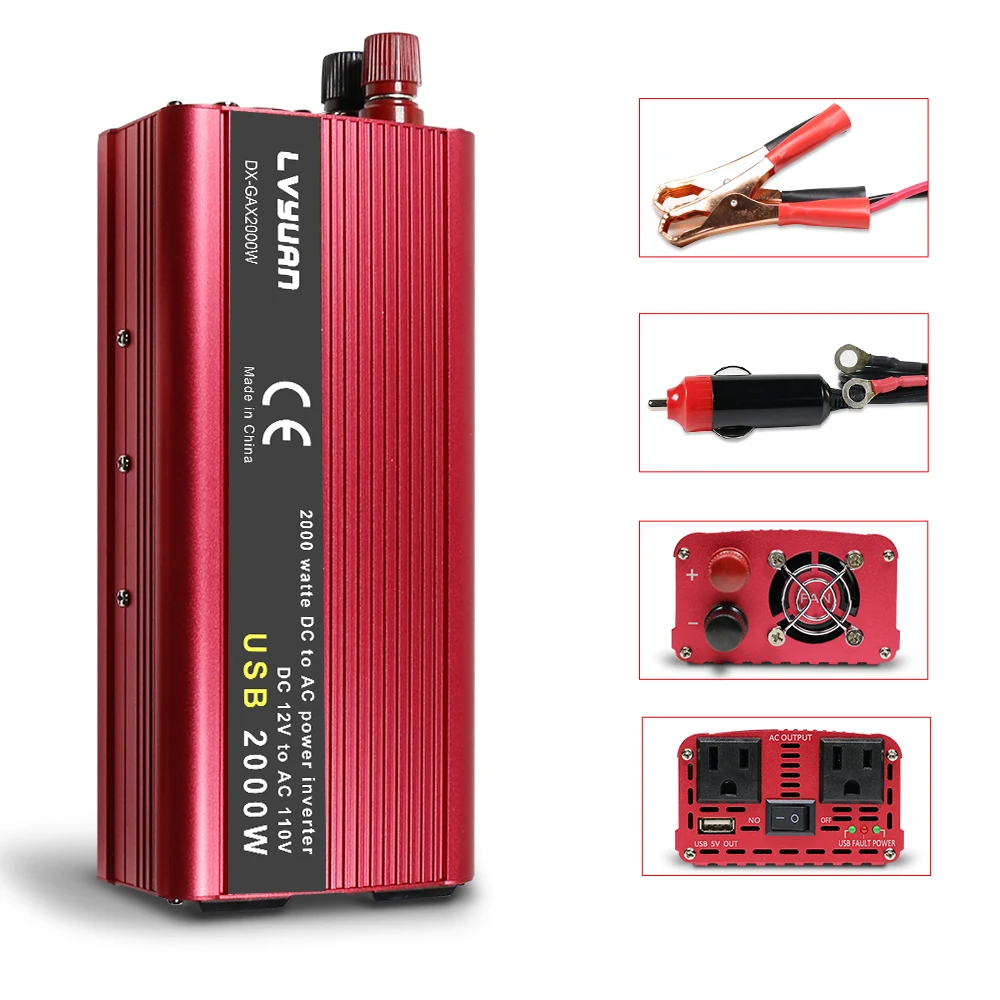

Packageinclude:

1 x Inverter

2 x Battery Cable

1 x User Manual

PLEASE NOTE

1. Please ensure that the rated power is higher than the appliance you want to apply.

2. lf you want to run several devices at the same time, you should refer to the total wattage.

3. If you want to run the inductive load for a long time, choose the Pure sine wave inverter.

4. Please use the standard battery cables we sent, or a full power output may not be guaranteed. Andthe spare fuses in the package are just used when the original ones are burned by accident.

5. Please do not connect the inverter with the grid power, and a reverse connection of positive and negative is also forbidden.

6. Please do not overload. lf your applications are inductive loads, please choose the inverters whosecontinuous power is 3-7 times higher than the watts of your appliances. such as fridge, icebox, drillwashing machine, water pump, microwave oven, oven, vacuum cleaner, hair dryer, etc. with motor inside.

Attention: Car cigarette lighter can only support a power within 100W

Frequently Asked Questions

How to buy inverter SERVICE UPGRADE

Firstly, please confirm your battery voltage and battery capacity.

If your battery voltage is 12V, please choose a 12V inverter. The battery voltage must be consistent withthe inverter model. The larger the battery capacity, the greater the electrical power that can be driven.How much power can the battery bring = voltage of the battery * battery capacity *0.8.

For example:How much power can the battery of 12V60AH bring =12*60*0.8=576W electrical appliances

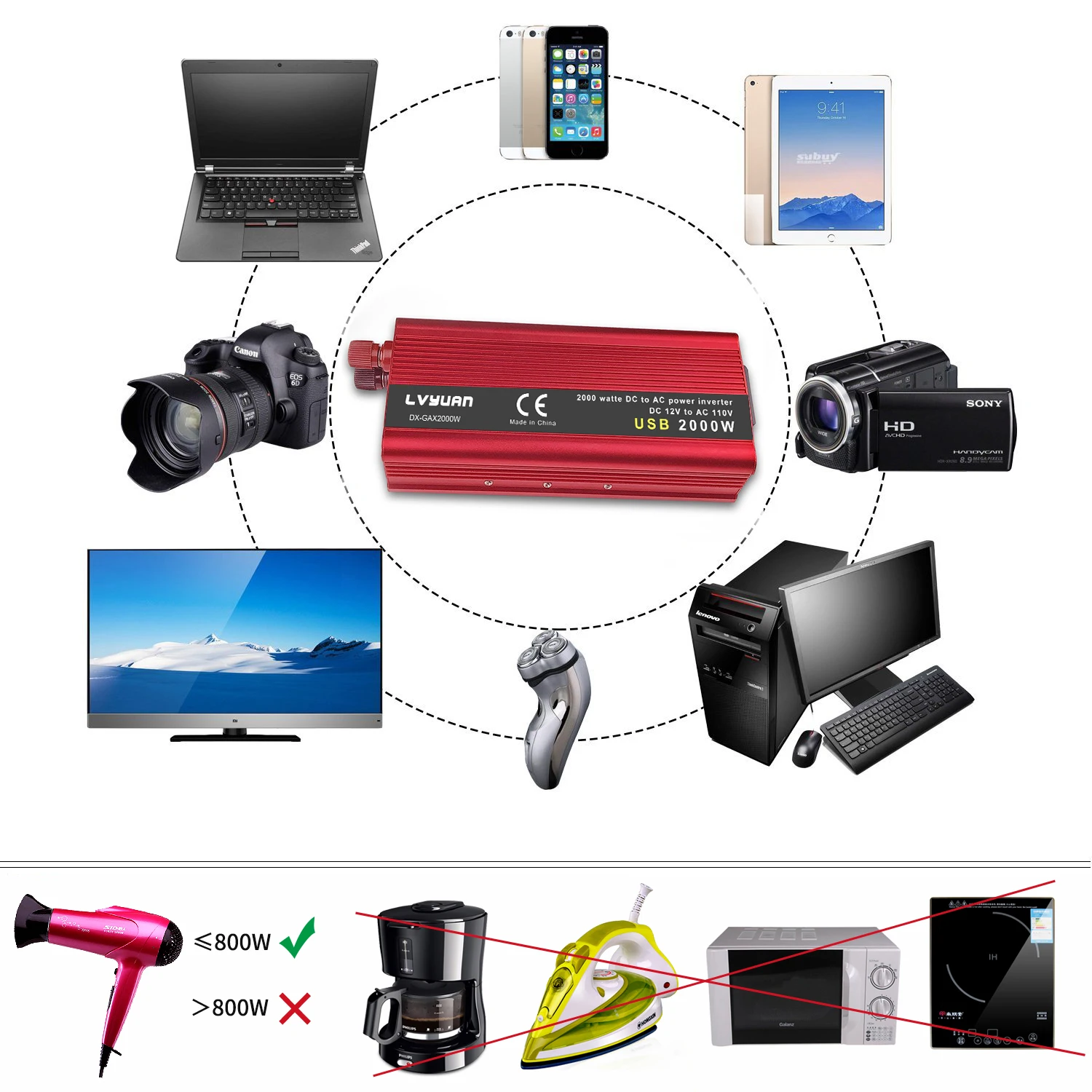

What electrical appliances should bring?

Electrical appliances are divided into inductive load appliances and resistive load appliances

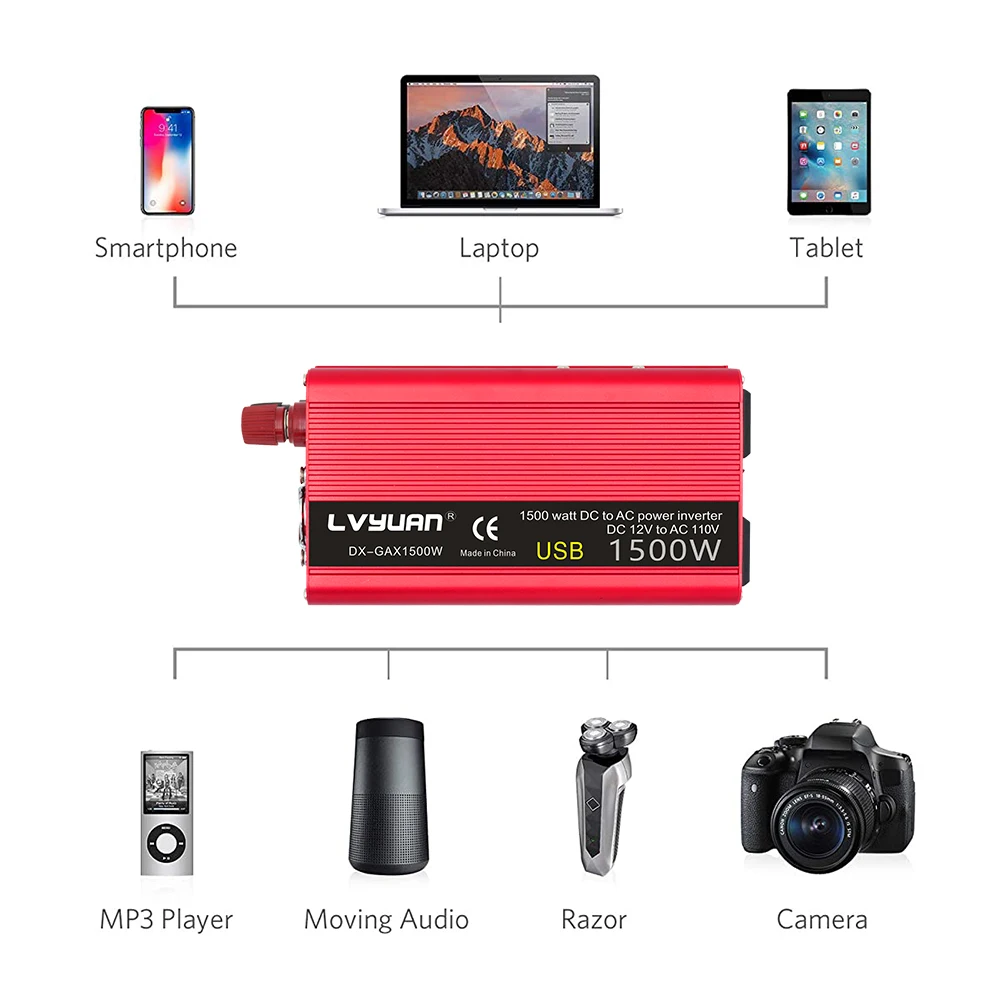

Resistive load appliances: computers, televisions, fans, lights and other household appliances.

Inductive load appliances: refrigerators, washing machines, hand drills, air conditioners, water pumps.air pumps,etc.

The instantaneous power of inductive load electrical appliances is relatively large and has peak power.which is usually 3-10 times of its rated power

For example, for a 300W air conditioner, the starting power is generally 3 times-10 times and so an in-verter with a peak power greater than 3000W is needed to bring it

Attention! Although the power of LED bulb is very small, sometimes the inverter of2200W can't drive, becauseLED or energy-saving bulb is divided into national standard and non-national standard, and non-nationastandard bulb is not standardized. Please choose national standard bulb, so that the inverter can drive normally! This modified wave inverter with energy-saving lamps, LED lamps, induction cooker and welding machine may damage the inverter, SO it is reconmmend pure sine wave power inverter.
