Product Description
SoCset | nRF54L15 |

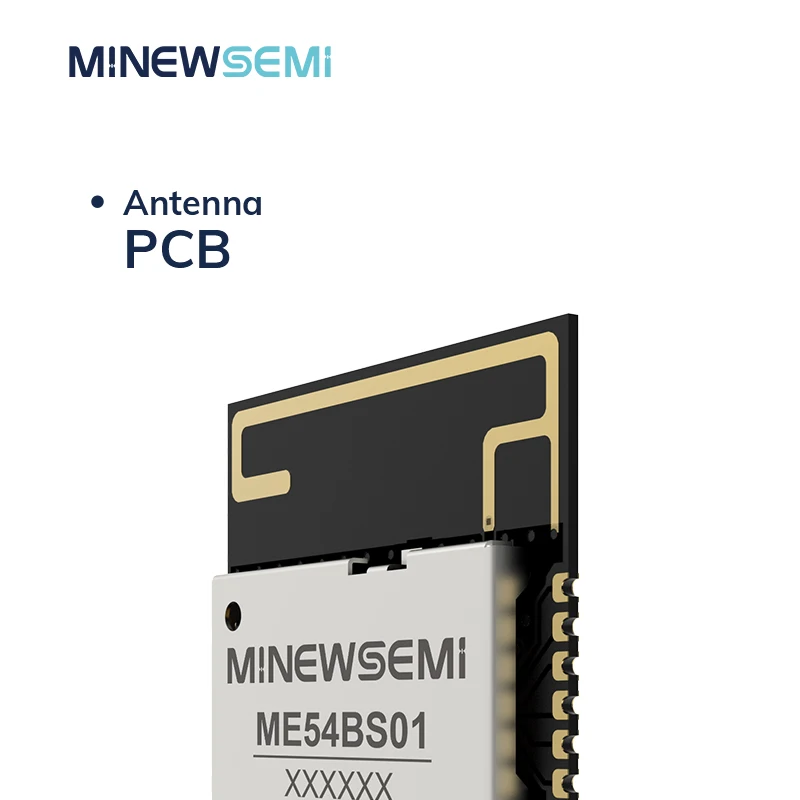

Antenna | PCB |

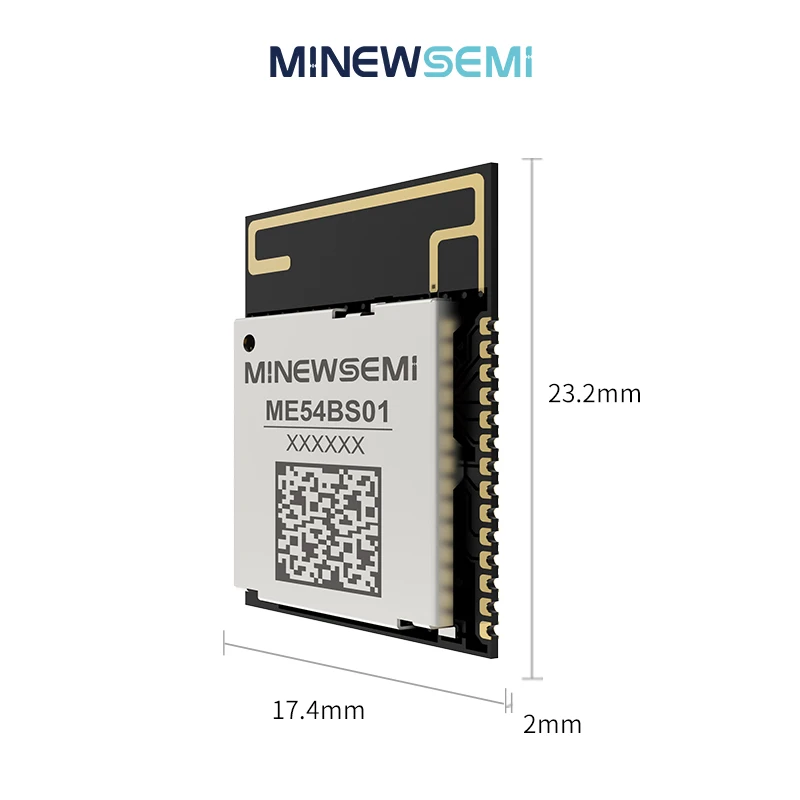

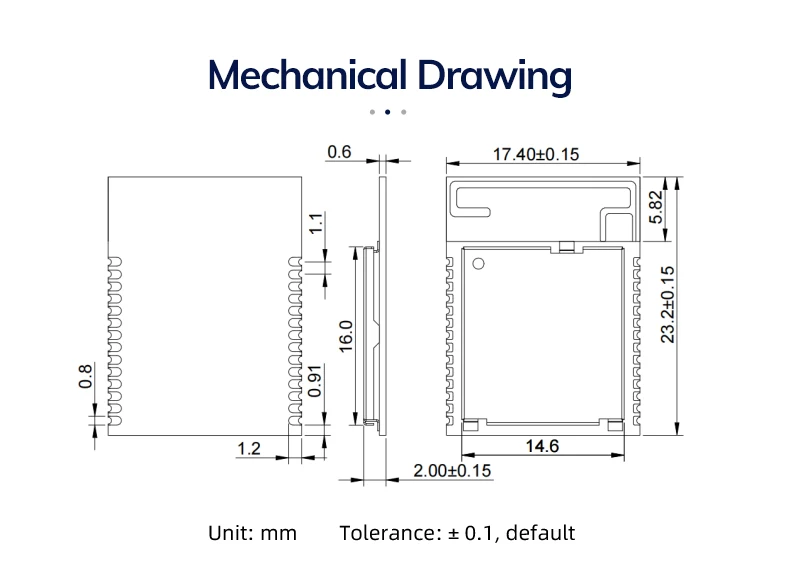

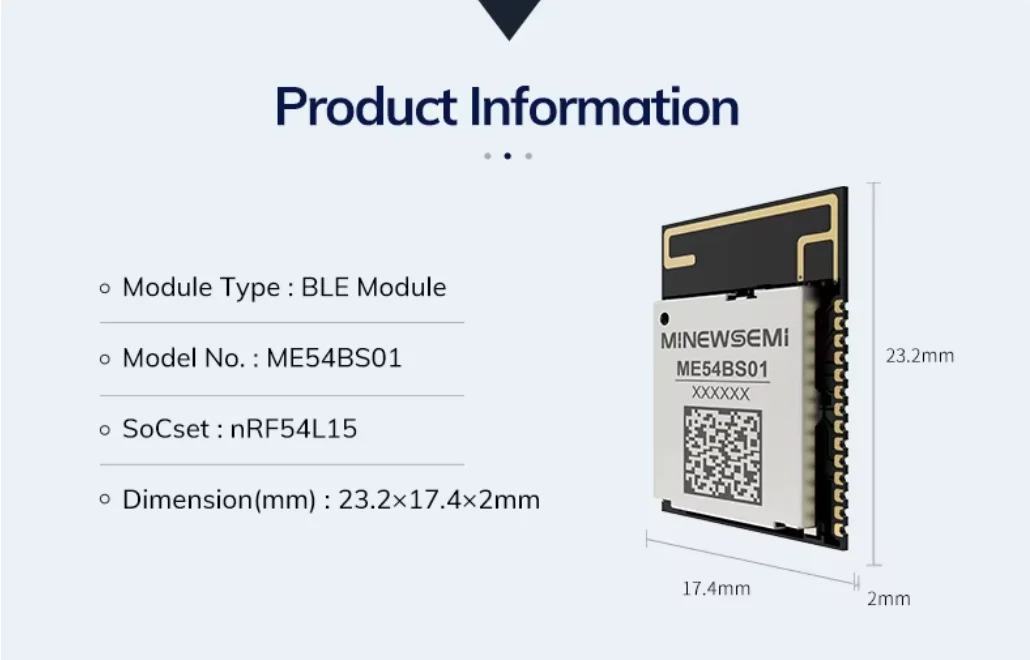

Module Size | 23.2x17.4x2mm |
Flash | 1524KB NVM |
RAM | 256KB |
Receiving Sensitivity | -98dBm |
Current(TX) | 0dBm-5mA |
Transmission Power | -40~+8dBm |

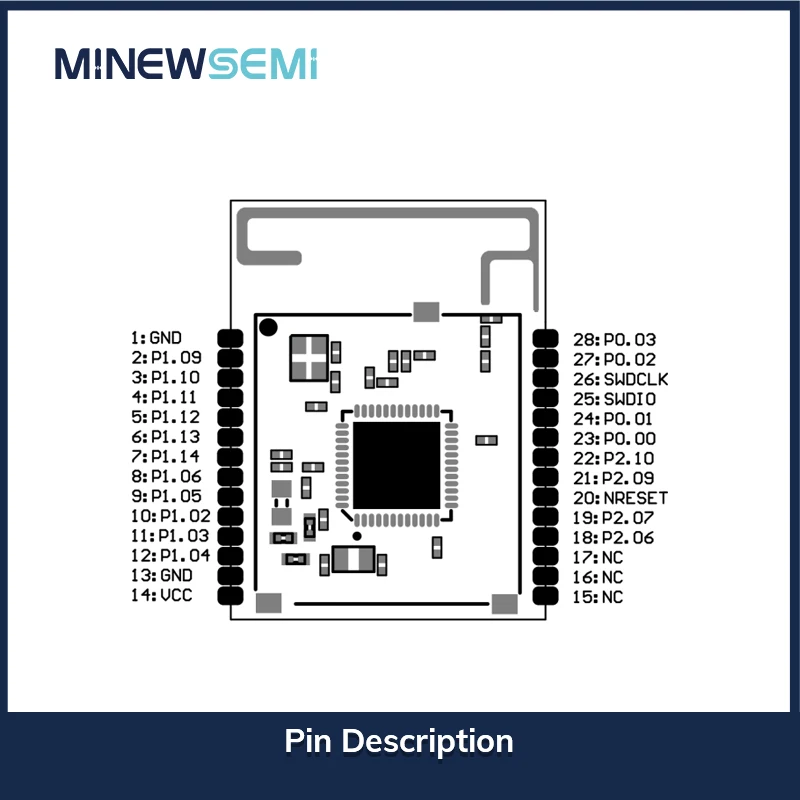

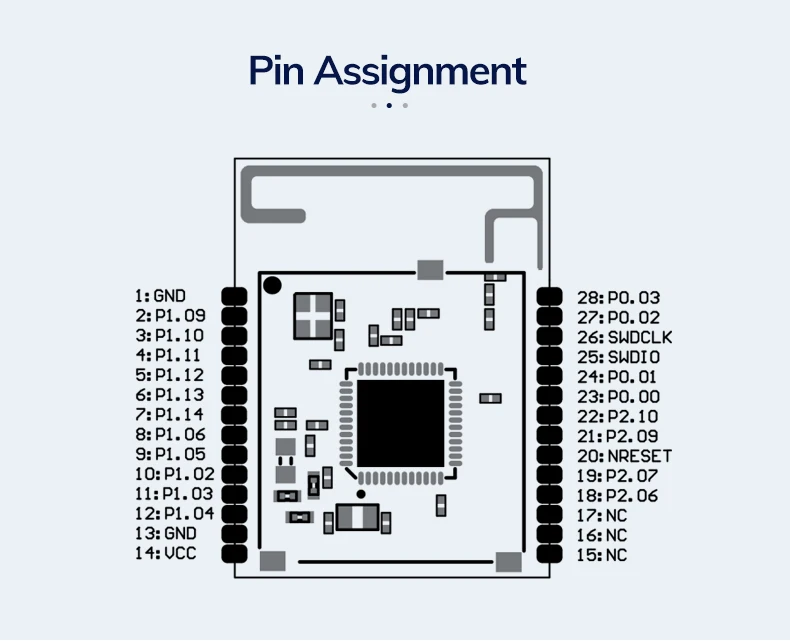

GPIO | 19 |

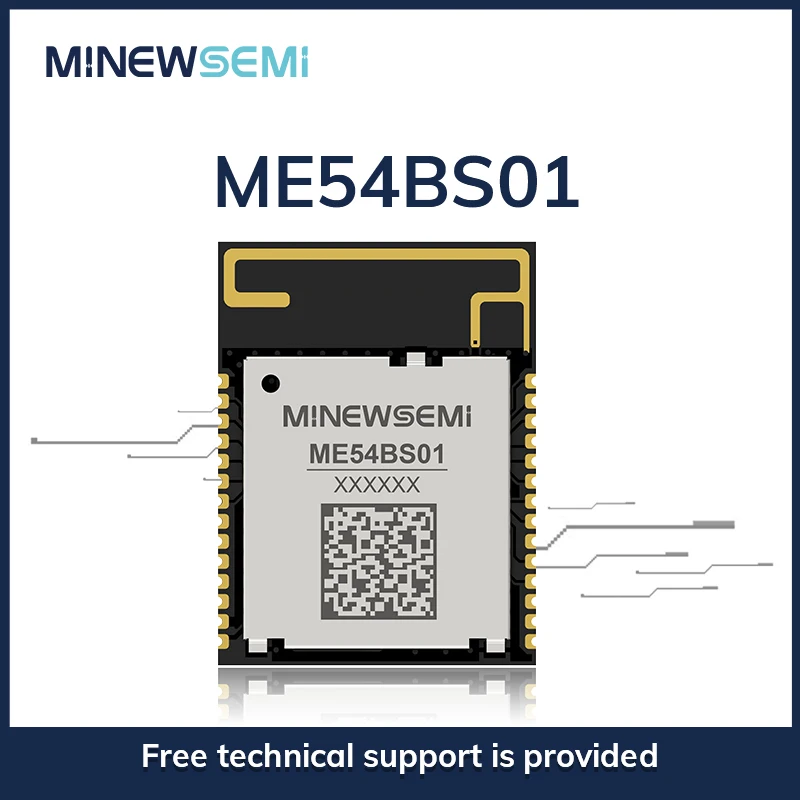

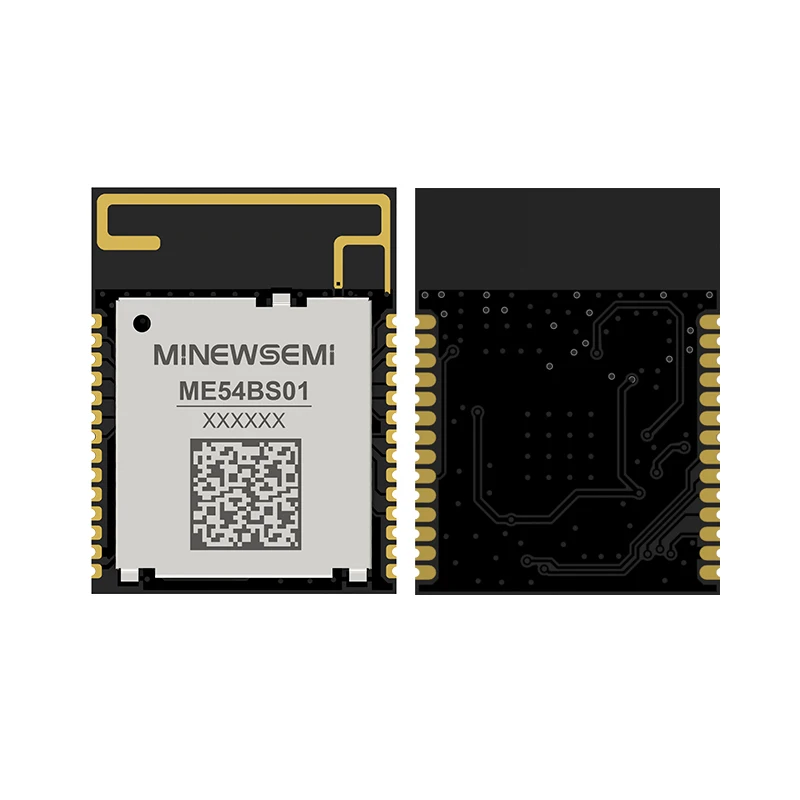

ME54BS01 is a highly flexible, ultra-low power, cost-effective Bluetooth module based on nRF54L15. Its powerful Arm Cortex8-M33 CPU has a core running speed of 128Mhz. In addition, it also has 1524KB NVM space and 256KB RAM.

It is also designed for PSA Level 3 certification and has high security protection. The hardware isequipped with an onboard antenna, and the integrated design highlights the higher performance of the nRF54 series and provides more GPlO development and use, At the same time, the ultra-low system power consumption and excellent RF performance as well as other powerful supporting resources can provide a perfect solution for Bluetooth connection.

Click on the picture below to order the development board-ME54BE01
Parameter



Total
£7.98
