Summary

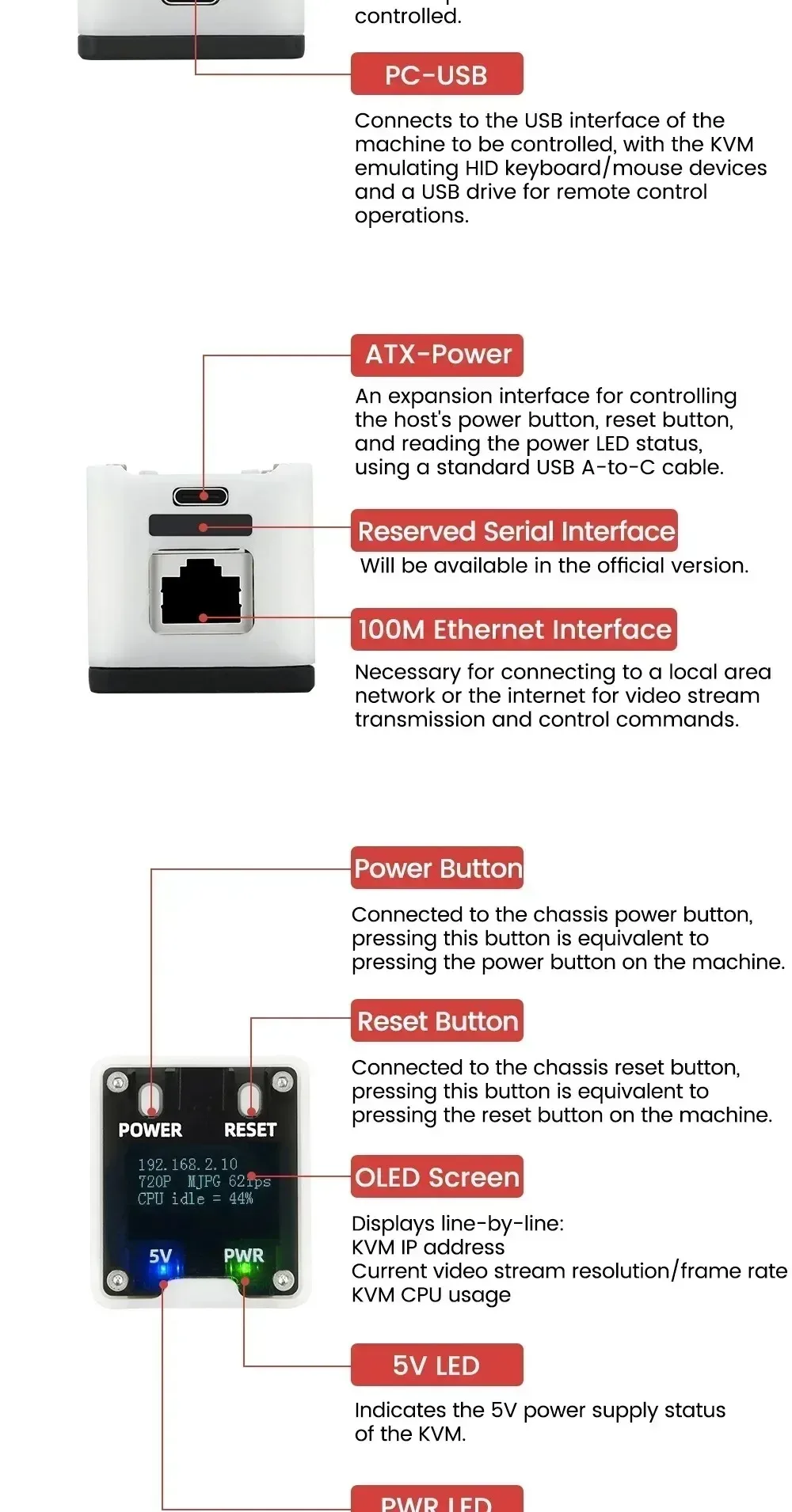

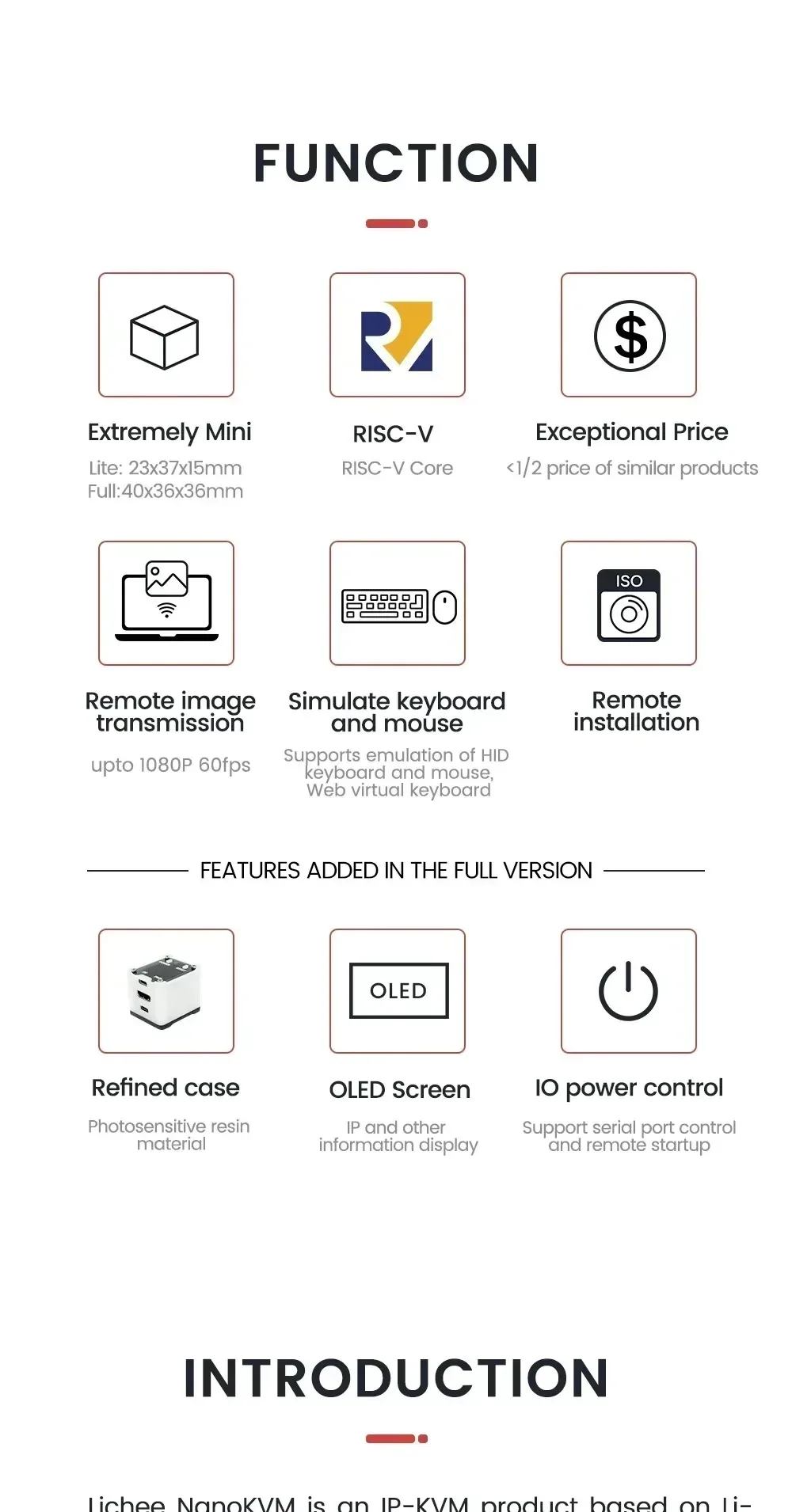

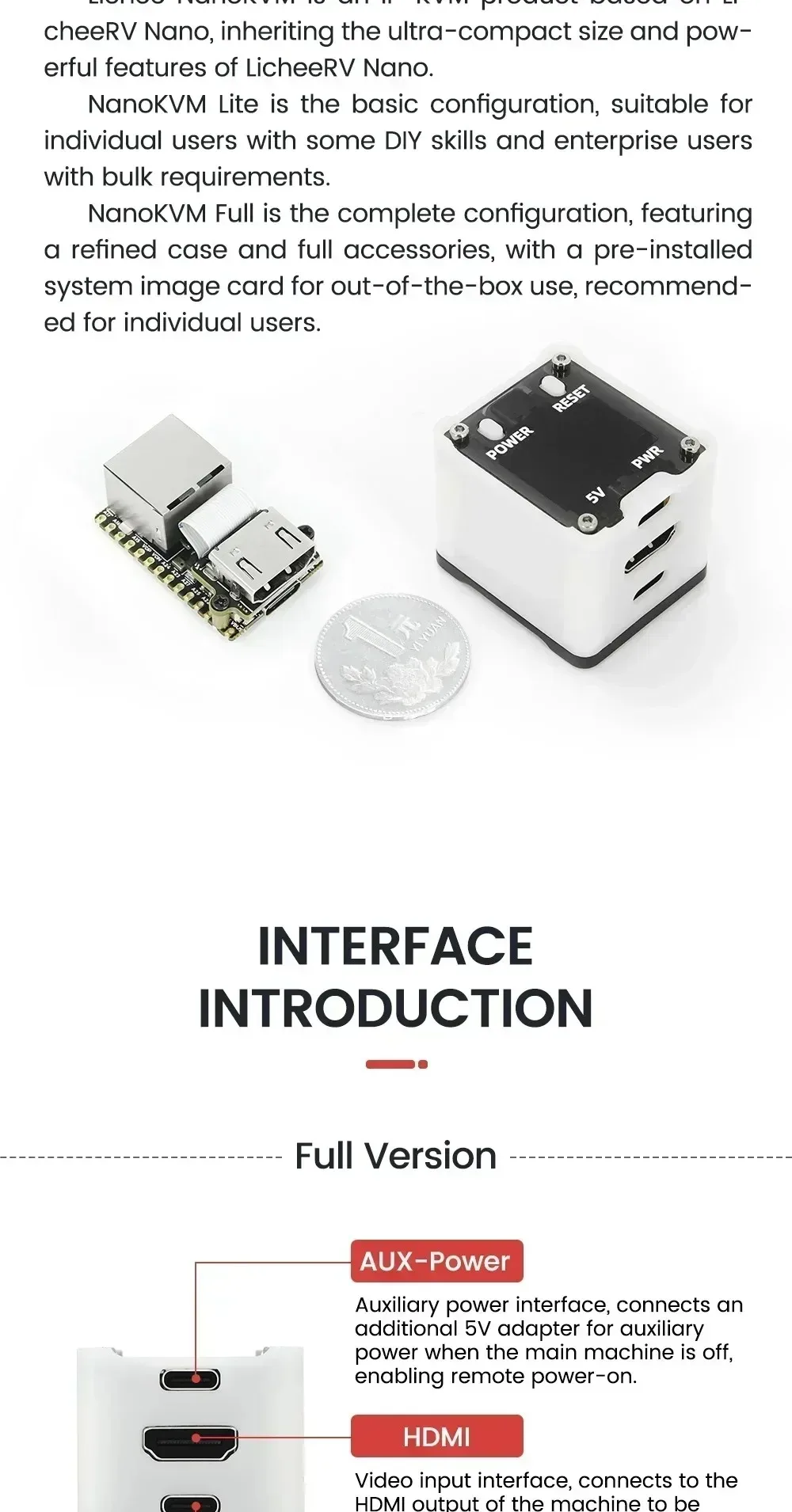

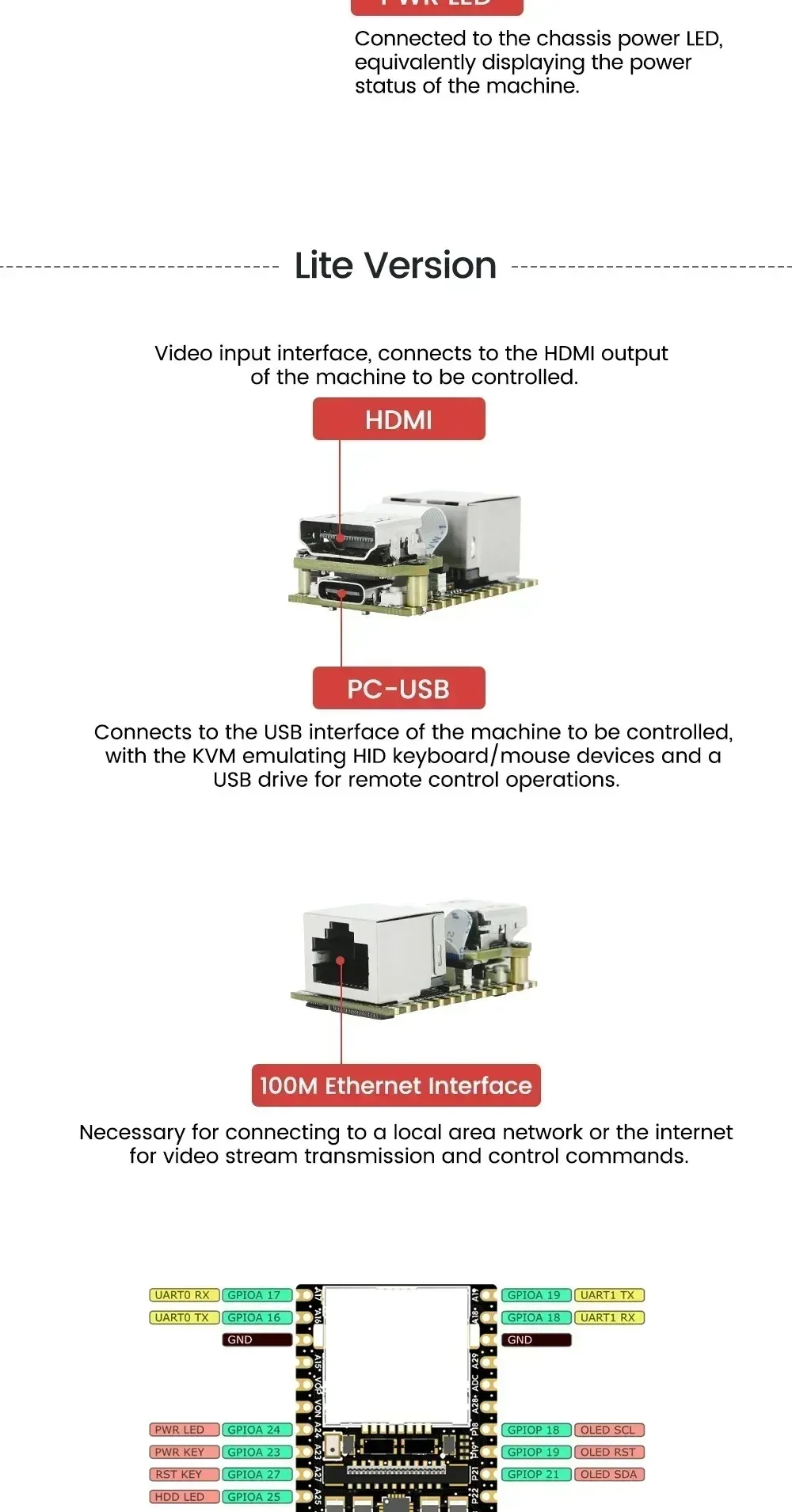

Lichee NanoKVM is an IP-KVM product based on LicheeRV Nano, inheriting the ultimate size and powerful features of LicheeRV Nano.NanoKVM includes an HDMI input interface that can be recognized by a computer as a monitor and capture computer images; Connect a USB 2.0 interface to a computer host, which can be recognized as HID devices such as keyboard, mouse, touchpad, etc., and use the excess storage space of a TF card to mount it as a USB device; The entire series comes standard with a 100Mbps Ethernet port for network transmission of video and control signals. In addition, the Full version also comes with an ATX power control interface (USB-C form) for convenient remote control and viewing of the host's on/off status; The Full version also comes with an OLED display screen under the casing, which is used to display the IP and KVM related status of the device.
NanoKVM Full is a complete configuration with exquisite casing and complete accessories. It comes with a built-in system image card that can be used immediately upon startup. It is recommended for individual users to purchase.

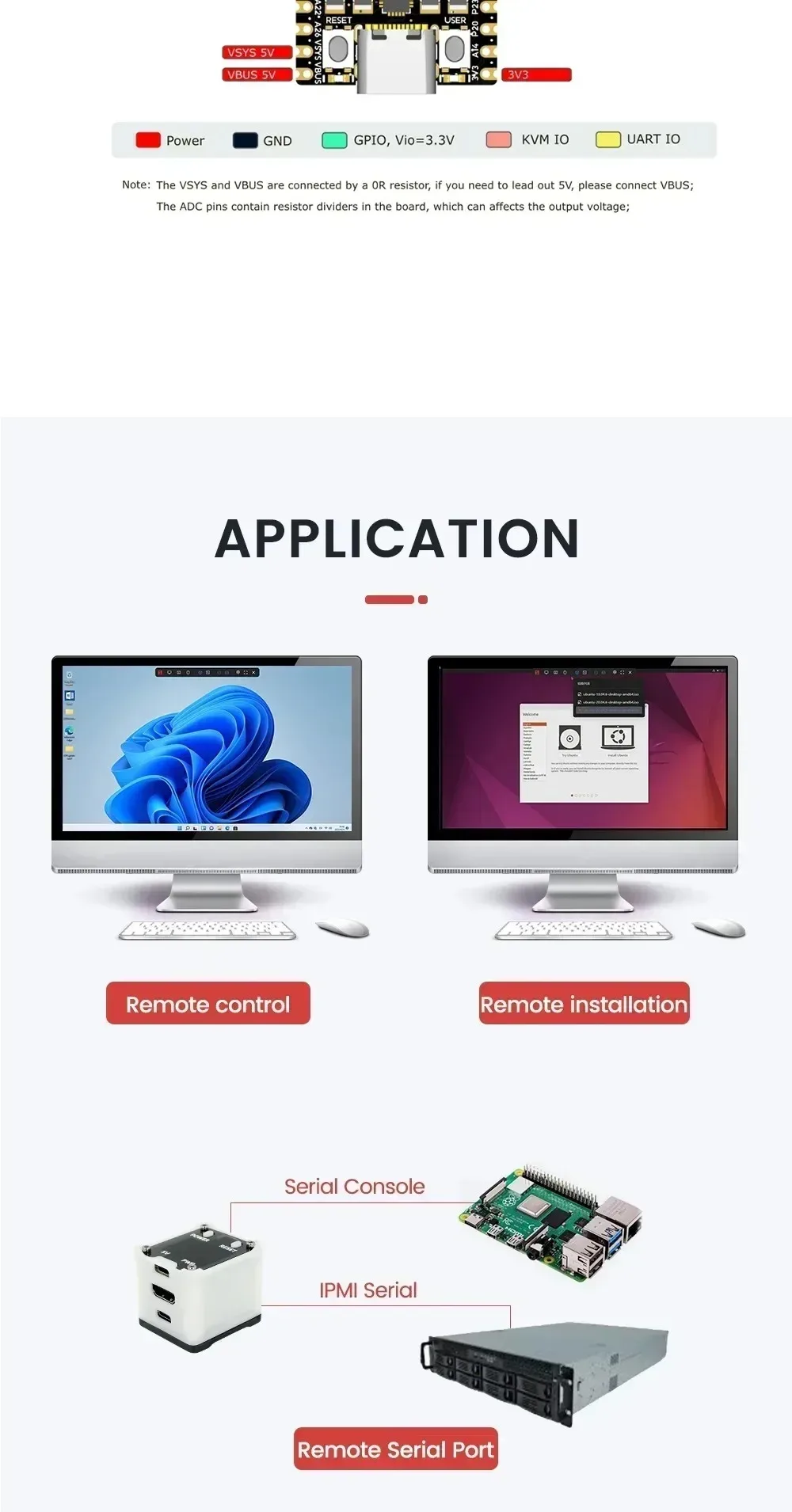

Applicable scenarios
-

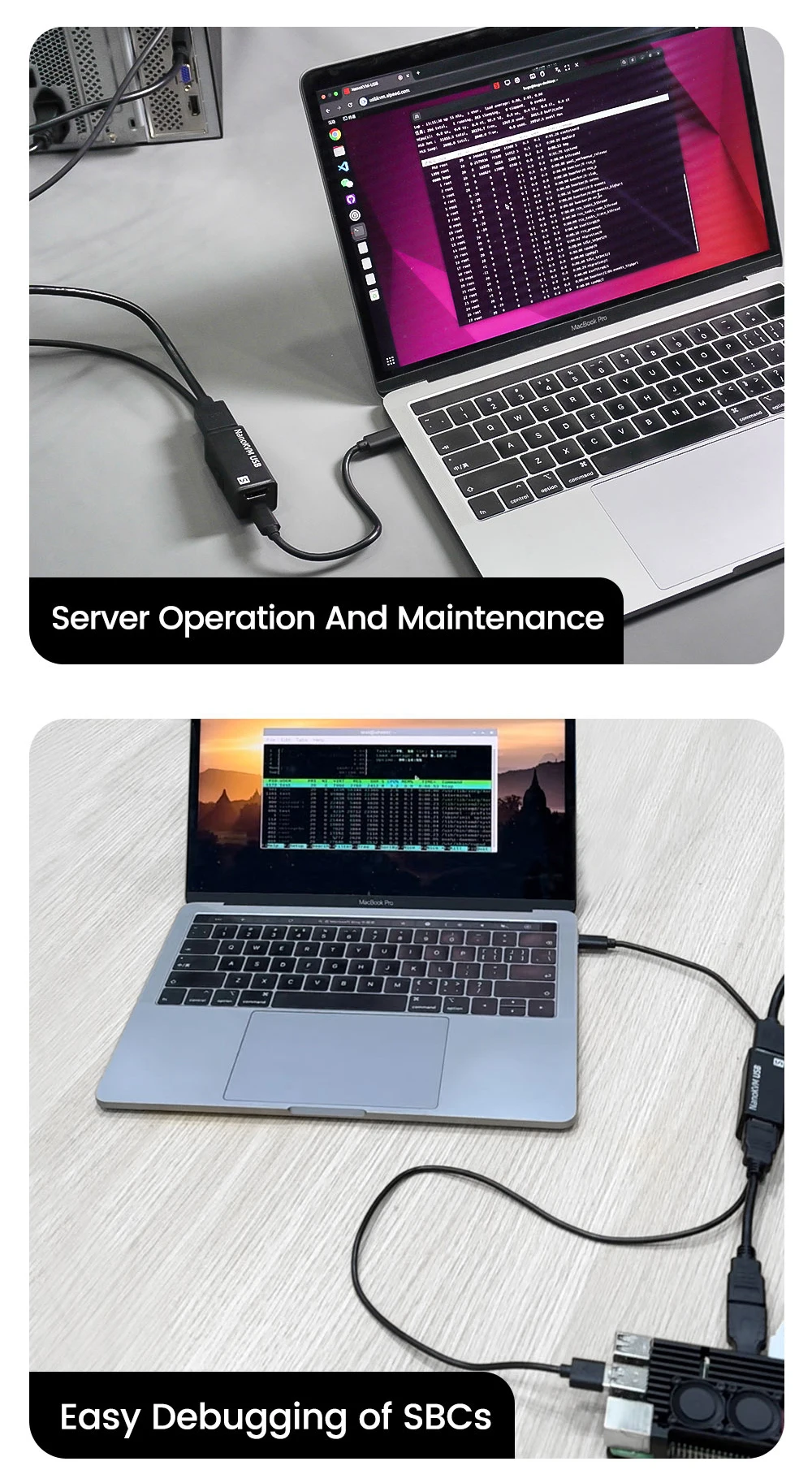

Server Management: For real-time monitoring and control of servers.
-
Remote Desktop and Power Control: Provides remote control functionality without requiring the host to be networked or run specific software.
-

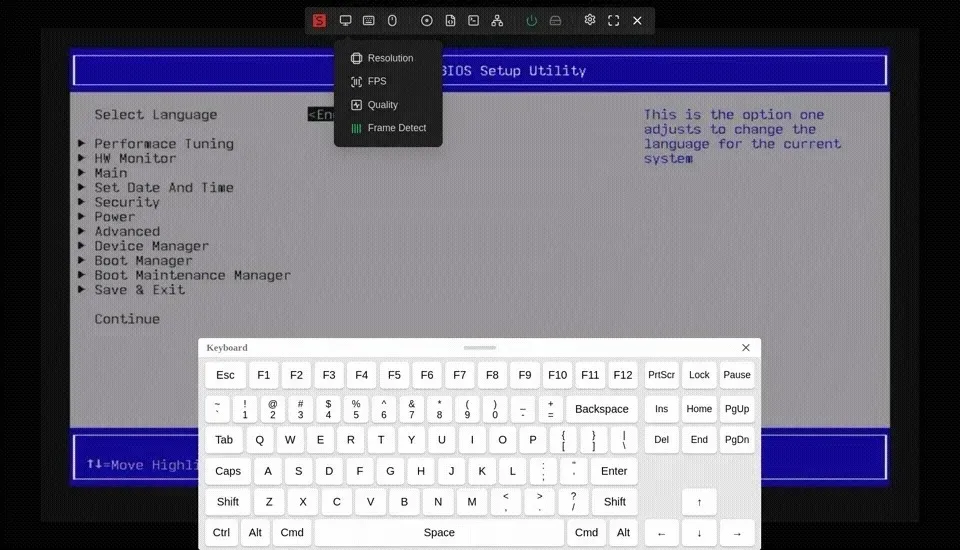

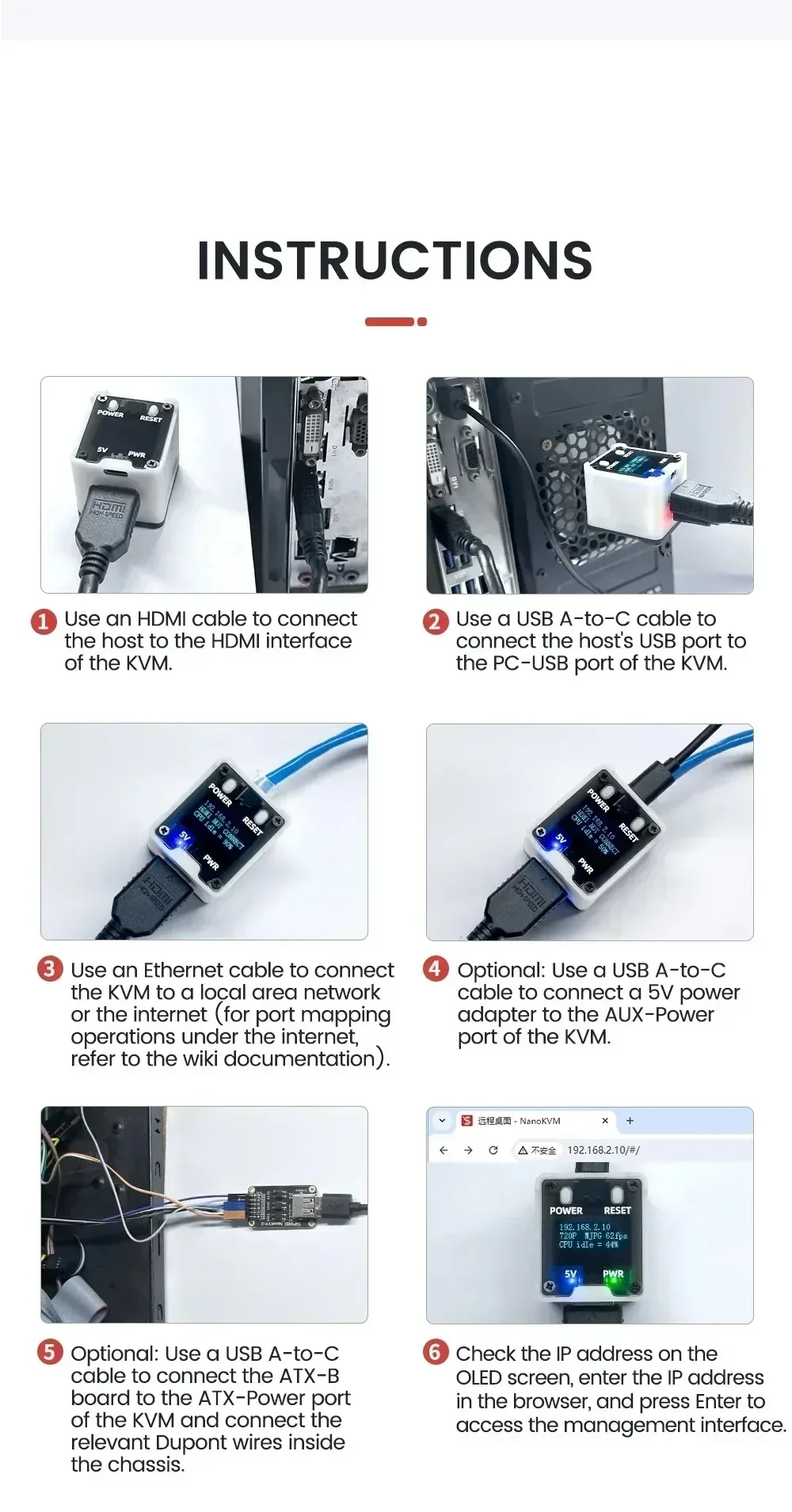

Remote Installation: Simulates a USB flash drive to mount installation images and set up the system, also allows BIOS access.
-
Remote Serial Port (Not exposed in Full beta version): Provides two serial ports for IPMI use or connecting other development boards for web-based serial terminal interaction. More features are coming soon (e.g., live streaming), stay tuned.
Use Cases :

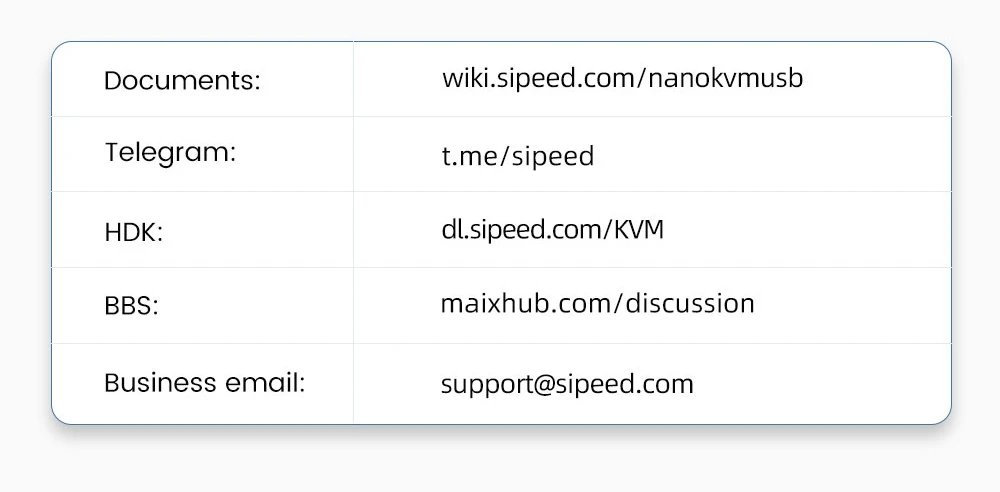

Resources:
https://wiki.sipeed.com/hardware/zh/kvm/NanoKVM/1_intro.html?
