Suitable For Raspberry Pi Zero / Zero W / Zero WH, 802.3af-Compliant
ThePoE/ETH/USB HUB HATis a PoE (Power over Ethernet) USB HUB HAT designed forRaspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with3x extended USB ports.
Designed for Raspberry Pi Zero, compatible with Zero series boards
Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
PoE (Power over Ethernet) feature, 802.3af-compliant
Fully isolated SMPS (Switch Mode Power Supply)
3x extended USB ports, compatible with USB 2.0 / 1.1
POE POWER INPUT | 37V ~ 57V DC in |
POWER OUTPUT | 5V 2.5A DC out |
NETWORK STANDARD | IEEE 802.3af-compliant PoE |
DIMENSIONS | 23.10 × 65.00 mm |
Designed For Raspberry Pi Zero, Compatible With Zero / Zero W / Zero WH
USB1 ~ USB3, Compatible With USB 2.0 / 1.1
USB To Ethernet Conversion By The RTL8152B Chip, 10M / 100M Auto-Negotiation

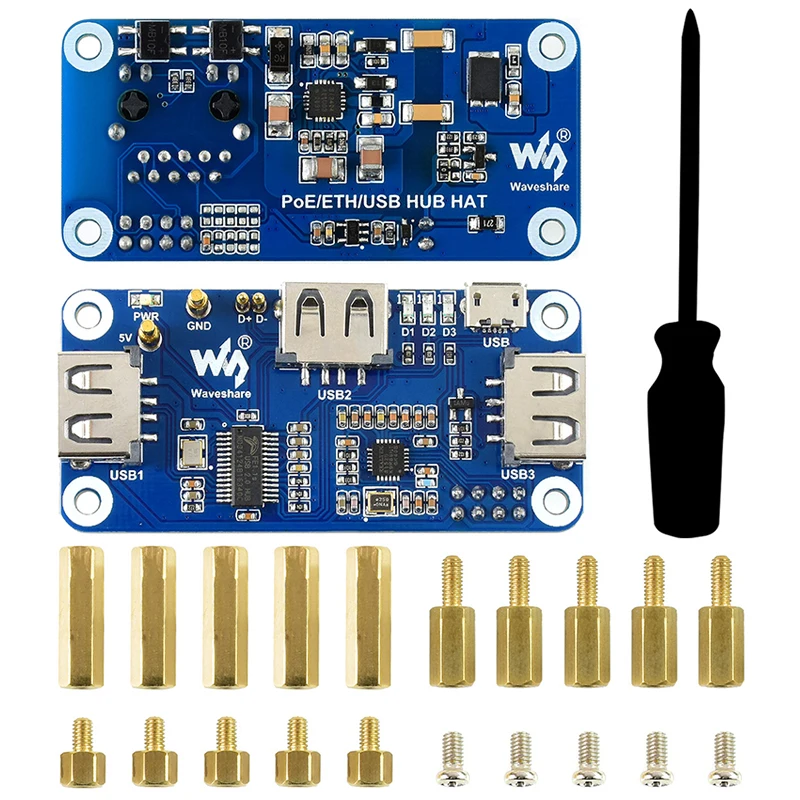

Packing List:
1 x PoE/ETH/USB HUB HAT
1 x USB HUB Board
1 x Screws pack
1 x Screwdriver
(not include Raspberry Pi)
Dull polish surface, well designed, nice & dust-proof
PoE 802.3af-Compliant Ethernet Port | 3x USB 2.0 Ports
The PoE-ETH-USB-HUB-BOX is a HUB kit with PoE/ETH/USB HUB HAT inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. By using this small HUB BOX and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports.
Designed for Raspberry Pi Zero, compatible with Zero series boards
Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
PoE (Power over Ethernet) feature, 802.3af-compliant
Fully isolated SMPS (Switch Mode Power Supply)
3x extended USB ports, compatible with USB 2.0 / 1.1
Angle rounded design, smooth hand feeling, "simple snap" case lid
Quality ABS material, dull polish surface, anti-fingerprint
Comes with two different lids, changing as you like
POE POWER INPUT | 37V ~ 57V DC in |
POWER OUTPUT | 5V 2.5A DC out |
NETWORK STANDARD | IEEE 802.3af-compliant PoE |
DIMENSIONS | 72.80 × 37.50 × 45.80 mm |
Specialized Pogo Pin Connection, Dedicated Cut-Outs For Zero Series, Plug-And-Play
"Simple Snap" Design, Easy To Change, Allows Attaching Other Zero HATs
Packing List:
Weight: 0.096 kg
PoE/ETH/USB HUB HAT kit x1
ABS case x1
Rubber feet 4PCS x1
Screws pack x1
Suitable for Raspberry Pi series
1x RJ45 Ethernet Port | 3x USB 2.0 Ports
The ETH/USB HUB HAT (B) is an Ethernet and USB HUB designed for Raspberry Pi, providing 1x RJ45 Ethernet port and 3x USB 2.0 ports. It's pogo pin design is specialized for Zero series, while the onboard normal USB connector can be used to connect with other Raspberry Pi boards through a USB cable.
3x extended USB ports, compatible with USB 2.0 / 1.1
Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation
Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero W/Zero WH
USB HUB connector, for connecting with Raspberry Pi 4B/3B+/3A+/2B through USB cable
Specialized Pogo Pin For Zero Series, Plug-And-Play, Without Preventing Other HATs
Normal USB HUB Connector For Other Raspberry Pi Boards Or PC
1x RJ45 Ethernet Port, 10/100M Auto-Negotiation
3x USB 2.0 Ports, Compatible With USB 2.0 / 1.1
PACKAGE CONTENT
Weight:0.026 kg
ETH/USB HUB HAT (B) x1
Screws pack x1
Dull polish surface, well designed, nice & dust-proof
1x RJ45 Ethernet Port | 3x USB 2.0 Ports
The ETH-USB-HUB-BOX is a HUB kit with ETH/USB HUB HAT (B) inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. This HUB BOX will provide RJ45 Ethernet port and more USB capability for your Zero, make it easy to connect the Internet and sorts of USB devices.
Designed for Raspberry Pi Zero, compatible with Zero series boards
3x extended USB ports, compatible with USB 2.0 / 1.1
Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation
Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero W/Zero WH
Angle rounded design, smooth hand feeling, "simple snap" case lid
Quality ABS material, dull polish surface, anti-fingerprint
Comes with two different lids, changing as you like
Specialized Pogo Pin Connection, Dedicated Cut-Outs For Zero Series, Plug-And-Play
1x RJ45 Ethernet Port, 10/100M Auto-Negotiation
3x USB 2.0 Ports, Compatible With USB 2.0 / 1.1
"Simple Snap" Design, Easy To Change, Allows Attaching Other Zero HATs
PACKAGE CONTENT
Weight:0.06 kg
ETH/USB HUB HAT (B) x1
ABS case x1
Rubber feet 4PCS x1
Screws pack x1
Screwdriver x1
