SX1262 LoRa HAT for Raspberry Pi, Spread Spectrum Modulation, 868MHz Frequency Band
This is a Raspberry Pi LoRa HAT based on SX1262, covers 868MHz frequency band. It allows data transmission up to 5km through serial port.
By utilizing the new generation LoRa spread spectrum modulation technology, the communication distance of the module is as long as 5km, also supports auto repeating to transmit longer. Other features include Wake on Radio, wireless config, carrier sensing, communication key, and so on.
Comparing with normal LoRa modules, the SX1262 LoRa HAT achieves longer communication distance, higher rate, lower consumption, better safety and anti-interference. It is suitable for various applications such as industrial control, smart home, data collection, etc.
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Onboard CP2102 USB TO UART converter, for serial debugging
Brings the UART control interface, for connecting host boards like Arduino/STM32
4x LED indicators, easy to check the module status
LoRa spread spectrum modulation technology, up to 81 available signal channel, longer communication distance, more robust to interference
Auto multi-level repeating, suit for ultra long range communication, allows multi network on the same region
Low power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications
Customizable communication key which won't be retrieved, greatly improves the security of user data
Supports LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment
Supports RSSI signal intensity indicating, for evaluating signal quality, tuning the network
Supports wireless parameter configuration, by sending wireless command/data packet, remotely configure or retrieve the module parameter
Supports fixed-point transmission, broadcast, signal channel monitor
Comes with development resources and manual (examples for Raspberry Pi/STM32)

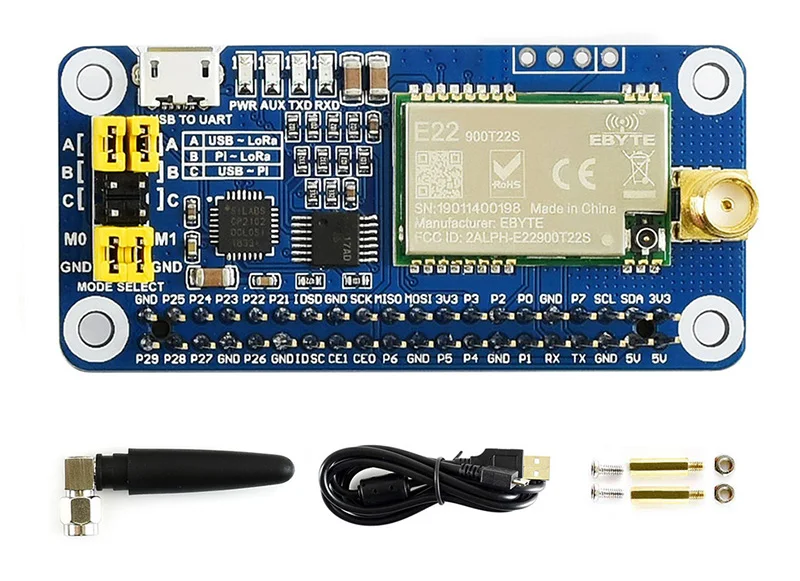

SX1262 LoRa module
74HC125V: voltage level translator
CP2102: USB TO UART converter
Raspberry Pi GPIO connector: for connecting with Raspberry Pi
USB TO UART port
UART header: for connecting host boards like STM32/Arduino
SMA antenna connector
IPEX antenna connector
RXD/TXD: UART RX/TX indicator
AUX: auxiliary indicator
PWR: power indicator
A: control the LoRa module through USB TO UART
B: control the LoRa module through Raspberry Pi
C: access Raspberry Pi through USB TO UART
short M0, short M1: transmission mode
short M0, open M1: configuration mode
open M0, short M1: WOR mode
open M0, open M1: deep sleep mode
SX1268 470M LORA HAT | SX1268 433M LORA HAT | SX1262 868M LORA HAT | SX1262 915M LORA HAT | |
RF module | SX1268 | SX1262 | ||
Frequency band | 410.125 ~ 493.125MHz | 850.125 ~ 930.125MHz | ||
Antenna | 470MHz antenna (2dBi) | 433MHz antenna (2dBi) | 868MHz antenna (2dBi) | 915MHz antenna (2dBi) |
Radio rate | 0.3kbps ~ 62.5kbps (programmable) | |||
Transmit power | 22.0dBm (10/13/17/22dBm programmable) | |||
Receive sensitivity | -147dBm (radio rate 2.4kbps) | |||
Power consumption | Transmit current: 110mA (transient consumption) | Transmit current: 133mA (transient consumption) | ||
Communication interface | UART (TTL level) | |||
Baudrate | 1200bps ~ 115200bps (9600bps by default) | |||
Packet length | 240 Byte (32/64/128/240 Byte programmable) | |||
Cache | 1000 Byte | |||
Experimental range | 5km (condition: cloudless and wild, altitude 2.5m, antenna gain 5dBi, radio rate 2.4kbps) | |||
Power supply | 5V | |||
Logic level | 3.3V/5V | |||
Operating temperature | -40~85℃ | |||
Applications | smart home, industrial sensors, building automation, smart meters, and more other IoT applications | |||
Applicable region | China | Europe, Asia, Africa | America, Oceania, Asia | |
Note: for reference only, please confirm the local supported LoRa bands before placing order. | ||||
SX1262 868M LoRa HAT x1
USB type A plug to micro plug cable x1
868MHz antenna x1
Total
£42.54
