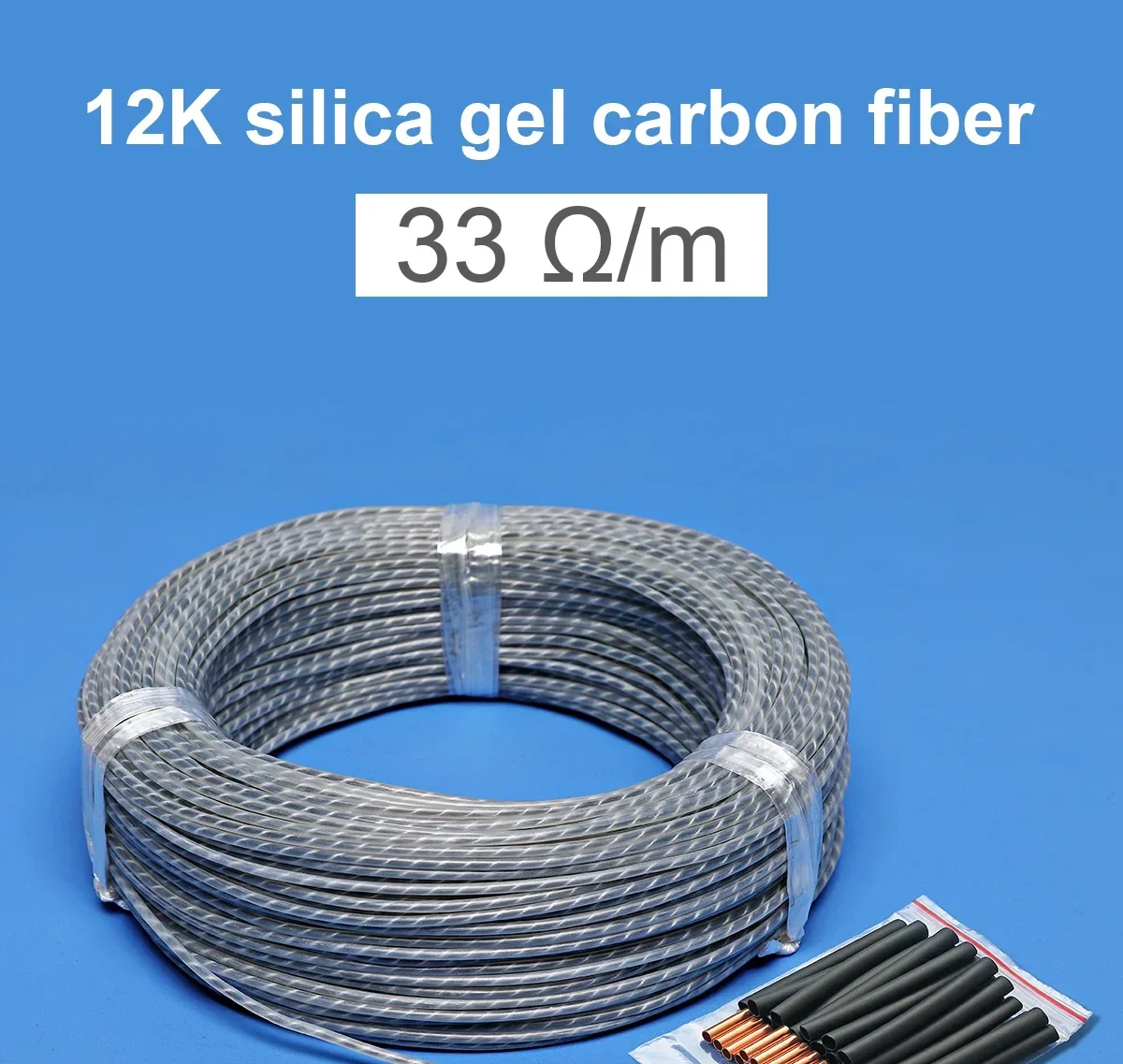

Product Name: Carbon fiber heating wire
Insulating material: Silicone rubber
Max enduring temperature: 200C degrees
Heating temperature: based on the using length

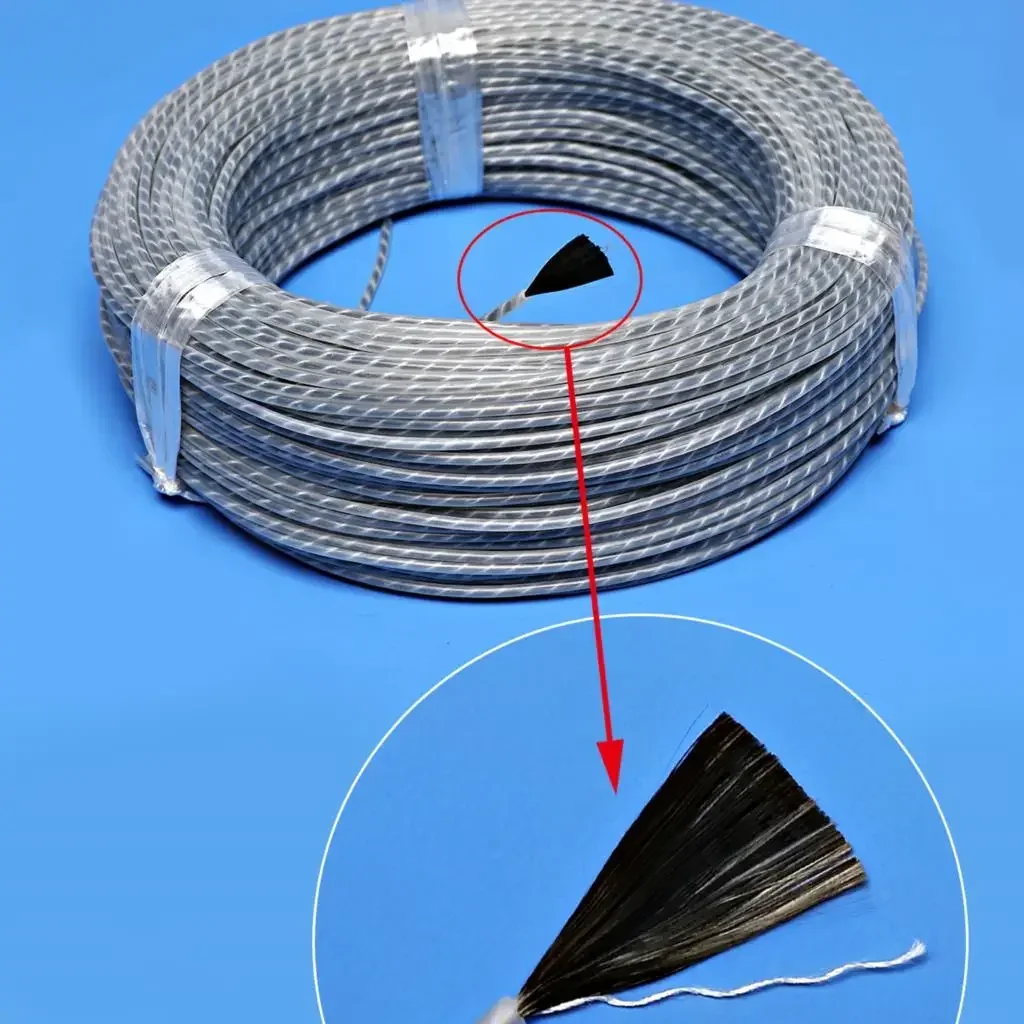

Heating conductor: 12K
Leakage current: 0.05mA/m
The product can withstand max power: 25W/M
Diameter: 2.3±0.2 MM ( Thicker and Safer; Толще и безопаснее )
Colors: Red
Infrared wavelength: 8UM-18UM
Conductor resistance: 33±10% Ω/m

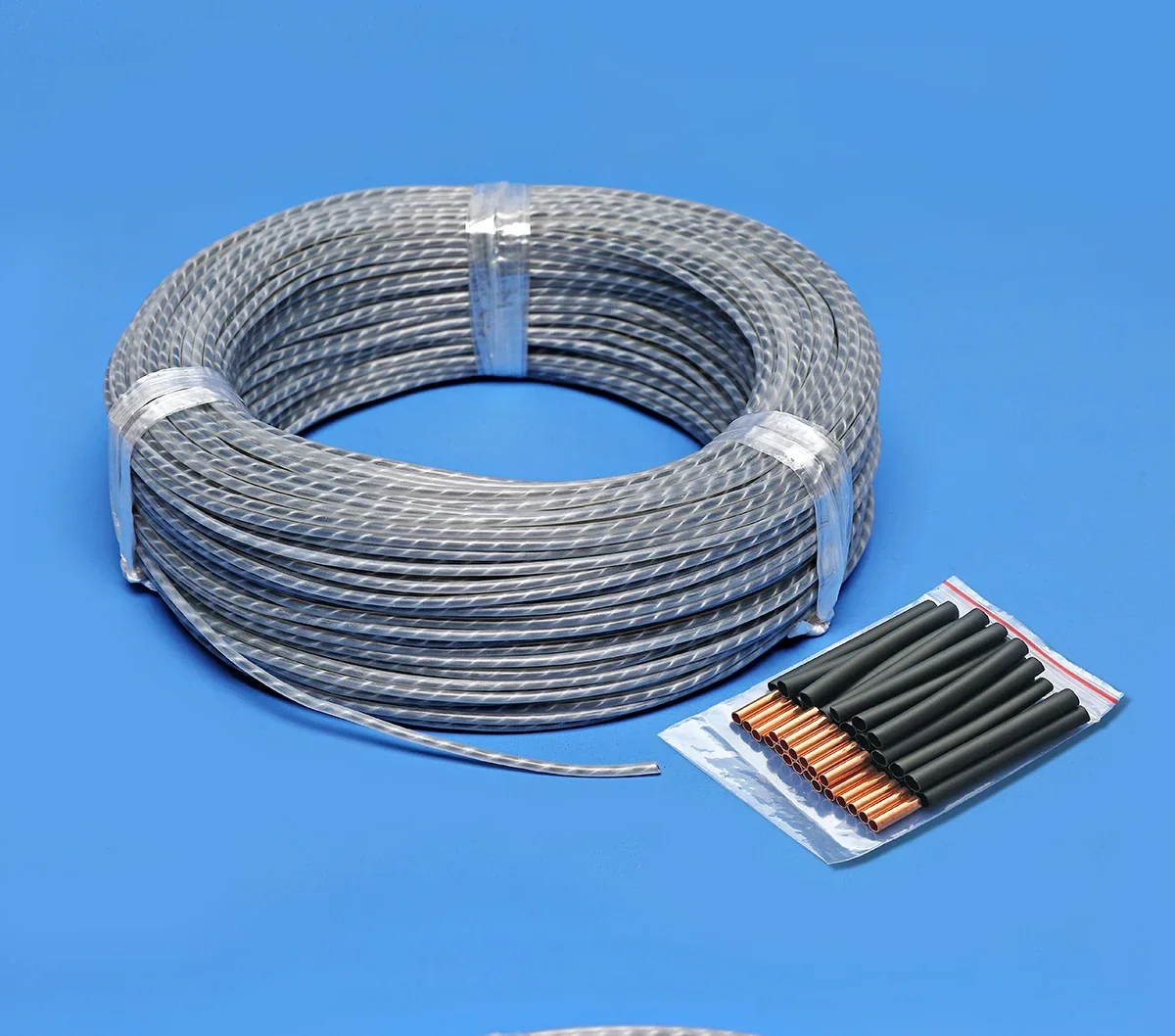

Package Includes:
1. Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves
1. Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves
1. Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves
1. Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves
1. Buy 15m = 15m cable + 4 pcs copper tube + 4 pcs sleeves
1. Buy 10m = 10m cable + 2 pcs copper tube + 2 pcs sleeves
How to calculate power?
Voltage*Voltage÷resistance=electric power
12K=33ohm/meter
For example, using 10m 12K carbon fiber cable on 220V, the power is:
220V*220V÷(10meters*33Ω)=150W
For example, using15m 12K carbon fiber cable on 220V, the power is:
220V*220V÷(15meters*33Ω)=100W
The longer length, the smaller power, and lower heating temperature.
What is the power of the cable? And what is heating temperature?
1. The power of the cable is based on the length that you use, you can calculate the power according to above examples.
2. Power = 5W/m, the temperature is about 30~40C degrees;
Power = 10W/m, the temperature is about 40~50C degrees;
Power = 15W/m, the temperature is about 50~60C degrees;
Power = 20W/m, the temperature is about 60~70C degrees;
Power = 25W/m, the temperatuee is about 70~90C degrees. Please notice that this is for your reference, not exactly right because of different test conditions.

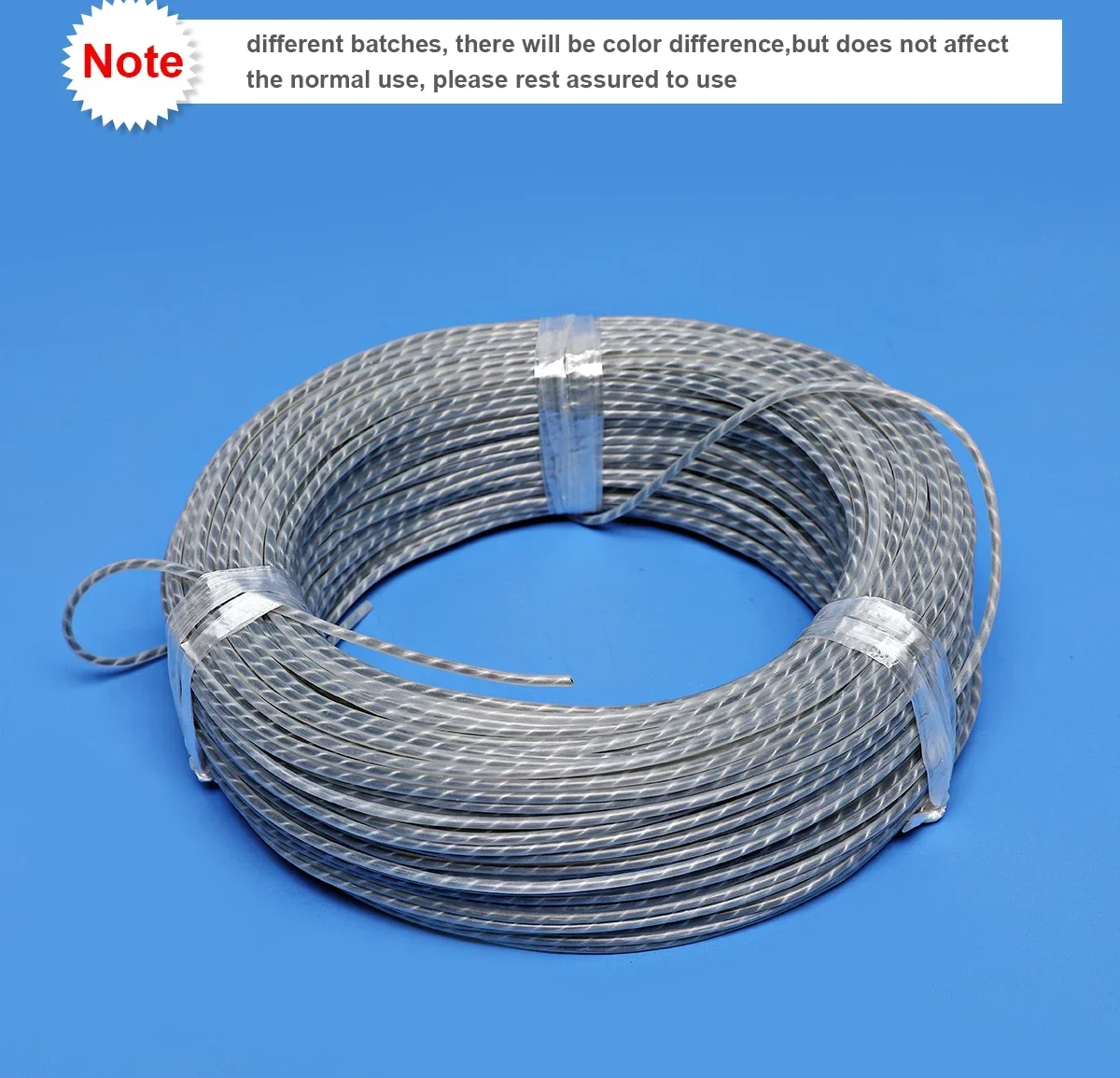

Product Images:
