WONDOM In-Circuit Programmer with UART For PC UI Control & SigmaStudio Control- ICP5

User manual

https://files.sure-electronics.com/download/ICP5.pdf

SigmaStudio

http://files.sure-electronics.com/download/SigmaStudioGuide.pdf

PC UI

http://files.sure-electronics.com/download/ICP5_PCUI.docx

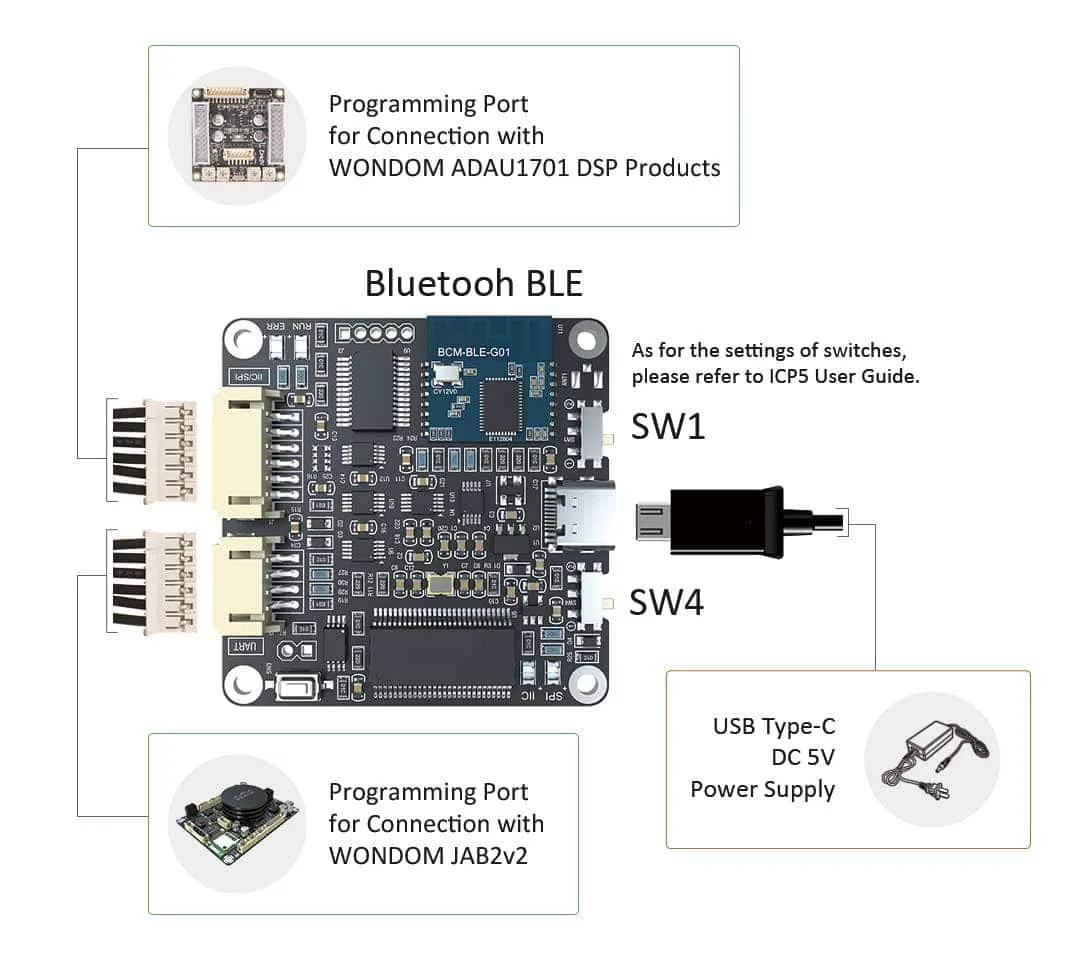

WONDOM ICP5 is a new member of WONDOM ICP series, integrated with USB UART for PC UI Control. It is designed to help customers, even those who are not familiar with SigmaStudio, to get a simple and quick start of remote control and simple programming like EQ for their audio systems.

ICP5 is a multiple purpose programming board for use with WONDOM products integrated with DSP, providing various functions as programming with SigmaStudio, PC UI control. In addition, ICP5 supports online Firmware Upgrade by yourselves for future use with more products . Owing to the equipped auto-identification system, ICP5 can recognize the target products automatically once they are connected.

Program through SigmaStudio

On-board self-boot EEPROM is included in ICP5 for operating the board independently of the Analog Devices, Inc., SigmaStudio™ software.

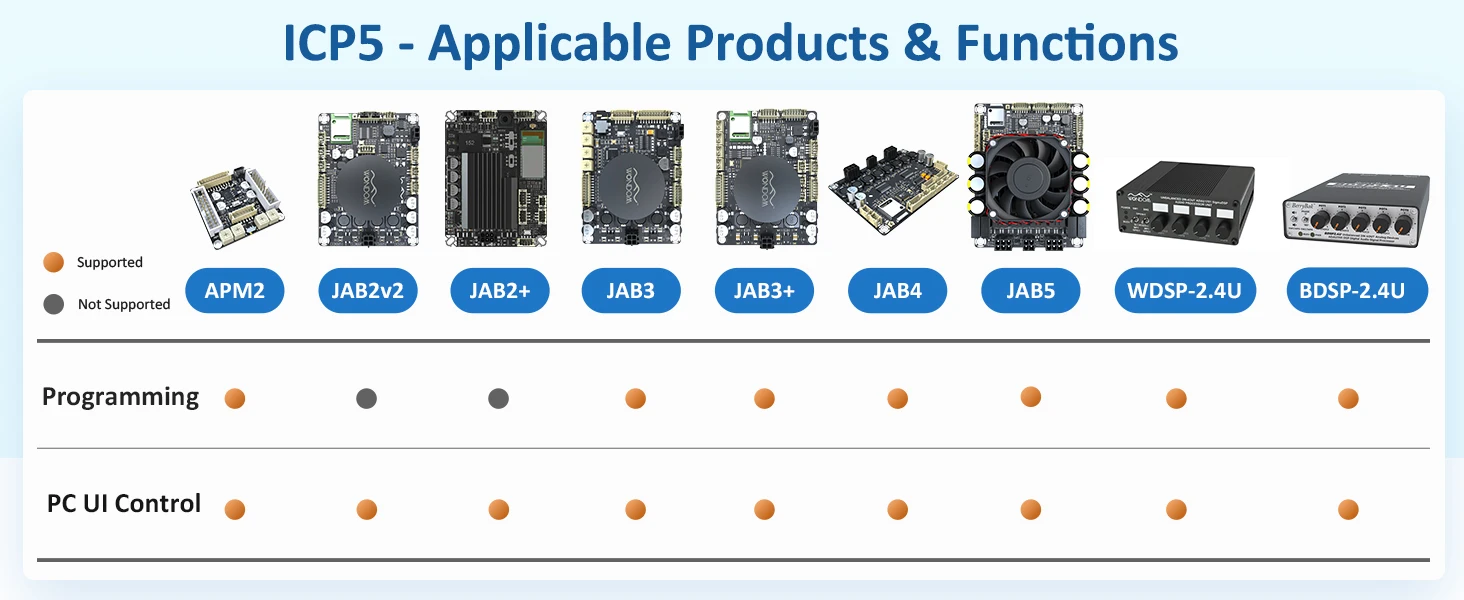

Applicable Products Model: APM2, JAB3, JAB3+, JAB4, JAB5

Supporting PC UI control

With the equipped USB UART, customers can get PC UI function of their audio systems after connection with ICP5, where you can adjust the frequency, volume, gain, 3D, EQ and other parameter to get desired audio effects. For now, we only have PC UI for use with JAB2v2. We are working hardly to promote the release of PC UI and they will be released in succession. Since ICP5 supports online firmware update, you can update the firmware for other products at home with one click, which is rather easy and convenient.

Online Firmware Update

ICP5 supports online firmware update, which makes it suitable for use with all products. You just need to update the firmware with one click at home if you want to use it with a different product.

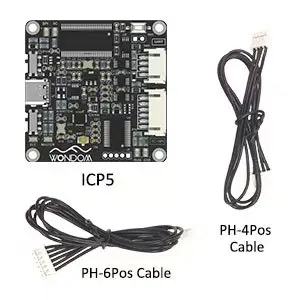

Package Include

1pc DB-DP11226, ICP5
1pc PH-2mm-6Pos Cable, 20cm / 7.87''
1pc PH-2mm-4Pos Cable, 20cm / 7.87''

Features:
