130A ~ 390A 3S BMS 12V Li-ion Lithium Battery Protection Board Balance 200A 260A 300A Motorcycle Car Start RV Inverter Charging

3S 100A 130A 200A 260A 300A 390A 12V Li-ion Lithium Battery Protection
Board High Current 3 CELL RV Inverter BMS car start charging

Features:

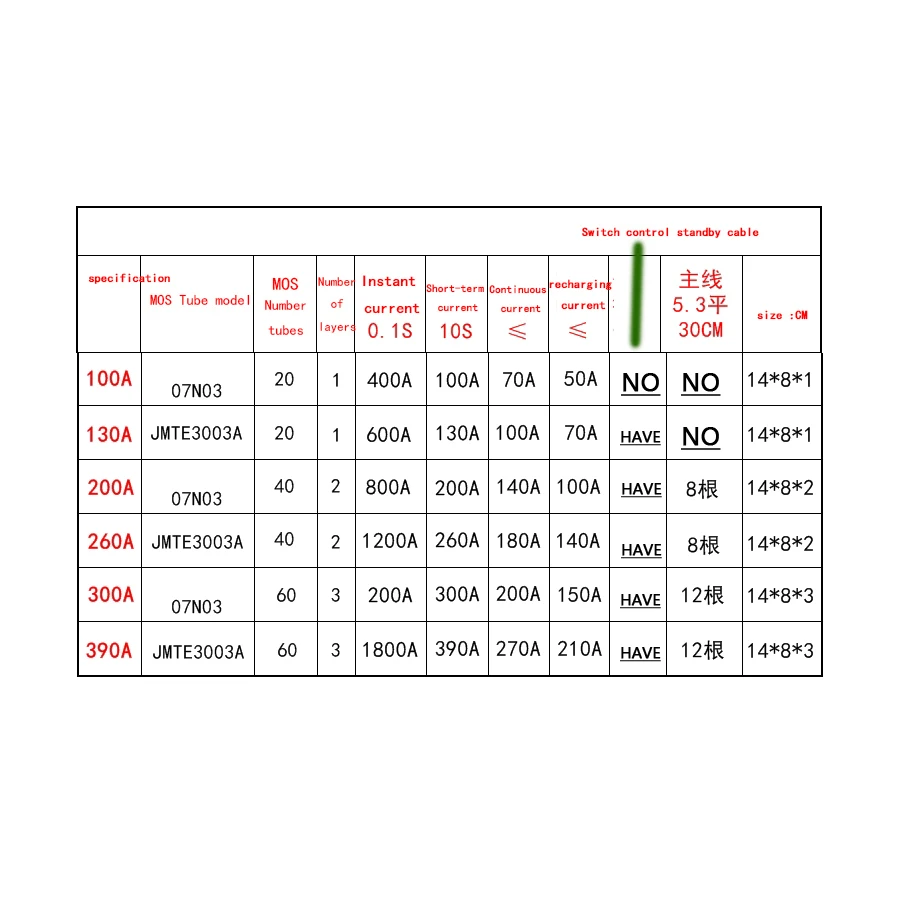

Use the new KIA2803A or JMTE3003A MOS tube

Charging voltage range: 12.6V-18V

Balanced voltage: single unit 4.18V starts and lights up

Overcharge protection voltage: any string 4.25V

Equalizing current: 0.07A

Charging recovery voltage: all below 4.10V

Over temperature protection: 80 degrees

Overdischarge protection voltage: any string 2.8ov

Over temperature recovery: 60 degrees

Discharge recovery voltage: all above 3.00V

Short circuit protection: None (it is recommended to connect an external fuse box)

Overcharge protection delay: 1s

Internal resistance: 2m Q

Overdischarge protection delay: 1s

Self consumption: 60uA

Switch control: can be self-contained switch into the temperature
probe line. The switch is connected to normal operation. The switch is
turned off and the power is off.
