1. NOTE
Default Configuration:

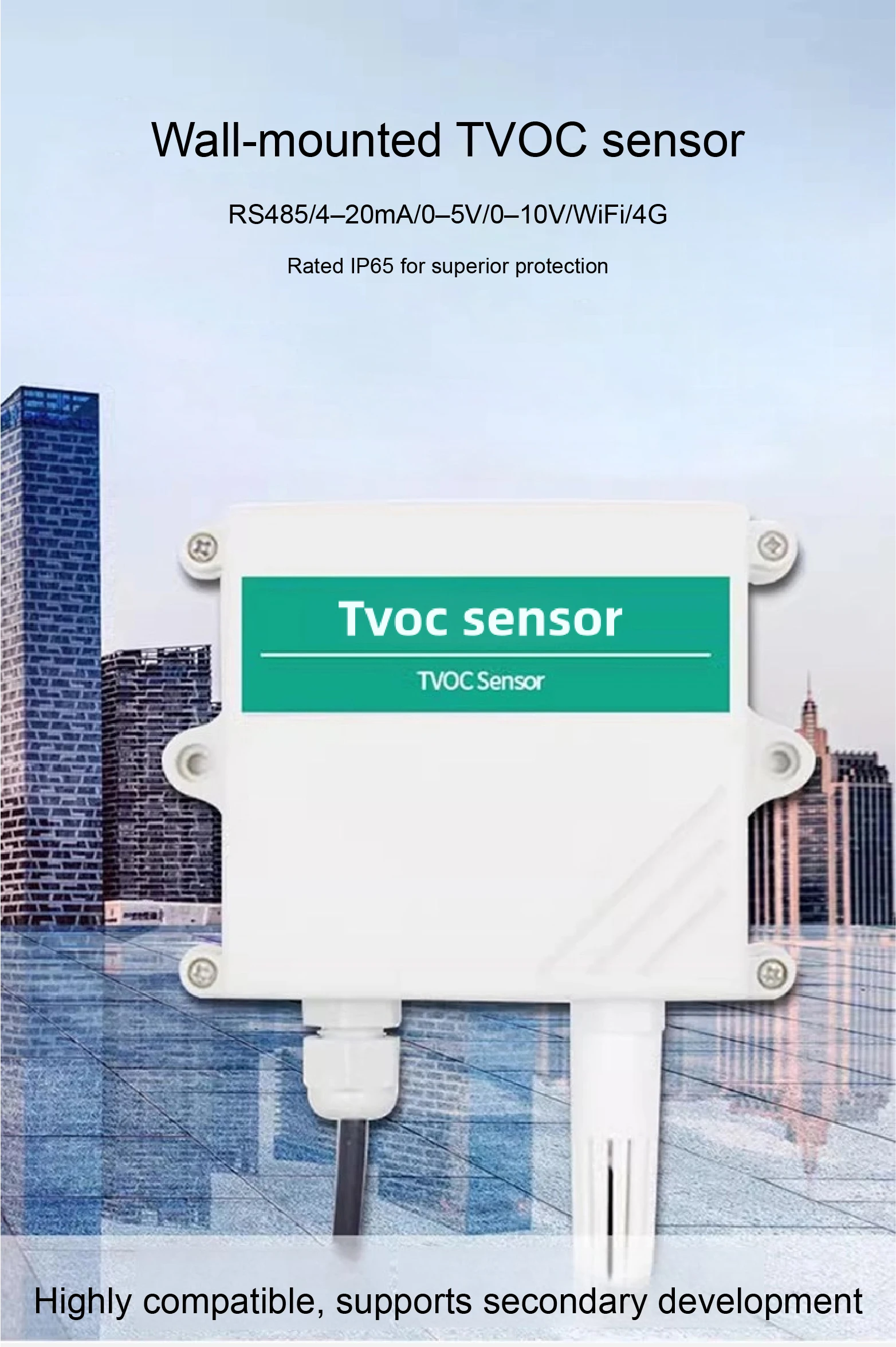

· Style: Wall-mounted, non-display type, built-in probe
· Measurement Range: 0-60000 ppb ，0-60 ppm .

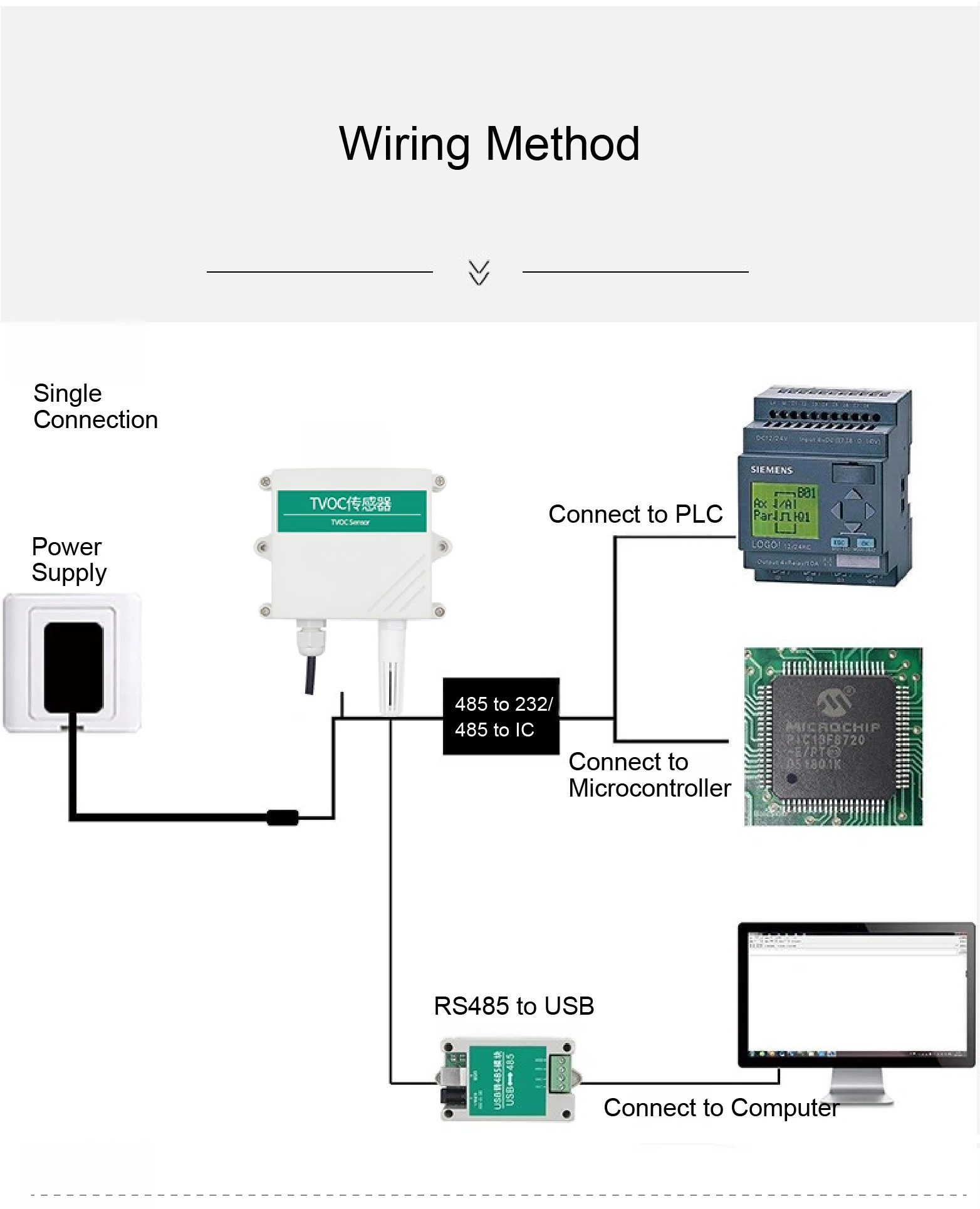

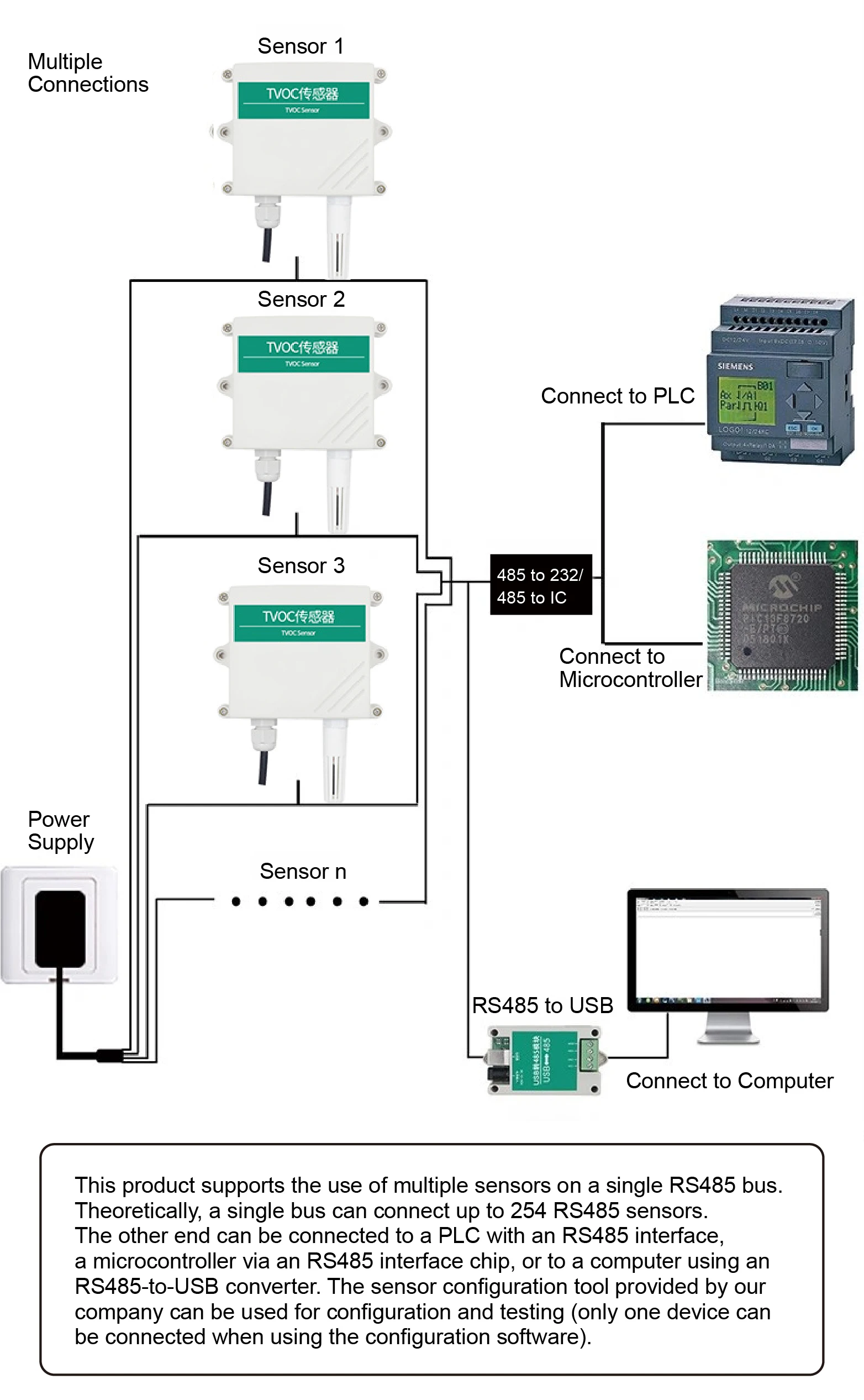

· Output Modes: RS485/4-20mA/0-5V/0-10V
· Power Supply: 10~30V DC
· Housing: IP65 waterproof, dustproof, and anti-corrosion
Due to page limitations, some specifications may not be listed. Please contact us for specific customization needs.
Customizable Options:
· Measurement Range:0-60ppm
· Style: Wall-mounted (display type), TVOC temperature and humidity 3-in-1 type，Explosion-proof typeC3 display type
· Probe Type: External (customizable)
· External probe length:80cm def (Maximum customizable length: 10M）
· Exterior Design: Portable, ceiling-mounted, pipeline-mounted, or louvered enclosure
· Output Modes: RS485/4-20mA/0-5V/0-10V//Audio-visual alarm
· Adjustable Parameters: Address (1-255), Baud Rate (1200-115200)
Please confirm your required specifications and output modes before placing an order. For tailored solutions, feel free to contact us to meet your specific requirements.

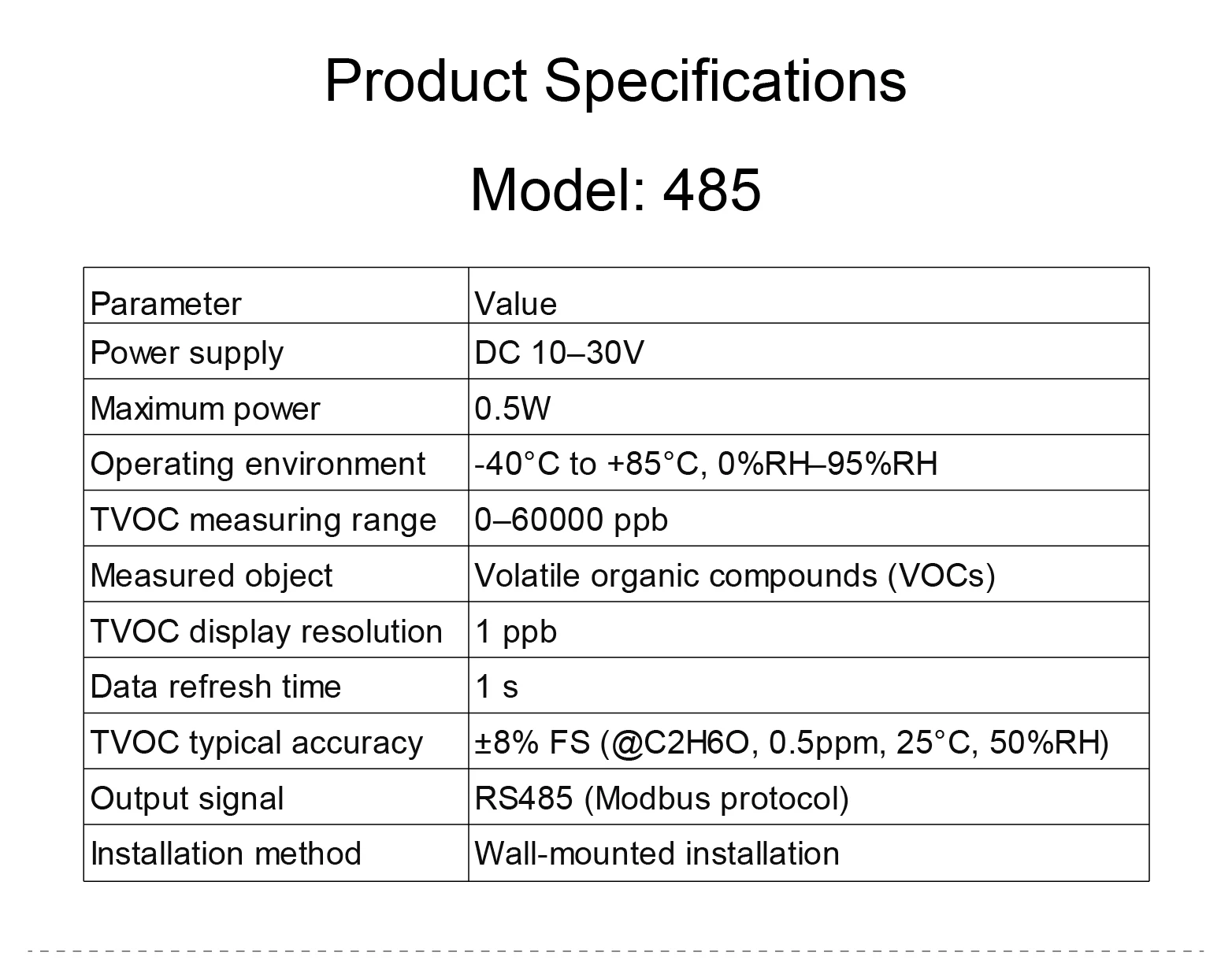

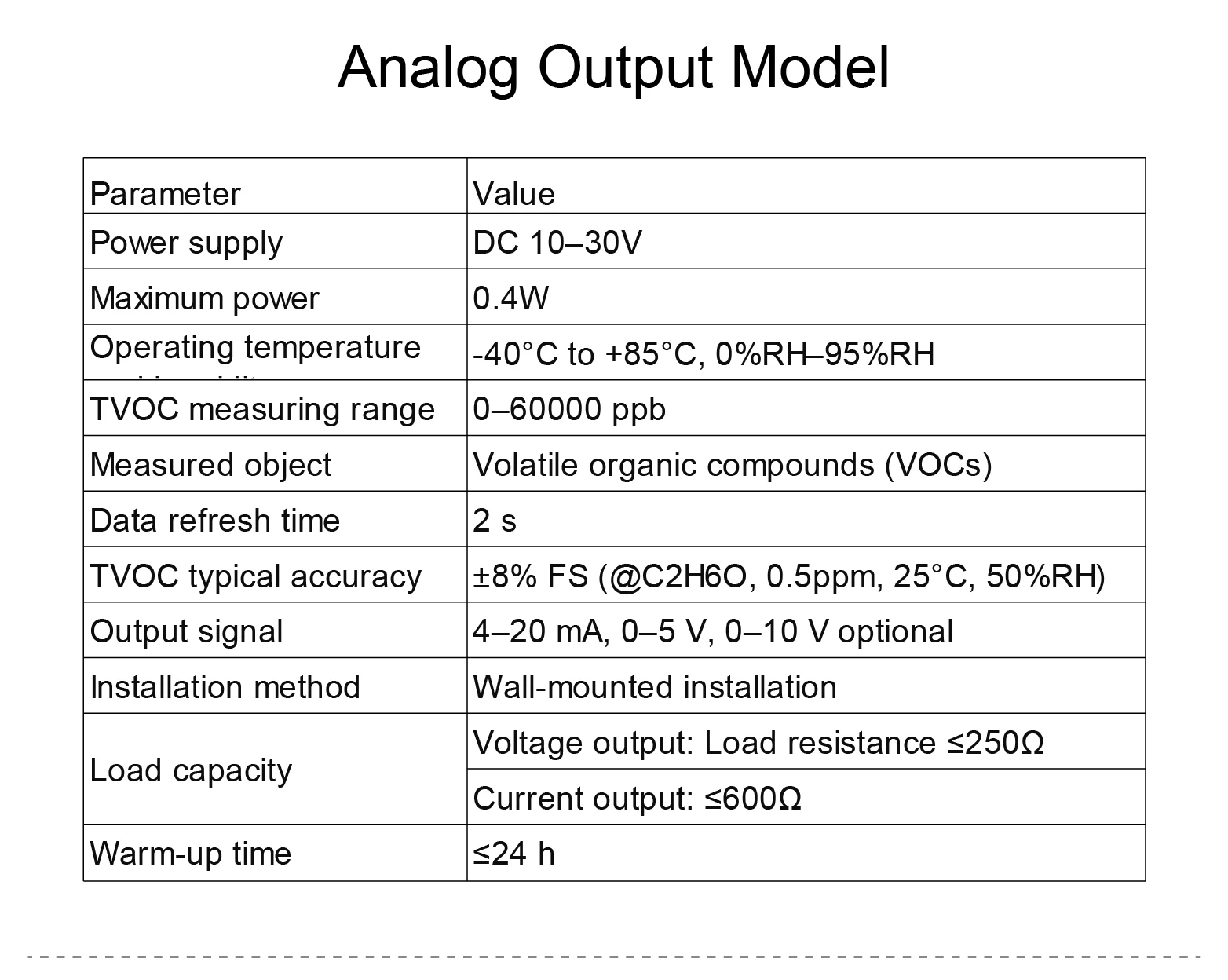

2. PARAMETERS
Parameter | Details |
Measurement Range | TVOC: 0~60000 ppb |
Accuracy | Typical: 8% FS (at 0.5 ppm C2H6O, 25°C, 50% RH) |
Signal Output | RS485, 4-20mA, 05V, 0~10V, WiFi, 4G, NB, Lora |
Power Supply | DC 10-30V (default), max power consumption 0.4W |
Protection Level | IP65: Waterproof and dustproof |
Temperature/Humidity | -40°C ~ +85°C, 0%RH ~ 95%RH |
Refresh Time | 25s |
Baud Rate | 1200-115200 adjustable |
Device Address | 1-255 adjustable |
Installation Method | Wall-mounted |

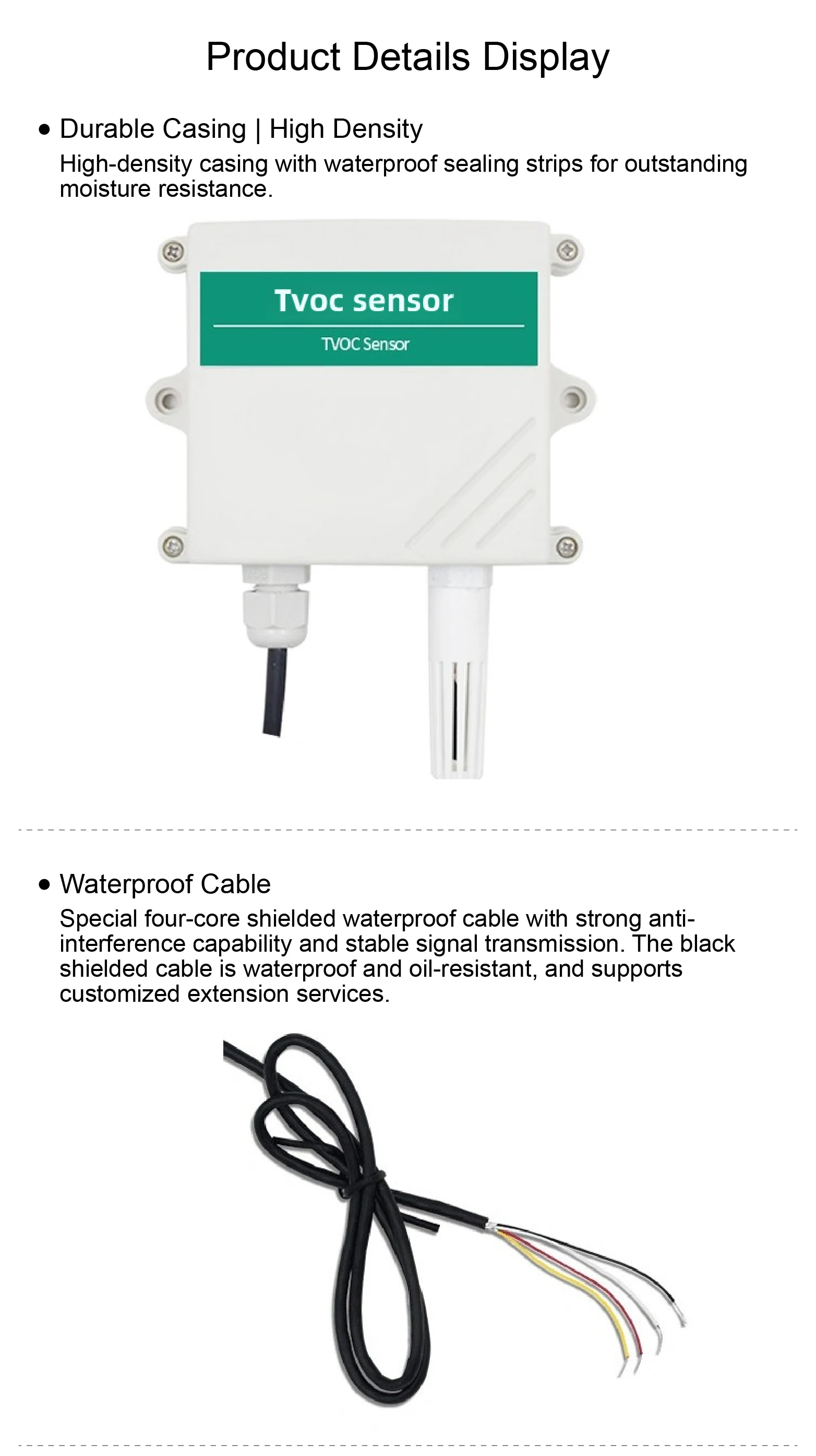

Material | High-density protective housing, sealed with waterproof strips |
Cable | Four-core shielded waterproof cable, anti-interference, customizable length |
3. APPLICATION
Indoor air quality monitoring in building materials and furniture industries.
Suitable for volatile organic compounds (TVOC) detection in harsh environments.
Used in renovation and environmental quality assessments.
4. FEATURES

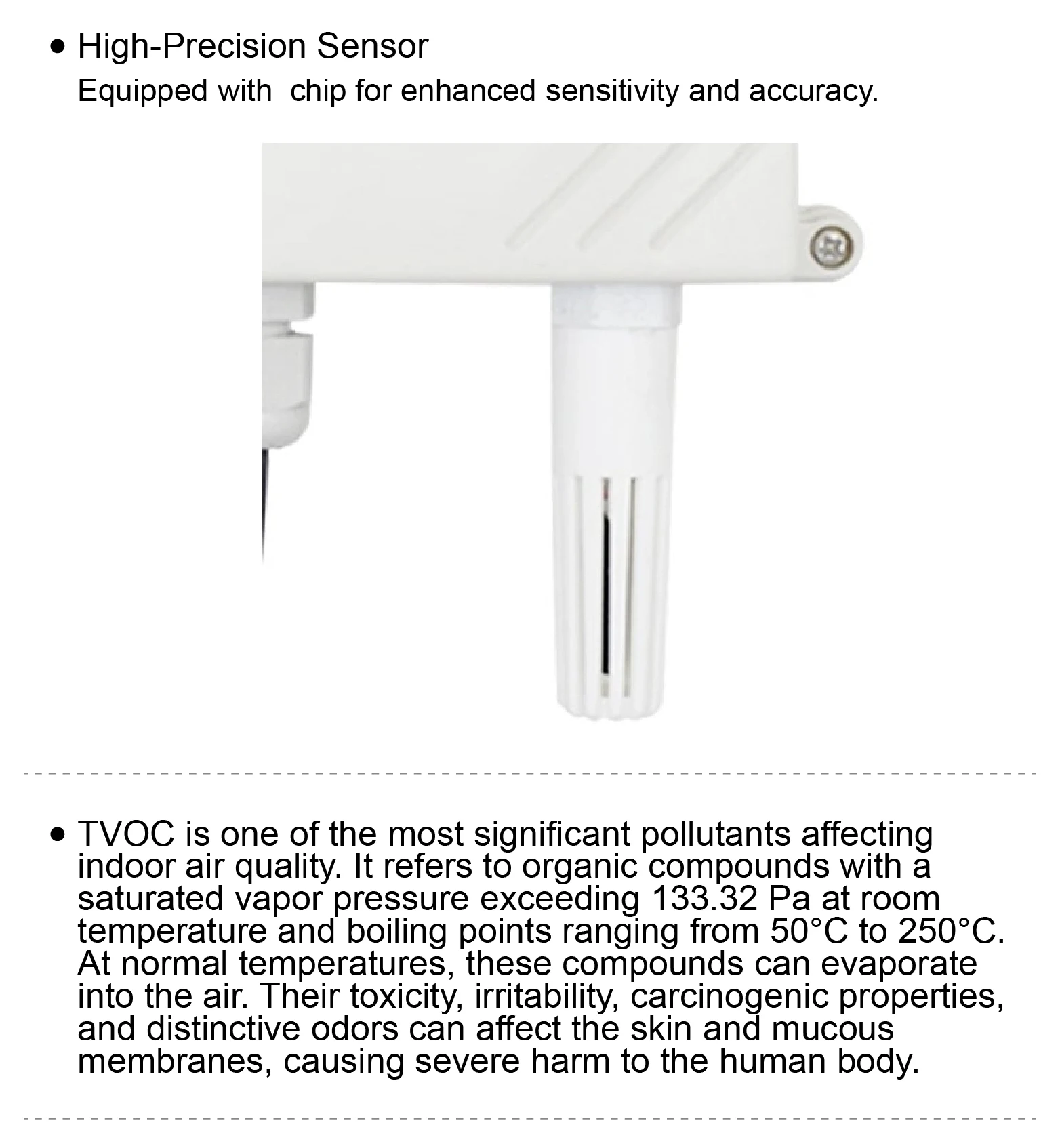

High Precision: Built-in imported sensor chips for accurate and stable measurements.

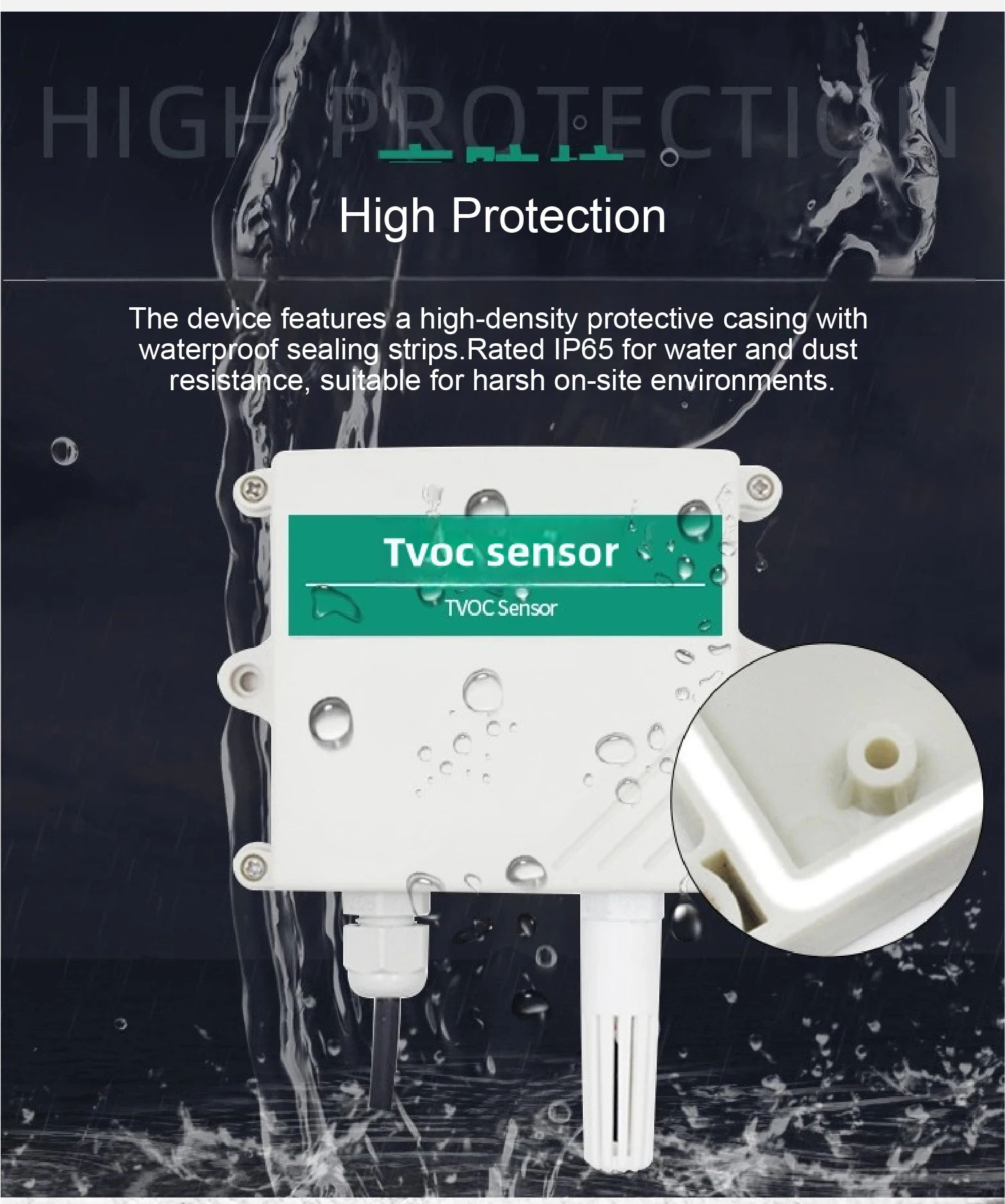

Strong Durability: IP65 protection with high-density casing and waterproof sealing strips.

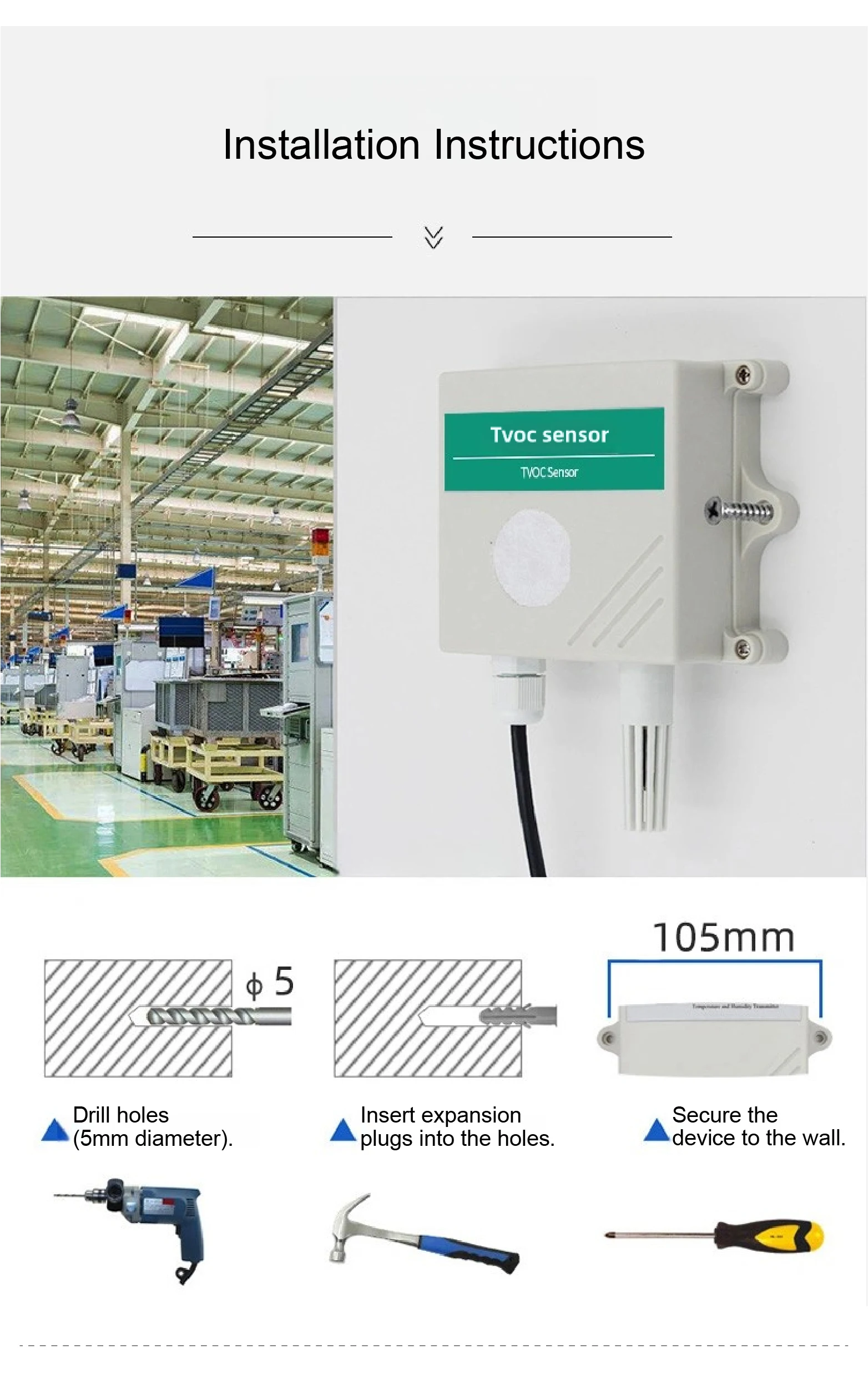

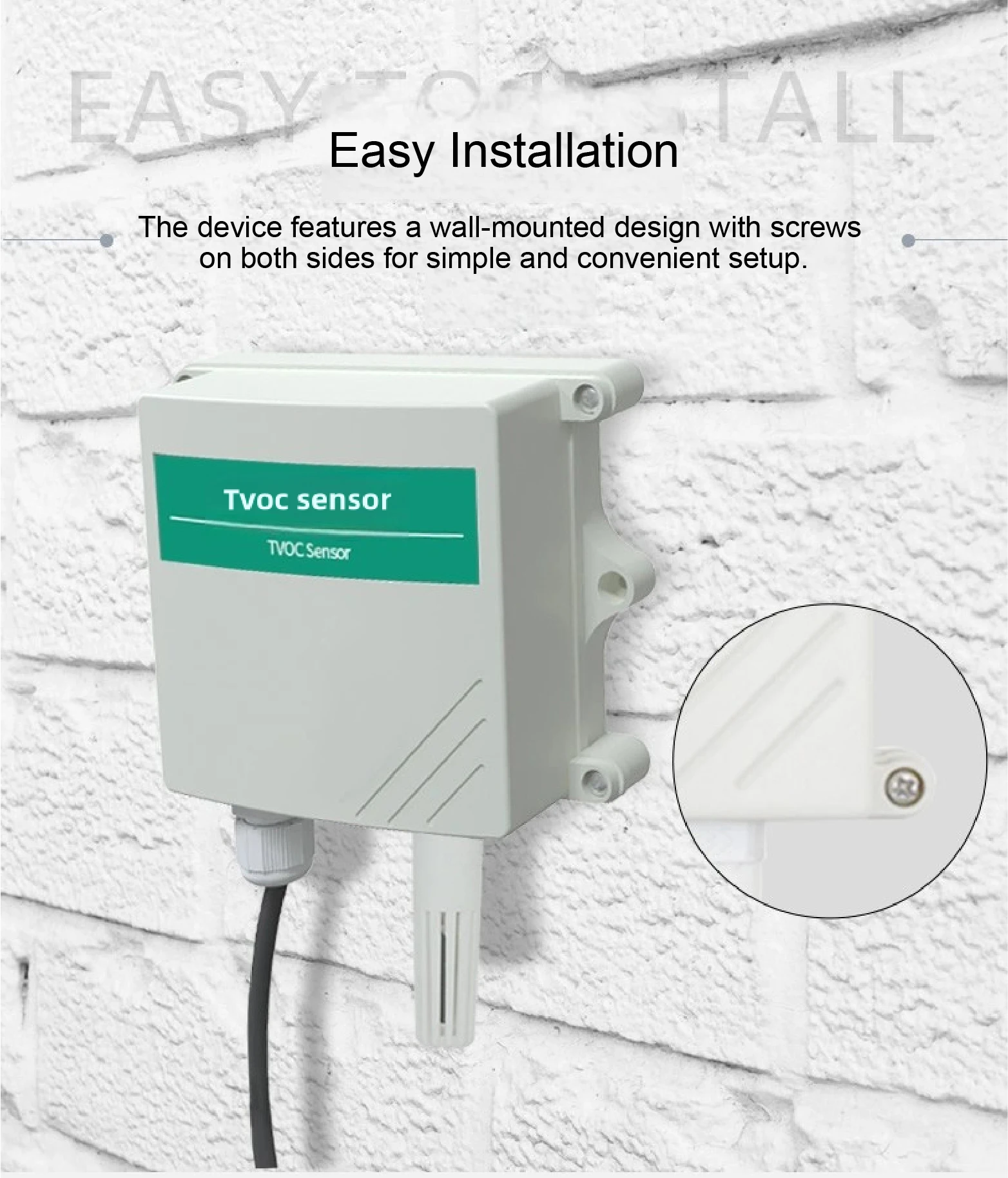

Easy Installation: Wall-mounted design with screw fixation for convenient setup.

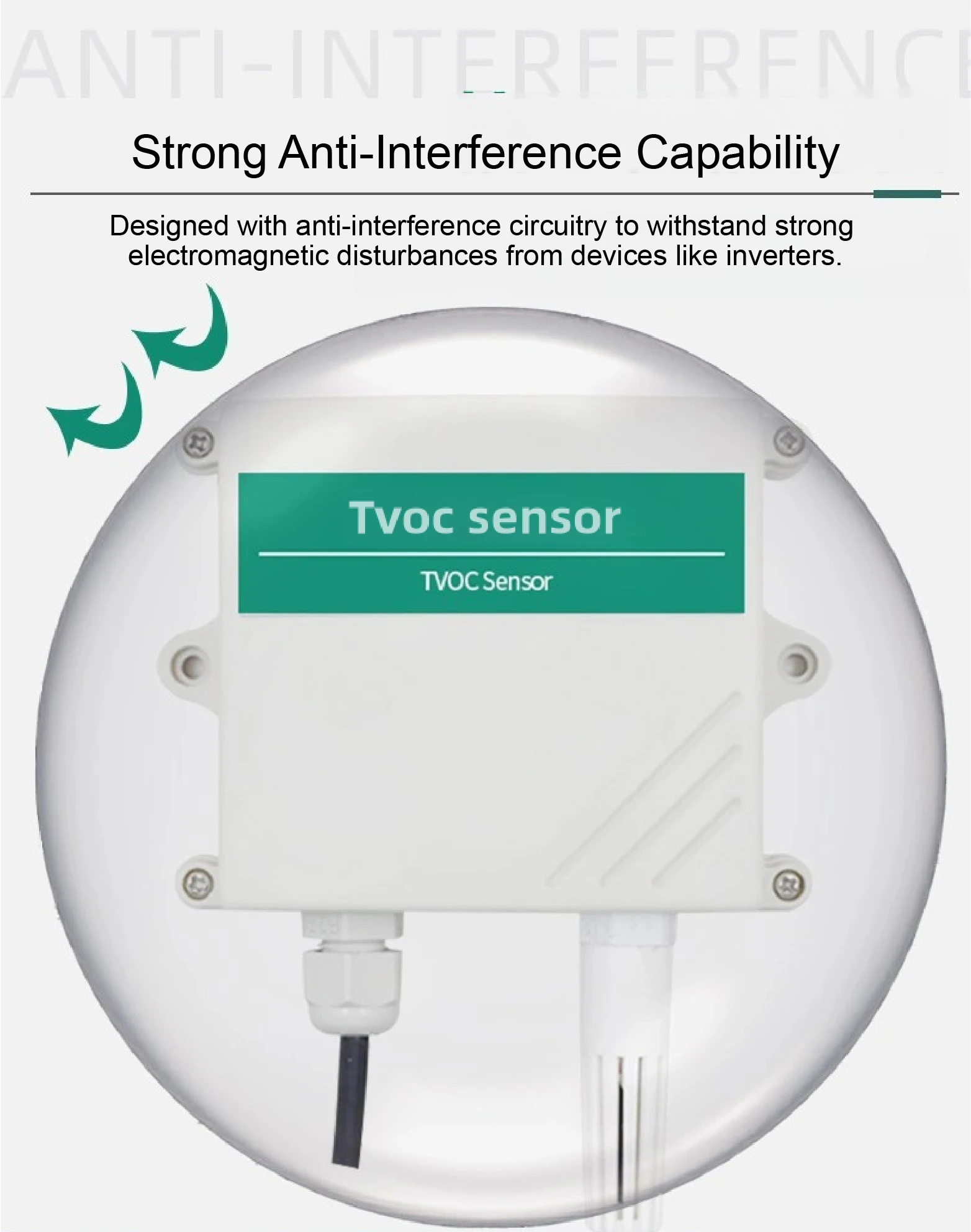

Anti-Interference: Specialized circuit design resists electromagnetic interference from strong sources.
5. FAQs
Q: What is the typical accuracy of the sensor?
A: The typical accuracy is 8% FS under standard conditions (25°C, 50% RH, 0.5 ppm C2H6O).
Q: Can the device be customized for specific applications?
A: Yes, customization for non-standard outputs, cable lengths, and other parameters is available.
Q: Is the product suitable for outdoor use?
A: Yes, with an IP65 rating, it is resistant to water and dust, suitable for harsh environments.
Q: What is the maximum adjustable baud rate?
A: The baud rate is adjustable between 1200 and 115200.
