[Factory]68-110mm Flex Honing Ball Brush Drill Inner Deburring Hole Brush Honing Tool Ball Cross Cylinder Block VEYER Polish

VEYER Awesome Tool Honing Brush

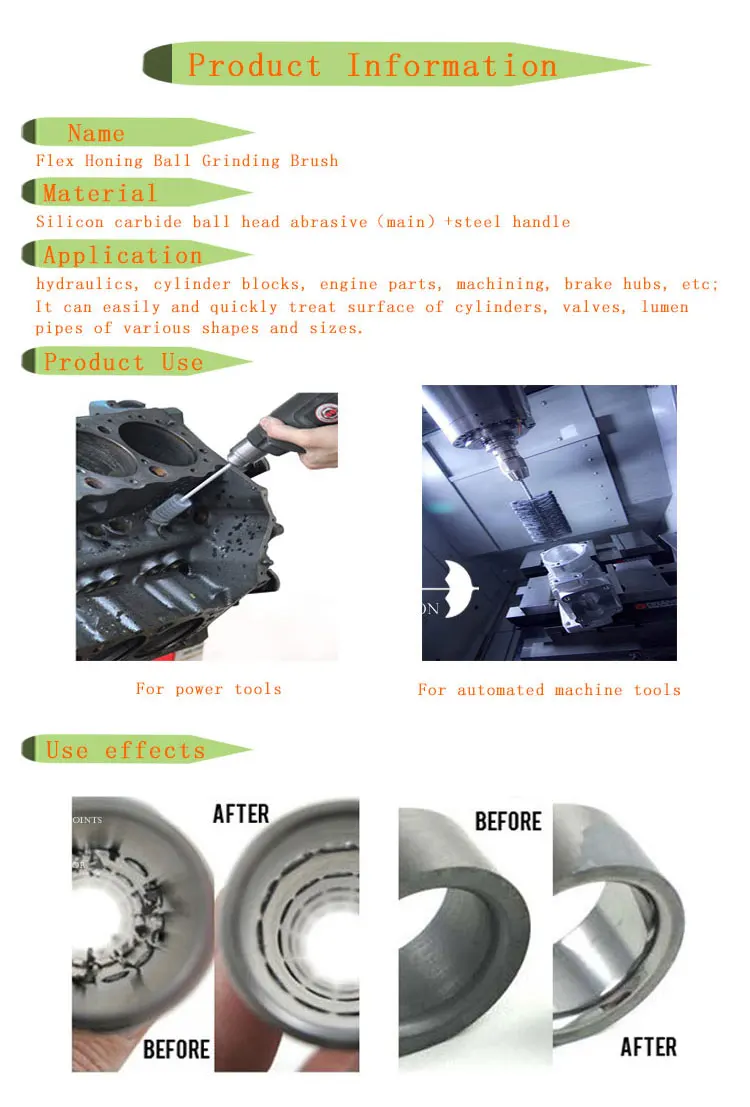

Honing processing technology, the most important VEYERprecision manufacturing technology for precision hole cylinder working surface

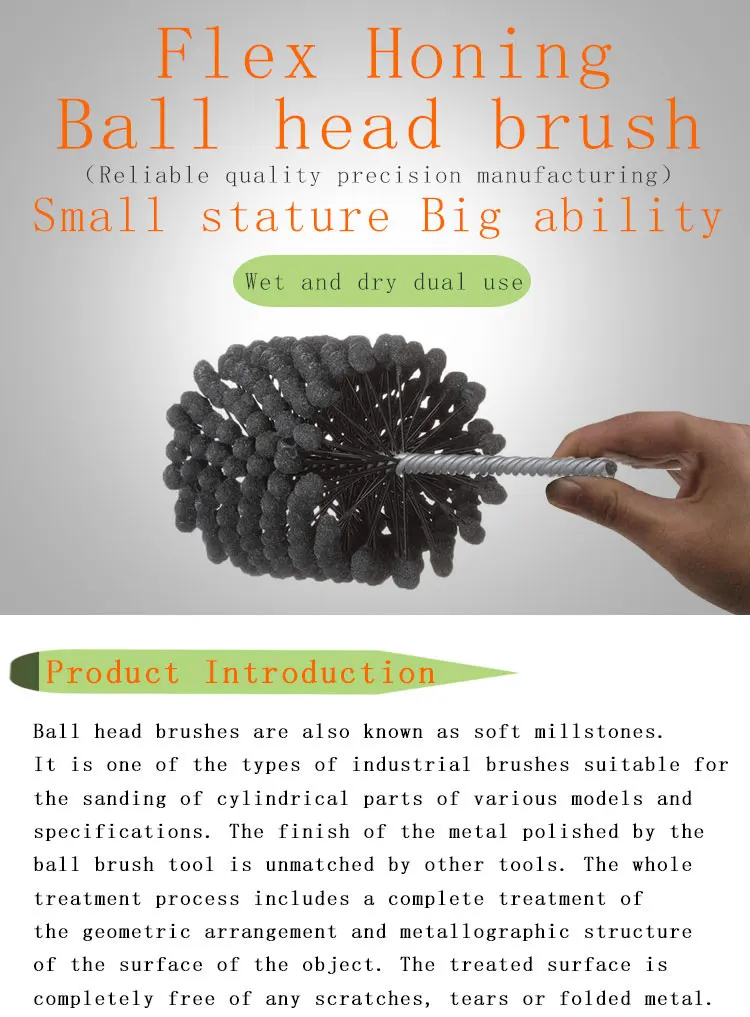

How flex ball honing work to debur & polish?

Honing can achieve precise processing and obtain a more precise hole diameter.VEYER's honing head applies a certain amount of pressure to the surface of the workpiece and adopts a finishing method that removes a very small amount of burrs, etc. on the workpiece. This can improve the dimensional accuracy of the cylinder liner and improve the surface roughness.

Choose a good honing brush. After grinding, the surface of the tool will no longer feel scratchy or uneven. VEYER320grit honing cylinders brush can also remove knife scratches and make the surface clean,smooth, and shiny.

What grit would be perfect to get a shiny surface after reaming/milling/drilling/cut of a cylinders/hole/tube/?

ball hone assortment from VEYER

Below two are often used.

One is 120grit, coarse type, wildly used.

It can hone metals with hardness around HRC 30~50 that are commonly used.

For example, it is generally gray iron, steel parts, and iron parts.

Burrs below/within 0.2mm can be removed.

Another is 320grit, fine type, high requirements.

It can reach smooth and shiny surface.

Suitable for polishing that requires relatively high smoothness. Commonly used metals include aluminum/alu. Alloy/copper parts, steel parts, and iron parts.

It can remove cut marks/ scratchesafter CNC drilling milling cutting.

Others need to be customized.

Sample Case:  Customer asking from VEYER

If I will drill 8.5mm, then ream 8.7mm and need 8.7mm as smooth as possible.But after reaming sometimes there are some scratches. I need more smooth work surface. Then he can choose our 320grit ball hone.

What flex ball hone brush size diameter should I choose for my hole/cylinders/brake?

VEYER suggest you

You can choose based on your experience.

The principle is that the larger the diameter, the greater the elasticity.

Our suggestion is to generally make it a little largerthan our holes/cylinders.

Generally, there is no problem if it’s 1mm to 2mm... larger.

If there is no suitable one, please share with us the size you want and we will customize it specially for you.

What help & advantages can this brush honing tool for cylinders have from VEYER?

Cost effective, easy to use, new technology, good alternative products.

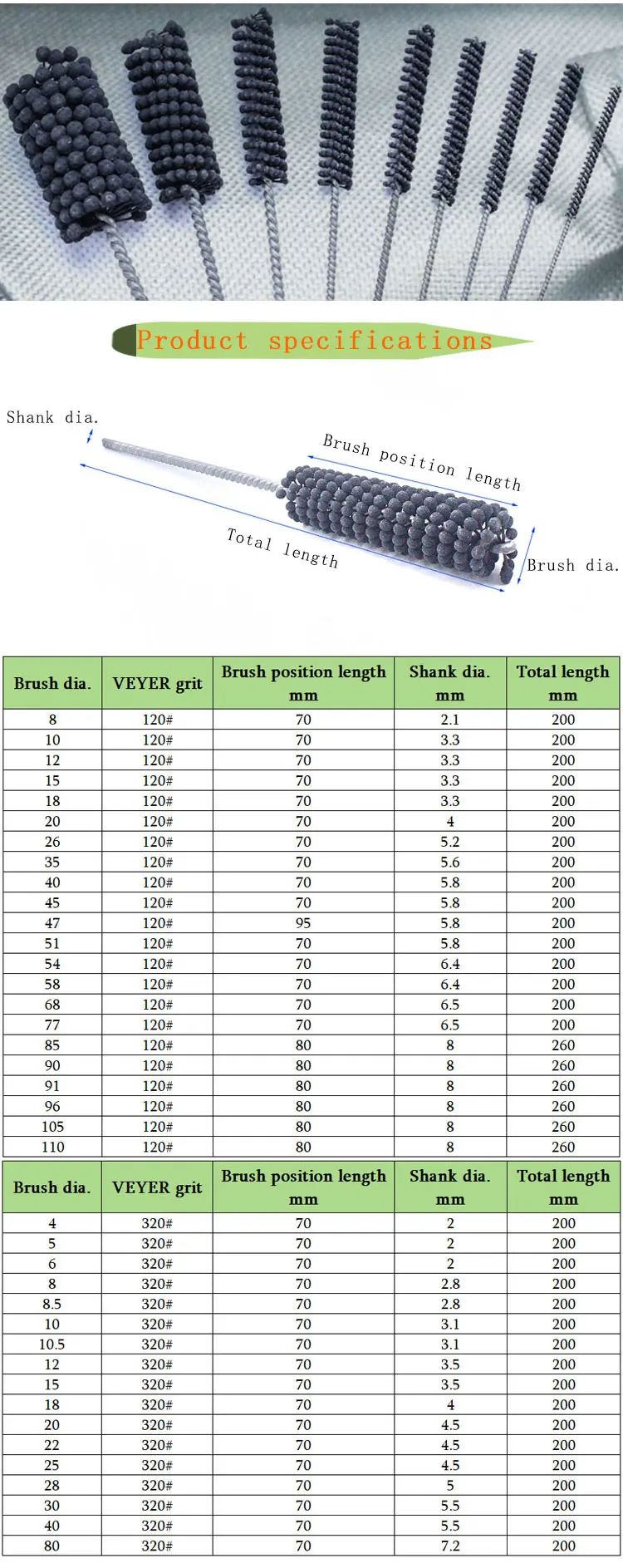

Ball brush honing range:

4mm-80mm P320, or customize

8mm-110mm P120, or customzie

To polish direct hole/cylinder type

How to use?

Q1 Do you guys have cutting parameters for the tool?

Q2 Like how much should I go into the material--ALU and feeds/speed?

listen to VEYER’s advice.

---Applicable equipment

VEYER’S products’re suitable for electric clamping equipment such as handheld electric drills, bench drills, and CNC machining centers. It is not suitable for high-power and ultra-high-speed equipment such as pneumatic drills.

Regarding speed, VEYER recommends

The ball head brush speed is generally above 1000mm/min

Depends on strength of the rod diameter, the ball head brushbig sizes isabout 2000~3000mm/min.

(if common rod tochnologylike silicon carbidecylinder brush,speed about about 1000mm/min)

---Suitable for various metal products,

Available gray iron, steel parts, iron parts, aluminum,alu. alloy and copper parts

This product is not suitable for soft materials such as wood, silica gel, etc.

---Pay attention when using

Please be careful not to reverse during operation, so as to avoid the twisting wire in the middle being forcefully twisted open, resulting in hair loss;

---Quality assurance

VEYER will check the appearance before leaving the factory. The surface of the new product is complete, there will be no problems.

This process has been done for decades, and thetechnology is very mature.

----

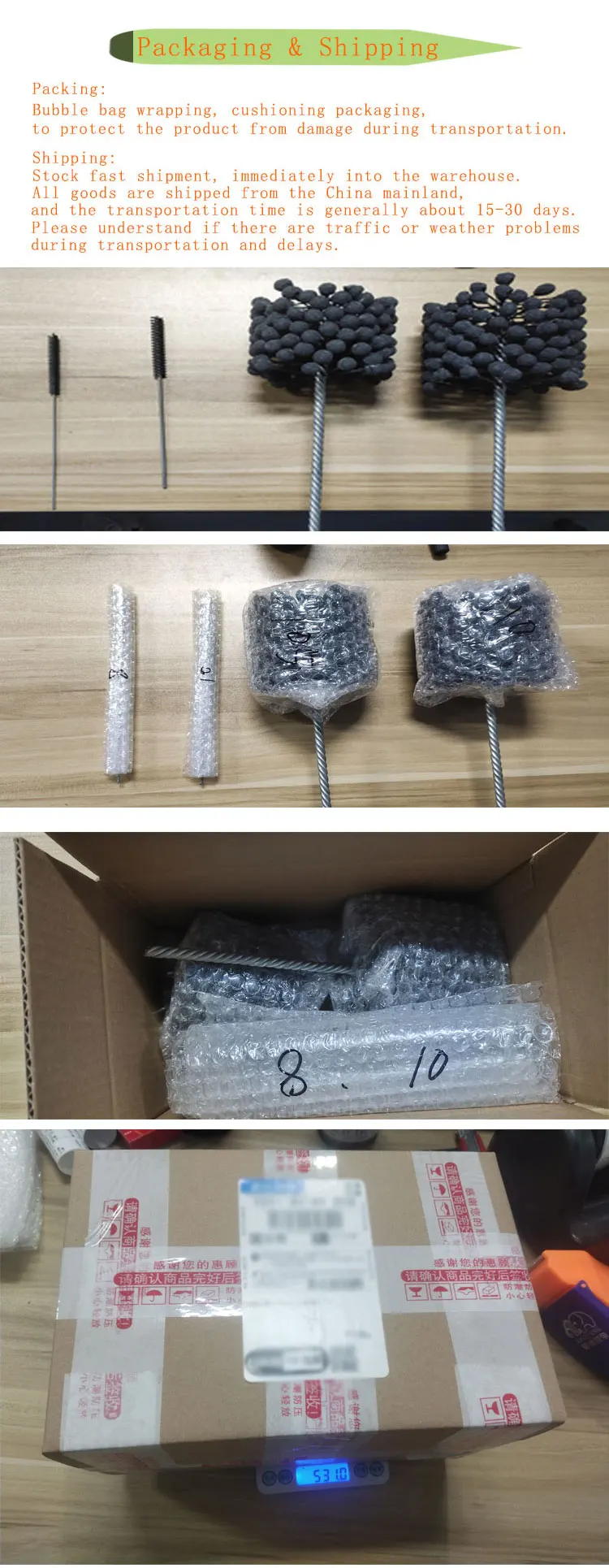

VEYER’S super packing:

Good carton packing with plastic bubble

----

Our Shipping :

stock fast shipment, immediately into the warehouse.

All goods are shipped from the China mainland,

and the transportation time is generally about 16-35days.

(Some country or places can be fast about 10 days,

if you need fast express, just choose or chat with us.)

Please understand us if there are traffic or

weather problems during transportation and delays.

----

Receive goods & Our Services

Remember to pick up your babyin time! Failure to pick up or overtime will result in direct loss of our package!

Please immediately check whether the goods are damaged and defective, if there is a problem, please take photos or videos immediately, in the chat feedback,

VEYER will immediately help you deal with ~~~

Satisfied with our goods and services, please give five-star praise,many thanks.

----

Mall customer service hours:

Monday to Saturday 09:00~12:00, 13:30~18:00

[Closed on China holidays (includingChinaanyholidayslike mid-autumn, national, global new year , lunar new year spring ... )].

Non-service hours will not ship and no reply to chat, large amount of information may also cause omission or delay in reply, please ask again.

If you are not satisfied, please contact us first, do not rush to review, we will definitely solve the problem for you, thank you!

I still have questions, I want to ask for help,then contact us now.

----

Convenient payment

Any Aliexpress support way like credit card, bank card,PayPal,PPRO_IDEAL...Or you can chat with us.

----

Reliable after service

Any problems, it will handled as soon as possible after we received them. All of you are our motivations. Your satisfaction and five stars are our endless expectations. Customer first, Quality first. Be forever partners.

----

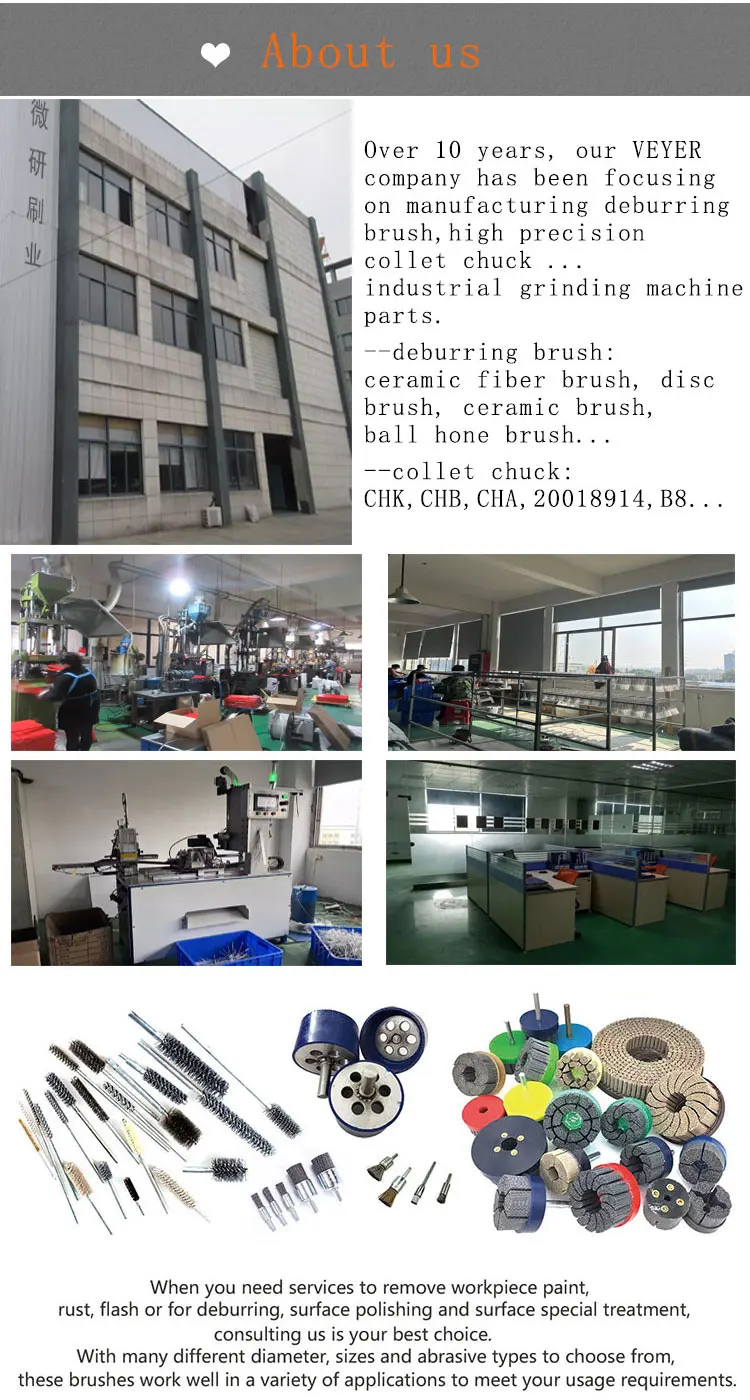

About us，VEYER brand

----

Our main products

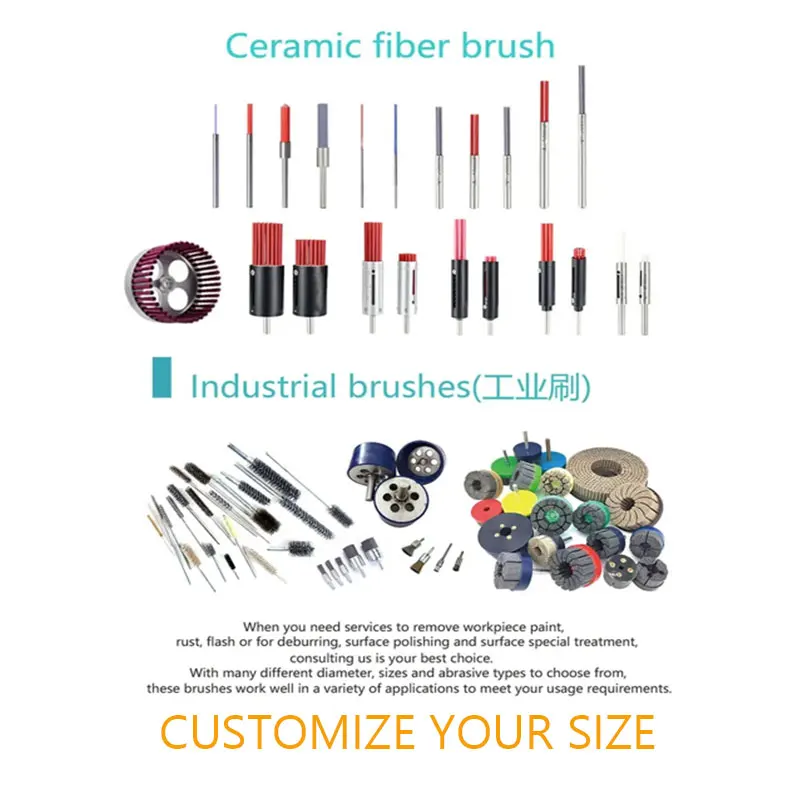

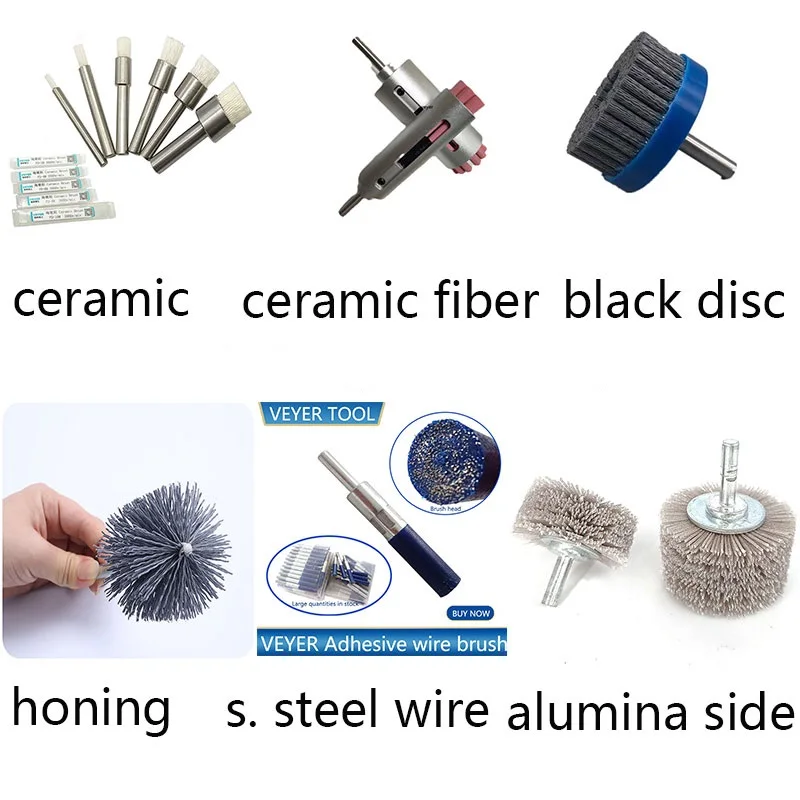

Our VEYER main products are deburring polishing brush like surface ceramic fiber brush, cross hole ceramic fiber brush,white ceramic brush,round disc brush, stainless steel wire glued coated brush... & collet chuck like CHK CHB CHA,20018914 series, B8...
