1.3 Inch 240*240 IPS Screen ST7789 Drive IC SPI Communication 3.3V Voltage SPI Interface Full Color LCD OLED Display
22 people are viewing this right now
£3.37£5.64
Price includes applicable VAT
-40%Save £2.27
SPECIAL PRICE DROP
£1.00 Coupon if Your Delivery is Delayed
Refund if Your Package is Lost
Refund if Your Items Arrive Damaged
Refund if Your Order Isn't Delivered Within 35 Days
Pay with PayPal in 3 interest-free instalments. Terms & conditions apply.
PayPal
1
Security & Privacy
Safe Payments: Your payment information is securely protected.
Secure Personal Details: We never share your personal information without your consent.

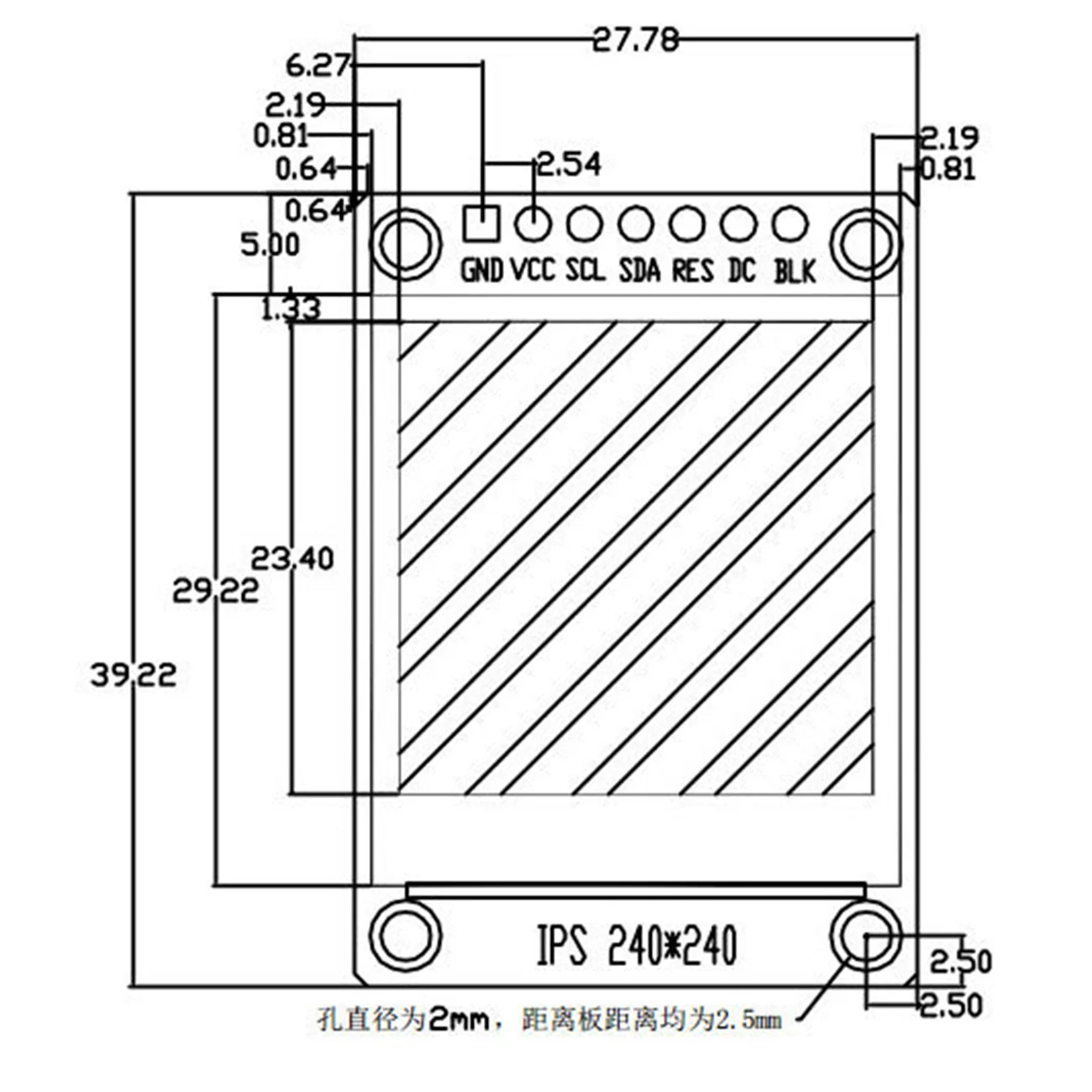

Inch is 1.3 inches Display mode Normally black IPS Display format Graphics 240RGB * 240 dot matrix Input data SPI interface IC Drive ST7789VW Dimensions Figure 27.78(W)* 39.22(H)* 3.0 +/- 0.1(T)mm Resolution 240RGB * 240 points LCD effective area 23.4(W)* 23.4(H) Point spacing 0.0975 (H) × 0.0975 (V) mm Sight all see Working temperature -20~70°C
Password number Symbol Description 1 GND Ground 2 VDC power supply 3.3 V 3 SCL serial clock pin. 4 SDA serial data input 5 RES LCM reset pin This pin is the reset signal input. When the pin is low, the chip is initialized to run. Keep this pin pulled high during normal operation. 6 DC data / command control 7 BLK backlight control pin
