Special note:

OLED displays are different from LCD displays; OLED is self luminous, so there is no backlight. When only powered on, the OLED display screen will not show any reflection, and there must be a program for correct operation to display. Please be careful.

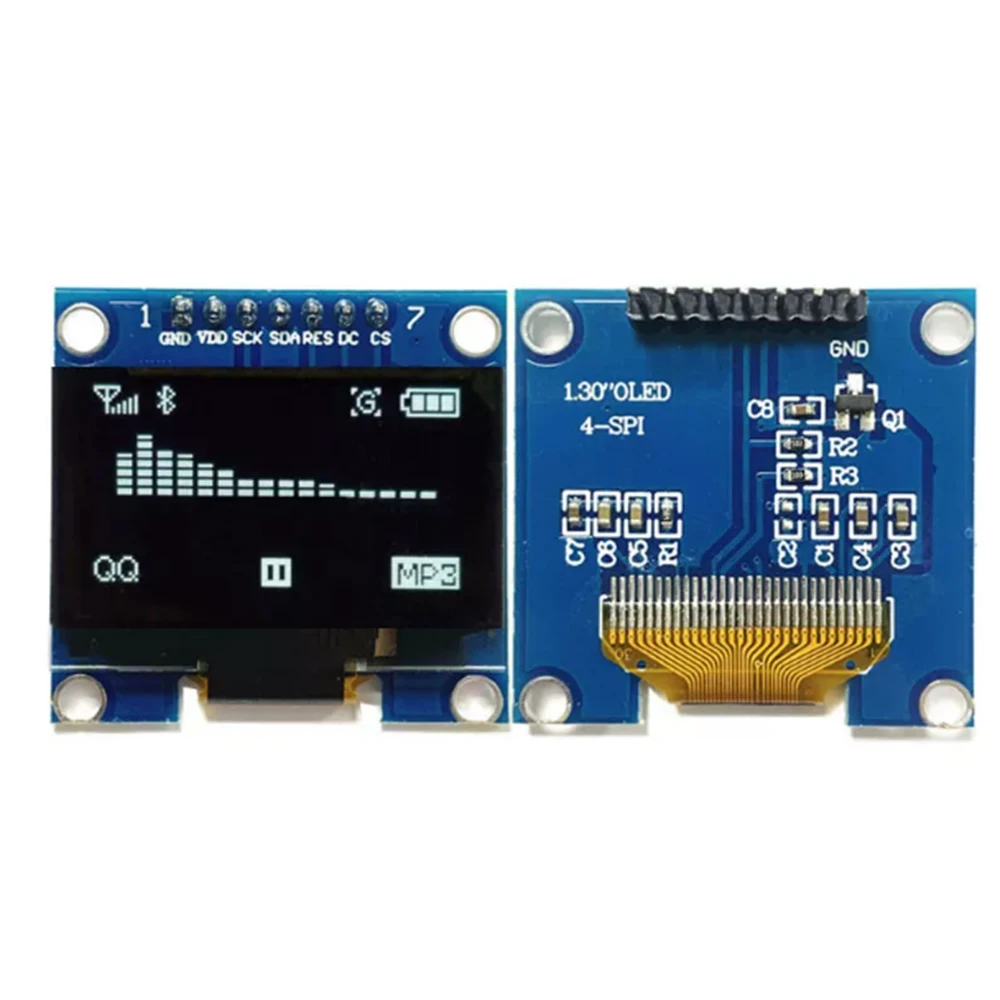

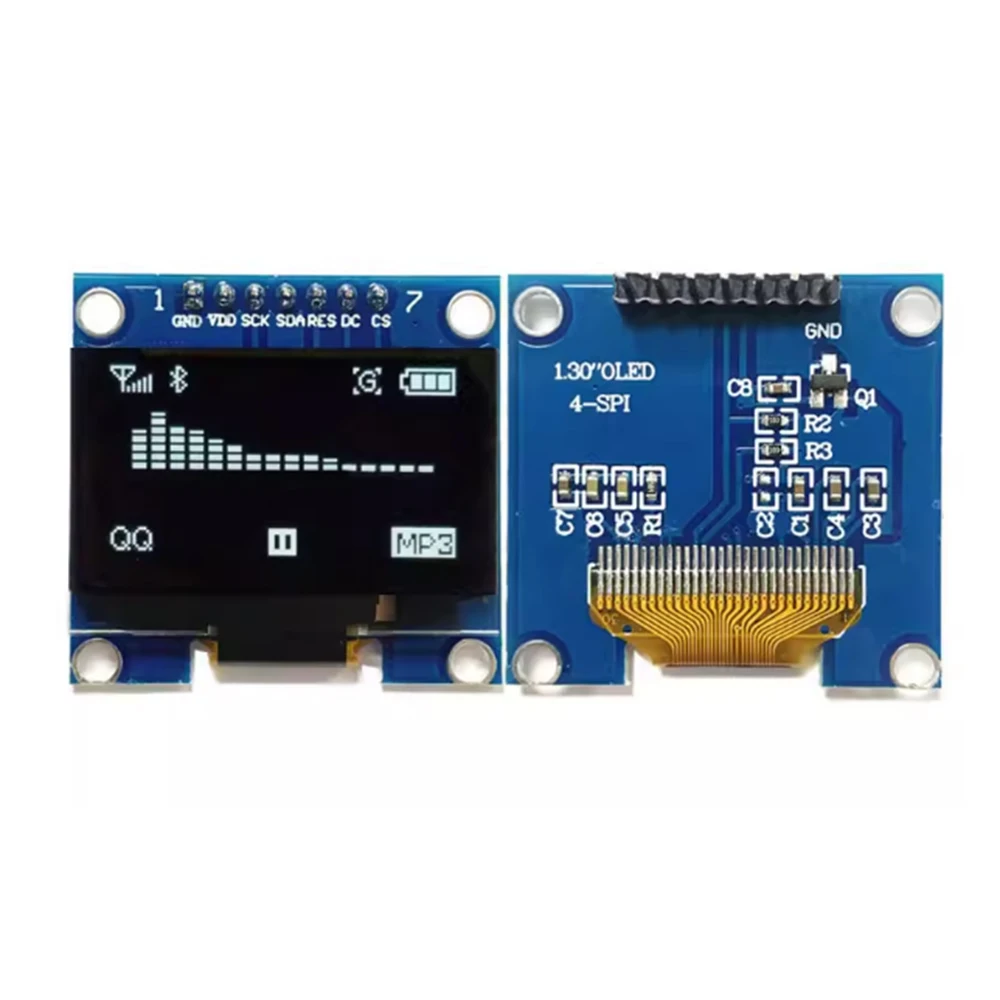

1.3 inch OLED display module 7Pin

Drive IC: SH1106

Resolution: 128 * 64

Support voltage 3.3V/5.0V

Working temperature: -40~85 degrees Celsius

Module weight: 6g

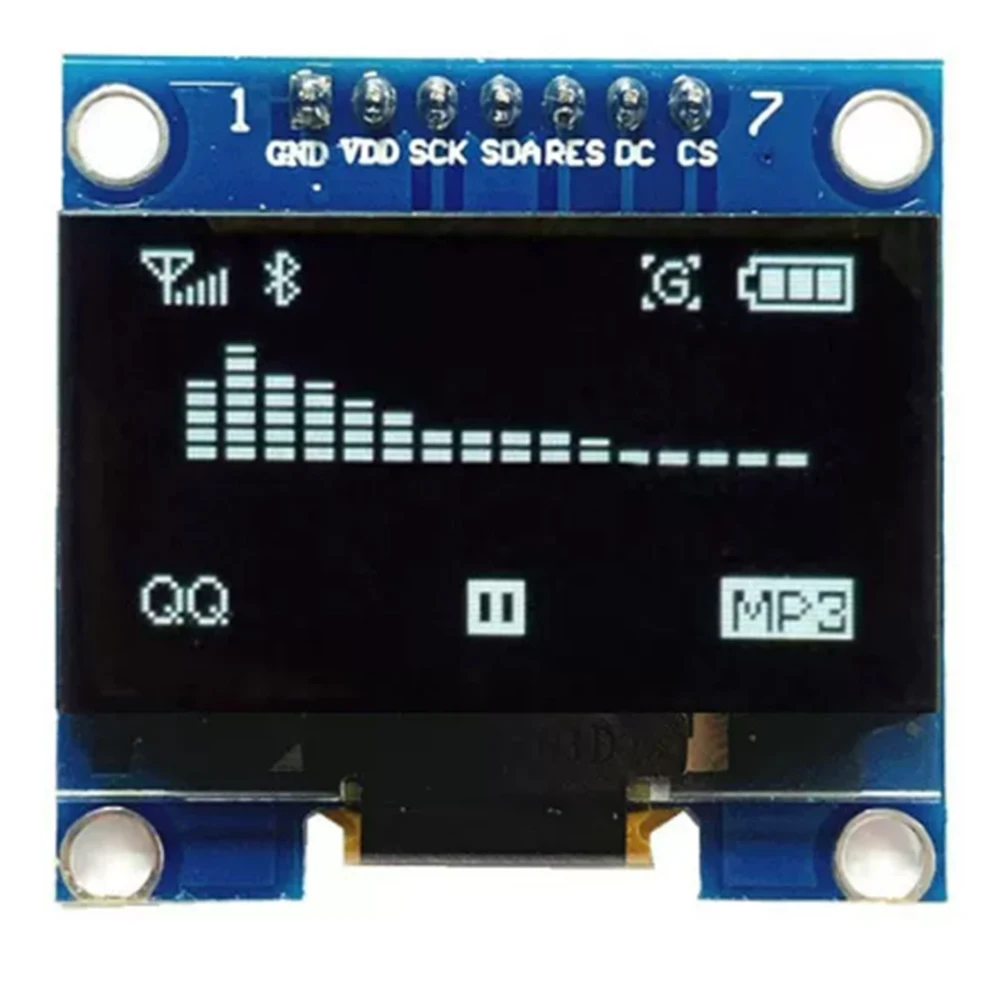

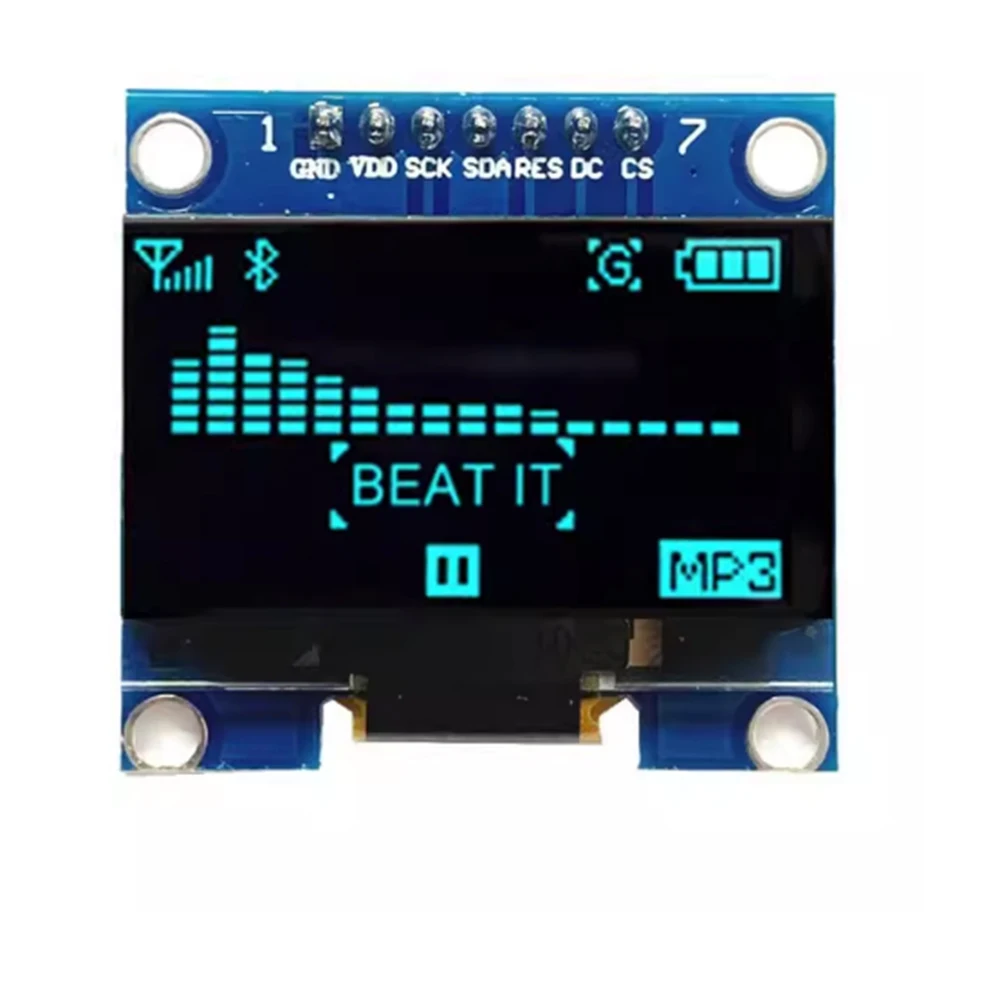

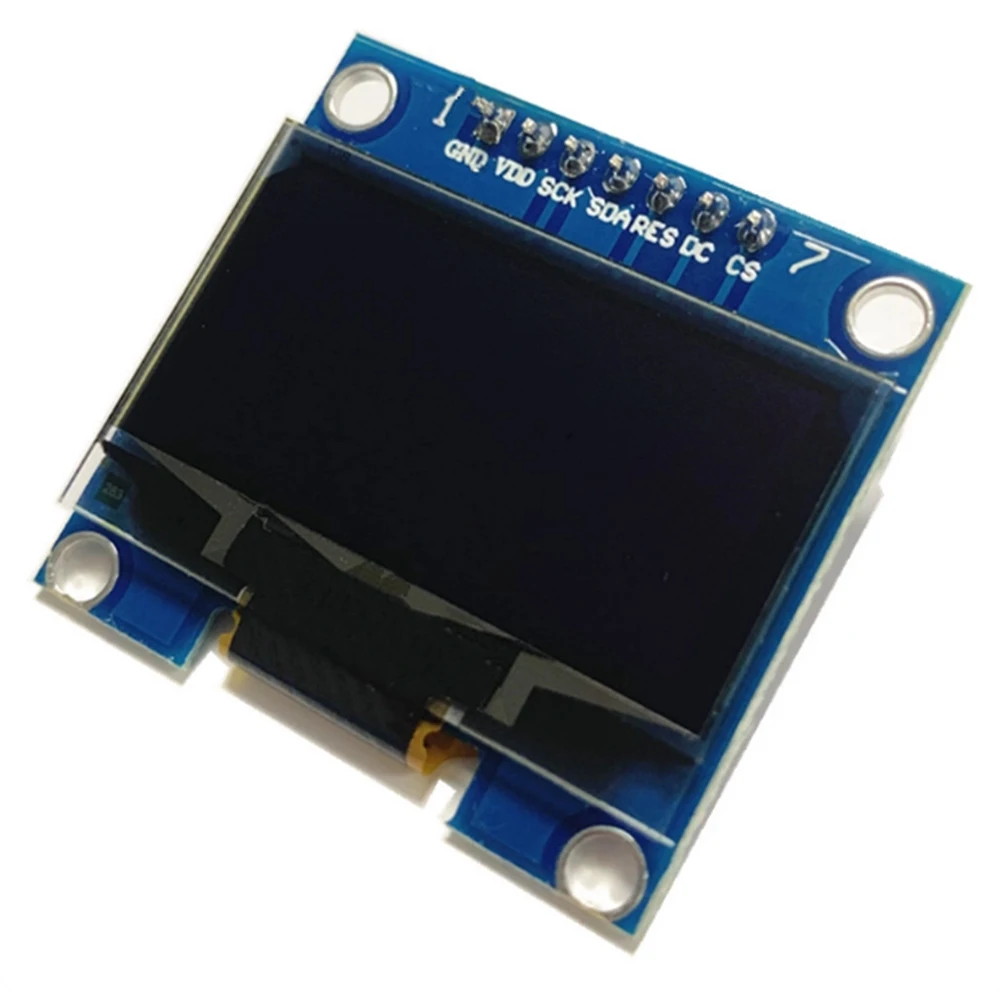

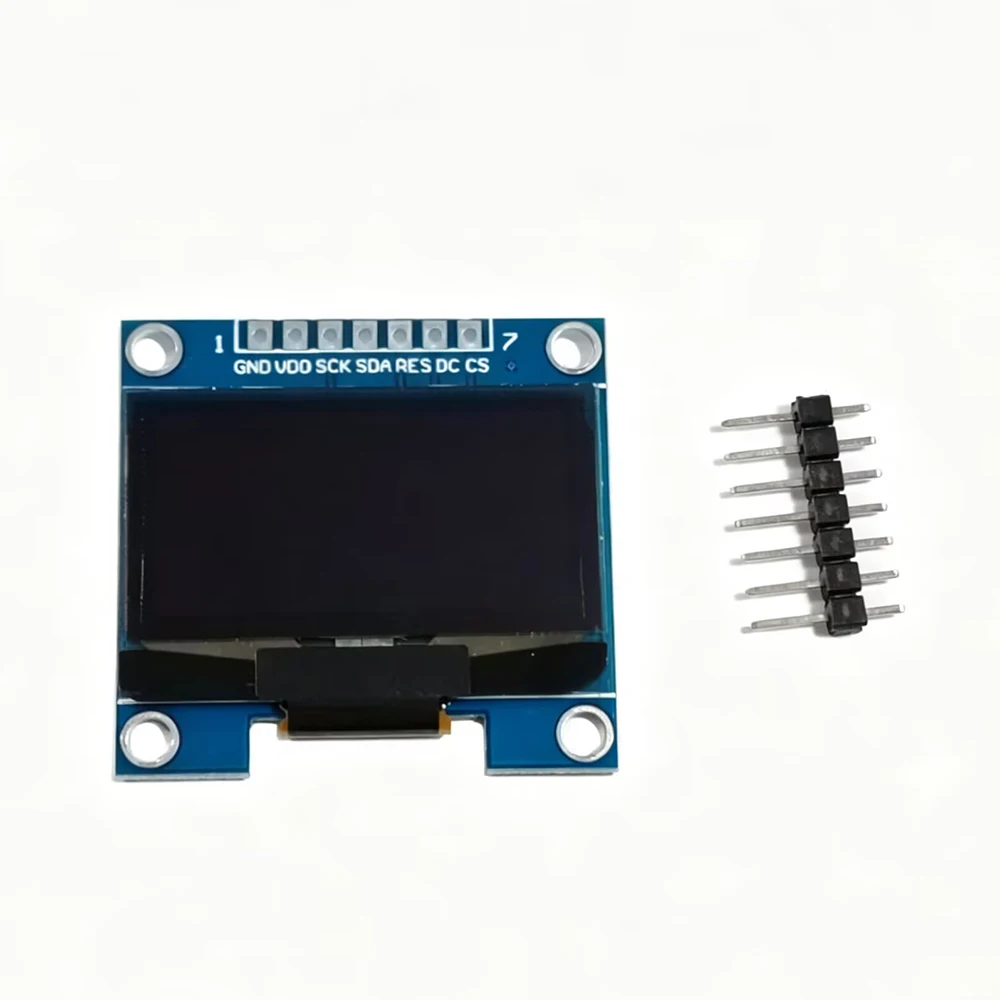

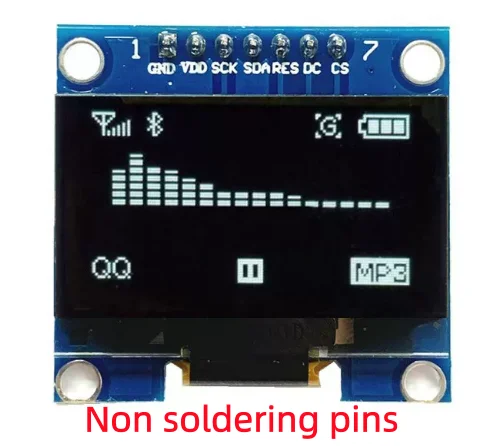

SPI interface definition:

1: GND (logic circuit ground)

2: VDD (Logic Power Supply)

3: SCK (Serial Clock Input)

4: SDA (Serial Data Input)

5: RST (This pin is the reset signal input, and when the pin is low, the initialization chip is executed.). Keep the pin pulled high during normal operation

6: DC (This pin is a data/command control pin. When the pin is pulled high, it selects the serial interface mode. The data in SDIN will be interpreted as data. When it is pulled low, the data in SDIN will drop and be transferred to the command register. In I2C mode, this pin serves as an address selection pin)

7: CS (chip selection, choose Chip when CSO=<L>)
