1/8" DC 12V 24V AC 110V 220V Fast Response Solenoid Valve 2-Way Normally Closed N/C Direct-acting Pneumatic Water Air Gas Valve

Specification:

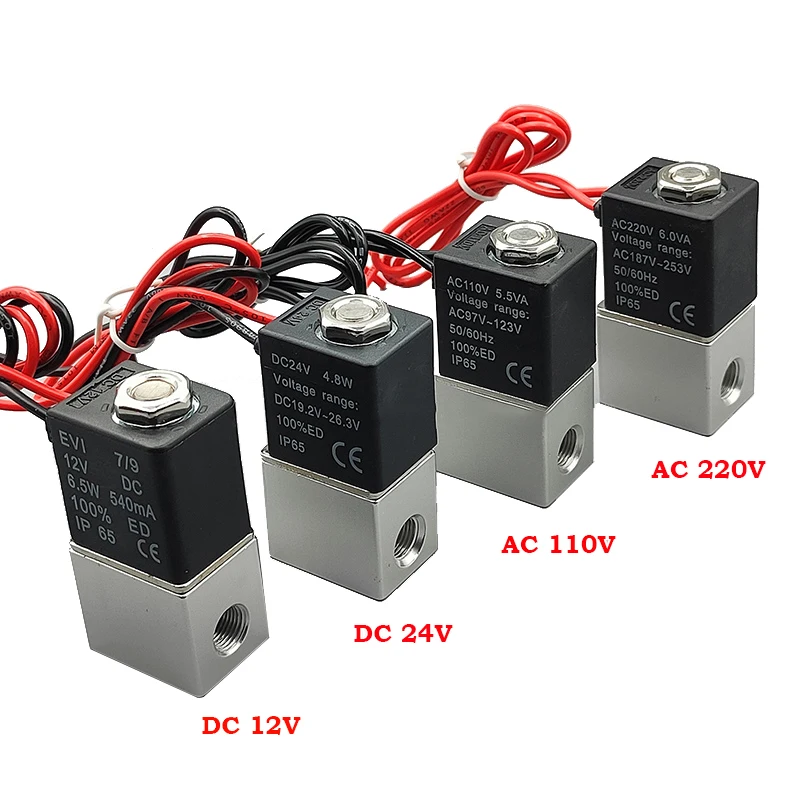

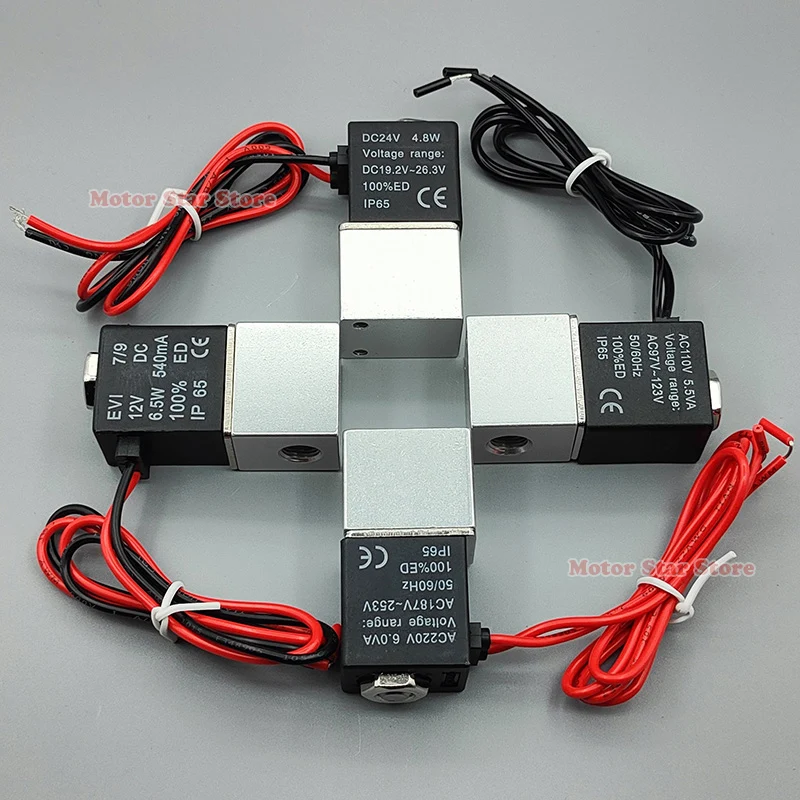

Model Number:

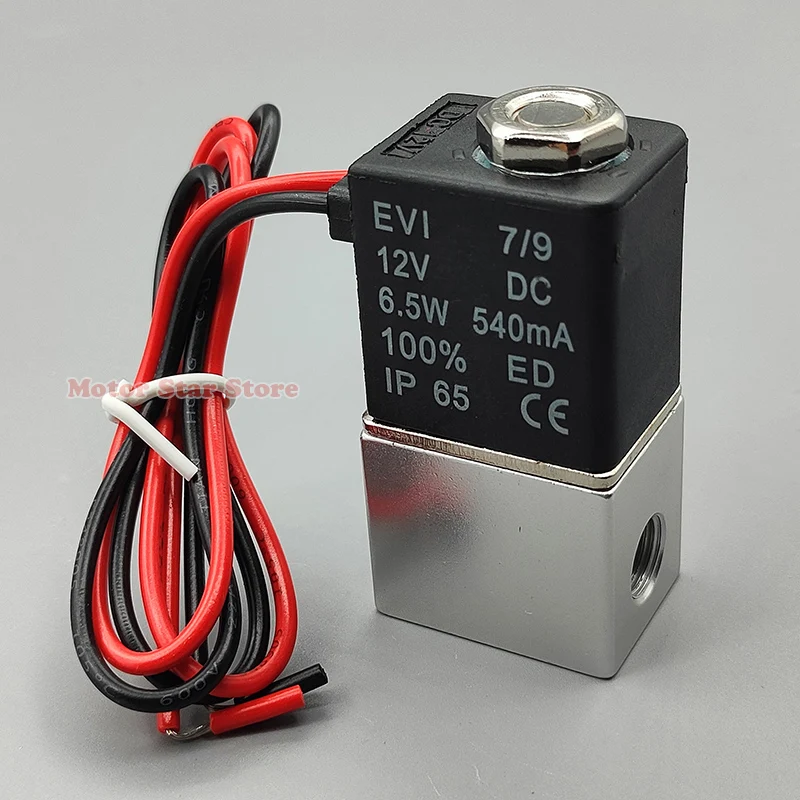

Model A: 2V025-1/8-DC12V

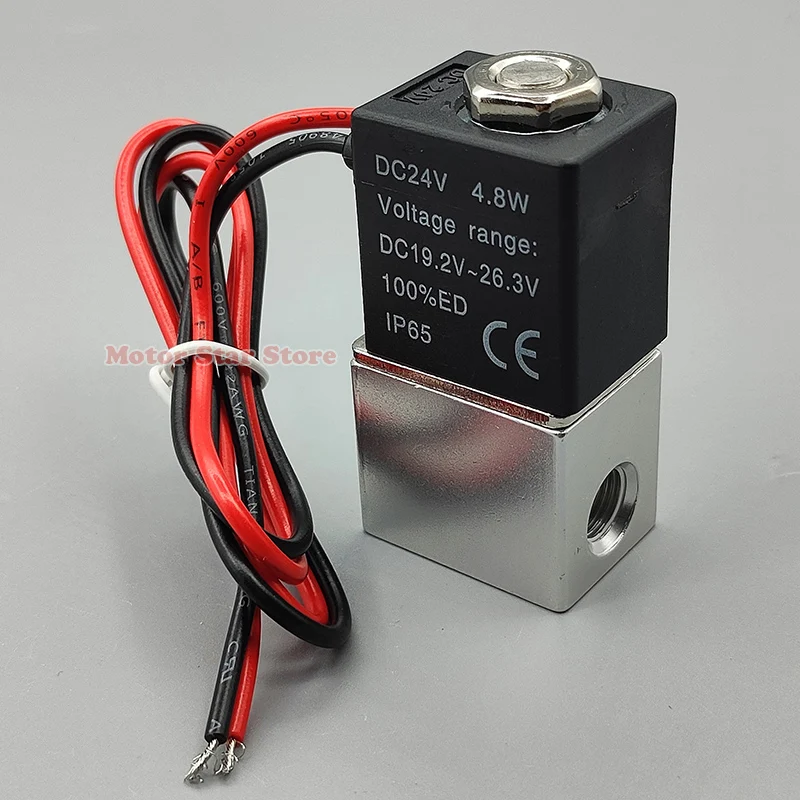

Model B: 2V025-1/8-DC24V

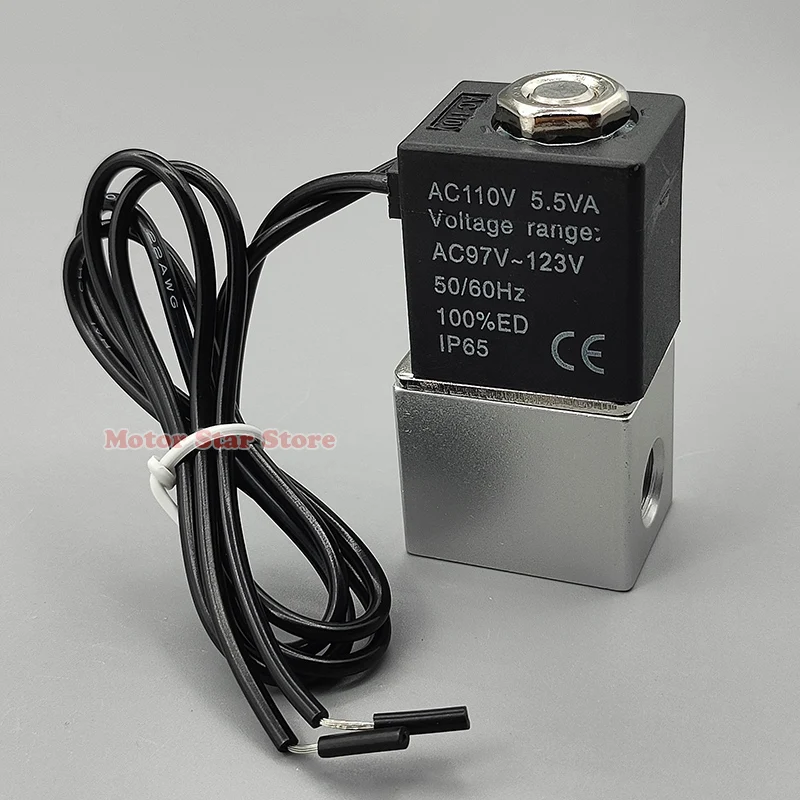

Model C: 2V025-1/8-AC110V

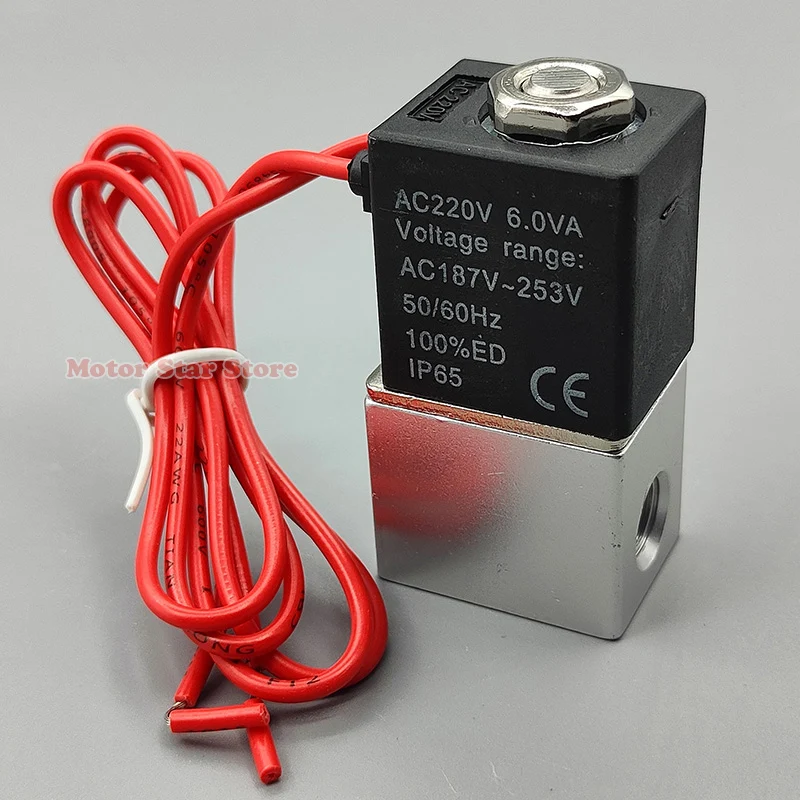

Model D: 2V025-1/8-AC220V

1.Valve Type: 2 Way Normally Closed (Valve opens with energized)

2.Port Size: 1/8" NPT Female Port

3.Coil Voltage: DC12V or DC24V or AC110V or AC220V

4.Service Media: Air, Gas, Liquid, Water

5.Operation Model: Direct Acting

6.Flow Model: Uni-Directional

7.Flow Rate: 0.23Cv (Fluid Flow)

8.Response Time: Less than 50 ms

9.Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))

10.Operating Temperature: -10 to 80 °C

11.Weight: 140g

Material:

1.Body Material: Aluminum

2.Seal Material: NBR (Buna N)

3.Armature Tube Material: Brass

4.Plunger & Spring Material: Stainless Steel

Package List:

Mini Solenoid Valve x 1pcs (depend on buyer's selection)
