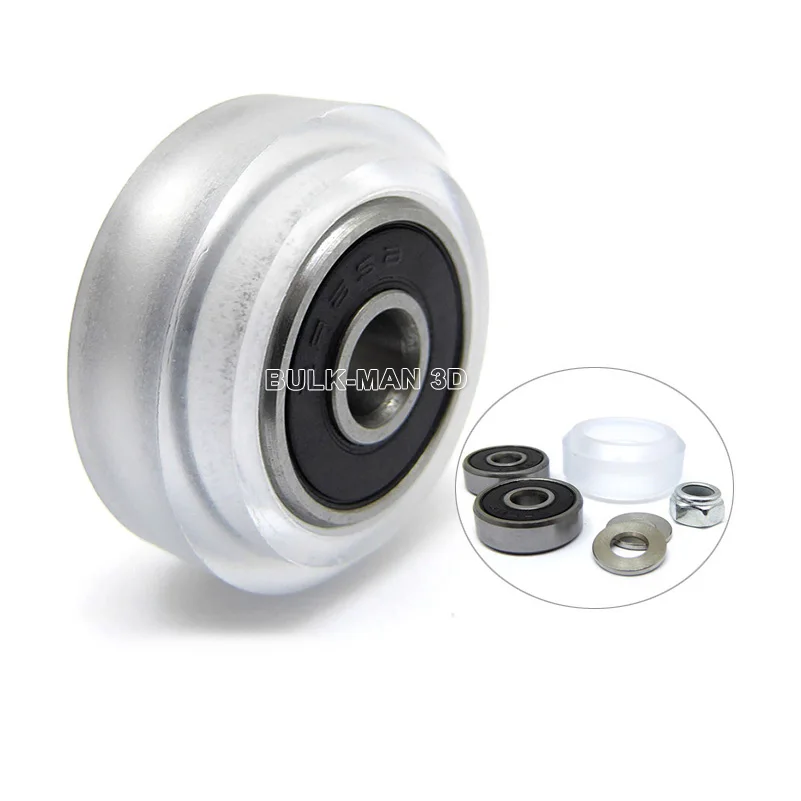

Xtreme Solid V Wheel Kit

The Xtreme Wheels are designed to be used as a heavy duty alternative to the Delrin Wheels in applications such as CNC Routers/Mills where force and weight are introduced into the system.

So, while the Delrin Solid V Wheels work great for most light load applications, the Xtreme Solid V Wheels can be used for Builds where heavier loads are required and less compression in the delrin is desired.

These wheels have been tested at 11kg with no noticeable deflection.

Product Name:	Polycarbonate Xtreme Solid V Wheel Kit
Material:	Polycarbonate
Size:	OD: 24.39 ID: 15.974 +/- 0.026 Thick: 10.23
Rockwell Hardness:	M75
Compression Strength:	86MPA
Color:	Clear
Quantity:	10 sets

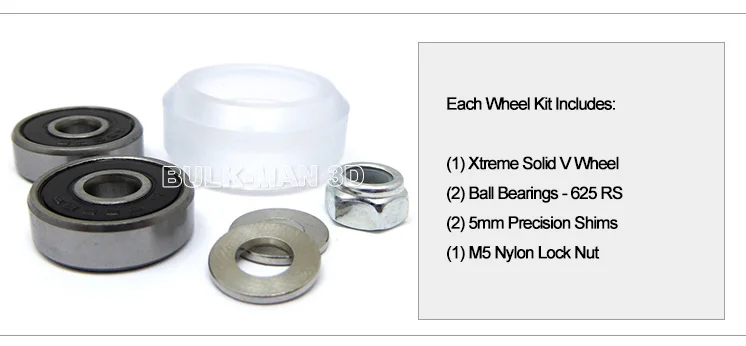

Each Wheel Kit Includes:	(1) Xtreme Solid V Wheel (2) Ball Bearings - 625 RS (2) 5mm Precision Shims (1) M5 Nylon Lock Nut
Function:	For 3D printer & CNC Router V Slot System

CAD Drawing:

Assembly:

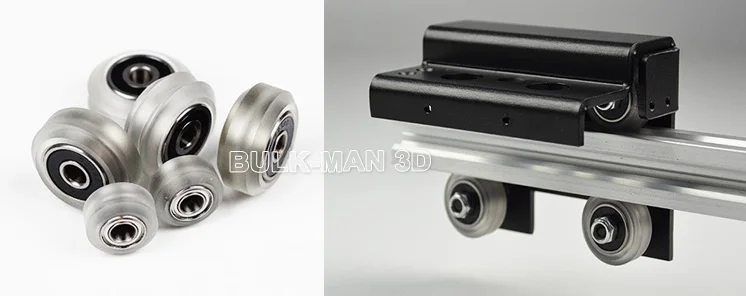

Application:

10Pcs Openbuilds Polycarbonate Xtreme Solid V Wheel Kit CNC Clear Plastic Wheel Pulley for V-slot Linear Rail 3D Printer Parts
