12V 3500lbs Portable Marine Electric Winch for Yacht with Wireless Remote Control Small Crane Tractor for Boat Docking And Recov

Product parameters

Product model: EWP3500

1) Rolling force: 10500lbs

2) Water tension: 9000lbs

3) Horizontal tension: 3500lbs

4) Linear speed: 10ft/min

5) Cable length: 36ft

6) Steel cable diameter: 5.8mm

7) Hook size: 5/8 "opening x 4-1/4"

8) Input voltage: 12V DC

9) Battery cable length: 10ft

10) Switch wire length: 10ft

11) Inner box size: 425 * 280 * 265mm

Marine electric winch

Winches can be divided into four types based on their driving methods: manual winch, electric winch, pneumatic winch, and hydraulic winch. It can be divided into marine and land use according to its purpose.

Marine winches can be divided into vertical, horizontal, and inverted types according to installation conditions

The marine electric winch utilizes the mechanical power of the ship's engine to drive the winch and the winch operated by a hydraulic pump. The electric winch obtains power from the ship itself to drive the motor to drive the winch. This type of winch is very convenient because it can be operated from anywhere by the knob on the remote control. Its biggest advantage is that it can be used as long as the battery is still charged.

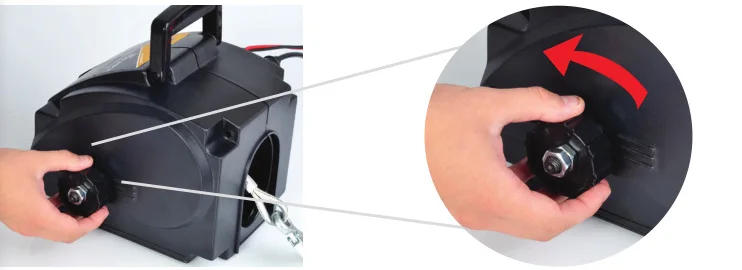

The working mechanism inside the winch is: the power from the ship first drives the motor, and then the motor drives the drum to rotate. The drum then drives the driving shaft, which in turn drives the planetary gears, generating strong torque. Subsequently, the torque is transmitted back to the drum, which drives the winch. There is a clutch between the motor and the reducer, which can be switched on and off through a handle. The braking unit is inside the drum, and when the rope is tightened, the drum automatically locks.

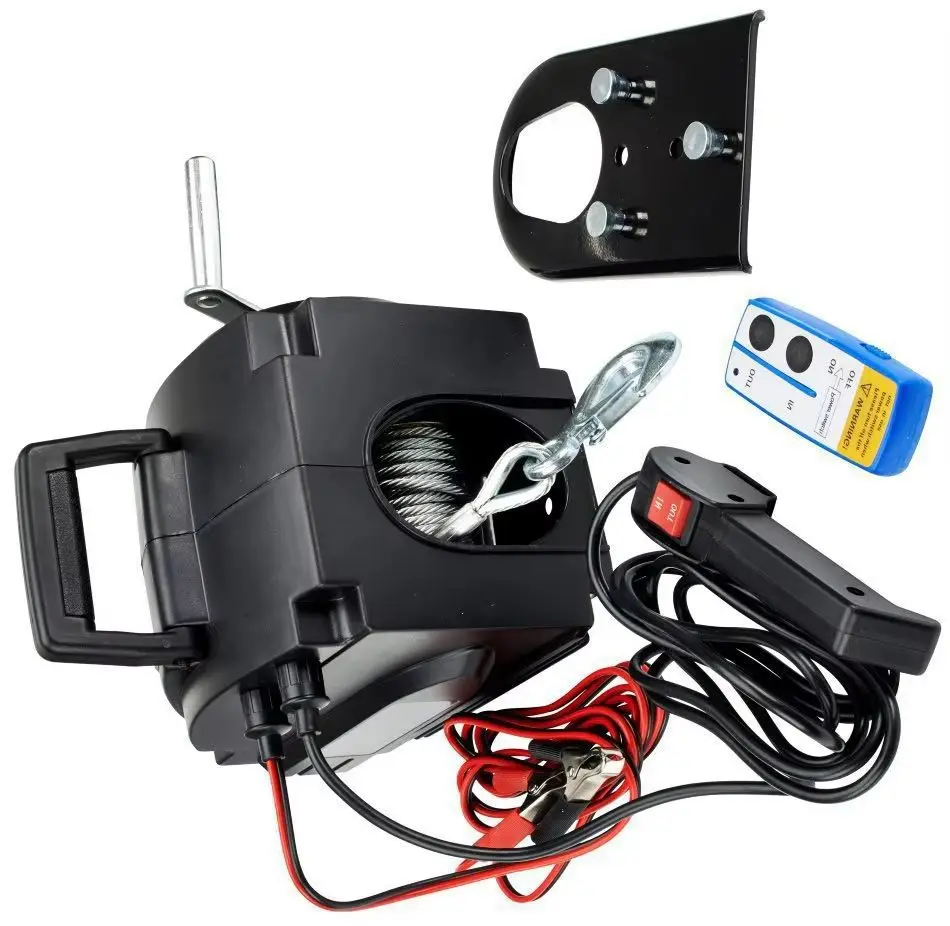

Note: This marine winch is equipped with wireless remote control, which can be used to control the winch's retraction and release lines.
