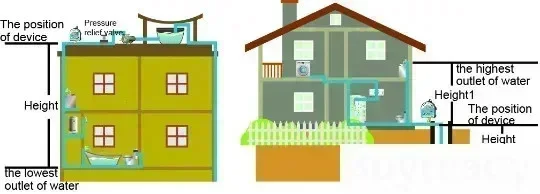

Water Supply from Upstairs to DownstairsImmersible pump automatic control
The Upper Value=The Upper Value=
The Max. Pressure of Pump -0.5KG(The Max. Pressure of Pump-H )*0.1KG-0.5KG
The lower value=0.5KGThe lower value=H1*0.1KG+0.5KG
Water shortage protection value=0.2KG Water shortage protection value≤H1*0.1KG
Water Supply from Downstairs to Upstairs
The Upper Value=The Max. Pressure of Pump-0.5KG
The lower value=H*0.1KG+0.5KG
Water shortage protection value≤H*0.1KG

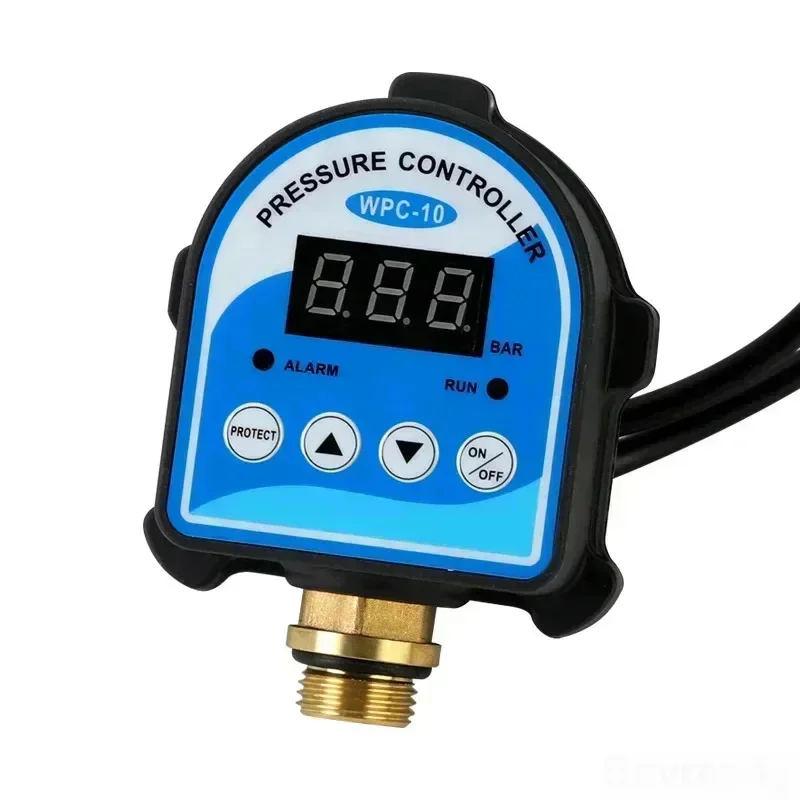

Technical Parameter | |
Pressure Range | 0-10KG f/CM |
Voltage Supply | 220Vac(You require a 3 phase AC contactor with 380V pump) |

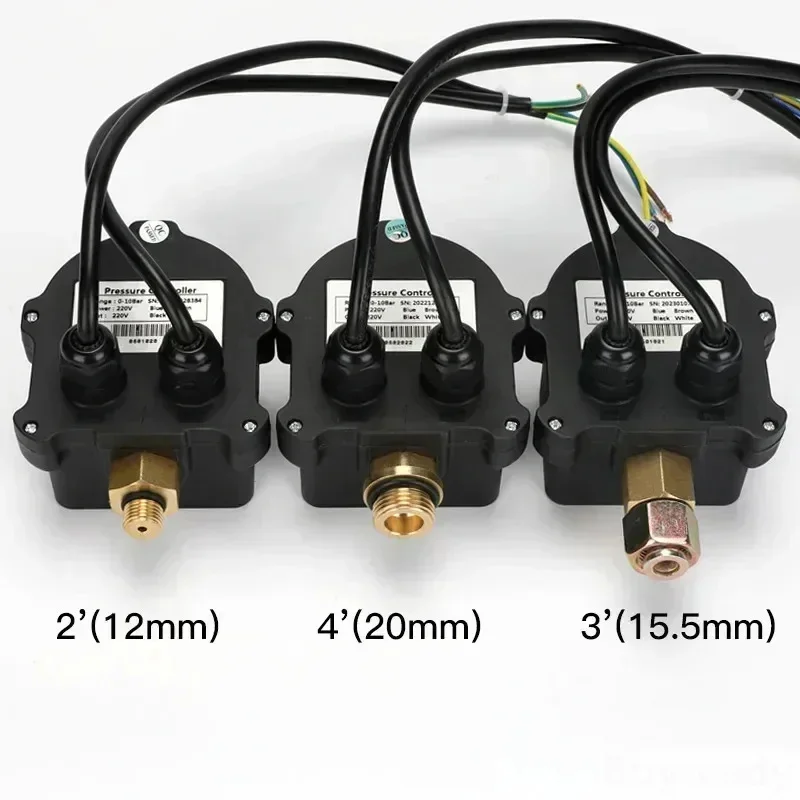

Connection | G1/2(Standard),it also can be customized |
Overload Capacity | 220V,10A; Pump(≤1.5KW) can be started directly |

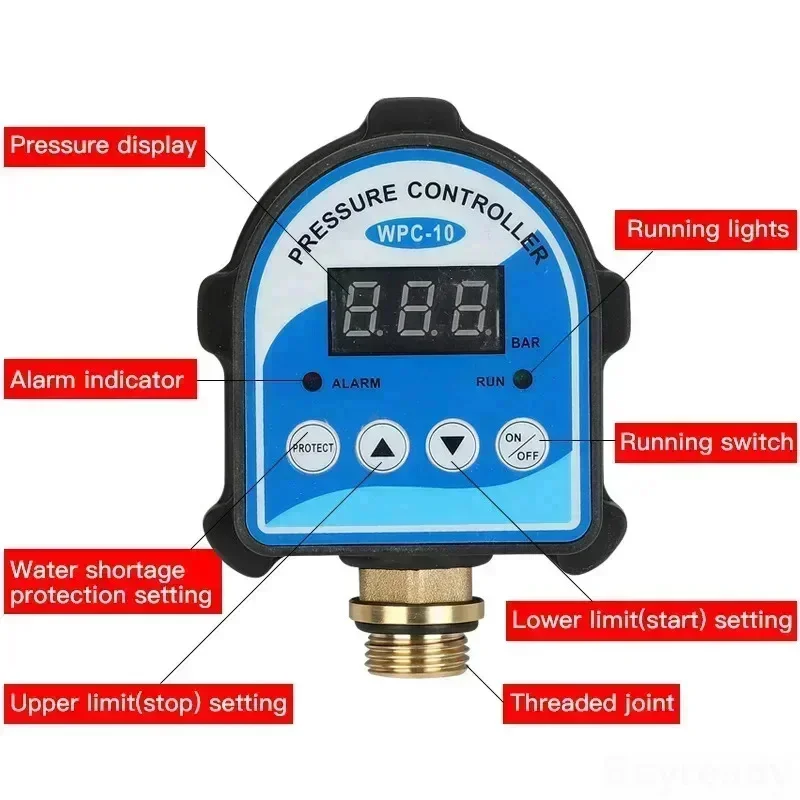

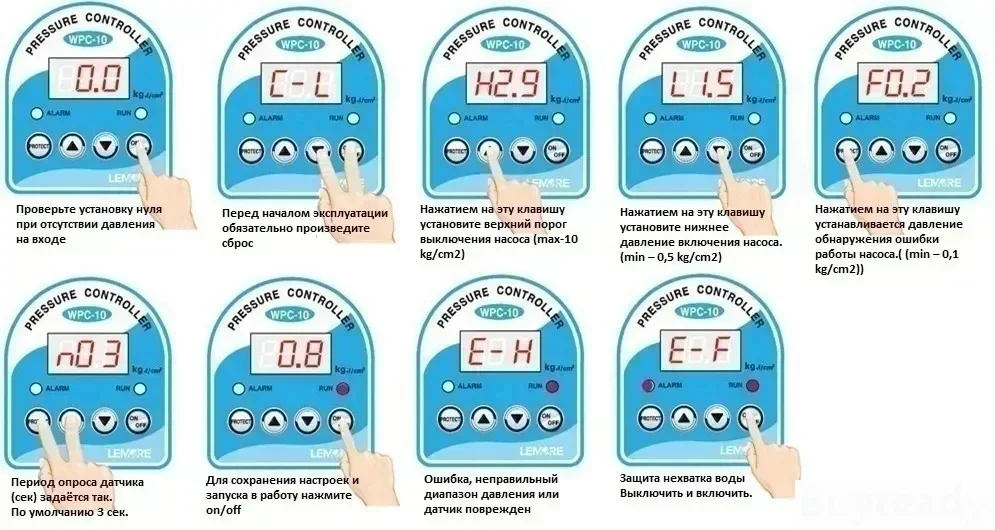

Read The Code | ||
Code | Meaning | How To Use |
H2.9 | Upper value,stop2.9KG | You can set it as instruction |
L1.5 | Lower Value,stop1.5KG | You can set it as instruction |
F0.2 | Water shortage protection 0.2KG | You can set it as instruction |
E-F | Water shortage protection | Press ON/OFF to restart or waiting for restart automatically |
E-H | Error,over the pressure range | Check the pressure source |
Russian Manual
