1-10PCS Zigbee GL-C-201P/202P/203P/011P/301P GLEDOPTO DC12-24V 5-in-1 ZigBee 3.0 Pro + RGB LED Controller Smart APP Voice Control
Smart LED Strip Lights DIM CCT RGB RGBW RGBCCT 5 IN 1 RF controller 2.4GHz Gateway touch APP max 480W DC 12V 24V
ATTENTION:
To maintain the softness of the maximum brightness, all the beads of the lamp will not reach the maximum brightness at the same time. When used it is usually warm white + cool white = 100% brightness, such as 100% warm white + 0% cool white or 50% warm white + 50% cool white. Instead of 100% warm white + 100% cool white.
Please note that our zigbee devices (Zigbee/Plus/Pro version products) require related zigbee gateways.

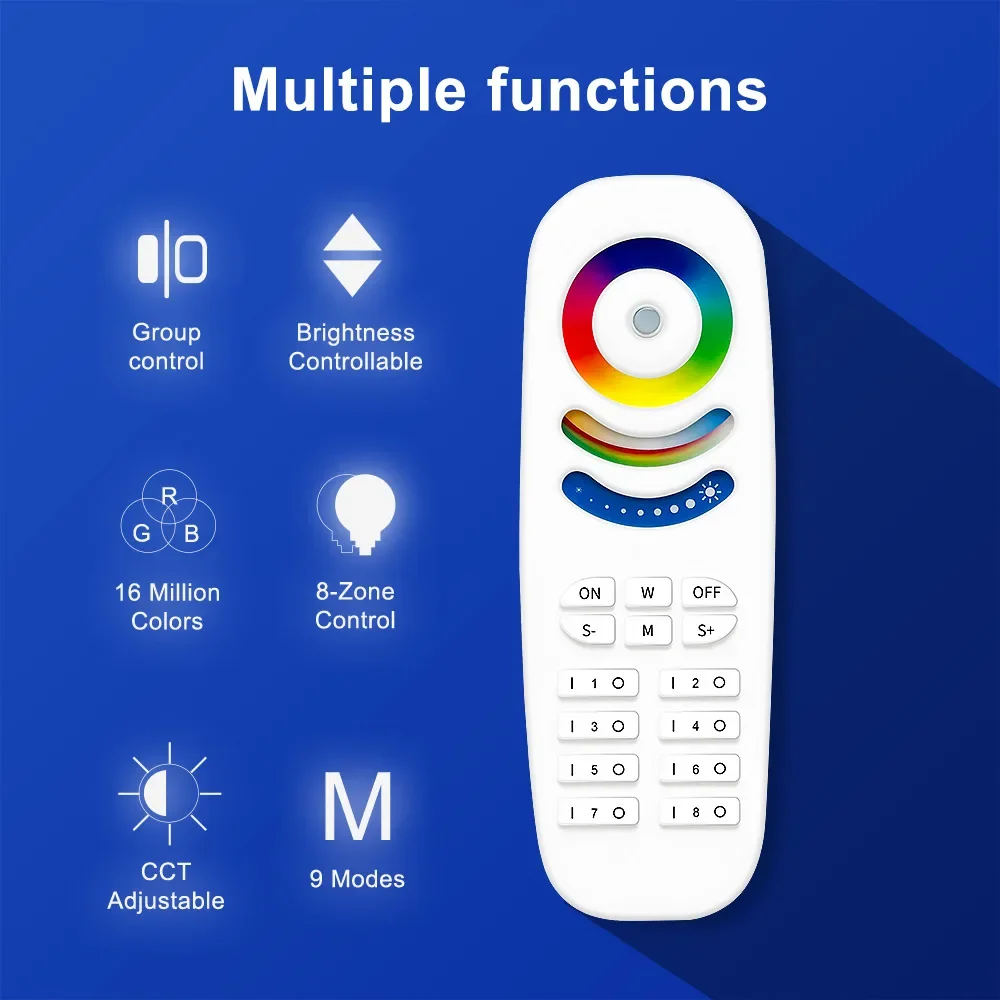

If you don't have any gateway, buy a 2.4G RF remote control or wall switch to work with Plus/Pro version products.
The remote control and wall switch are 2.4G RF, only work with Plus/Pro version products.(Not ZigBee)
Features:

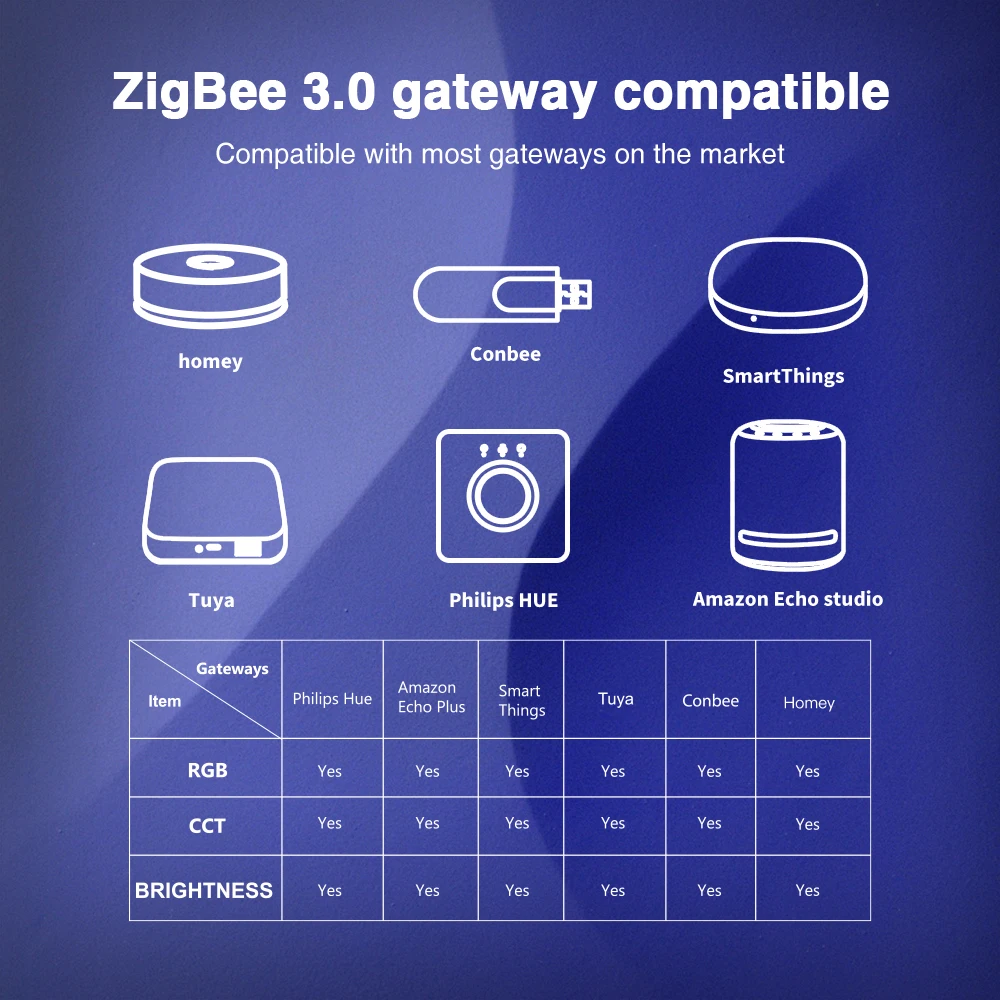

Supports Tuya /SmartThings /H*ue /Homey/ Echo Alexa app control.Supports smart life APP control on Android/IOS phone.(There are some compatibility issues with IK*E*A currently)
Supports voice control by Alexa Echo/Google Home via SmartThings hub or Tuya Zigbee hub.
Supports 2.4G RF remote control directly, without zigbee hub.
Group: Create Rooms, divide your lamps into one or several rooms, to control the lamps in each room together or separately.

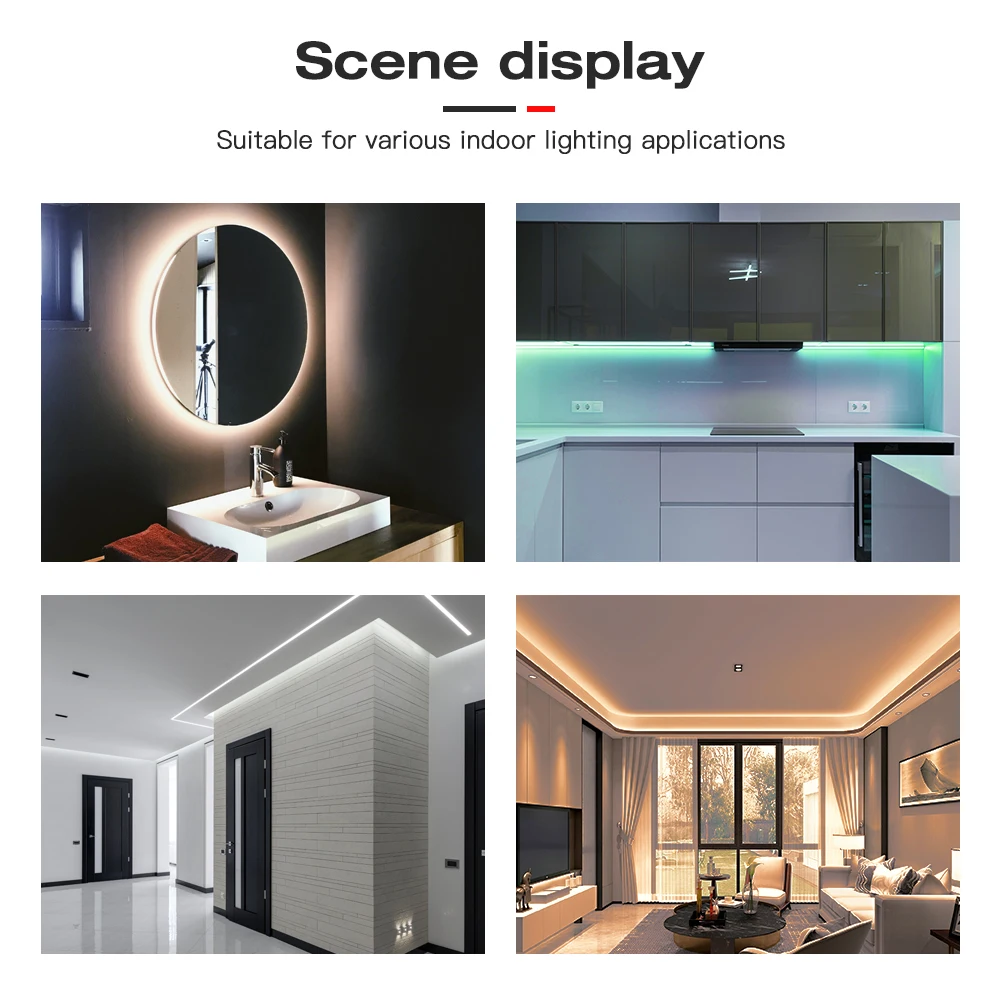

16 million colors for you to choose from and make your life colorful, to create a relaxing and peaceful environment. Such as living room, kitchen, bedroom and so on.
Questions and answers or more information, please contact us online and we will reply you in time.

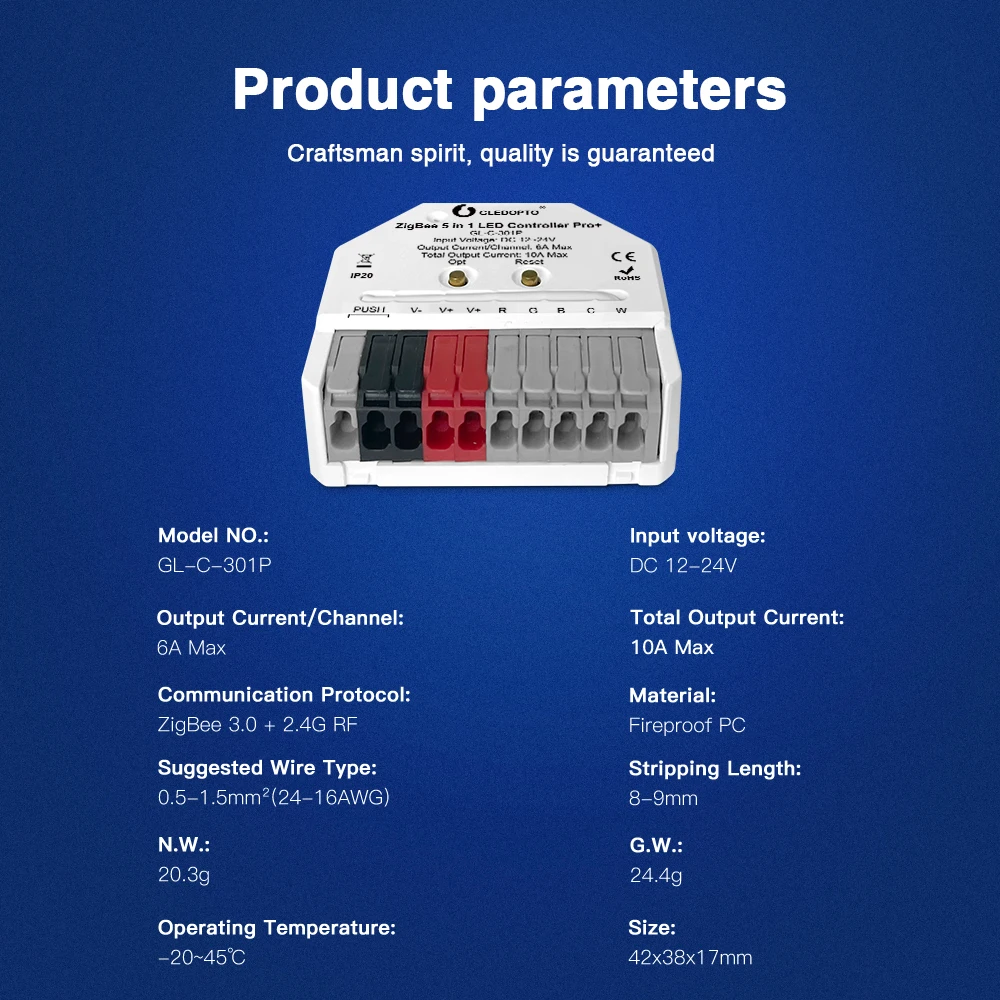

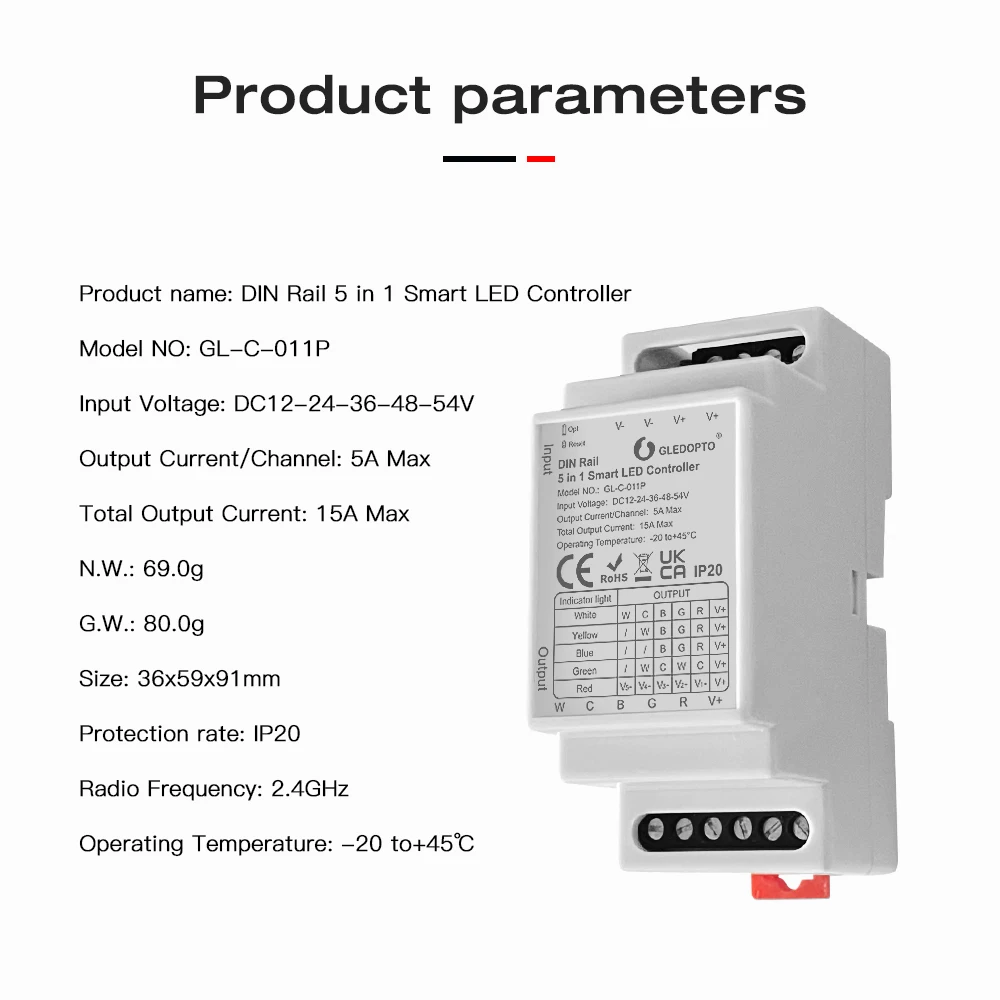

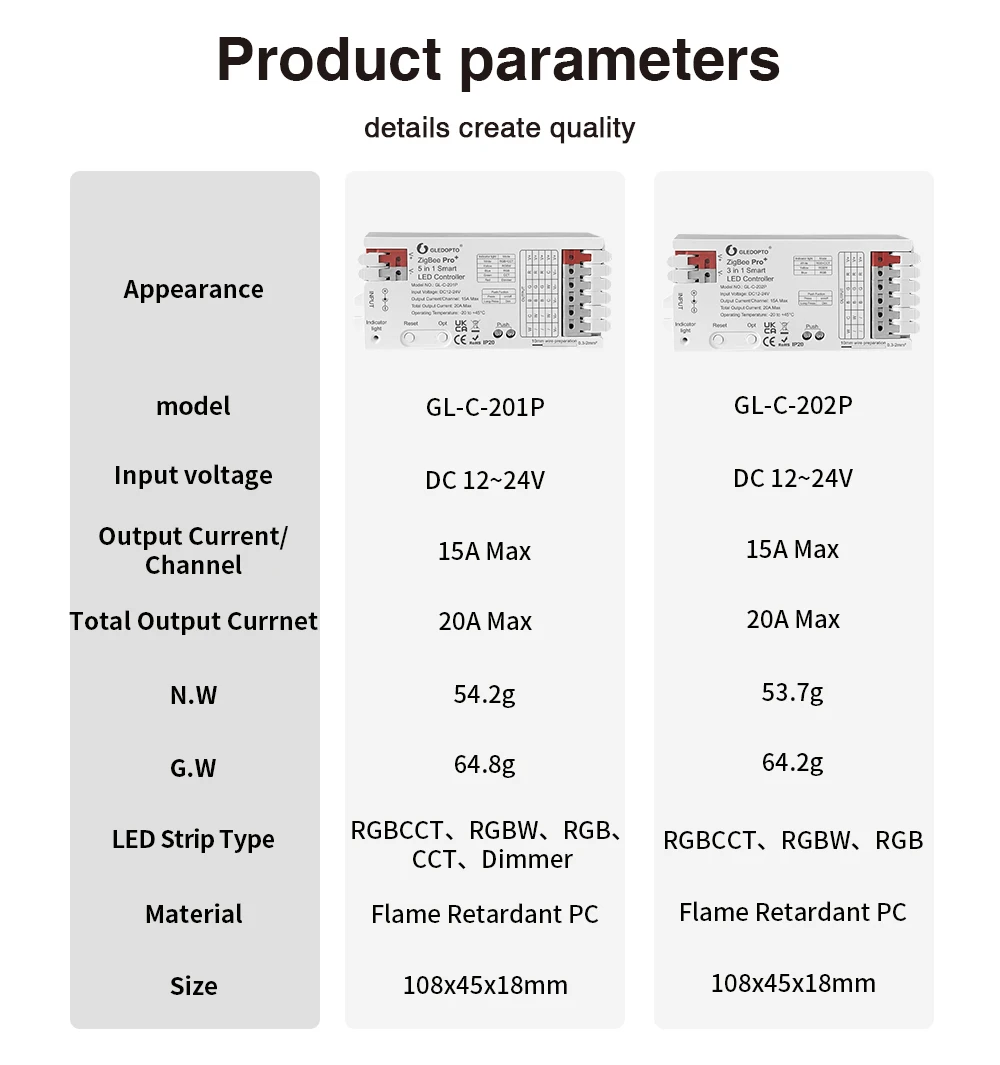

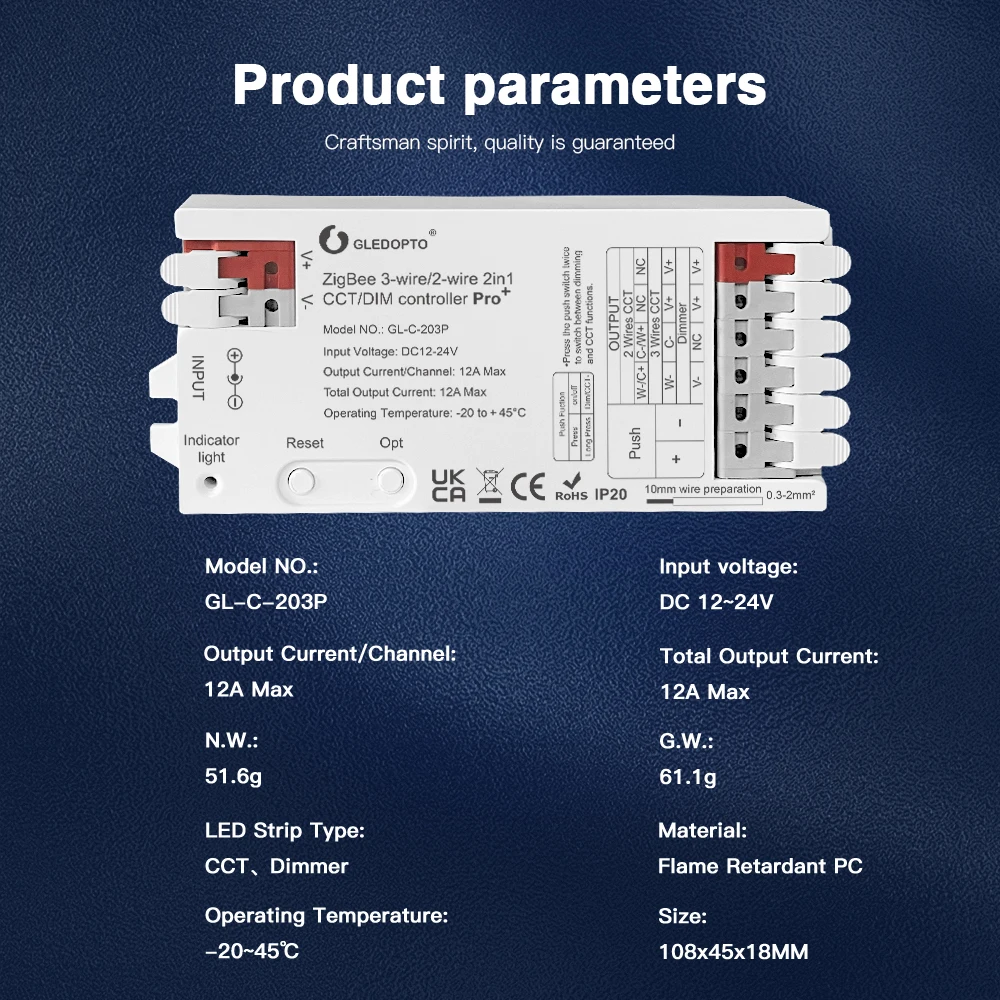

Product model:
Product Name: ZigBee Pro + 5in1 3in1 2in1 LED Strip Controller (RGBCCT/RGBW/RGB/CCT/Dimmer)
Model No.:GL-C-201P/202P/203P/301P/011P
Voltage: DC12V-24V OR 12V-54V
Total current: 20A max.
Current/channel: 15A max.
Size: 108*45*18mm
Operating Temperature: -20-45°C
Static color: Single color, CCT, RGB, RGBW, RGBCCT, 5 IN 1
Input voltage: DC12V~24V (5.5*2.1mm).
11b/g/n 2. 4GHz. RF: 2.4GHz.
Please note:
Total Output Current 20A Max:
The maximum total current is 20A, and the maximum single-channel current is 15A. It can connect longer lights ribbons, such as 15-20 meters. Please note that due to the physical phenomenon of voltage drop, strip lights longer than 20 meters may result in insufficient voltage and insufficient brightness at the end of the light strip.

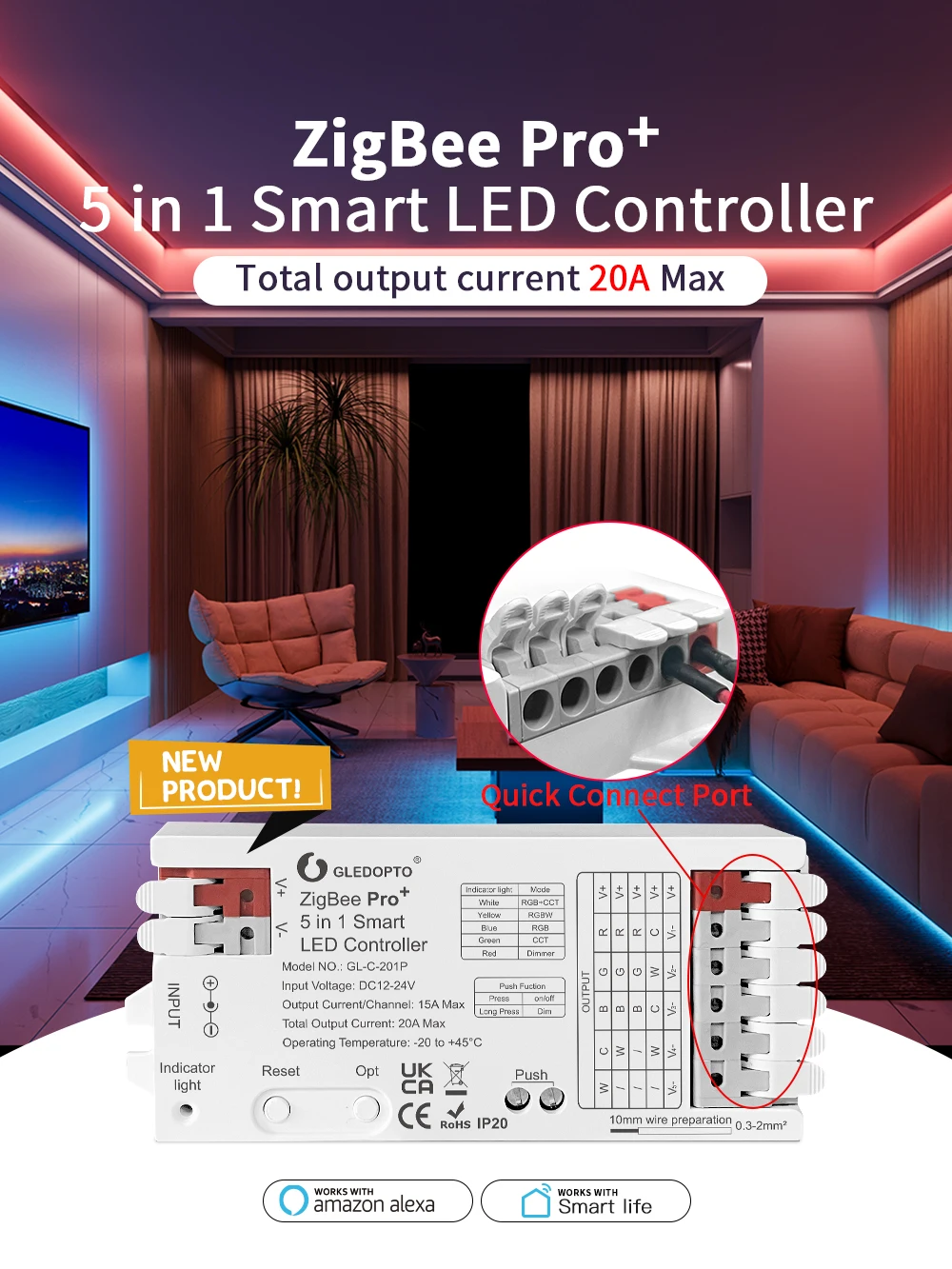

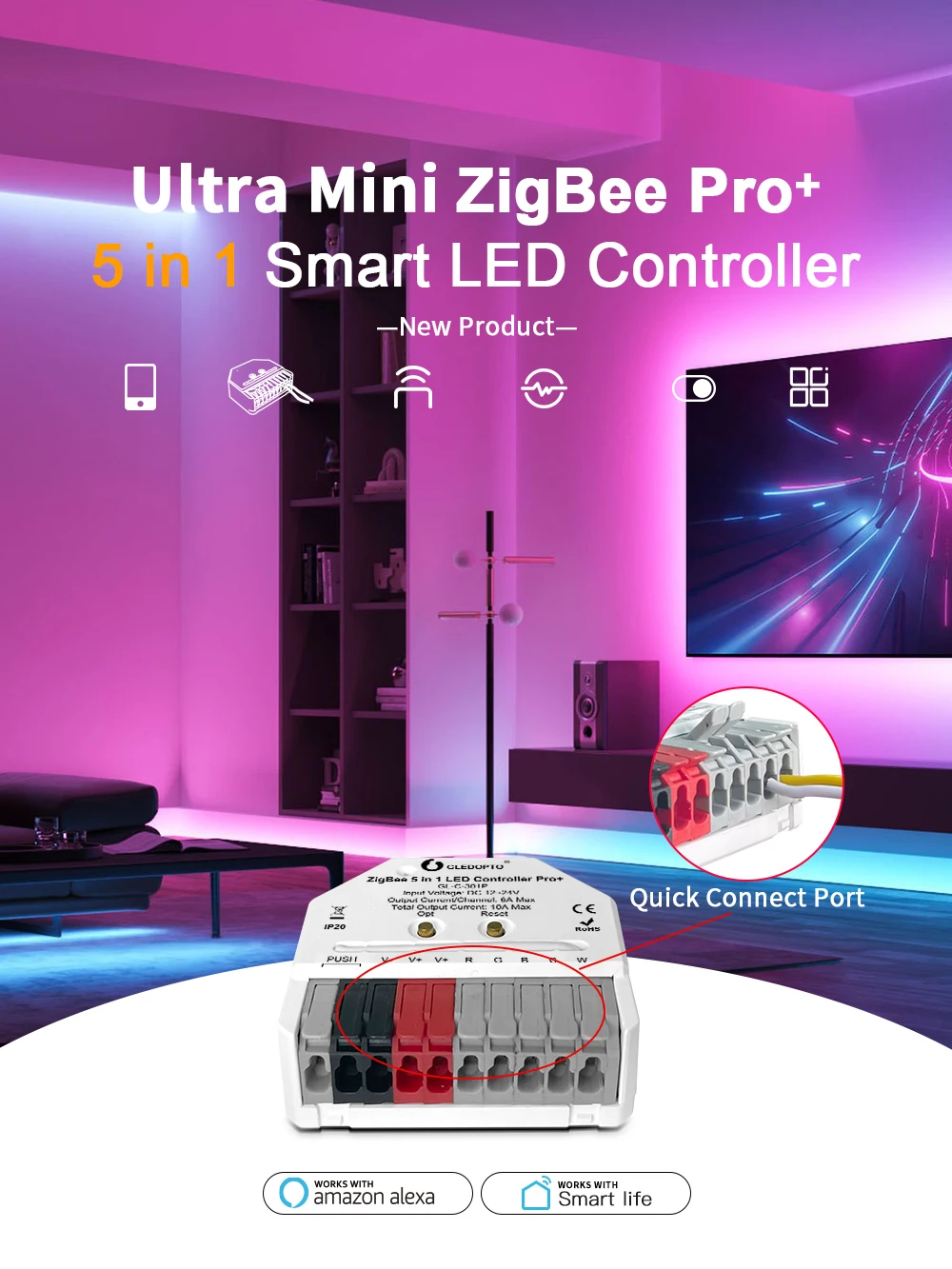

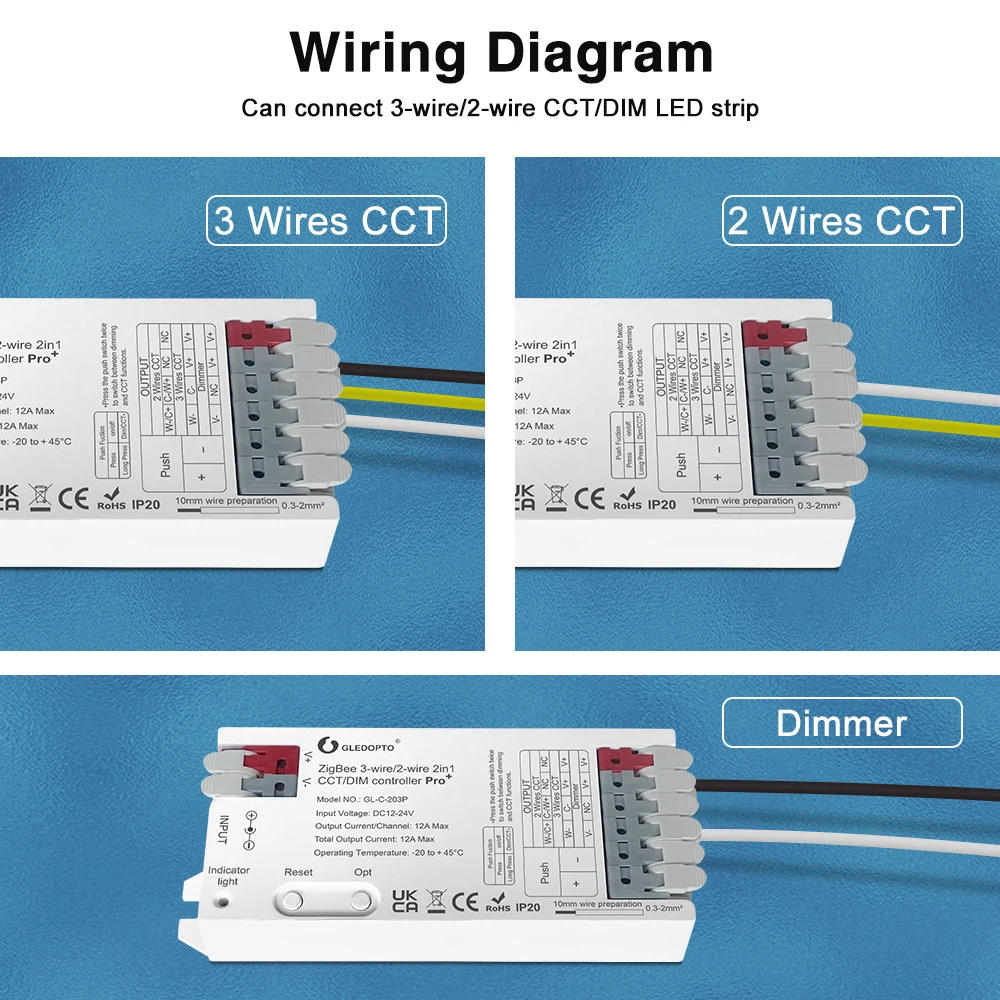

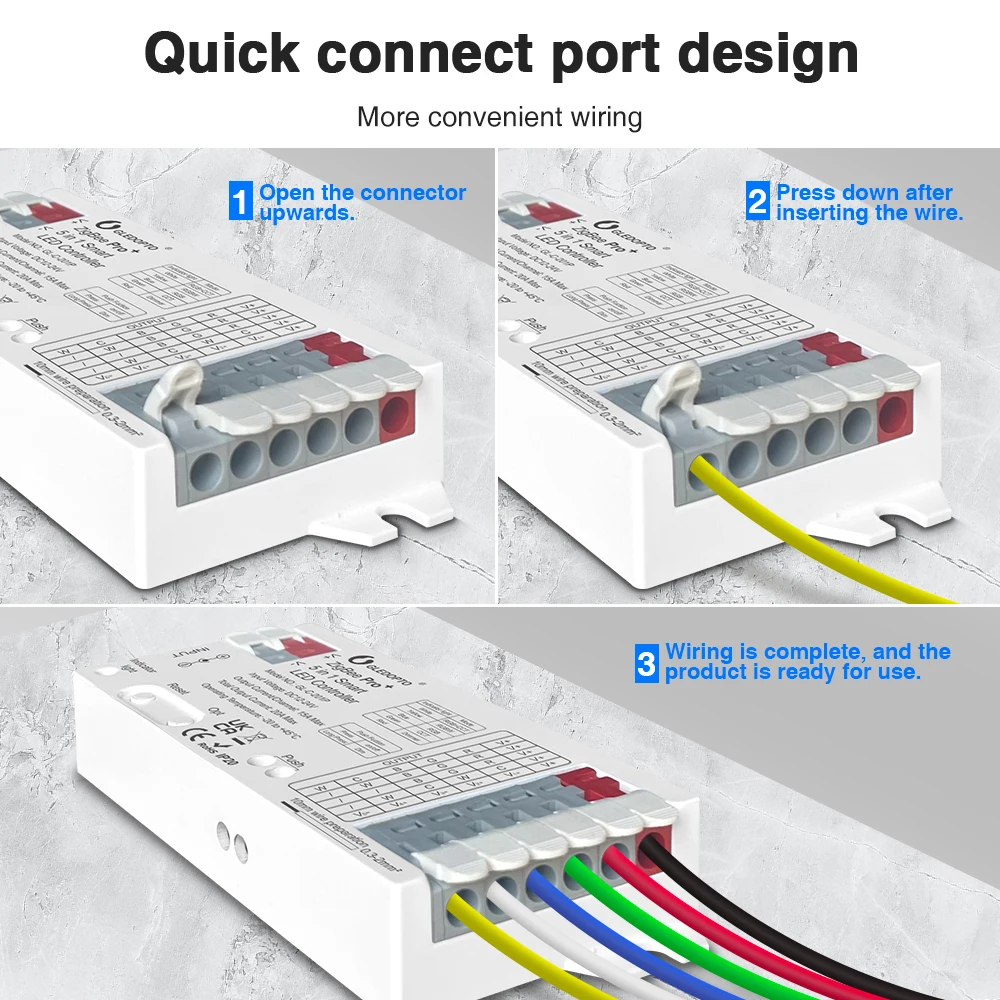

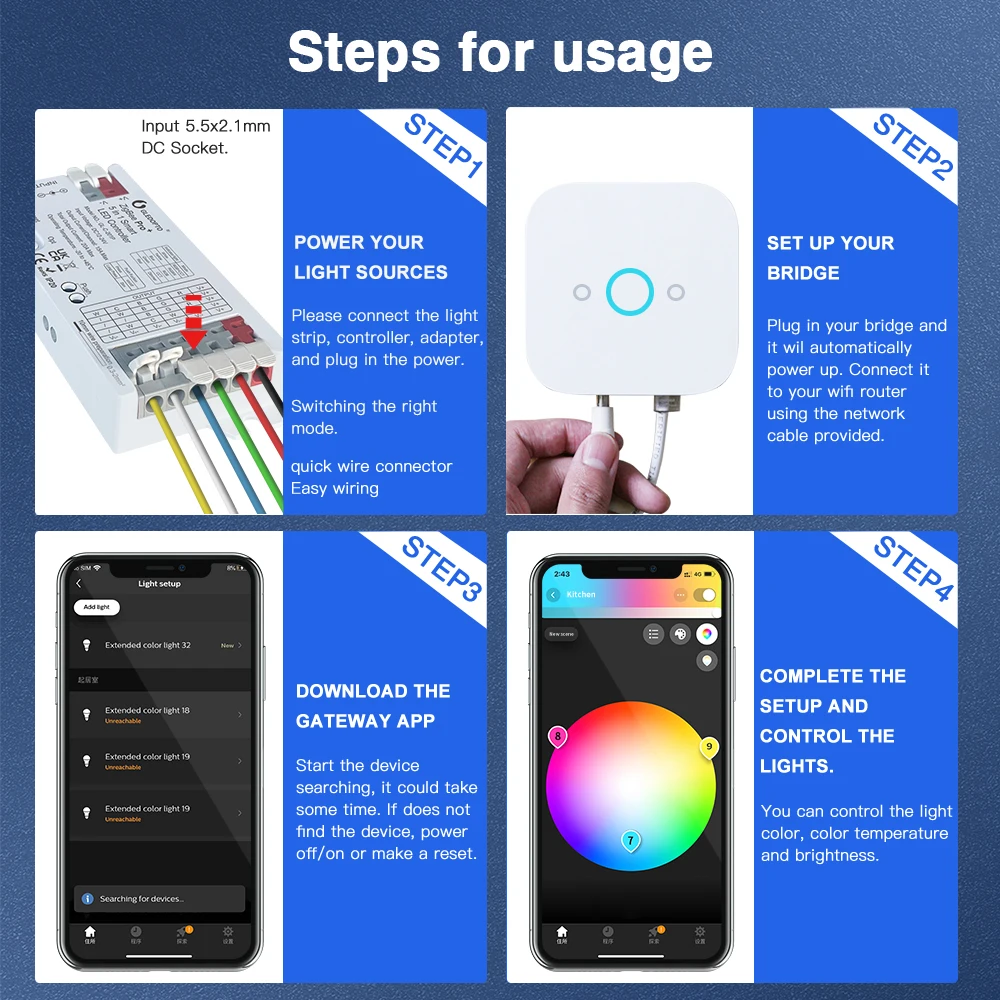

Quick Connect Port Design:
1.Open the connector upwards.
2.Press down after inserting the wire.
3. The wiring is completed and the product is ready for use.

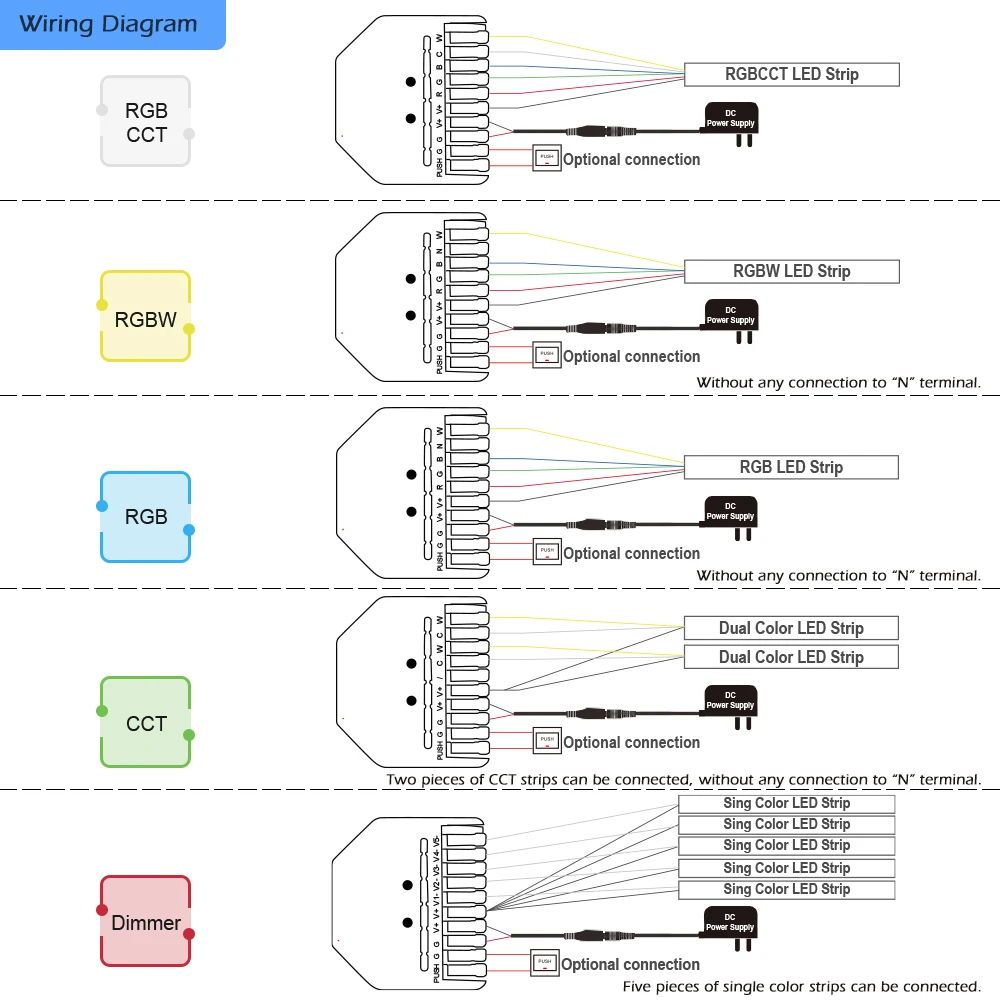

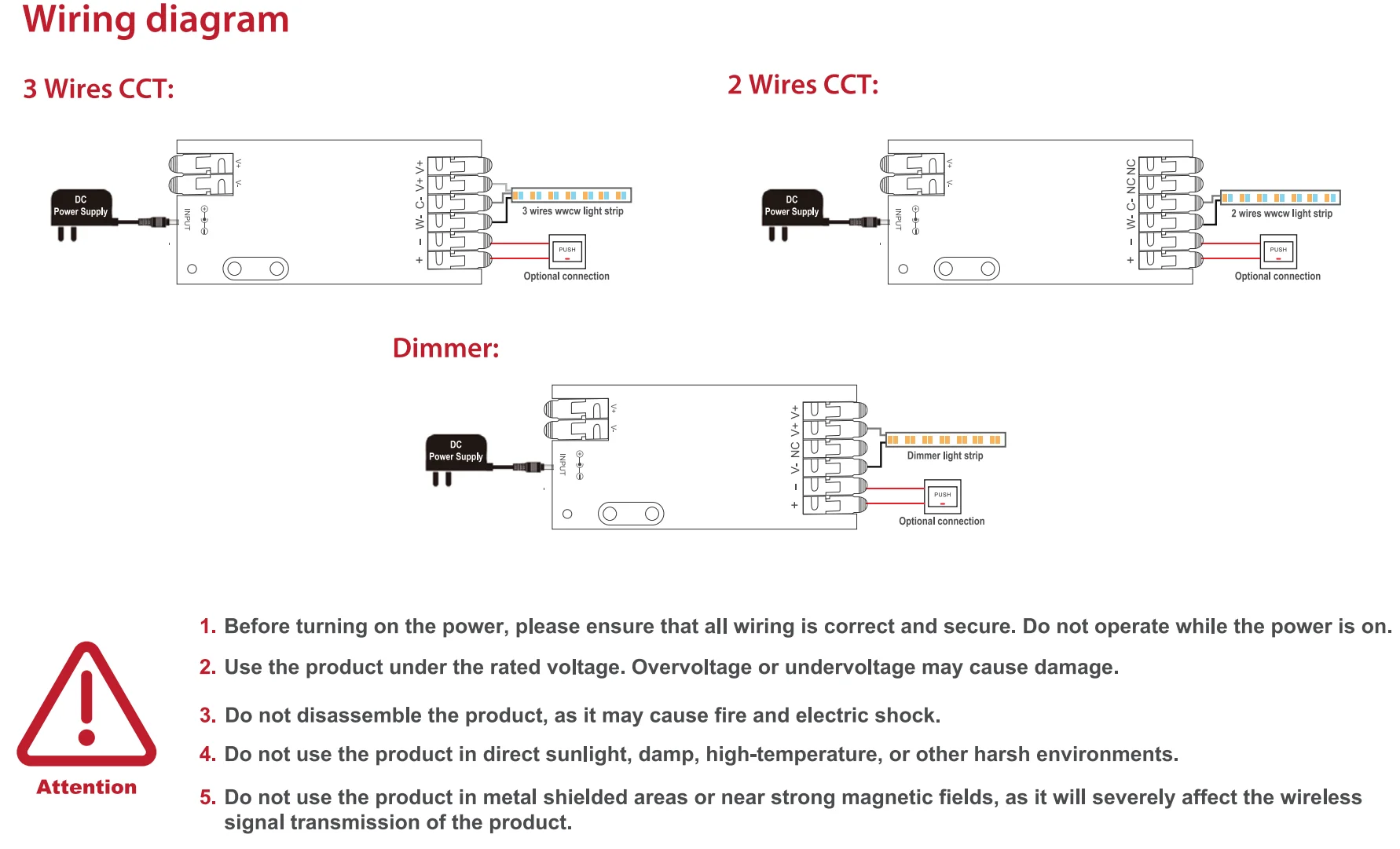

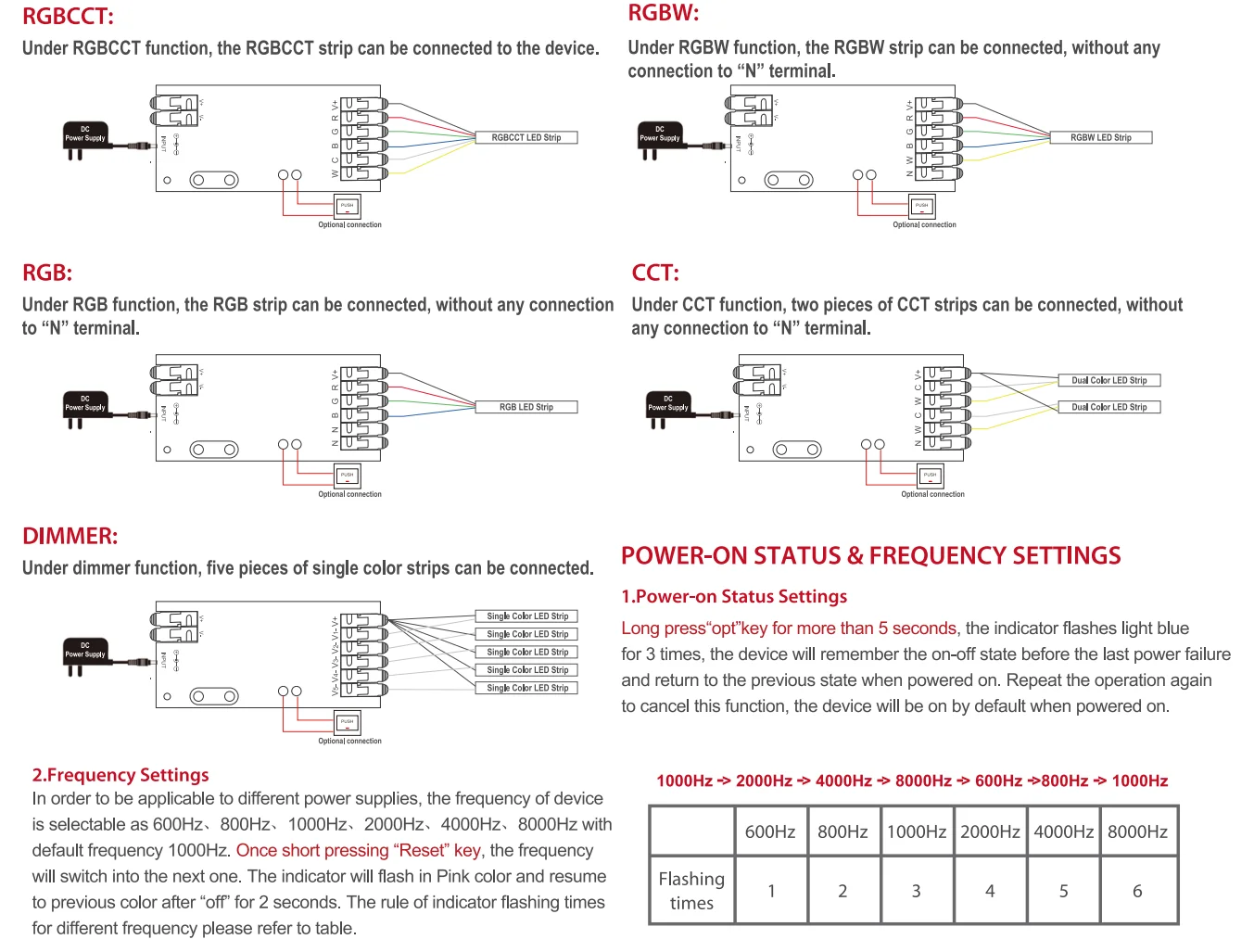

5 in 1 five modes:

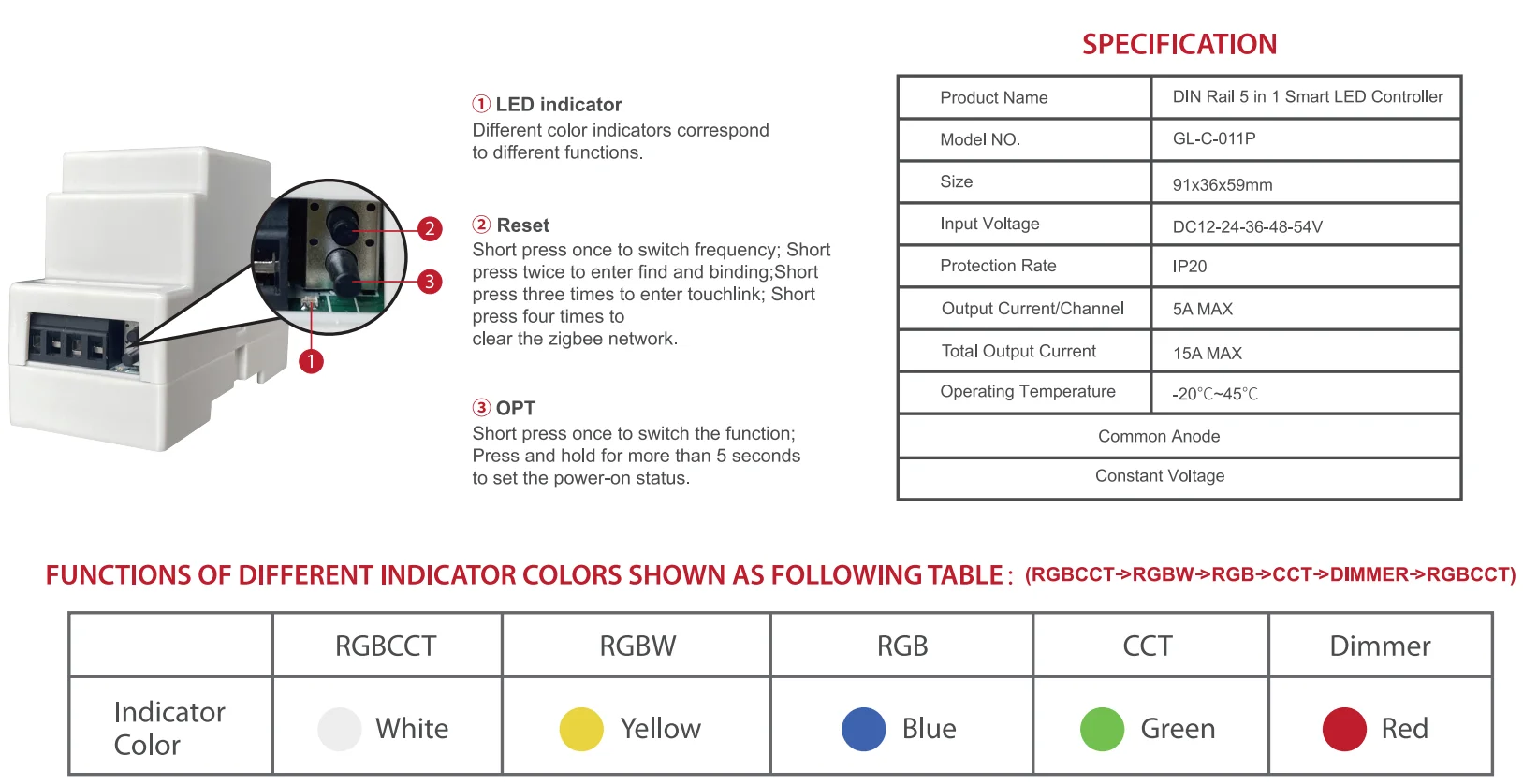

There are five modes to connect with LED strip: RGBCCT/RGBW/RGB/CCT/Dimmer, and different color indicators correspond to different functions.
You can click the "opt" button, short press once to switch one of the functions you want according to the color of the different indicator, then you can connect between the input of the controller and the corresponding wires of your LED strip.

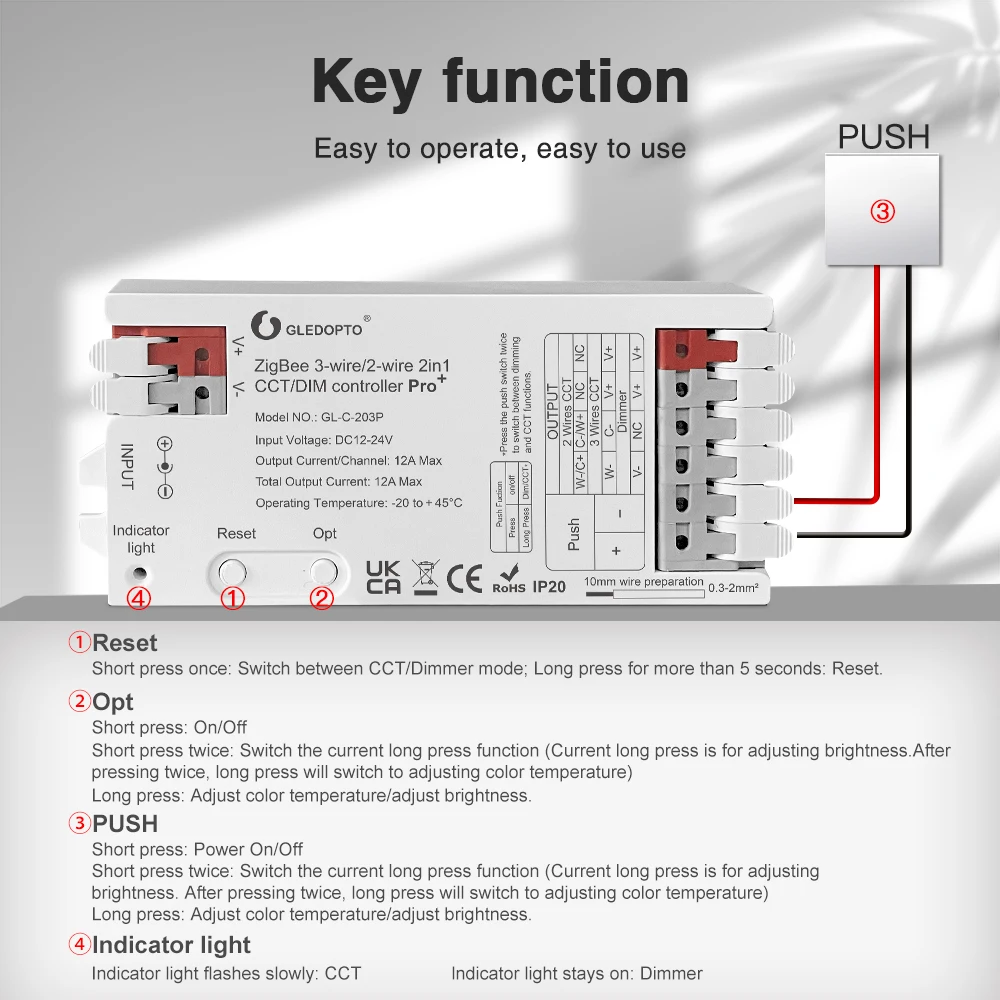

Startup status settings:
Long press the "opt" button for more than 5 seconds, the indicator will flash light blue color and return to the previous color after "power off" for 4 seconds to complete the setting of the power-up status.
The default boot status is the light on. The indicator flashing 3 times, in light blue means lighting on in the on status, flashing 4 times in light blue means light off in the on status.

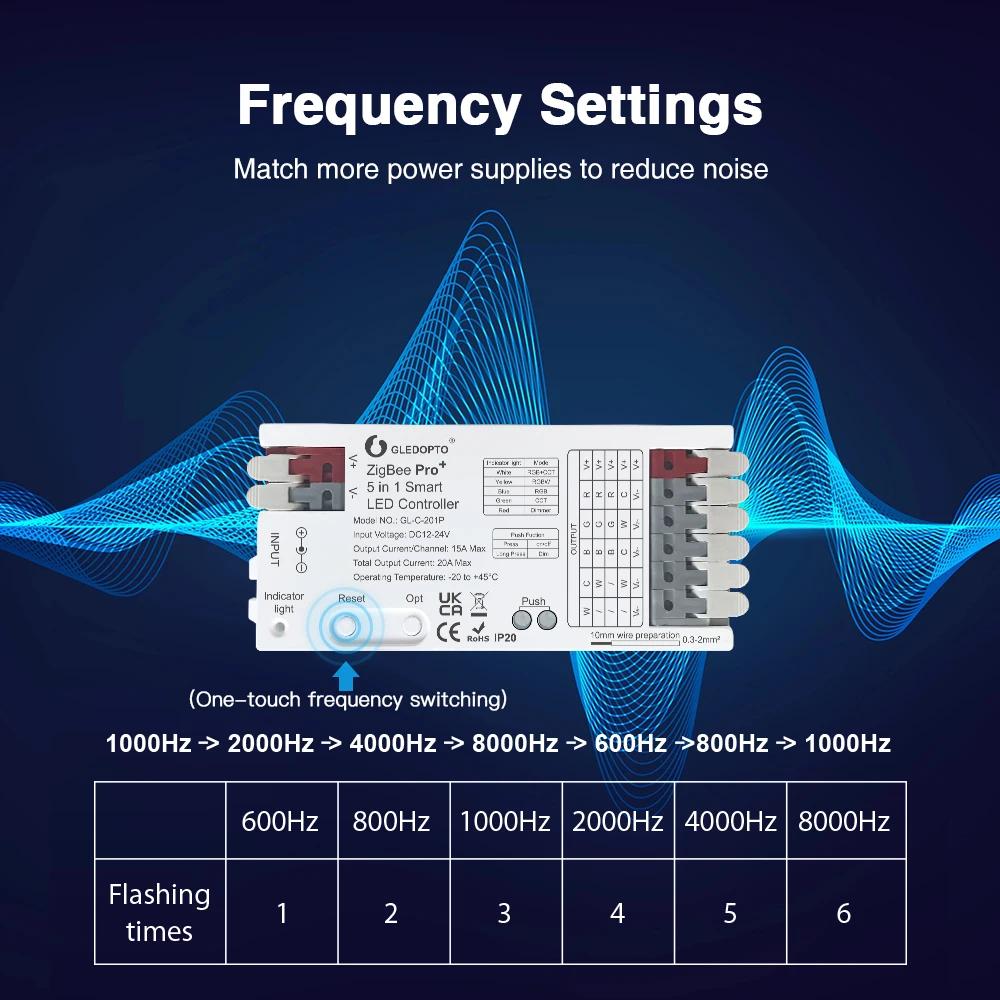

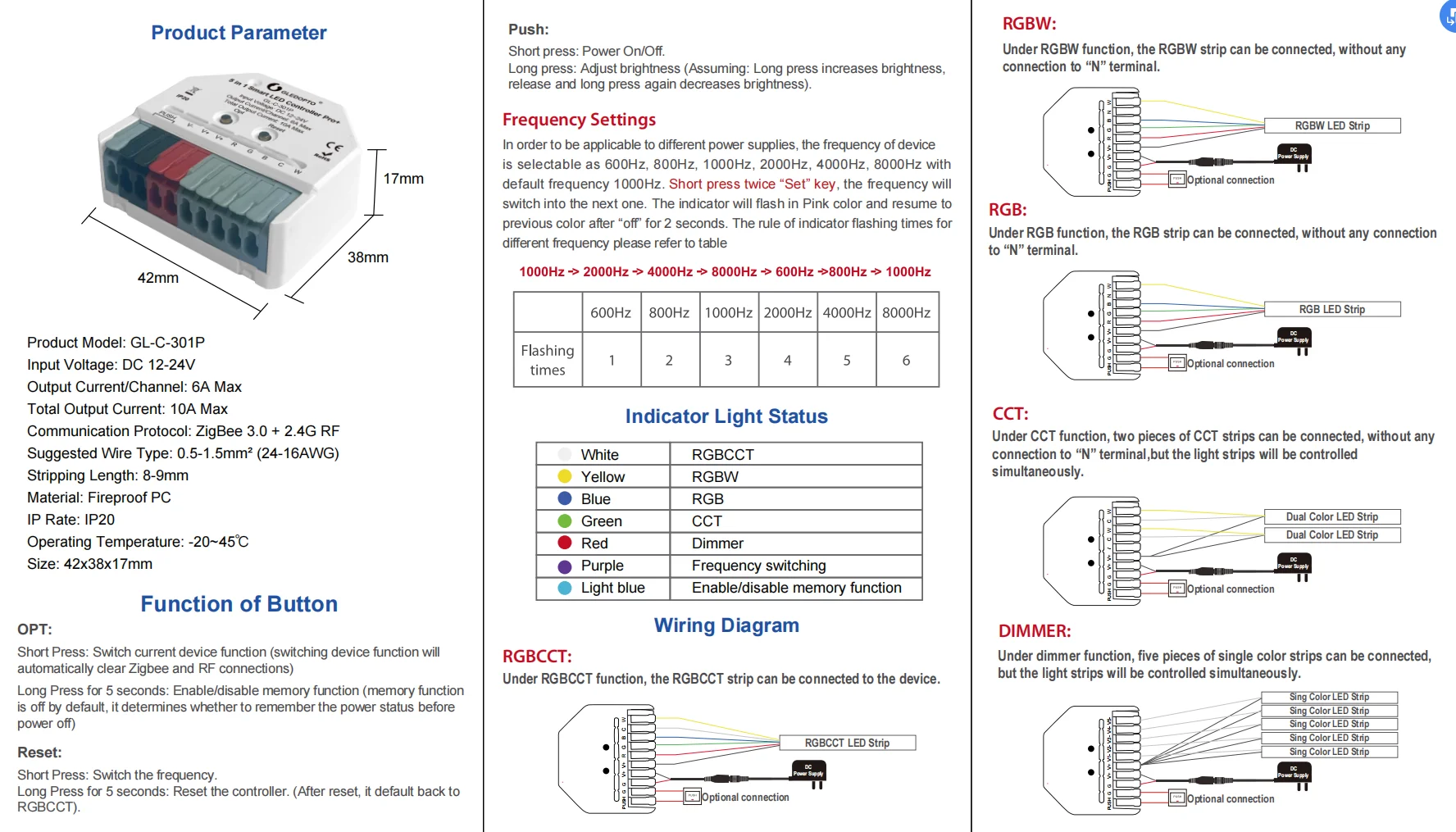

Selectable frequency:
To be applicable to different power supplies, the frequency of the device is selectable as 600 Hz, 800 Hz, 1000 Hz, 2,000 Hz, 4000 Hz, 8000 Hz with default frequency of 1000 Hz.
After briefly pressing the "Reset" key, the frequency will change to the next one.
The indicator will flash white and return to the previous color after "turning off" for 2 seconds.
(There are specifications in the user manual.)
Attention:
1. Check if the input voltage of the constant voltage power supply agrees with the controller, and check the connection of both cathode and anode.
2. The Working voltage is DC12~24V, the controller will break if the voltage is higher than 24V.
3. The non-professional user cannot disassemble the controller directly, otherwise it may cause fire and electric shock.
4. The working temperature is -20~60°C.Do not use the device for direct sunlight, humidity and other areas of high temperature.
5. Do not use a controller around the metal area and high magnetic field, otherwise it will adversely affect the control distance.
6. When the 15A device loads a, the cable diameter should be greater than 1.5mm2.
