3 way T-type and 2 way brass motorized ball valve AC220V DC12V/24V 3-Wire 2-control electric actuators with manual switch

3 way/T-type 3 wires 2 control electric actuator motorized brass ball valve with manual switch and lock inch) high quality

Product's detials:

Dimension: DN15 DN20 DN25 DN32 DN40 DN50

Feature: 3-Wire 2-Control

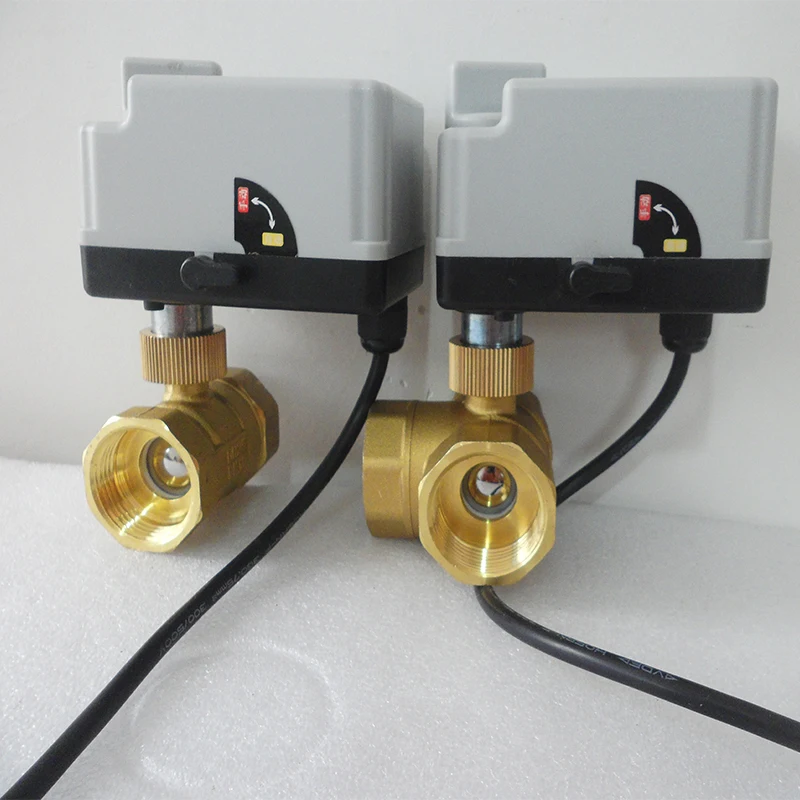

Way: 2 Way /3 Way ( T type)

Open/Close Time: 8-16 seconds

Maxmum Working Pressure: 1.6 MPa / 232psi;

Medium: Water, Air, Oil;

Voltage: AC220V/DC12V/DC 24V

Power: 6W (Only when the valves open and close)

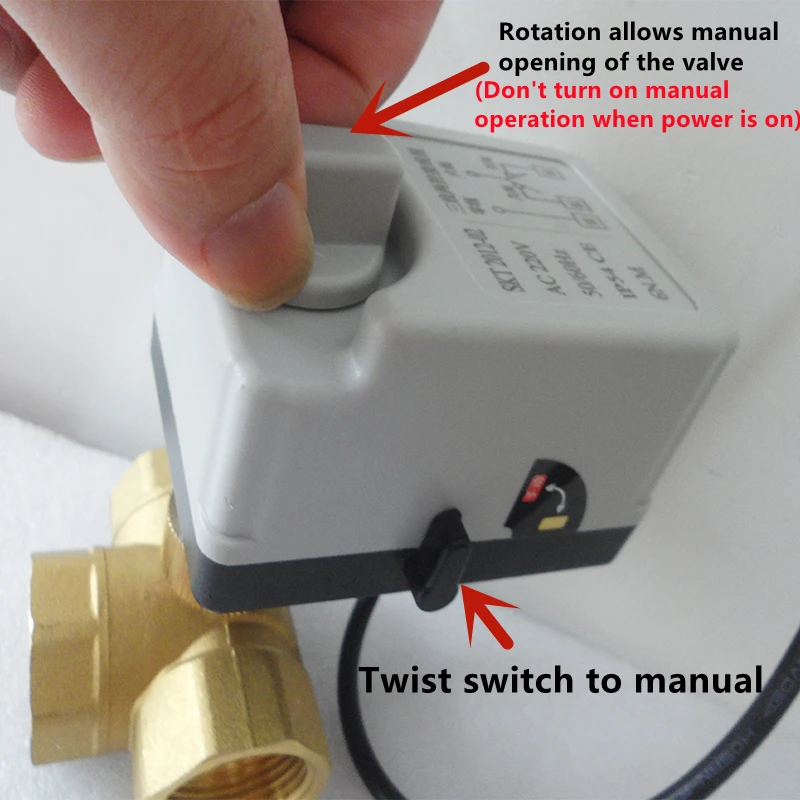

Operation: Motor or hand(with manual switch function)

Life Time: 100000 times;

Material: Brass,ABS plastic

Seal Material: EPDM & PTFE;

Enviroment Temperatur :0°~65° in Celsius;

Medium Temperatur: 0°~95° in Celsiu

Protect Class: IP 54

Yellow is common wire(L)

Blue wire is open valve

Brown wire is closed valve

Special functions:

This valve widely used in heating, air conditioning systems, floor heating systems, solar evacuation systems and other systems.

Operating principal/working principle:

This Valve used for heating systems and air-conditioning fan coil systems on-off controlled by the valve and actuator components, actuators driven by a rotary valve ball 90 percent of movement. Synchronous motor driven actuator, Built-in limit contacts, enabling the valve in the fully open or fully closed off, the action and stability.

Note::::

Please note your control type and voltage,thank you!

We will help to track your goods until you receive them safely.

For bulk orders please contact us for dissccount !
