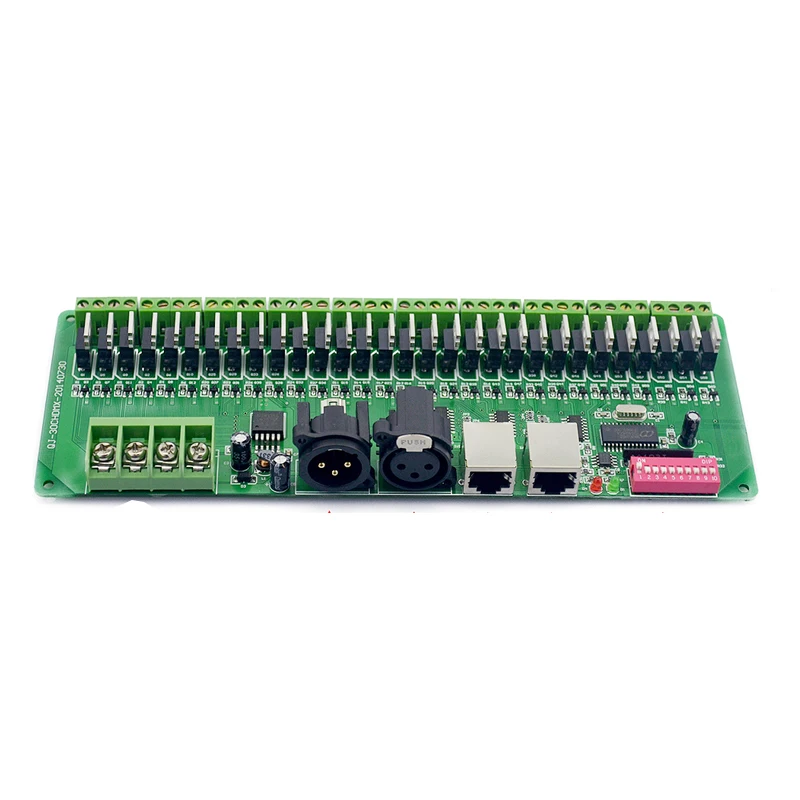

30 channel DMX decoder with XLR Dimmable LED Driver DC12-24V RGB LED Strip DMX 512 controller
Welcome to use the 30 channels constant decoder, which take advantage of advanced microelectronic
control technology. This technology changes the international fashion DMX512/1990 standard
digital control signals into analog control signals.There're 1 ~ 30 output channels; each channel
can achieve 256 control levels. This constant decoder is used when DMX512 control equipment
control general LED lighting.
Product specification:
1.Maximum load current: 2A×30CH
2.Maximum power load: 720W(12V) 1440W(24V)
3.Output gray level: 256
4.Input Signal: DMX512/1990
5.Output signal: 30 channels Constant PWM
6.Output DMX : 30 channels
7..Input power::DC9V-24V
8.Connecting mode: common anode

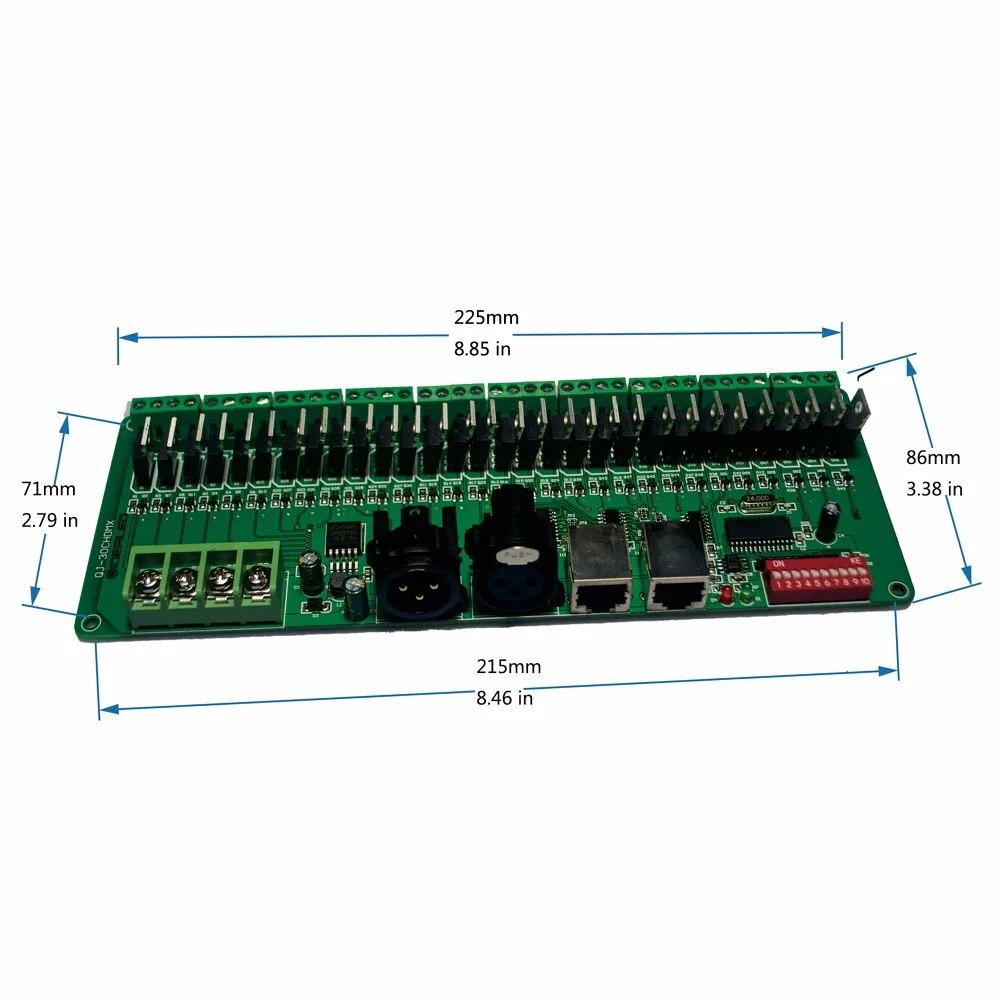

9..Cover Size:225*88*35mm
10..Packaging size:270*100*70mm
11.Net Weight:320g
12.Gross Weight:365g
13..DMX512 socket standard RJ45; Ethernet port and standard XLR-3 caron plug
Basic functions:
There are 30 output channels, can connect with single or RGB lamps;
0-100% dimming output, each channel 256 gray levels
International standard DMX512 input protocol, address code set by DIP switches;
Wide voltage DC input DC9V ~ DC24V;
Each occupied by 30 DMX address.
The decoder comes with 16 kinds of test patterns, 16 levels for rate of change.
FAQ:
Q:Can my master controller connect with it?
A:It can accept DMX512/1990 output Signal. If yours is DMX512 Master Controller,it can used.
Q:Can I use it for my lamps?
A:There are 30 output channels, can connect with single or RGB Led lamps(DC9V-DC24V constant voltage LED light products,such as LED Strips,LED Bulbs & Tubes,LED Panel Lights,and so on)
Decoder to use:
The first DMX address setting:
The decoder set the address bit by coding switch, of which 1-8 is for setting the start address
of the Binary numeric code switch of DMX512, the first one is the lowest position, the ninth one
is the highest Bit of address code can be set to 255.
DMX512 start address code is the sum of switches 1-8, at the same time turn downside of the
code switch (ON set to "1"), then the value of the bit can be gotten; coding switch up (set to "0"),
the value of the bit is 0.
Example 1:
As the following Schematic 1, DMX512 start address is set to 37, encoding the No. 6,3,2 position
on switch dial to "1", others set to "0", then the sum of the switch 1-9 code value is 32 + 4 + 1,
that is the DMX512 start address 37
Example 2:
As the schematic 2, DMX512 start address is set to 388,
encoding the no. 2,3,6,8 switch dial to "1", others set to "0",
then the sum of the switch 1-8 code value is 4 + 128 + 256 = 388,
that is the DMX512 start address 388.
Operation instruction for the automat effect:
Note: It will be Automatic operation mode when the No. 10 switch is turned down.
Effect choice (button switch No.1 to No.4):
1, Push No.1: Automat cycling. 2, Push No. 2: Seven-color gradual cycle changing.
3. Push No.1 &2: RGB Fade in and out 4. Push No.3: Severn color jumping
5. Push No.1 & 3: RGB jumping. 6. Push No.2 & 3: Red color.
7. Push No. 1 & 2 & 3:Green color. 8. Push No.4: Blue color.
9. Push No.1 & 4: Yellow. 10: Push No.2 & 4: Violet.
11. Push No.1 & 2 & 3: Cyan. 12. Push No.3 & 4: white.
13. Push No.1 & 3 & 4: Seven-color gradual cycle changing and jumping.
14. Push No.2 & 3 & rgb-color gradual cycle changing and jumping.
15. Push No.1 & 2 & 3 & 4: Seven-color jumping and rgb-color jumping.
Speed Choices (Button Switch No.5 to No. 8)
1.Push No.5: 0.5 second. 2. Push No.6: 1 second. 3. Push No.7: 1.5 second. 4. Push No.8: 2 second.

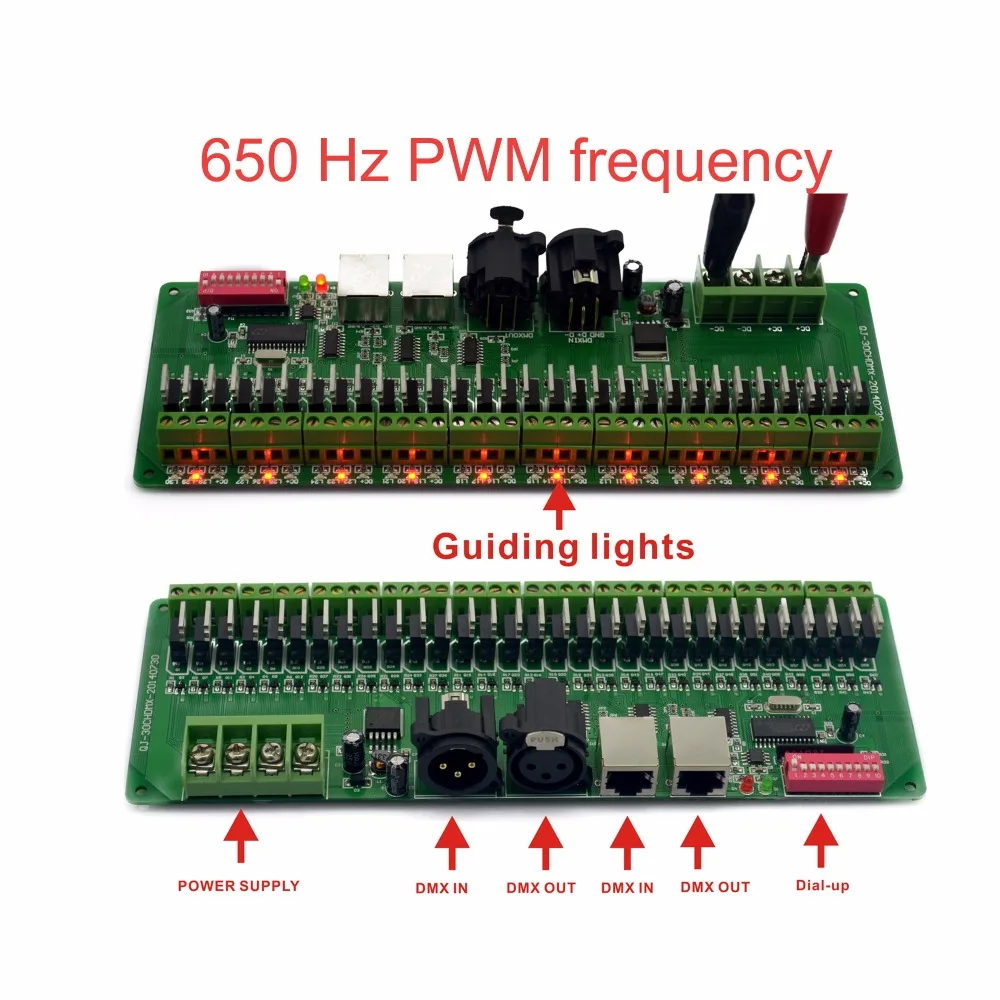

30channel DMX decoder Structure Drawing:
Schematic for System DMX512 Connection:

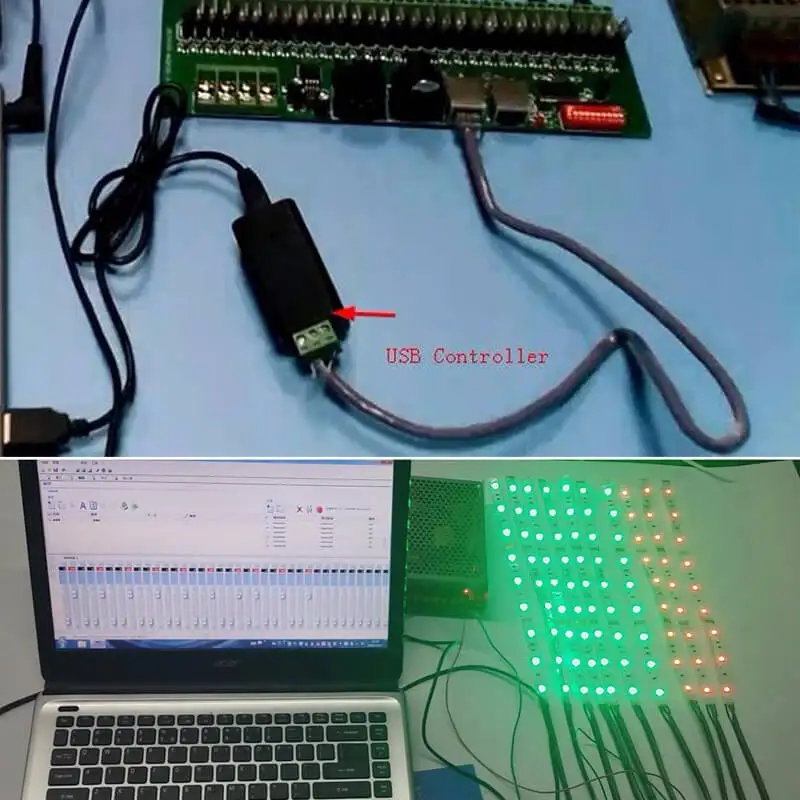

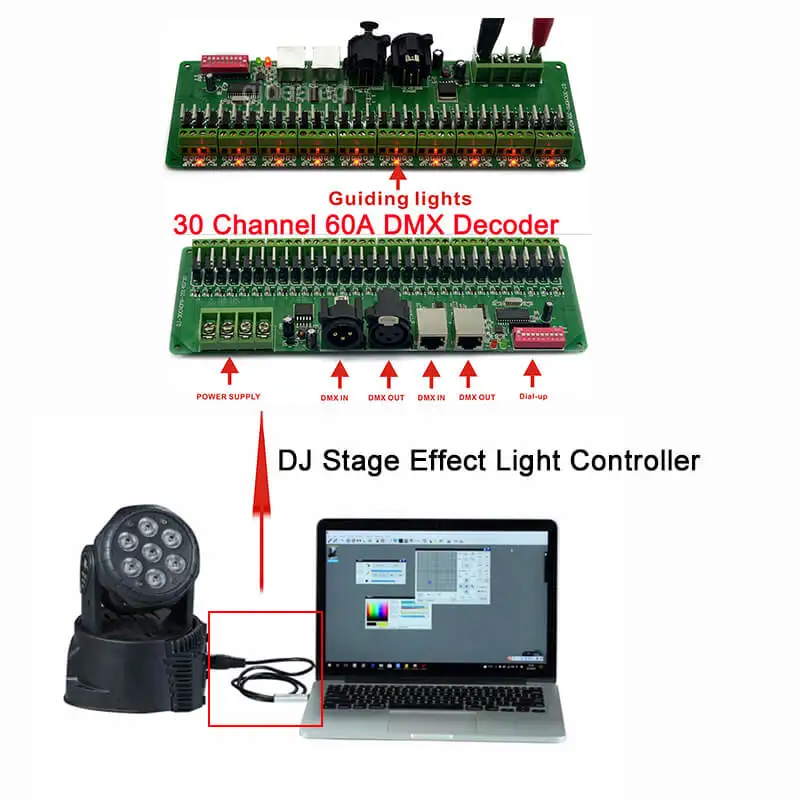

If you need to use a computer to control, we proposed purchase our USB DMX controller,we test our products based on this company's controller.Pls buy this:
Schematic for System Connection:
Installation Notes:
1 This kind of controller works only under DC9V-24V, which is provided by the matched controllable main power, or else the controller will be damaged.
2 The UTP wire is connected hand in hand to make the cable, when two or more controller connected.
3 The power supply should be off when connecting the electric wires, and it can be turned on till making sure the wires are connected correctly and the indicator of main power in red is lighting.
4 Controller should work under the environment of adequately ventilated, dry, not corroded, no flammable gas and rust.
5 Please check the wires connection regularly so that the wires of aged, rust-eaten, and damaged insulation spacer can be replaced timely
