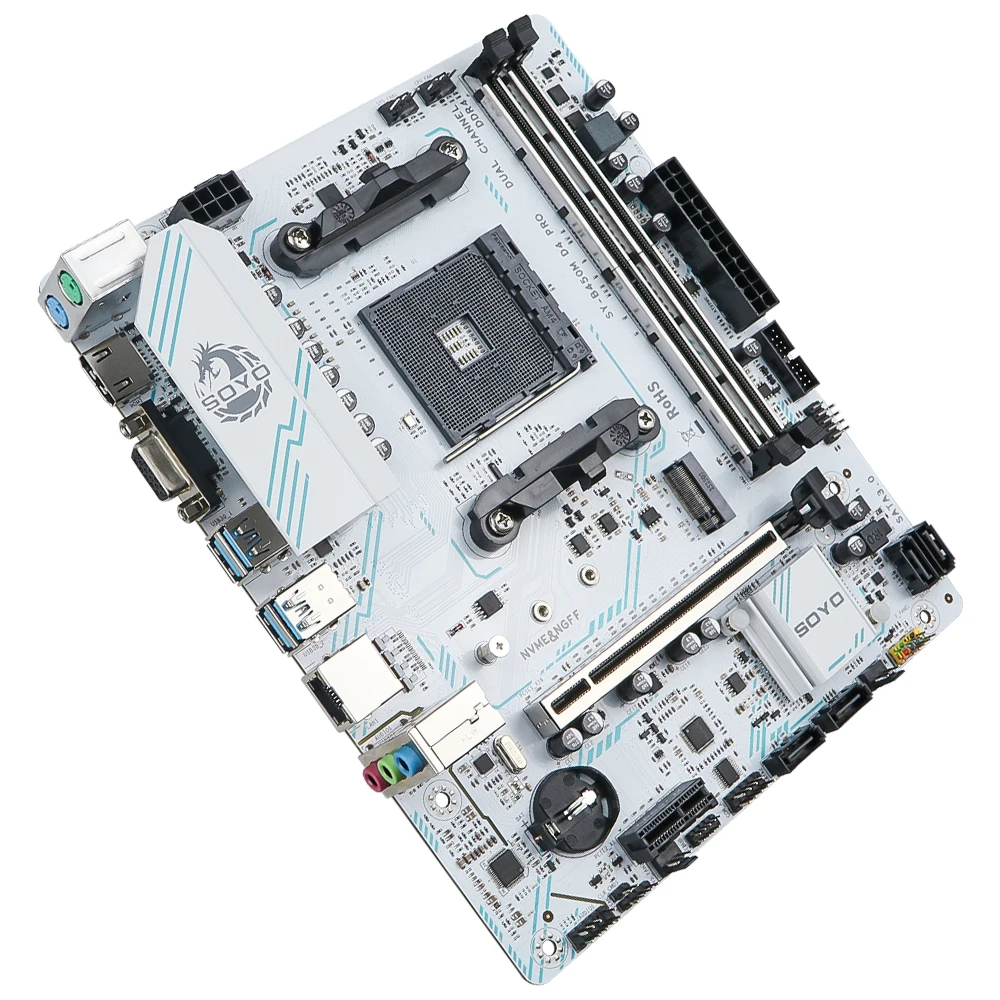

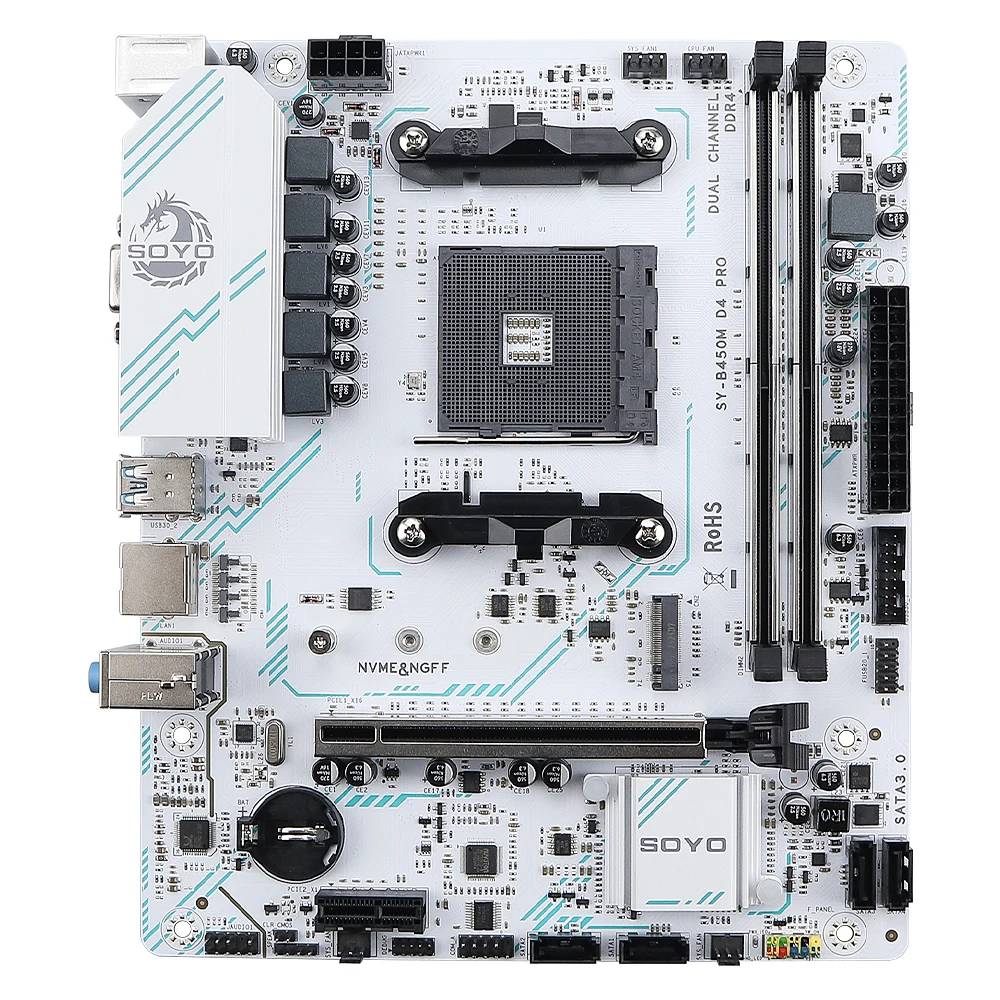

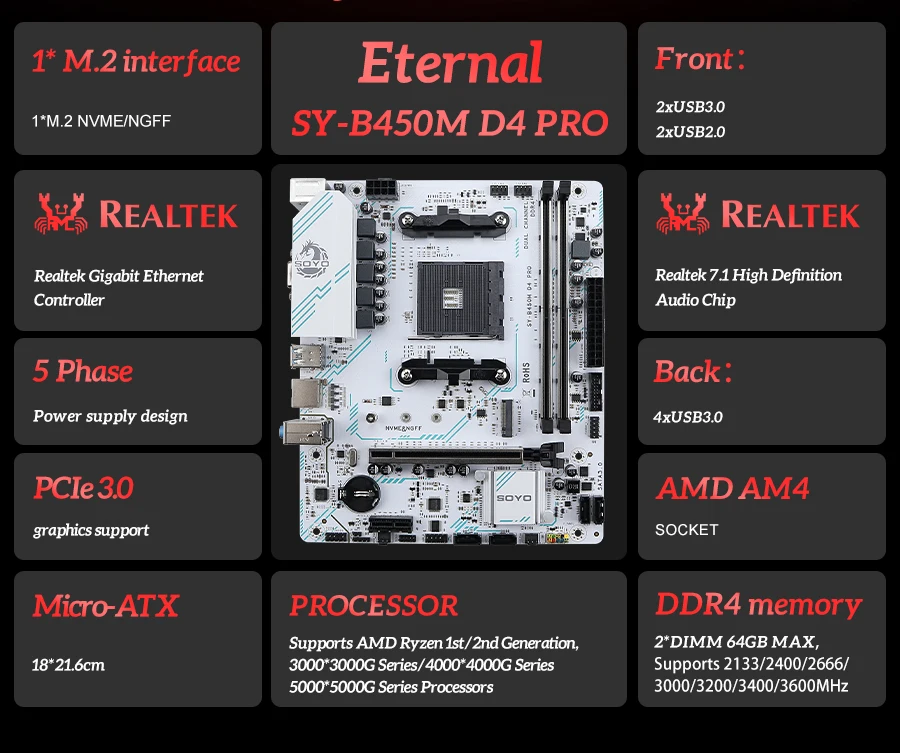

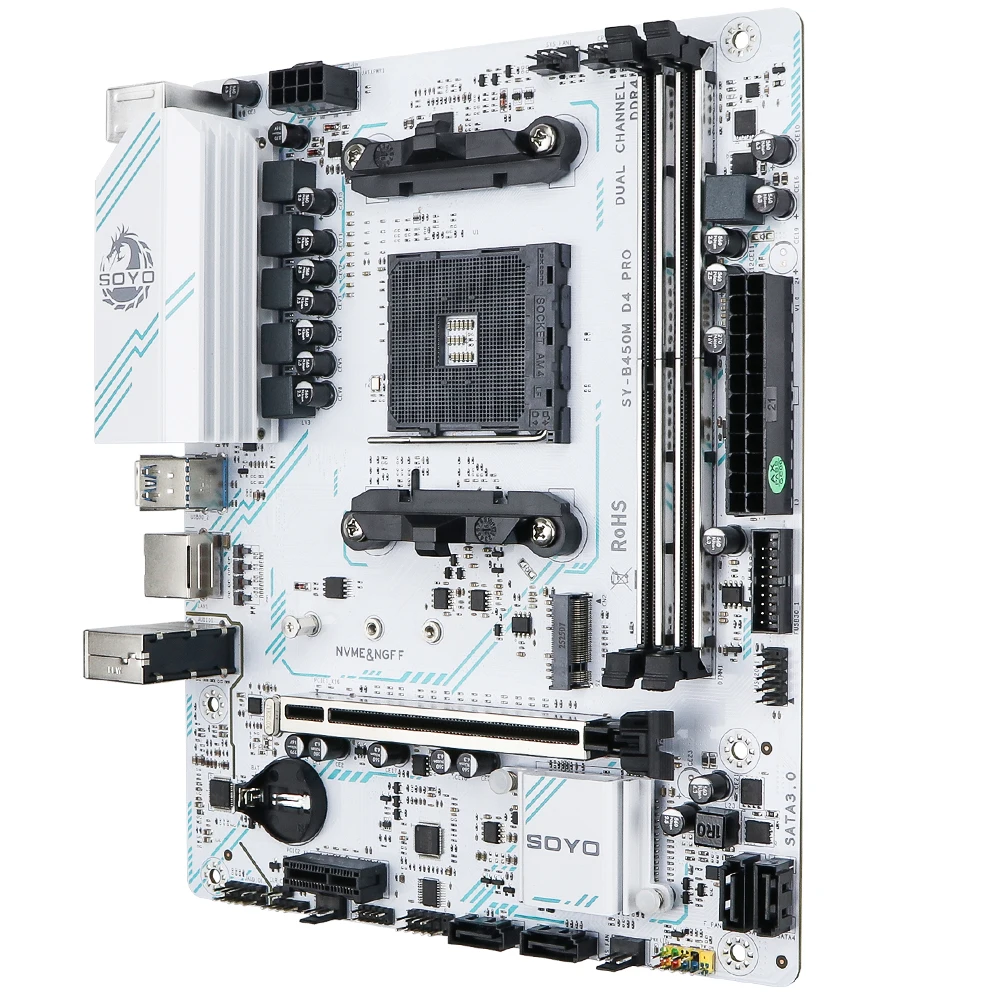

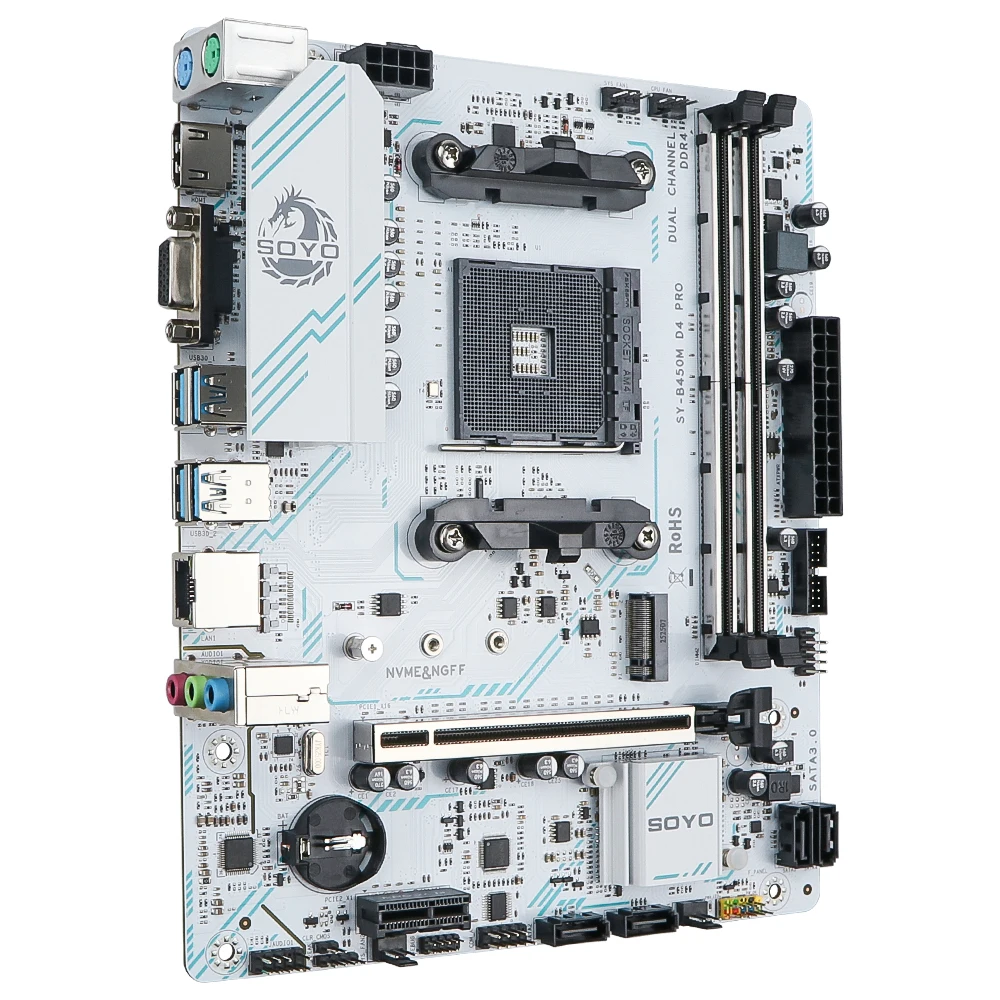

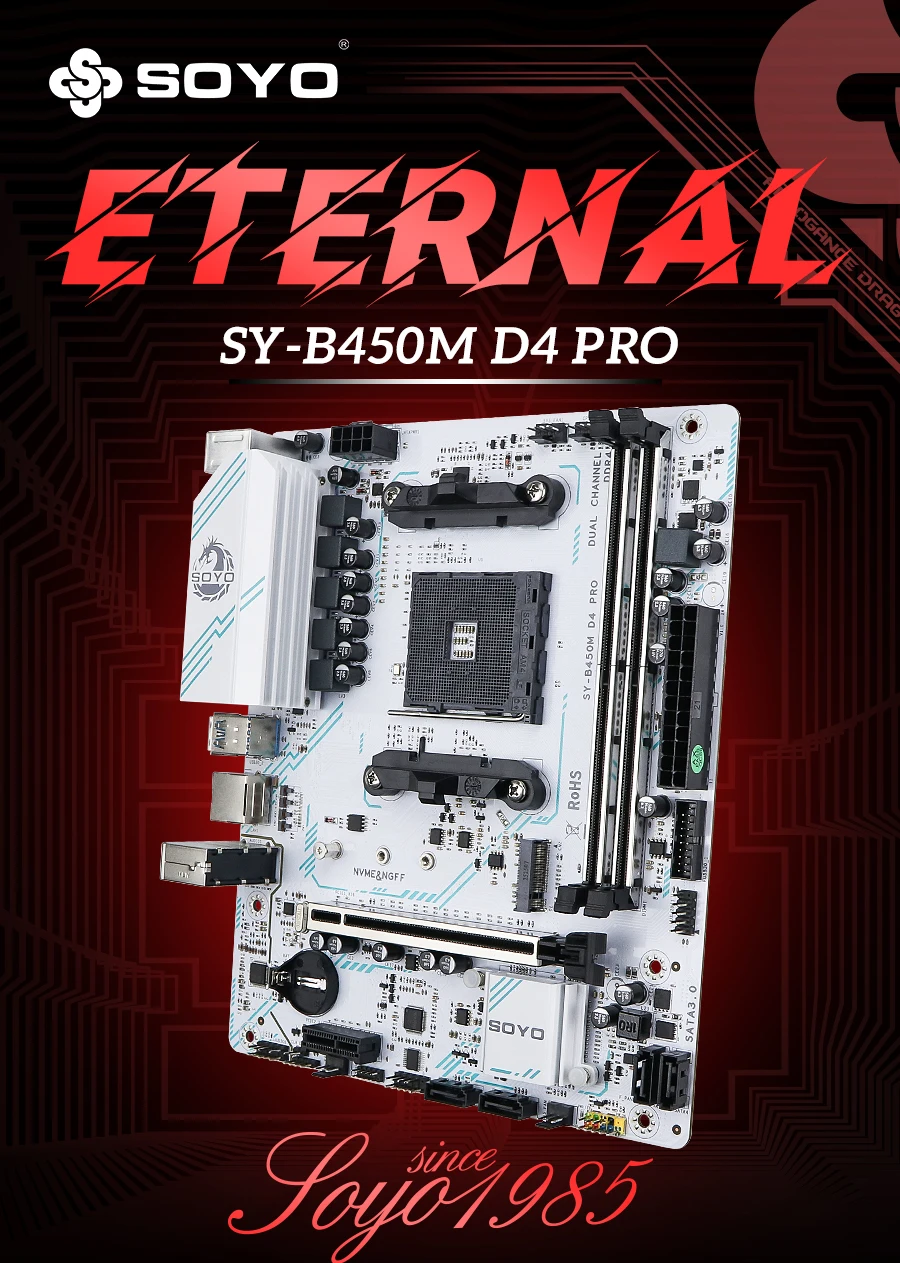

AMD Classic B450M Motherboard Dual-channel DDR4 Memory AM4 Motherboard PCI-E 3.0 NVME B450 (supports Ryzen 5600 5600G CPU)

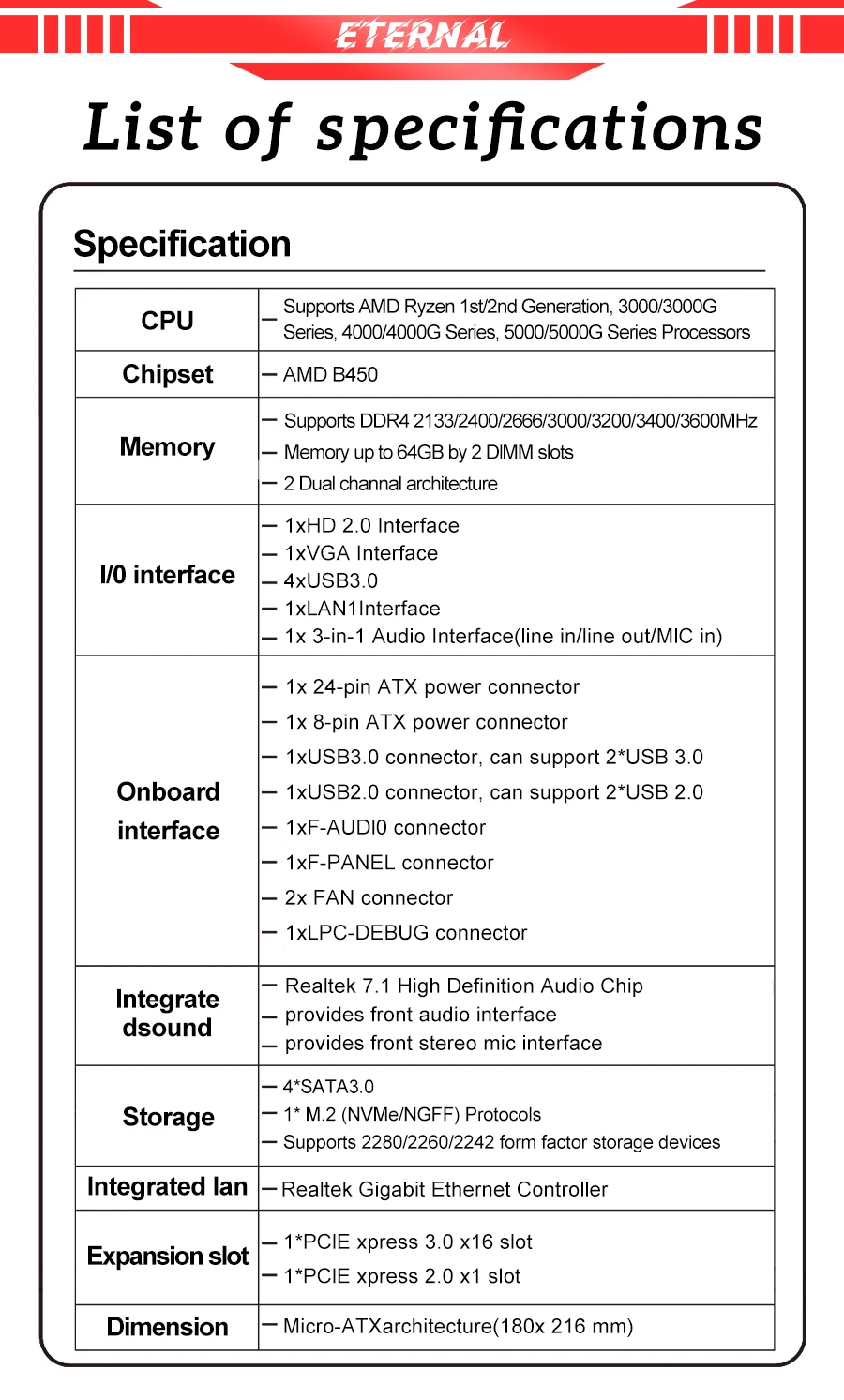

**Product Specifications**

**CPU Support**

- AMD AM4 Socket

- Compatible with AMD Ryzen 1st, 2nd, 3rd, 4th, and 5th Generation Processors

- Includes support for 3000/3000G, 4000/4000G, and 5000/5000G series

- Examples: R5-1400, R5-2600, R7-3700X, R3-4100, R5-5600G

**Chipset**

- AMD B450 Chipset

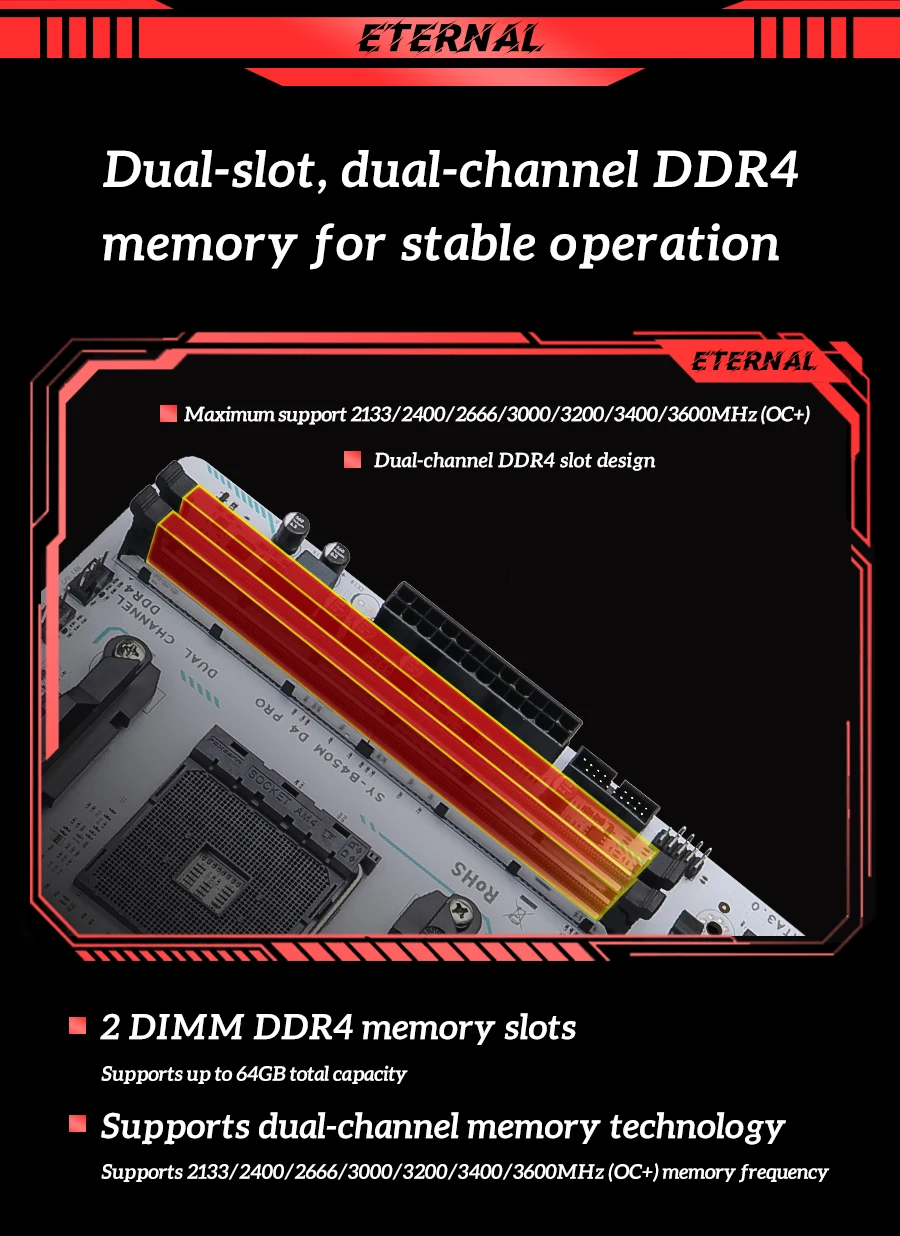

**Memory**

- 2x DDR4 DIMM Slots (Dual-Channel)

- Maximum Capacity: 64GB (32GB per DIMM)

- Supported Speeds: 2133/2400/2666/3000/3200/3400/3600 MHz (with OC/XMP)

- *Actual supported memory frequency depends on the CPU and memory modules*

**Storage**

- 1x M.2 Slot (Supports NVME & NGFF protocols)

- Compatible with 2280/2260/2242 form factors

- Interface: PCIe 3.0 x4 & SATA 3.0

- 4x SATA 3.0 (6 Gb/s) Ports

**Display Outputs**

- 1x HDMI 2.0

- 1x VGA

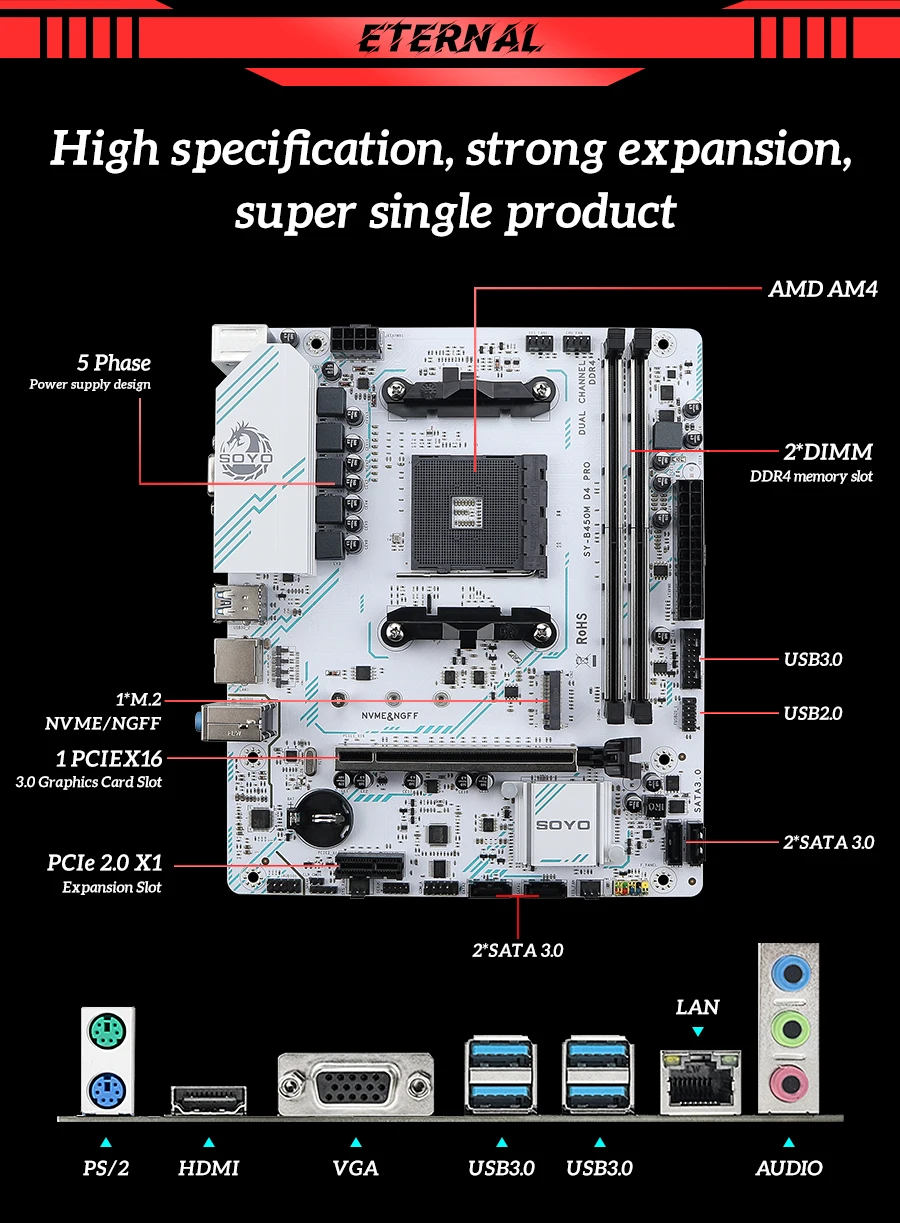

**I/O Ports**

- **Rear Panel:**

- 4x USB 3.0 Ports

- 1x PS/2 Keyboard Port

- 1x PS/2 Mouse Port

- 1x RJ45 Gigabit LAN Port

- Audio Ports: Line Out, Line In, Mic In

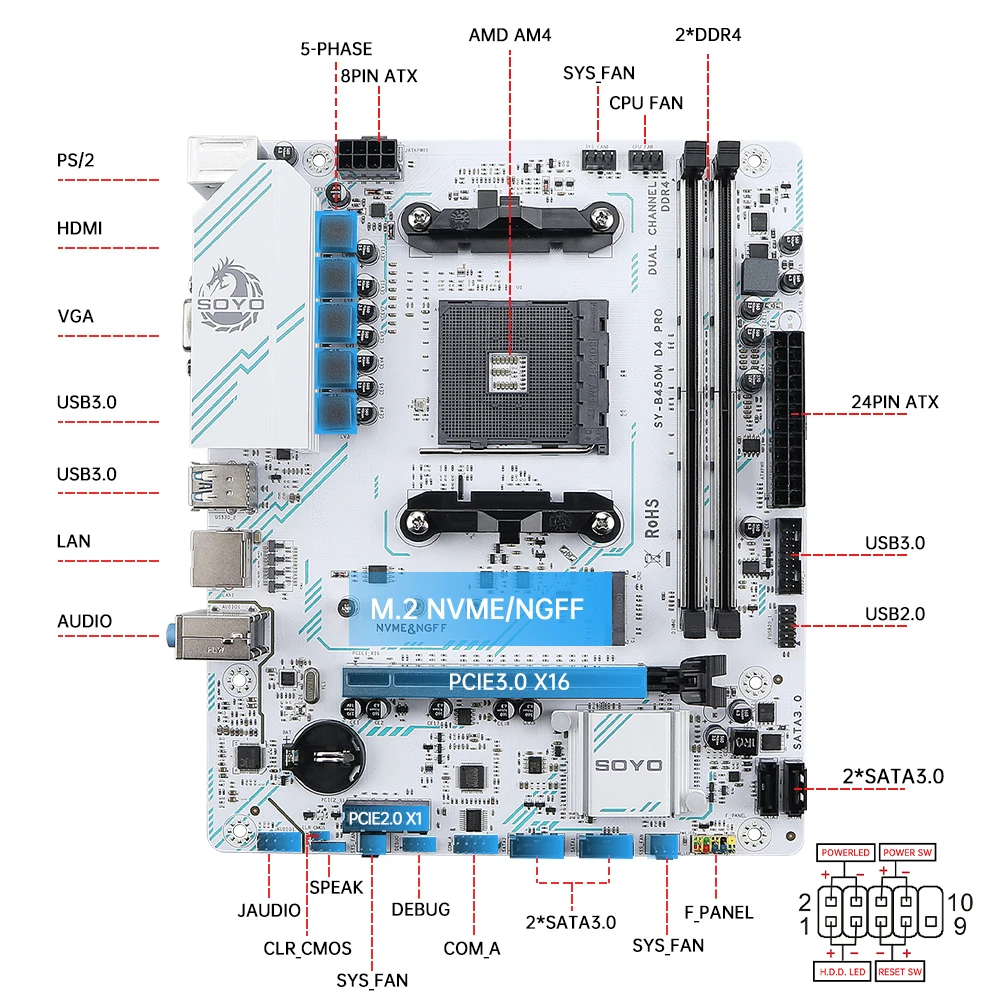

- **Internal Headers:**

- 1x FUSB20_1 Header (Supports 2x USB 2.0 ports)

- 1x FUSB30_1 Header (Supports 2x USB 3.0 ports)

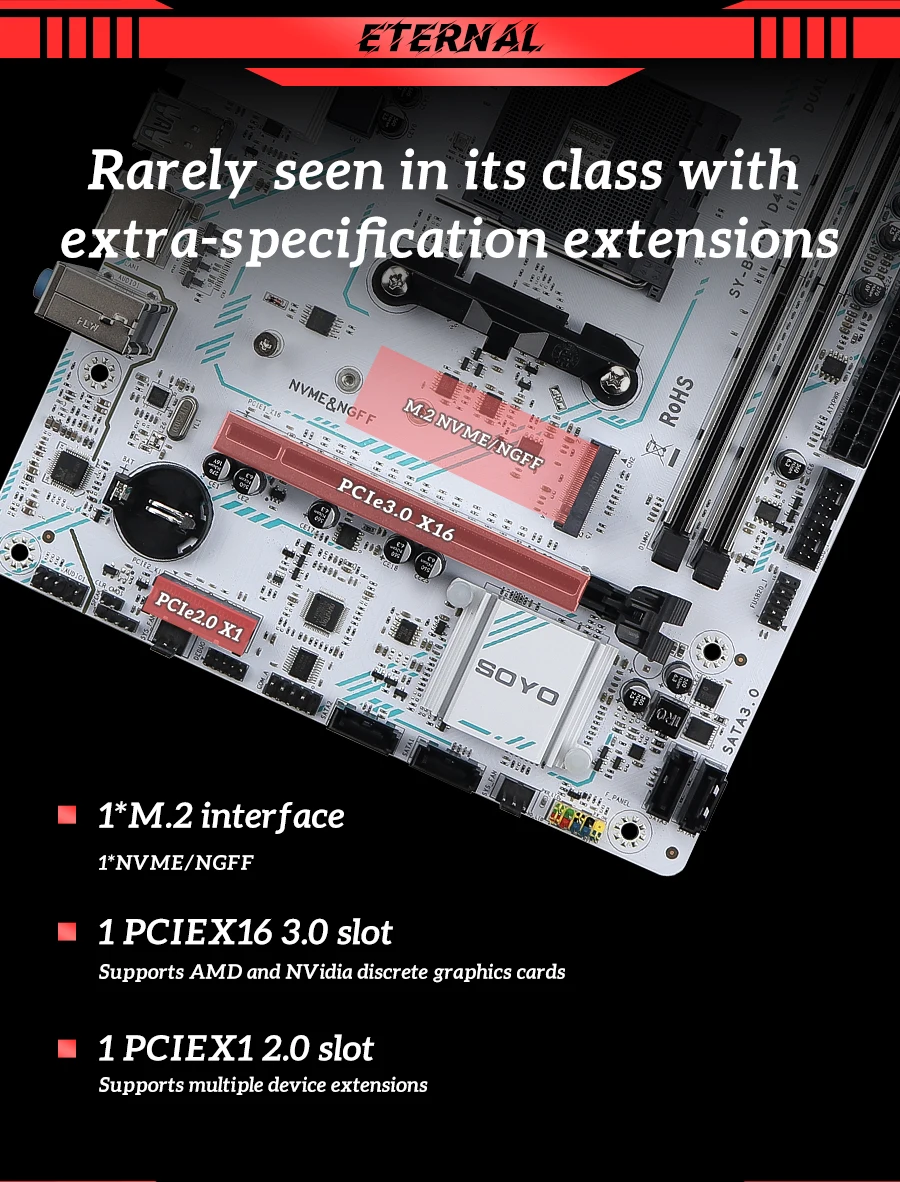

**Expansion Slots**

- 1x PCIe 3.0 x16 Slot

- 1x PCIe 2.0 x1 Slot

**Audio**

- Realtek 7.1 Channel HD Audio Codec

- 1x Front Audio Header (JAUDIO1)

**Networking**

- Realtek Gigabit LAN

- Supports PXE Boot and Wake-on-LAN

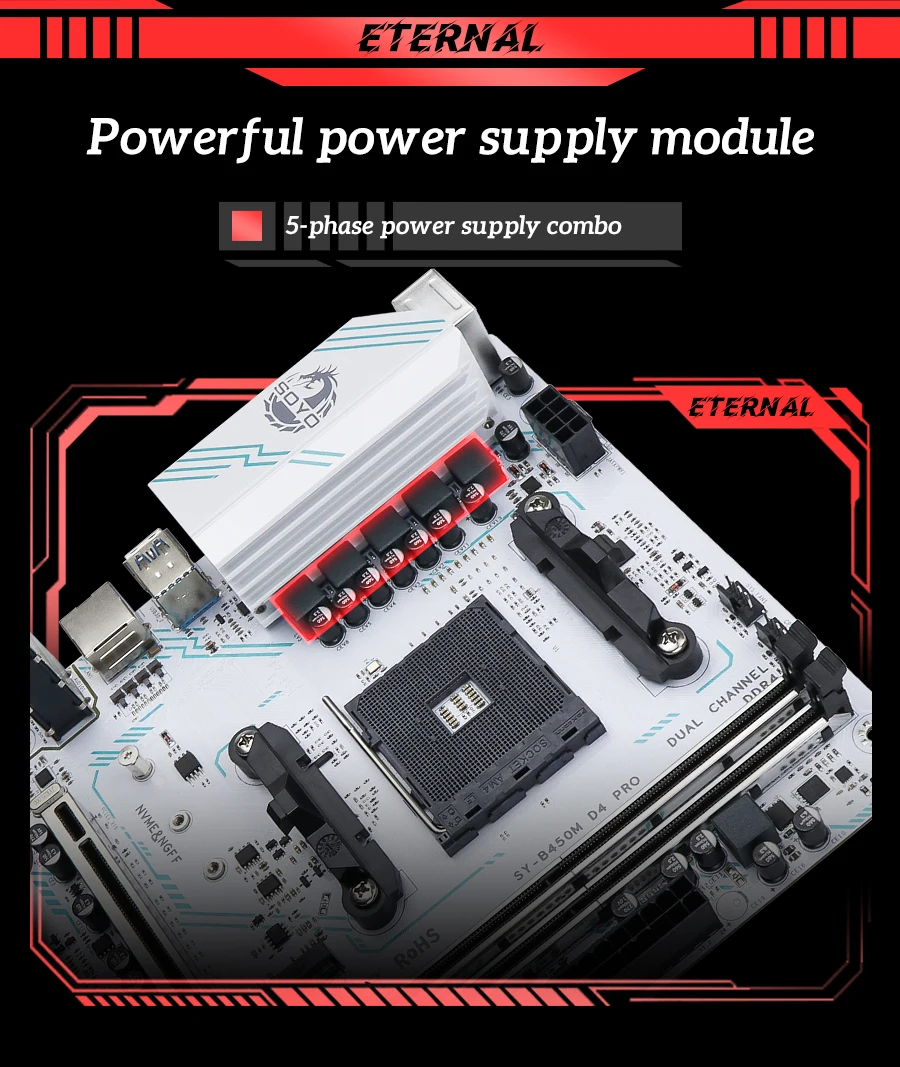

**Power & Cooling**

- 1x 24-Pin ATX Power Connector

- 1x 8-Pin ATX12V Power Connector

- 1x 4-Pin CPU_FAN Header

- 3x System Fan Headers (2x 3-Pin, 1x 4-Pin)

**Additional Features**

- 1x F_PANEL Header (Front Panel Controls)

- 1x SPEAK Header (System Speaker)

- 1x DEBUG Header

- 1x COM Header (RS232)

- 1x CLR_CMOS Header

**Form Factor**

- Micro-ATX (180mm x 216mm)

- 4-Layer PCB

**Operating Environment**

- **Operating Temperature:** -10°C to 60°C

- **Storage Temperature:** -25°C to 70°C

- **Humidity:** 10-90% (Non-Condensing)

**Power Consumption**

- Idle: ~41W

- Full Load: 130-150W (excluding GPU)

- *Recommended to use a high-power PSU when installing high-power consumption hardware*

**Operating System Support**

- Windows 10/11
