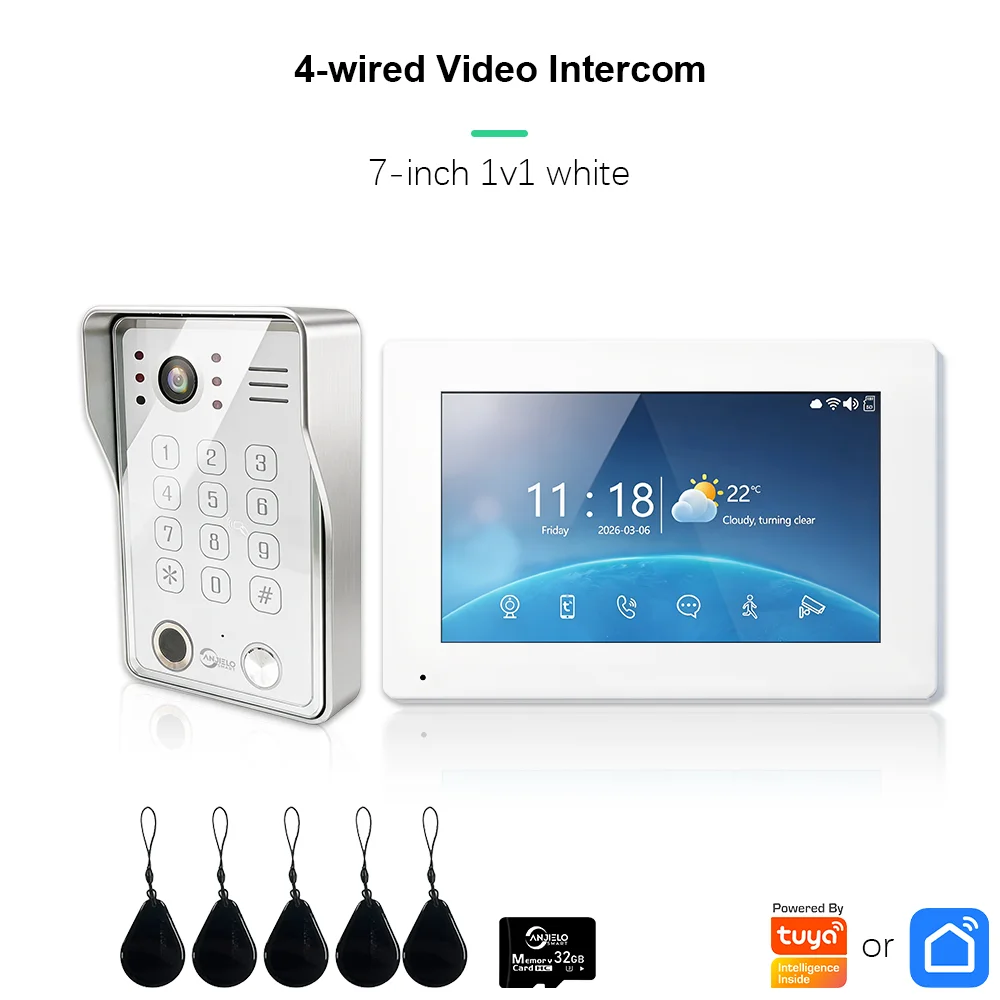

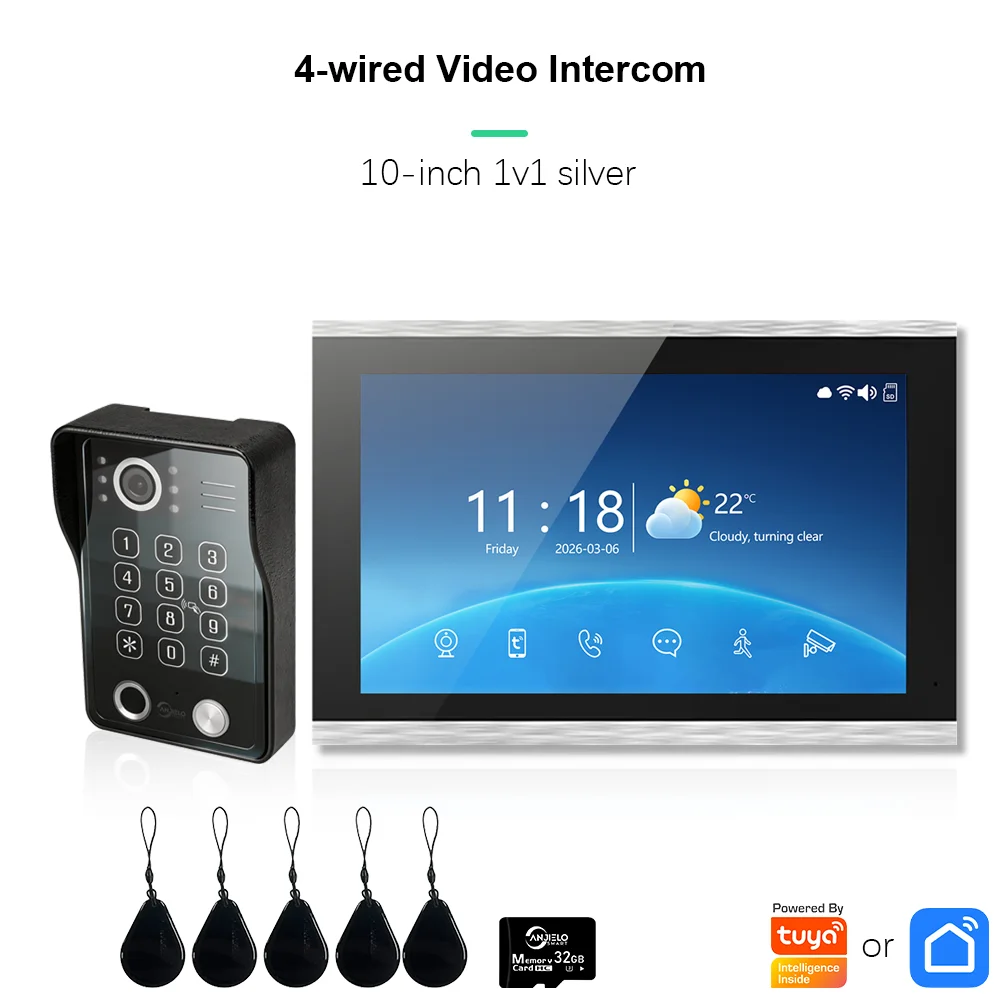

ANJIELO Fingerprint 5in1 Unlock Wifi Doorbell Video Intercom System for Home Doorphone Tuya Smart 1080P Monitor Security Protect

All-in-One Smart Security, Wired Reliability

Imagine a video door phone that does more than just show who’s at the door. Our 4-wire system combines high-definition video, whole-home intercom, smart app control, and expandable surveillance—all in one sleek package.

Why choose this system?

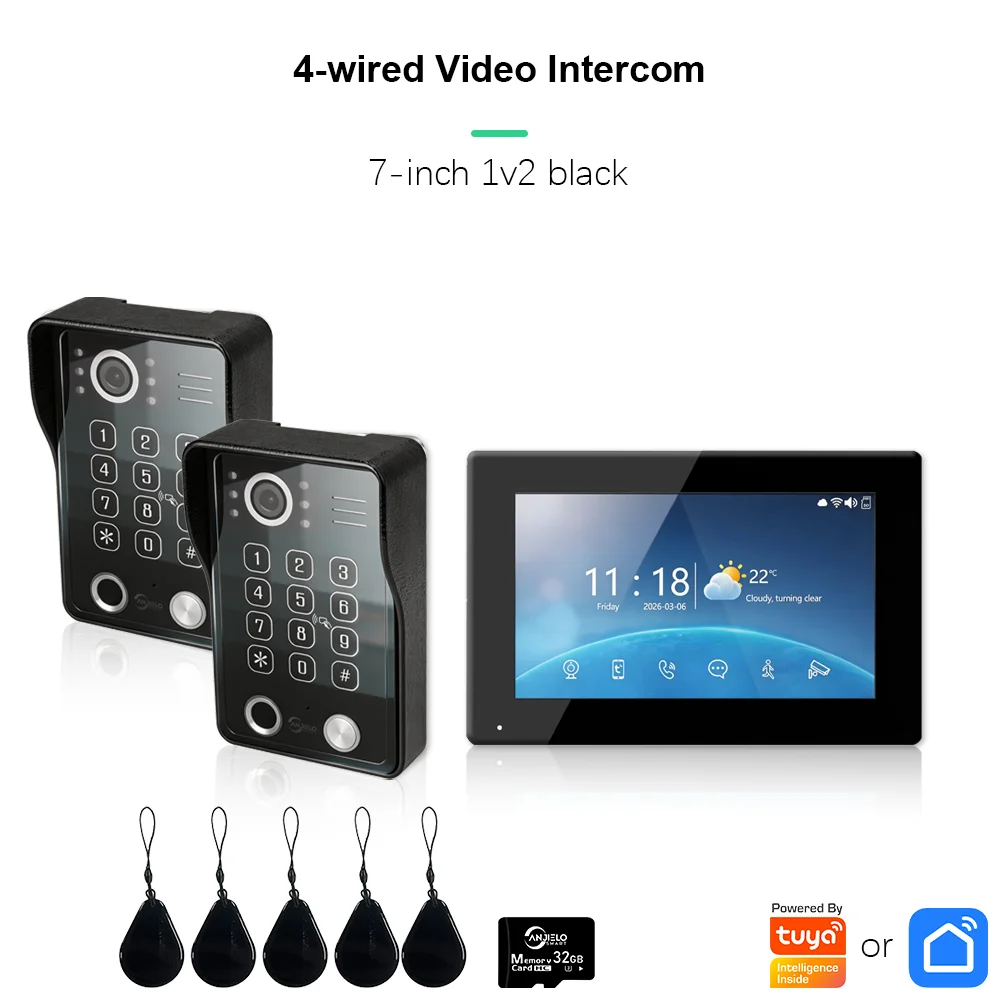

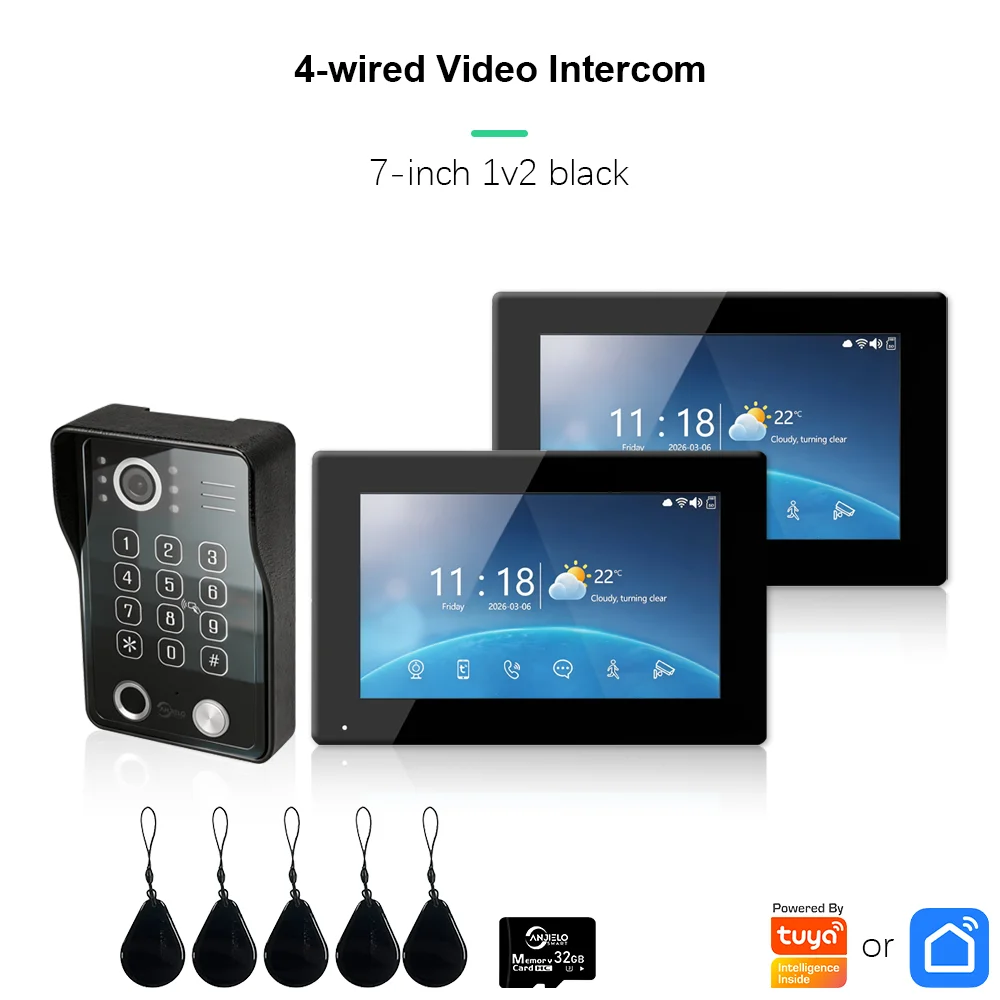

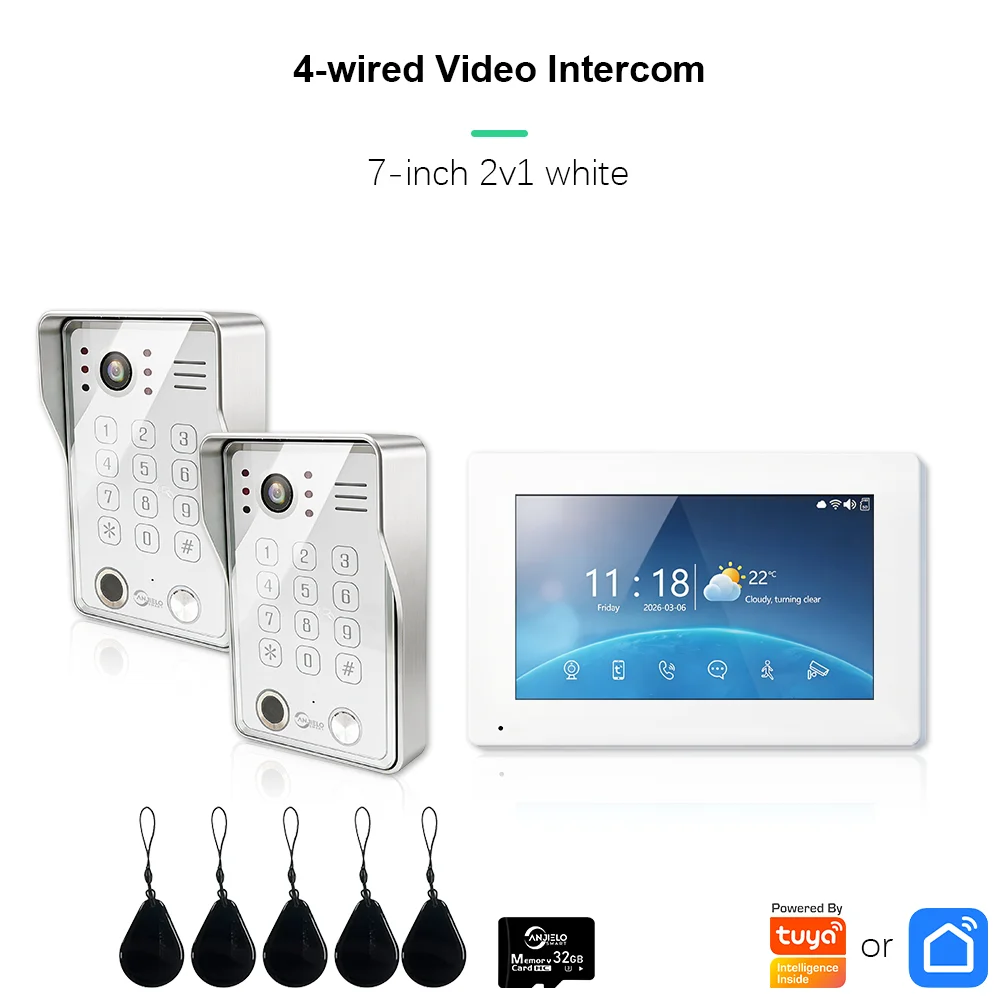

🔹 Rock-solid wired connection – No Wi-Fi dropouts for the core intercom. 4-wire transmission ensures stable communication up to 50 meters, with support for up to 2 outdoor units and 6 indoor monitors.

🔹 Smart, remote access – Connect the master monitor to 2.4G Wi-Fi and use the Tuya Smart or Smart Life app. Answer the door, talk to visitors, unlock the door, and view recordings from anywhere in the world. Up to 20 app users can be added—perfect for families or property managers.

🔹 Professional-grade features – 2MP outdoor camera with 148° wide angle and true day/night IR CUT. Motion detection with adjustable sensitivity triggers instant app notifications and automatic video recording to the local TF card.

🔹 More than a doorbell – The indoor monitor doubles as a digital photo frame with background music, supports analog camera inputs (AHD/TVI/CVI/CVBS) for expanded security, and even allows intercom calls between indoor monitors.

Easy installation, complete flexibility – Clear wiring diagrams, support for both electric locks and access control power supplies, and a clean, modern design that fits any home or building.

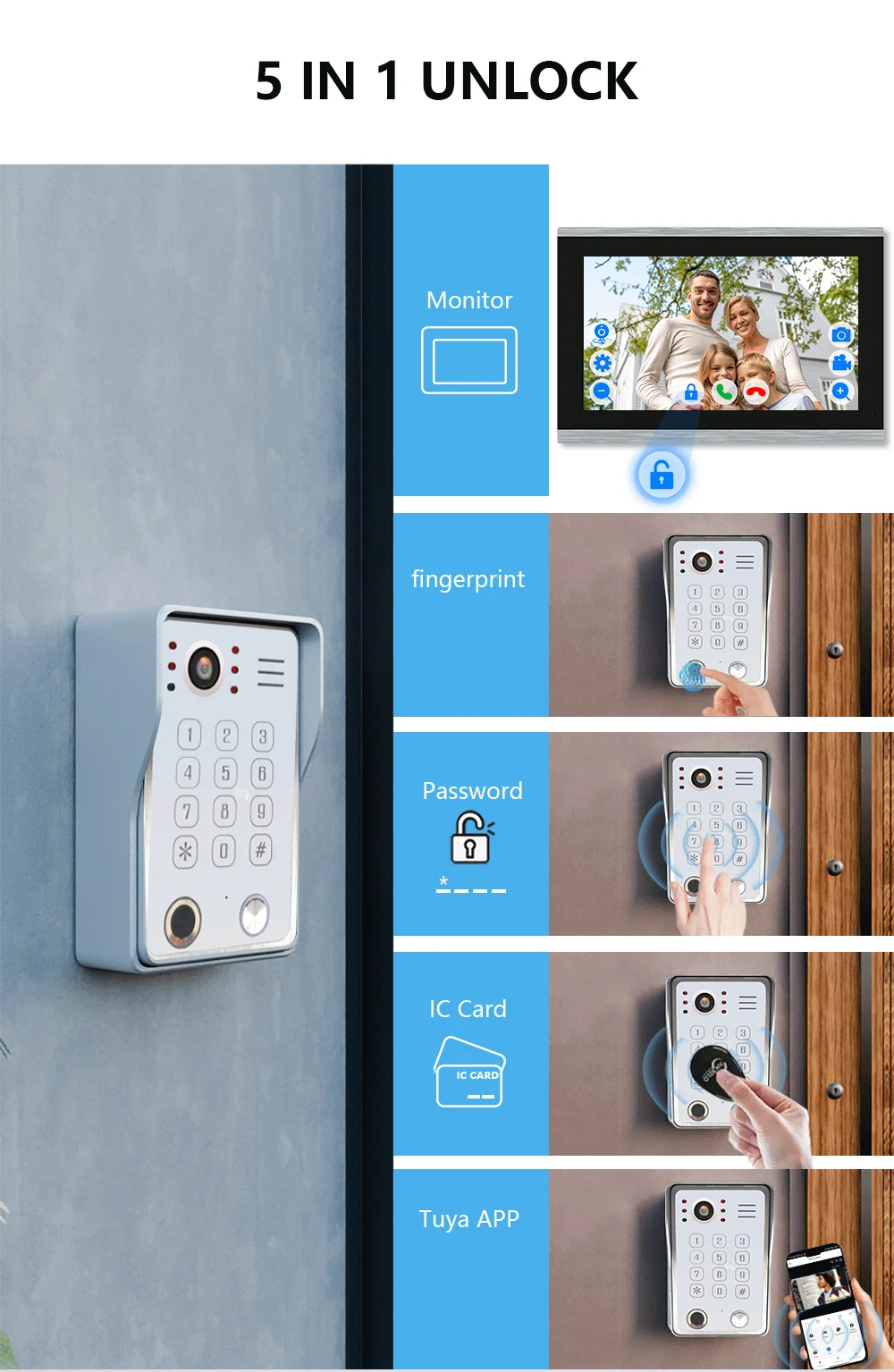

5 in 1 Unlock

This device has various unlocking methods. You can unlock by password, monitor, IC card, APP and screen. It is very convenient and flexible.

Fingerprint Unlocking

The outdoor hood is equipped with fingerprint capability and supports up to 200 fingerprints. Unlocking and access more convenient.

TWO WAY AUDIO

Speak directly to anyone who approaches your front door

Fill it with faces and tunes, and watch your days bloom.

It features a powerful digital photo frame function with background music support. Simply load your family photos and favorite music onto a memory card, and it will add a warm, beautiful touch to your everyday life.

Supports making calls between screens to mobile apps

The master screen and the slave screen can communicate with each other.

See More People:

16 Language:
It Supports English, Russian, German, French, Spanish, Italian, Polish, Portuguese, Turkish, Traditional Chinese, Japanese, Korean, Arabic, Vietnamese, Chinese, Hebrew.

Express delivery or visitors will not miss:

When someone rings the doorbell, we can hear the doorbell, talk to the guests outside through our phone or screen, and even have a full conversation and unlock with our phone

Automatic recording

When visitors press the doorbell or motion detection is triggered, the doorbell camera will automatically record videos or snapshots and save them to the additional Micro SD card to protect your home every day.

AHD 1080P OUTDOORFINGERPRINT DOORBELL

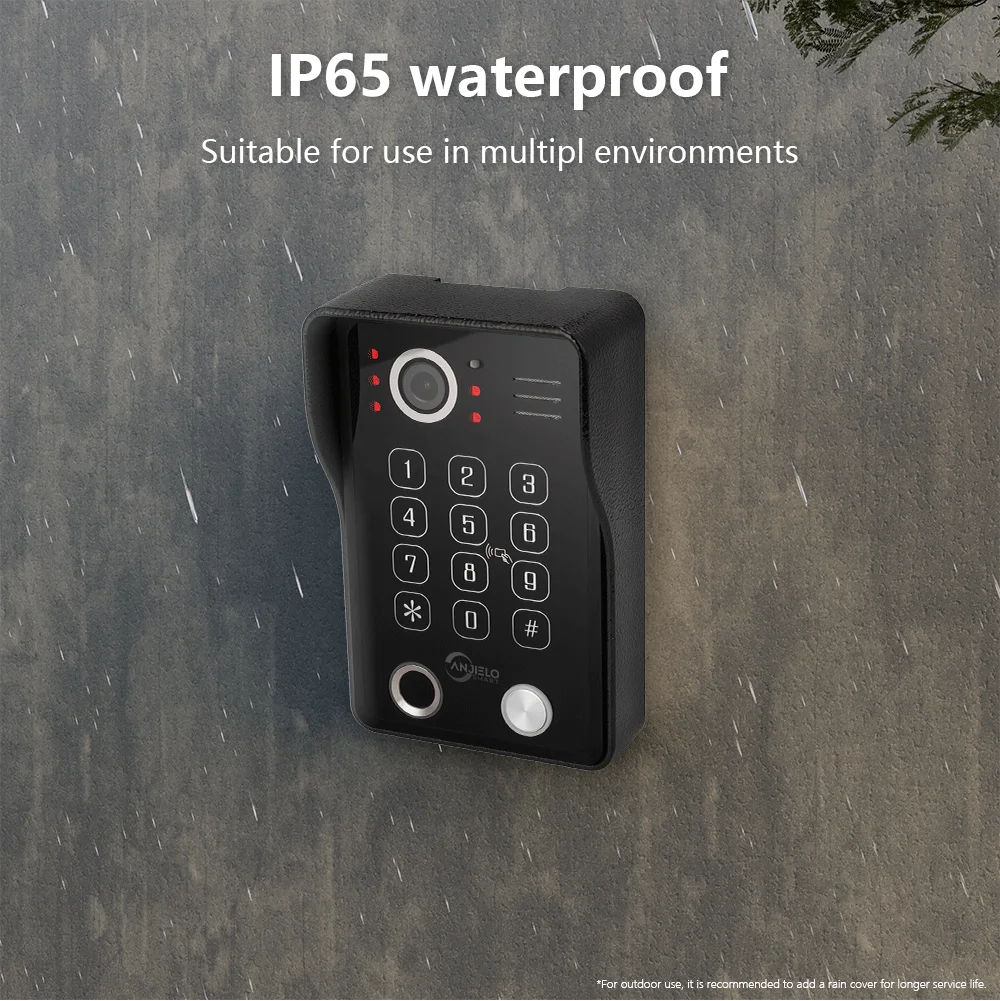

• 1. Waterproof IP65

• 2. View-angle 148 degree

• 3. Night Vision

• 4. Support Connect With Exit button

• 5. Access Control Function Optional.Support RFID and Password Unlockand Fingerprint

Product Features:

• 2.0MP Camera, 148 degrees wide view angle.


• 2-way communication between indoor and outdoor unit. Support 2 way communication between monitors.


• Support iOS & Android smart phone with Tuya Smart APP, When somebody call at outdoor, your monitor and smartphone will ring at the same time.


• Motion Detect, When motion detect is triggered,the camera will recording or capture a picture,even though nobody press the doorbell.


• The indoor unit has an external 32G SD card (supports photo or video).


• Note: 4 wires cable connection doorbell and monitor, The monitor support WIFI network, but the indoor monitor and doorbell is Wired.

• Automatic Recording


• 1080P camera with 148º wide view angle, Visitors at the door can be seen clearly.


• Camera built-in microphone and speaker, When visitors press the doorbell or motion detect is triggered, doorbell camera will Automatically record videos or snapshot pictures and save them in monitor micro SD card.

Features

• Wide angle camera

• Aluminum Alloy Case;IP65

• IR LED offset lighting can obtain better evening viewing

• Unique waterproof ,dustproof ,anti-thunderstorm design

• Call indoor monitor ,video intercom

• Support connect with Exit button , With IR-CUT

• With password ,fingerprit & IC card unlock function, capacity 200PCS

• Support switch signal from 1080P-720P-CVBS


Specifications

• Camera Sensor 1 / 2.7" CMOS

• Denfinition 1080P

• Lens 3.2mm

• View angle 148°

• LEDs for night LED IR LEDs（120°）

• Power consumption 200mA max.

• Power Supply Supplied from indoor unit

• Operating Temp. -40℃~+50℃

• Installation Surface mount

• Size 137mm*85.5mm*23.5mm

• Accessory Rain Cover

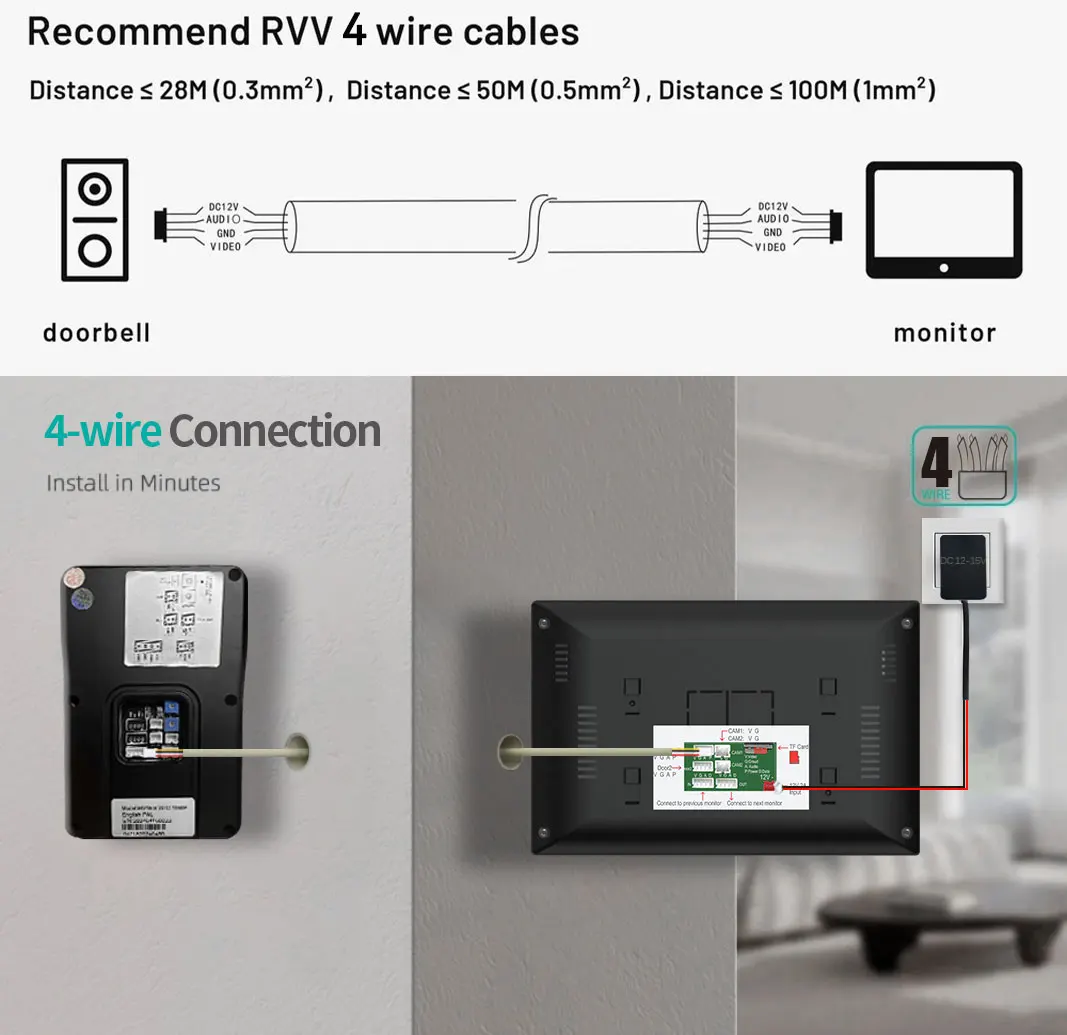

WIRING DIAGRAM

When a motion detector is triggered,the device starts a recordingor takes a photo
