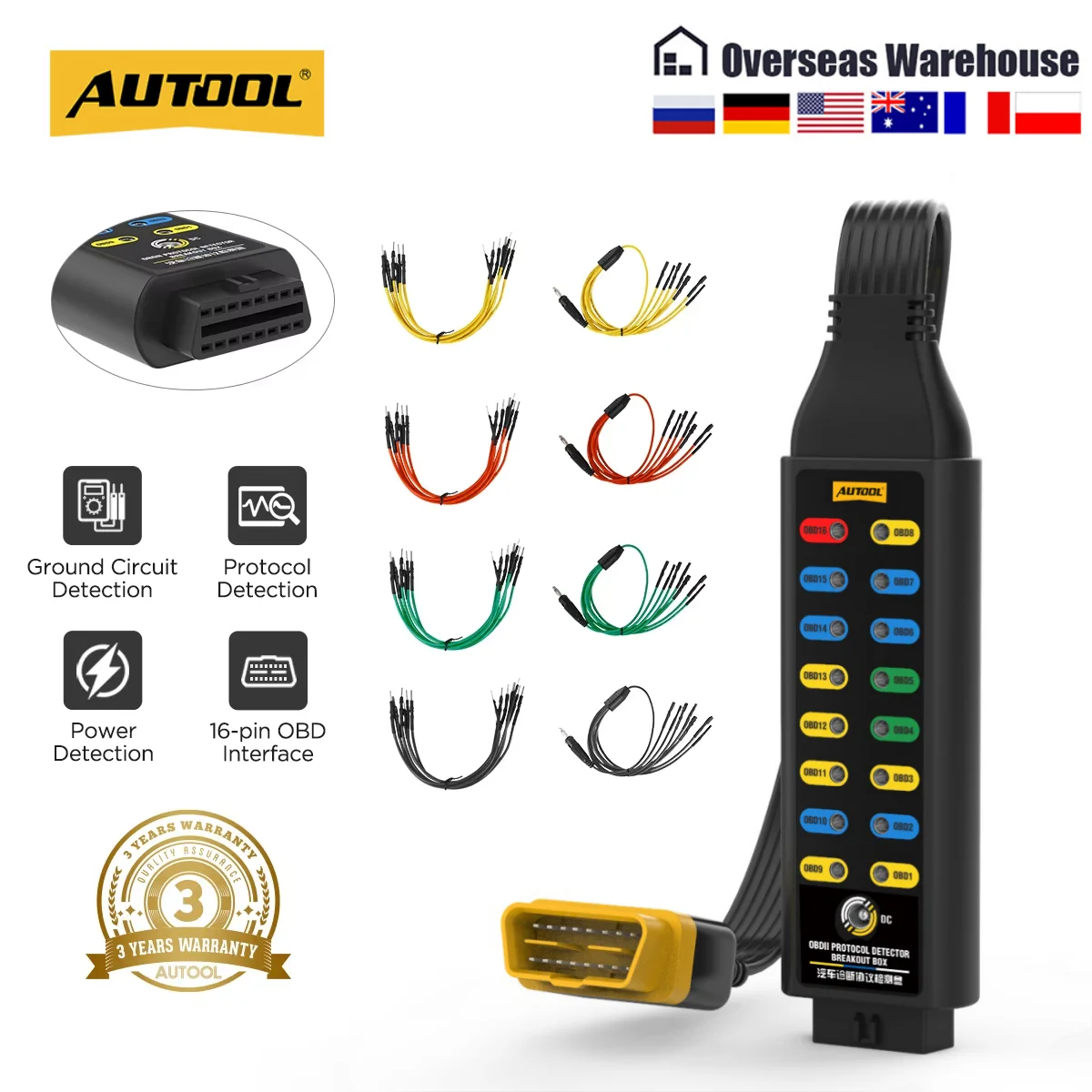

AUTOOL OBD 2 Automotive Diagnostic Protocol Detector & Break Out Box Car CAN Test Box Fault Diagnosis Scan Tool OBD II Diagbox

AUTOOL OBD 2 Automotive Diagnostic Protocol Detector & Break Out Box Car CAN Test Box Fault Diagnosis Scan Tool OBD II Diagbox

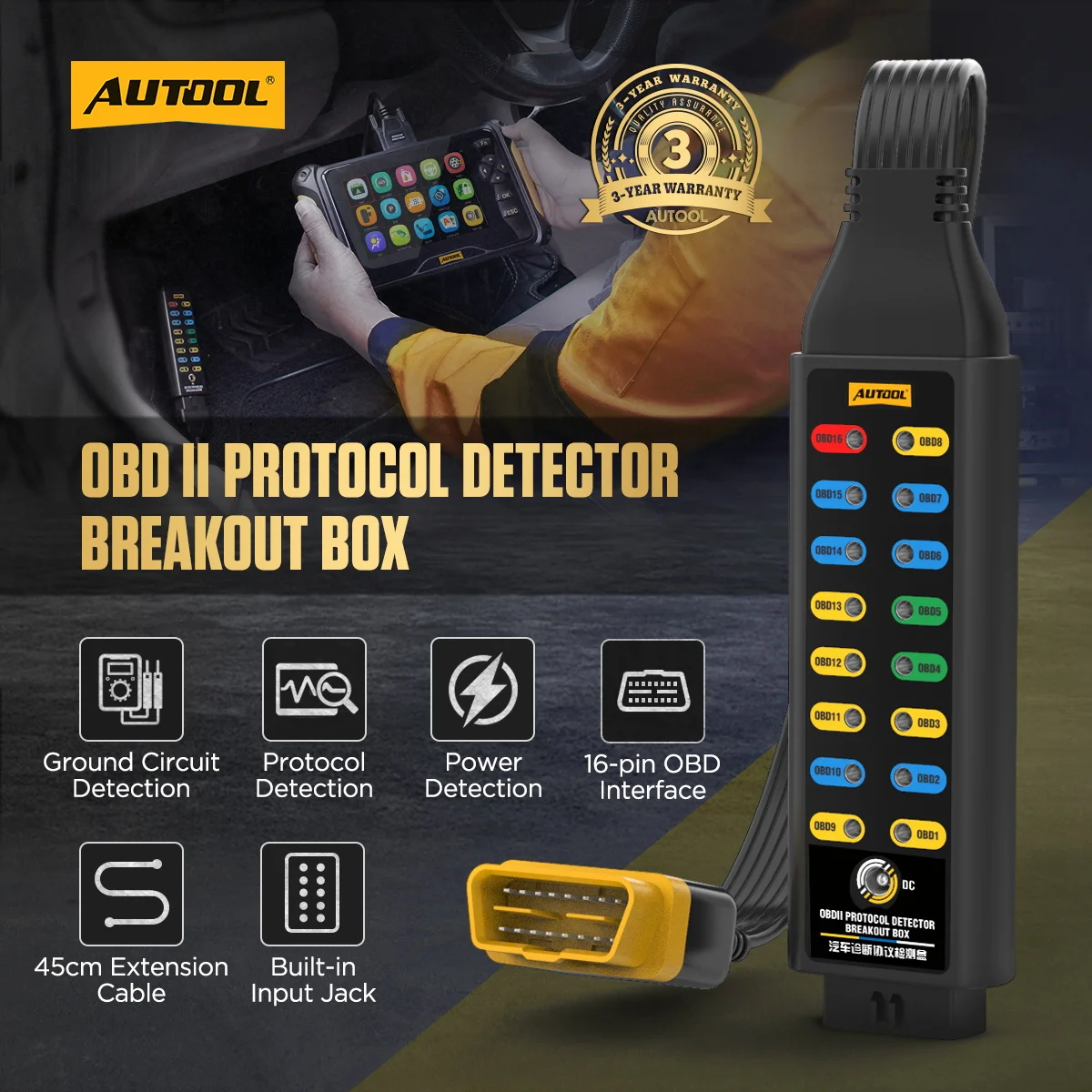

The automotive OBD II Protocol Detector &Breakout Box is a straight-through circuit detector for OBD II data. The communication protocol, power supply and grounding circuit of the OBD II on-board diagnostic system are easily and safely detected by connecting this instrument and the vehicle OBD II system.

AUTOOL OBD II Protocol Detector &Breakout Box Features：

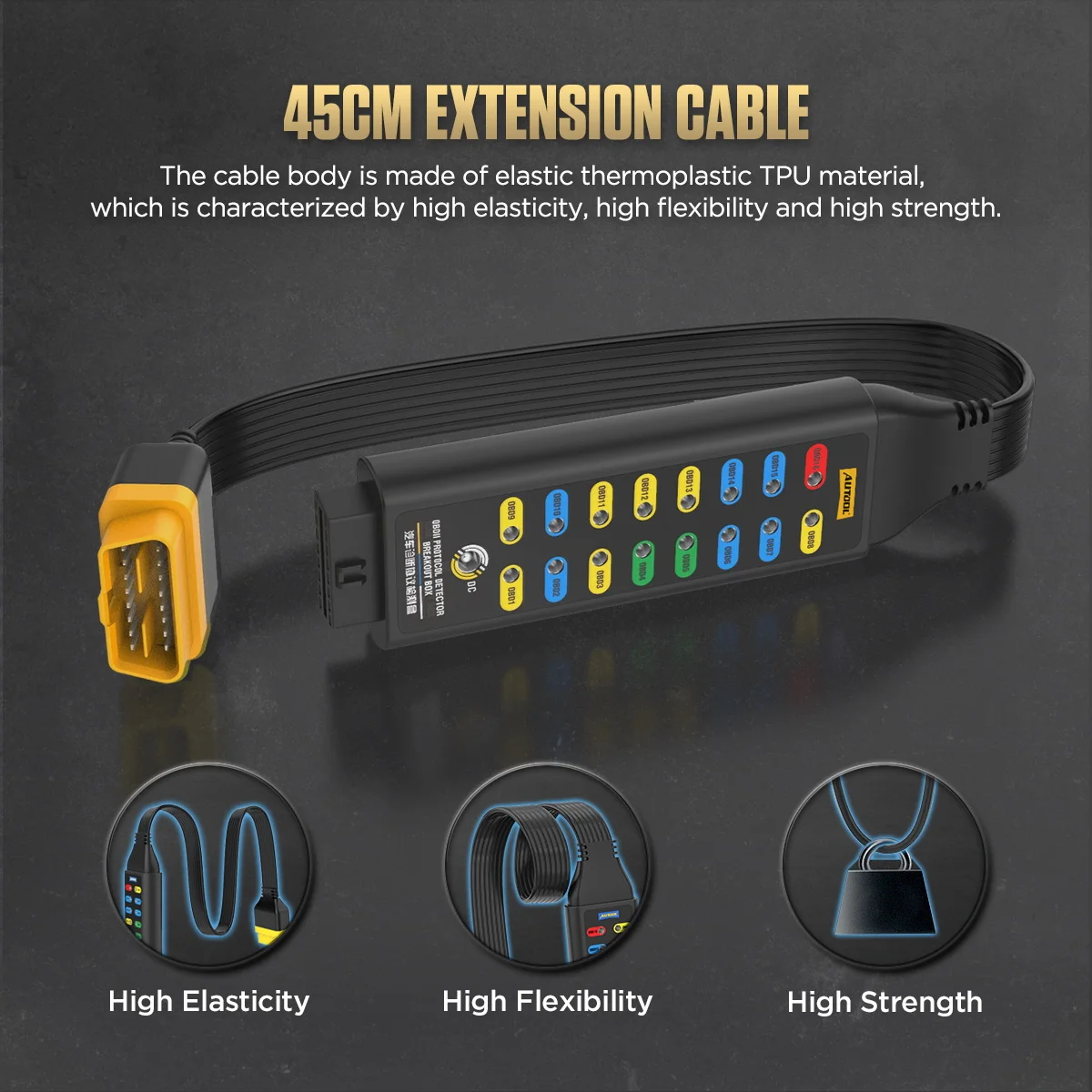

1. The extension wire of OBD II connector adopts the technology of multithreading data connection, which makes the connection faster and smoother. The wire body is made of elastic thermoplastic TPU material, which is characterized by high elasticity, high strength and high resilience.

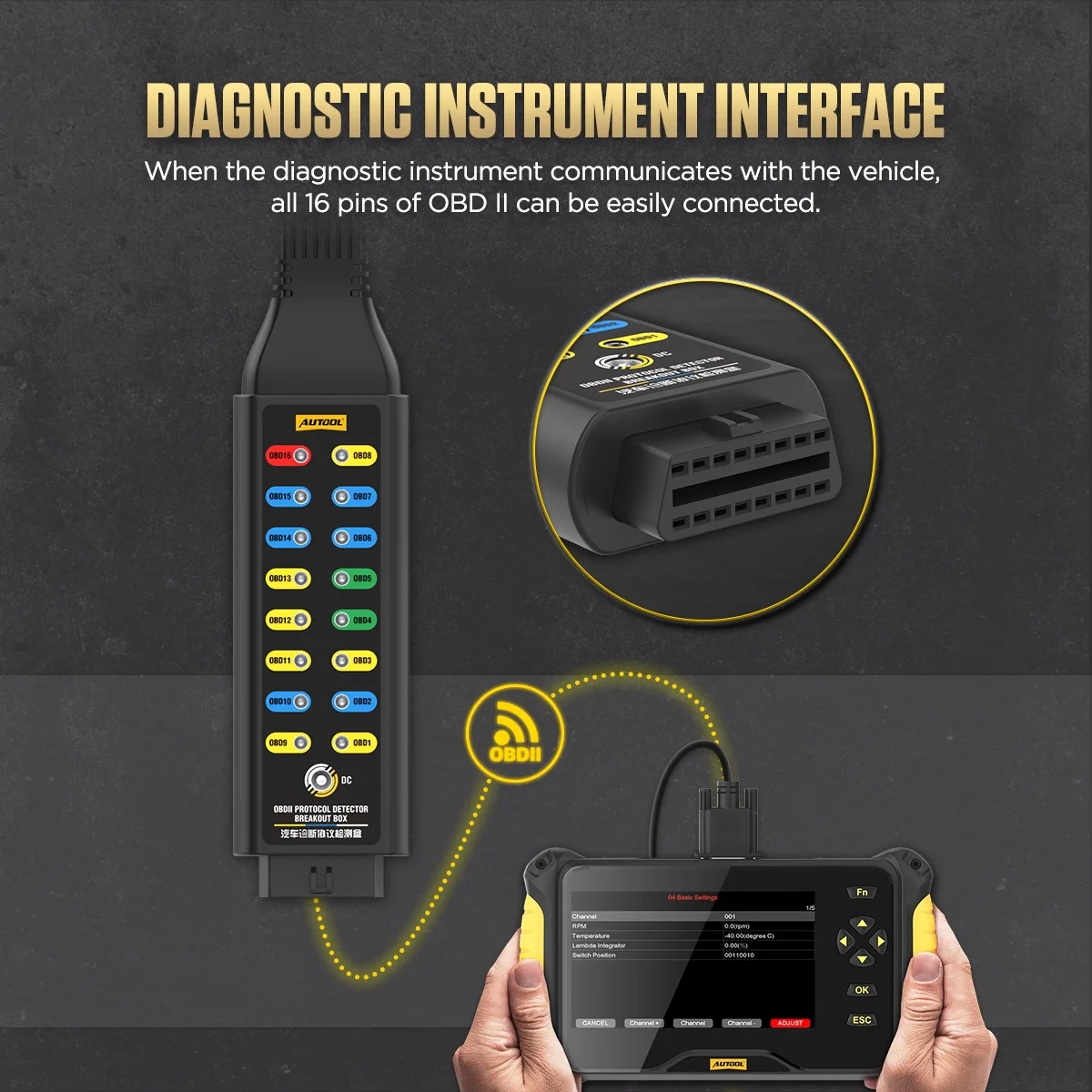

2. When the decoder communicates with the vehicle, all 16
OBD II pins can be easily connected.

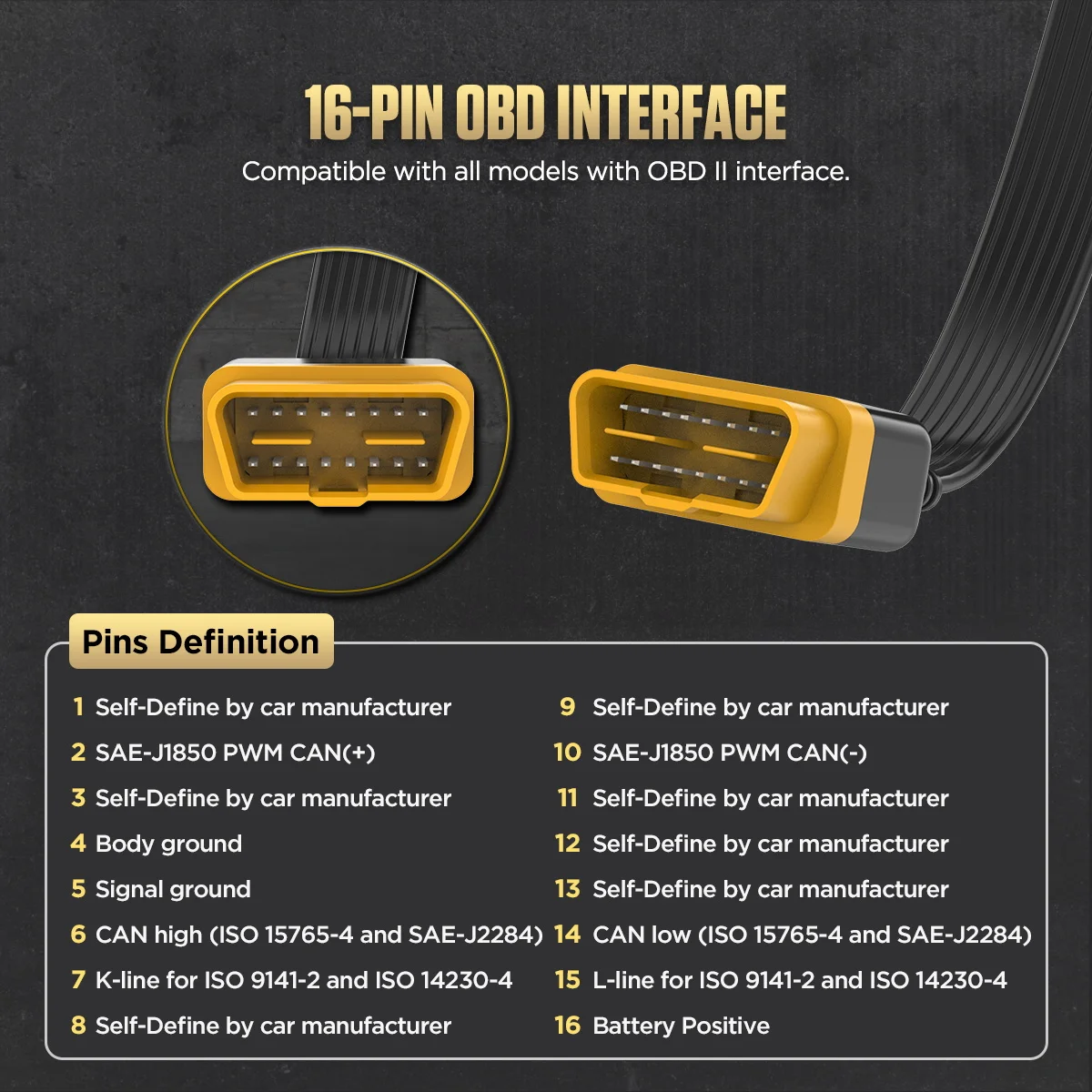

3. The layout of the input jack completely simulates the 16 pin layout of the OBD II interface, so that more tests can be carried out quickly and visualized.

4. Quickly, safely and conveniently check various signals of
the vehicle.

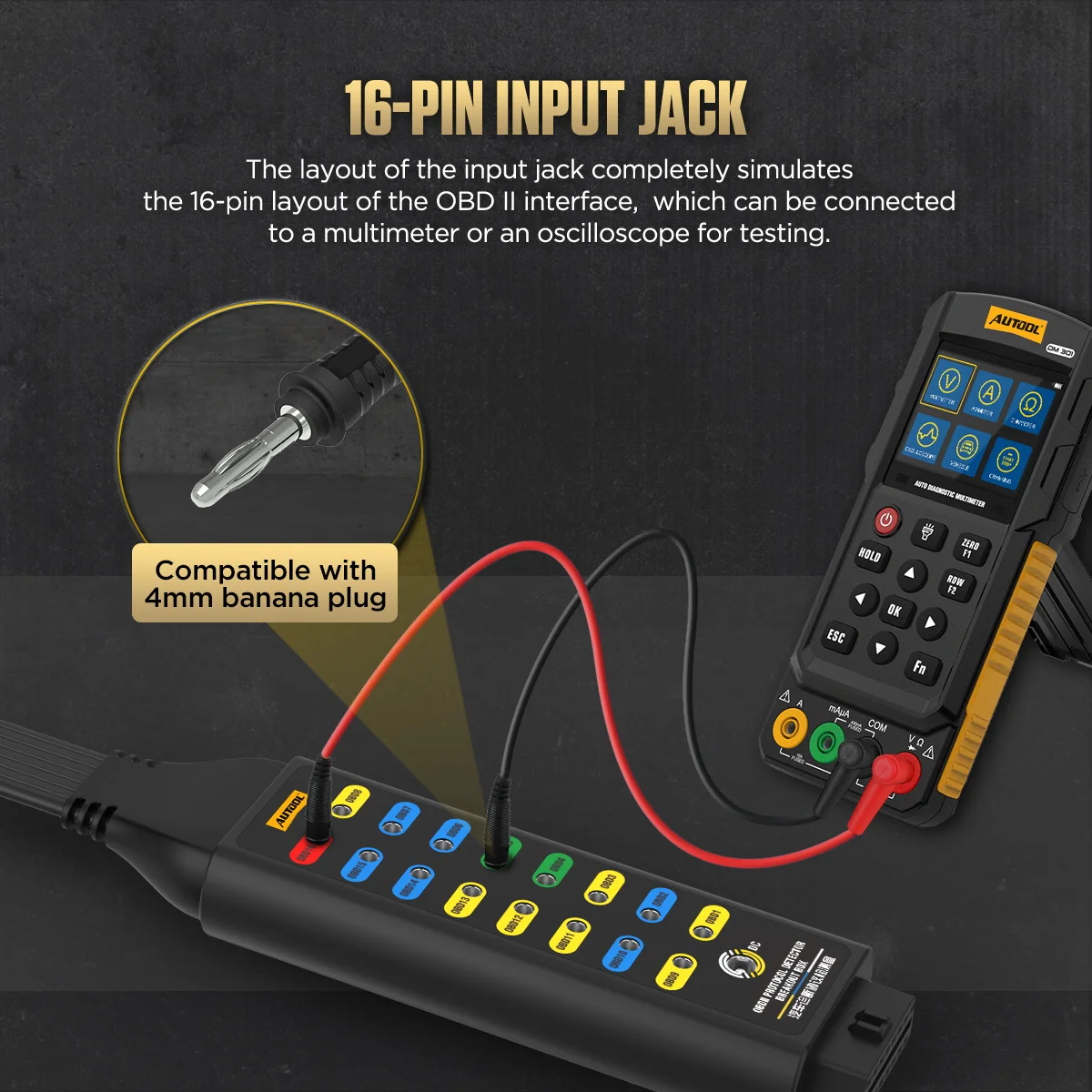

5. The built-in input jack can be connected to any type of 4mm banana plug, which is convenient for connecting with a multimeter or oscilloscope for further measurement.

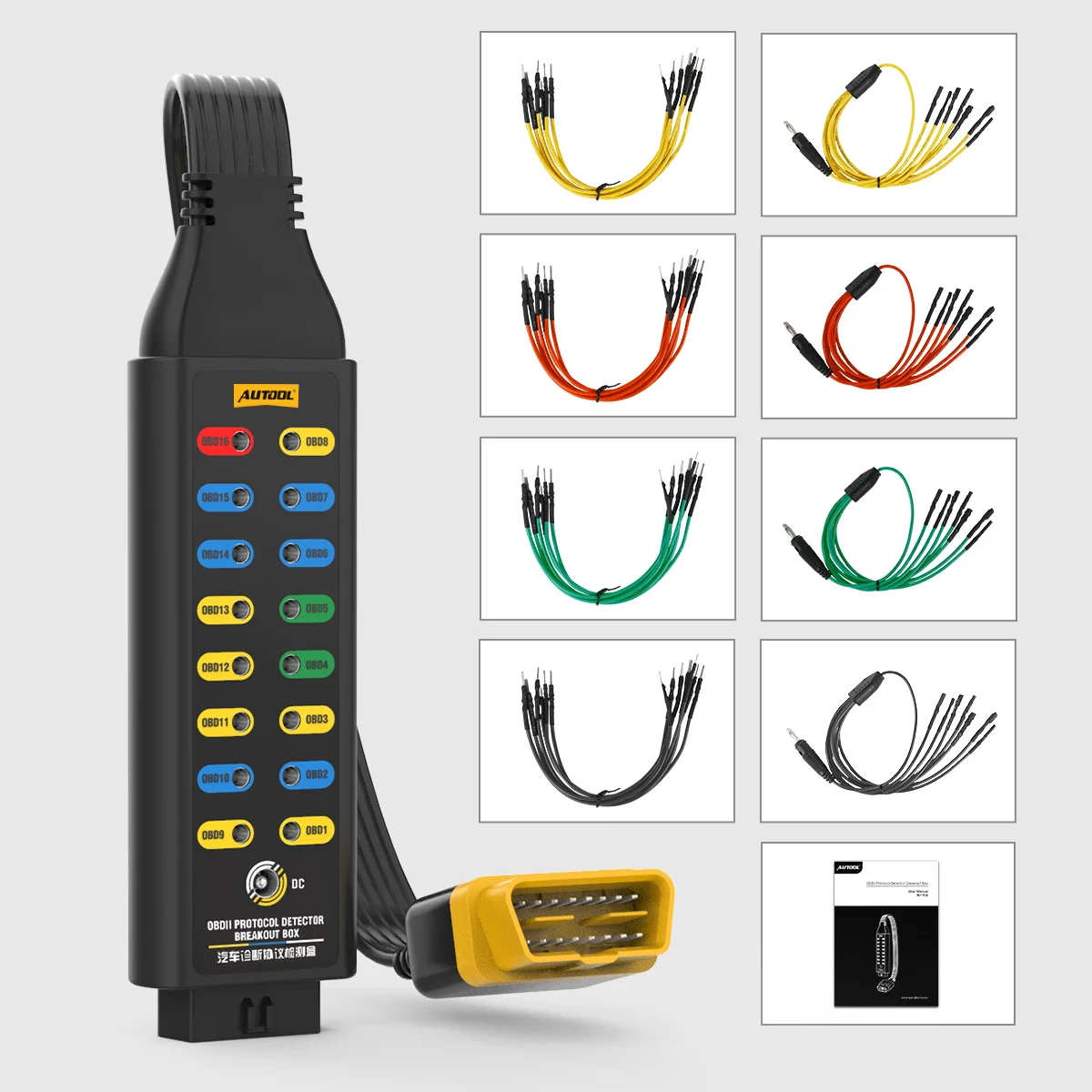

Package inlcudes:

1pc * Host breakout box

1pc * Universal wire jumper (red*1 set, black*1 set, yellow*1 set, green*1 set)

1pc * Manual

1pc * Warranty card
