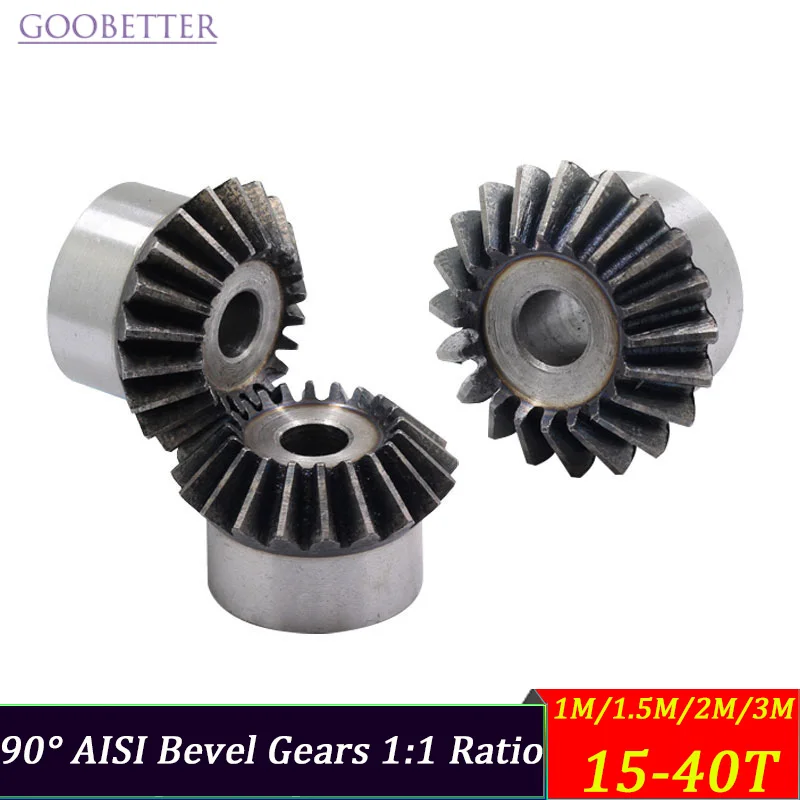

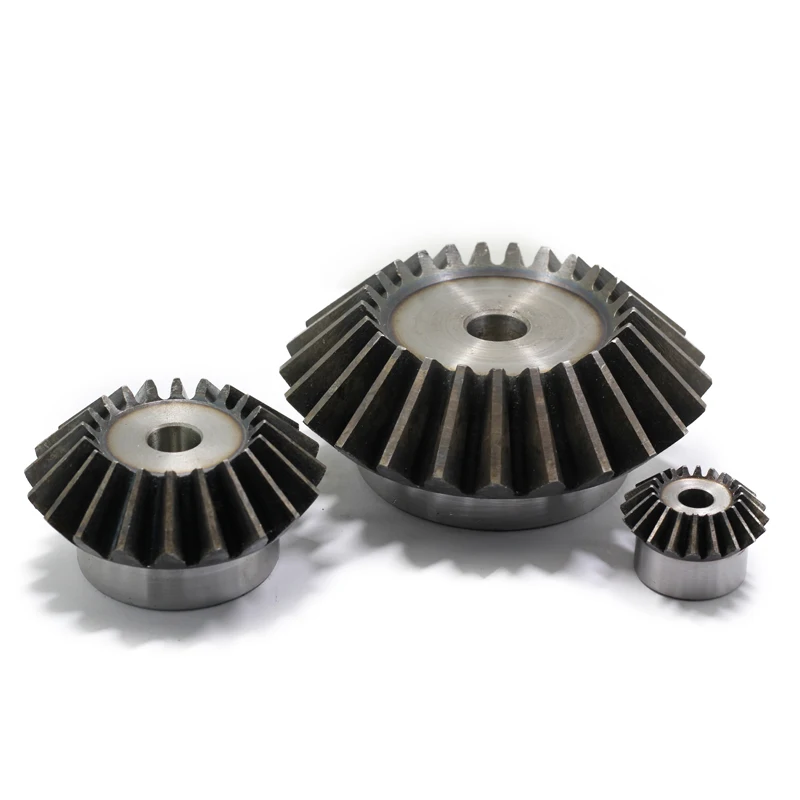

Bevel Gears 90° 1:1 Ratio AISI 1045 Hardened Teeth 1/1.5/2/3M Module 15-40T AGMA 9 for Machinery/Robotic/Automation

Welcome to our store!

Physical store management, professional quality, coupon promotion, click to get it and use it!

Product Parameters

• Gear Type: 90° straight bevel gear

• Ratio: 1:1

• Material: AISI 1045 medium carbon steel

• Tooth Treatment: Hardened teeth

• Module: 1 / 1.5 / 2 / 3 mm

• Tooth Range: 15 - 40 T

• Accuracy Grade: AGMA 9

• Shaft Angle: 90°

• Pressure Angle: 20° (standard)

Application Scenarios

• Industrial machinery drive systems (e.g., packaging machines, printing machines, textile machinery)

• Robotic joints and servo drives

• Automated production lines (conveyors, assembly lines, sorting equipment)

• CNC machine tool accessories

• Agricultural machinery and construction vehicles

Model Specification List:

1 mold -15 teeth outer diameter 16.2mm

1 mold -16 teeth outer diameter 17.2mm

1 mold -18 teeth outer diameter 19.2mm

1 mold -20 teeth outer diameter 21.2mm

1 mold-22 tooth outer diameter 23.2mm

1 mold -24 teeth outer diameter 25.2mm

1 mold -25 teeth outer diameter 26.2mm

1 mold -30 teeth outer diameter 31.2mm

1 mold -35 teeth outer diameter 36.2mm

1 mold -40 teeth outer diameter 41.2mm

1.5M-15 tooth outer diameter 24.3mm

1.5M-16 tooth outer diameter 25.8mm

1.5M-17 tooth outer diameter 27.3mm

1.5M-18 tooth outer diameter 28.8mm

1.5M-19 tooth outer diameter 30.3mm

1.5M-20 tooth outer diameter 31.8mm

1.5M-21 tooth outer diameter 33.3mm

1.5M-22 tooth outer diameter 34.8mm

1.5M-23 tooth outer diameter 36.3mm

1.5M-24 tooth outer diameter 37.8mm

1.5M-25 tooth outer diameter 39.3mm

1.5M-26 tooth outer diameter 40.8mm

1.5M-27 tooth outer diameter 42.3mm

1.5M-28 tooth outer diameter 43.8mm

1.5M-29 tooth outer diameter 45.3mm

1.5M-30 tooth outer diameter 46.8mm

1.5M-35 tooth outer diameter 54.3mm

1.5M-40 tooth outer diameter 61.8mm

2M15 tooth outer diameter 32.5mm

2M16 tooth outer diameter 34.5mm

2M17 tooth outer diameter 36.5mm

2M18 tooth outer diameter 38.5mm

2M19 tooth outer diameter 40.5mm

2M20 tooth outer diameter 42.5mm

2M-21 tooth outer diameter 44.5mm

2M-22 tooth outer diameter 46.5mm

2M-23 tooth outer diameter 48.5mm

2M-24 tooth outer diameter 50.5mm

2M-25 tooth outer diameter 52.5mm

2M-26 tooth outer diameter 54.5mm

2M-27 tooth outer diameter 56.5mm

2M-28 tooth outer diameter 58.5mm

2M-29 tooth outer diameter 60.5mm

2M-30 tooth outer diameter 62.5mm

2M-31 tooth outer diameter 64.5mm

2M-32 tooth outer diameter 66.5mm

2M-33 tooth outer diameter 68.5mm

2M-34 tooth outer diameter 70.5mm

2M-35 tooth outer diameter 72.5mm

2M-36 tooth outer diameter 74.5mm

2M-38 tooth outer diameter 78.5mm

2M-40 tooth outer diameter 82.5mm

3M-15 tooth outer diameter 48.7mm

3M-16 tooth outer diameter 51.7mm

3M-17 tooth outer diameter 54.7mm

3M-18 tooth outer diameter 57.7mm

3M-19 tooth outer diameter 60.7mm

3M-20 tooth outer diameter 63.7mm

3M-21 tooth outer diameter 66.7mm

3M-22 tooth outer diameter 69.7mm

3M-23 tooth outer diameter 72.7mm

3M-24 tooth outer diameter 75.7mm

3M-5 tooth outer diameter 78.7mm

3M-26 tooth outer diameter 81.7mm

3M-27 tooth outer diameter 84.7mm

3M-28 tooth outer diameter 87.7mm

3M-30 tooth outer diameter 93.7mm

3M-31 tooth outer diameter 96.7mm

3M-32 tooth outer diameter 99.7mm

3M-34 tooth outer diameter 105.7mm

3M-35 tooth outer diameter 108.7mm

3M-40 tooth outer diameter 123.7mm

•lf you need to buy more than one item, you can add a shopping cart first, there will be a bigger discount.

•We can provide wholesale if you need large quantity, please contact us. Thanks.

•Buying different products may result in unusual shipping fee. If the shipping cost is too high, please contact us.

•Picture is for illustration only, please select your requirements(Size .Quantity).
