BN61-13245A Bars For Samsung UN55KU6500 UN55KU750D UN55MU6500 UN55MU7000 LED Backlight Strip BN96-39595A 39597A 39597A Lens Band

Kind Reminder

▶▶The TV model can only be used as a reference, and the TV model may not be accurate. Because the same TV (but different production batches or different production areas) may use different light bars.

HG55AE890 HG55EE890 HG55EE89 HG55NE890 UA55KU6500 UA55KU6570 UA55KU6900 UA55KU7500 UA55LS003 UA55MU6400 UA55MU6470 UA55MU6500 UA55MU6900 UA55MU7500 UE55KU6400 UE55KU6402 UE55KU6405 UE55KU6409 UE55KU6450 UE55KU6452 UE55KU6455 UE55KU6459 UE55KU6470 UE55KU6472 UE55KU6475 UE55KU6479 UE55KU6500 UE55KU6502 UE55KU6505 UE55KU6509 UE55KU6510 UE55KU6512 UE55KU6515 UE55KU6519 UE55KU6640 UE55KU6642 UE55KU6645 UE55KU6649 UE55KU6650 UE55KU6652 UE55KU6655 UE55KU6659 UE55KU6670 UE55KU6672 UE55KU6675 UE55KU6679 UE55KU7500 UE55LS003 UE55MU6400 UE55MU6402 UE55MU6405 UE55MU6409 UE55MU6440 UE55MU6442 UE55MU6445 UE55MU6449 UE55MU6450 UE55MU6452 UE55MU6455 UE55MU6459 UE55MU6470 UE55MU6472 UE55MU6475 UE55MU6479 UE55MU6500 UE55MU6502 UE55MU6505 UE55MU6509 UE55MU6640 UE55MU6642 UE55MU6645 UE55MU6650 UE55MU6652 UE55MU6655 UE55MU6670 UE55MU6672 UE55MU6675 UE55MU7400 UE55MU7500 UN55KU6400 UN55KU6500 UN55KU7000 UN55KU700D UN55KU7500 UN55KU750D UN55LS003 UN55MU6400 UN55MU6500 UN55MU7000 UN55MU700D UN55MU7100 UN55MU7500 UN55MU7600

▶▶ You must open the TV casing and confirm that the backlight light bar model code, connector shape, light bar length and other parameters are consistent with the content we provide before you can buy it, otherwise we will not be liable if you rely solely on this TV model. This is the particularity of the electronic accessories industry, I hope customers can understand.

▶▶The new LED backlight strip is the same as the original one, easy to install, and the price is more favorable.

LED Array Bars For Samsung UE55KU6500 UE55KU6479 UE55KU6502 LED Backlight Strip Matrix Kit V6ER_550SMA/B_LED66_R2 Lamp Lens Band

Bran New Original 2 piece LED backlight strip / Kit, 1 Kit = 1L + 1R<br />Consistent with the original shape, easy to install

Applicable TV model

If you have not opened the TV, we recommend that you compare the TV model. The model number of the TV is on the nameplate on the back of the TV. As shown below<br />For Samsung UE55KU6479UX UE55KU6500SX UE55KU6500UX UE55KU6502UX 55inch<br />UE55KU6479UXZG<br />UE55KU6500SXXH<br />UE55KU6500SXXN<br />UE55KU6500SXXN FB04<br />UE55KU6500UXCE<br />UE55KU6500UXRU<br />UE55KU6500UXUA<br />UE55KU6500UXXC<br />UE55KU6500UXXU<br />UE55KU6500UXXU AD02<br />UE55KU6500UXZF<br />UE55KU6500UXZG<br />UE55KU6500UXZG AA01<br />UE55KU6500UXZT<br />UE55KU6502UXXH

Light strip information

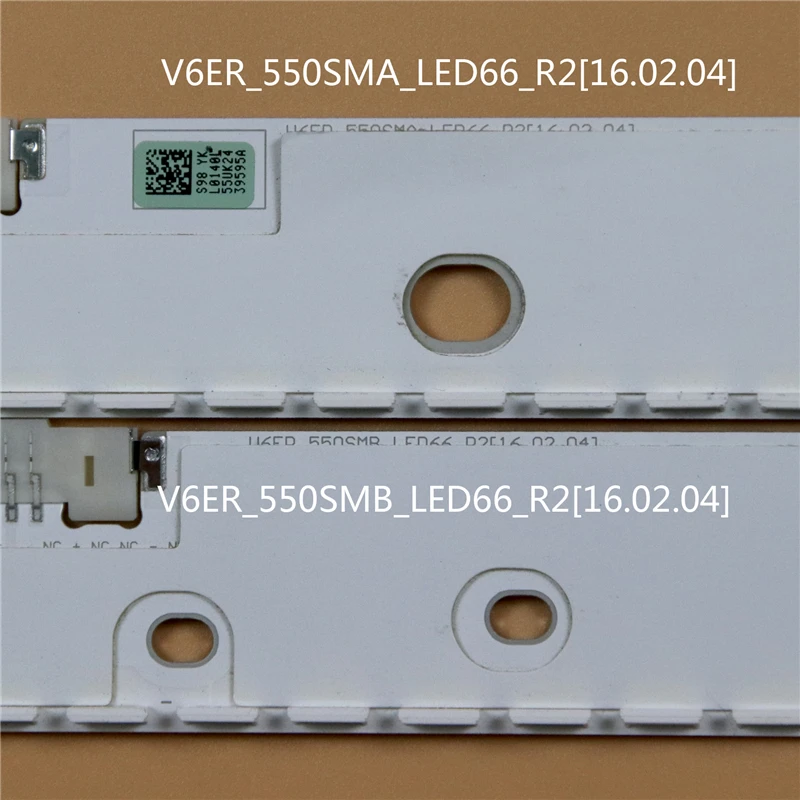

If you have already opened the TV, we recommend comparing the light bar code or screen code. You could find these numbers in the light bar or screen panel. As shown below, Or you can refer to the data we provide.<br />V6ER_550SMA_LED66_R2[16.02.04]<br />V6ER_550SMB_LED66_R2[16.02.04]<br />S_KU6.4/6.5K_55_SFL70_R66_REV1.1 LM41-00302A<br />S_KU6.4/6.5K_55_SFR70_R66_REV1.1 LM41-00462A<br />BN96-39595A BN96-39596A BN96-39597A BN96-39598A BN96-39601A BN96-39602A

The LED Backlight Lamp Strip Features:

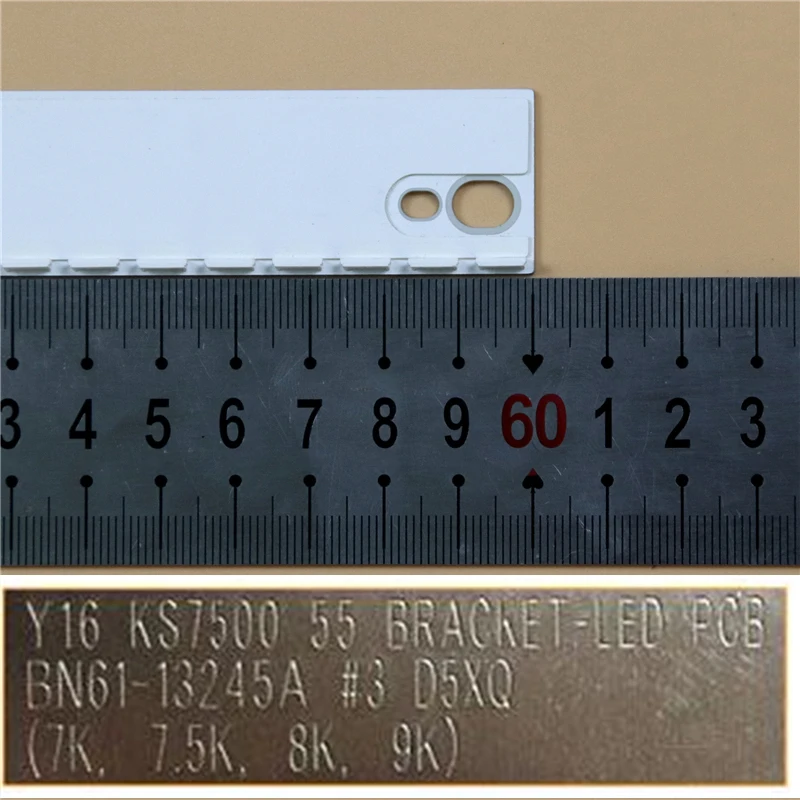

1.Consistent with the original, Brand New, no need to modify it, easy to install<br />2.Long operating life, typically lasting over 100,000 hours<br />3.Brightness is consistent with the original<br />4.Product length: <br />600 mm ( length) 66 LED Lamps<br />5.Aluminum material, thermally conductive double-sided tape on the back<br />6.Voltage: 0-94V, Single lamp bead is 3V, brightness up to 700 nits

Packaging Information

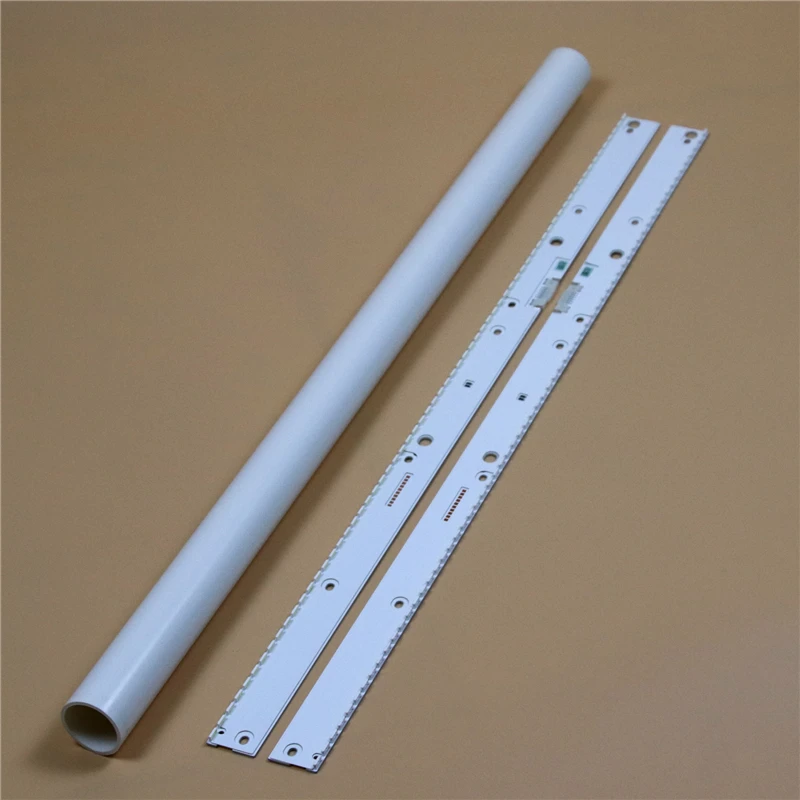

1. Package: PVC Plastic pipe (it will be safer during transportation)<br />2. Product contains: 2 piece backlight Strips , 2 piece / Set , 1 Set for 1 TV<br />3. Logistics information could be tracked

Precautions for buyers before buying

1.The connector, the length (spacing) and the LED quantity all in our description, please sure our LED Strip suitable for your TV befor buying. If not , contact us first, thanks!<br /><br />2.Because the product will be upgraded, there would may be a little difference between the picture and the goods that you received. But we promise the connector and function will the same as our description.<br /><br />3.Please contact us if you have any questions.<br /><br />4.the price is for the set, in order to avoid the color difference of the display after replacement (because the brightness of the old Backlight Lamp strip will be reduced), we recommend that you purchase a complete set.<br /><br />5.You could always contact us if you have any uncertainty or you want to get more offers.<br /><br />6. Warranty: 90-Days Warranty<br /><br />7.We recommend that lowering your TV's "brightness" or "backlight" setting by 20-25% before installation to reduce risk of repeat failure.

Precautions & FAQ:

Q1: What are the common symptoms of LED Backlight failure?<br /><br />A1: Symptoms can include but are not limited to: Sound but no picture, Faint image on the screen (can be seen with a torch) , Flashing / pulsating screen, Flashing standby light, Tripping, Dark / light patches on screen and/or Rings on screen. Other parts within the tv can cause similar faults but these are the common ones we see.<br /><br />It is advised to get your TV diagnosed properly by a trained professional before ordering any parts. Power supplies can also cause a no backlight fault!<br /><br />Q2: How do I test my LED Bars?<br /><br />A2: D.C. voltage can be used to test most LED strips on the test points. Alternatively, we stock a specially designed LED tester which requires no electronics experience to use<br /><br /><br />Q3: What should I do if my product is not suitable for my monitor / TV?<br /><br />A3: We could resend the correct product to you if it is caused by our mistakes. However, you need to pay attention to whether your model is the same as the model for this product. We recommend that you contact us if you are not sure if the product is suitable for your monitor. As long as the part has not been fitted, we accept returns. Return postage will be at the buyers cost<br /><br />Q4: Do you offer trade discount?<br /><br />A4: Yes, please contact us about trade benifits
