Description：

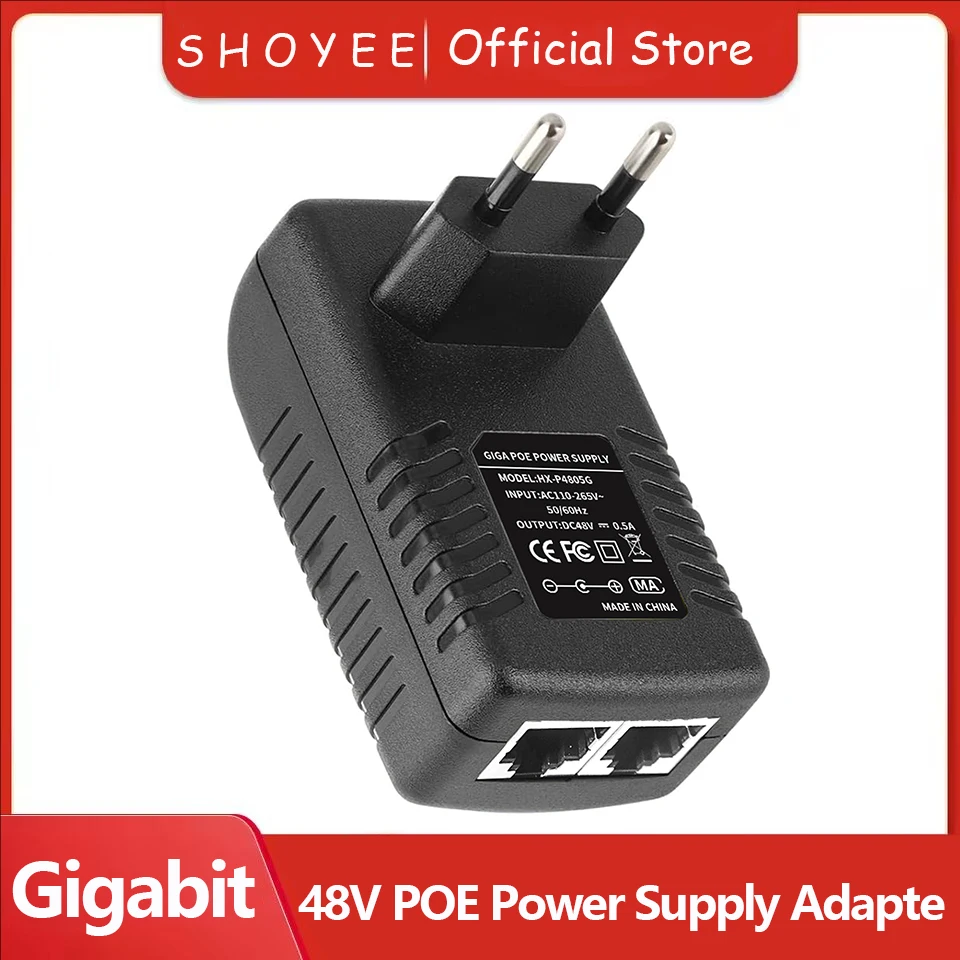

48v-0.5a wall plug poe injector Ethernet adapter IP camera power US / EU plug

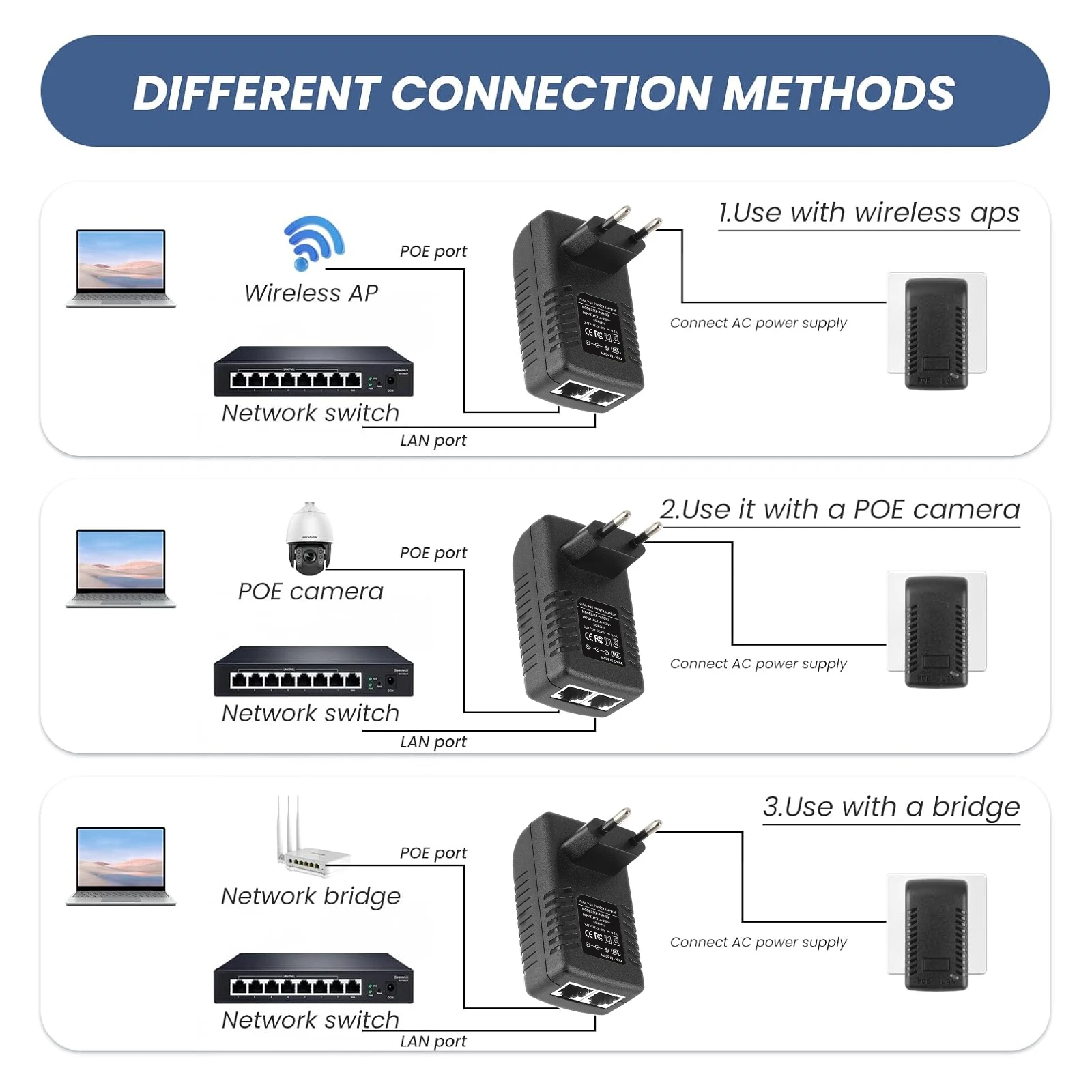

The ideal solution for applications in which an electrical outlet may not be available, the injector adapter can be used to power devices with poe support, such as POE IP cameras . Compact, Wall-mounted design makes it easy to install the adapter in areas where space is limited, and can be set in seconds without the need for configuration.
Applications:
1. Ip-phone
2. Wireless access point and client devices
3. Security Camera System
4. Router/Switchboard
5. POE NVR
6. Network AP
7. Terminals such as ap
Specifications:
Output: 48 V DC 500ma-please do not order if your device requires more than 500 mg
Input: 100-265V 50/60 Hz
Yield: 48V 0.5A
Input current: 0.5A/1A
Efficiency: 80% min
Line / load control: 3% / 5%
Rotational speed / noise: 200mv p-p
Rotation delay: 2 seconds max
Lifting time: 40 MS max
Protection: automatic recovery of over-voltage, short-circuit, more current
Operating temperature: -10 to + 40 ° c (14 to + 104 ° F)
Operating Humidity (RH): 5% -90%
Storage temperature: -20 to + 85 ° c (-4 to + 185 ° f)
Network connector type: RJ45 shielded
POE type: Passive PoE (pins 4.5 V +, pins 7.8 V-)
Provides remote power for equipment via cat 5 Ethernet cables up to 100 m
100 ~ 240V AC Voltage compatible Input.
Short circuit, overcurrent and voltage protection
Reliable 24 W Passive PoE output
Notice:
The package does not include RJ45 network cable.
The product is not waterproof, please pay attention to waterproofing.
Input voltage and range: AC100V---240V, please use it correctly within the safe range.
Pay attention to electrical safety.
Package included:
1 * DC 48V 0.5A POE power ( EU OR US plug 100Mbp OR 1000Mbp for Optional )
