DC5V WS2812 Addressable and Programmable LED Strip 5050 RGB WS2812B Smart Full Color LED Strips Light 30 60 74 96 144 LEDs/m Tap

DC5V WS2812 addressable and programmable LED strip 5050 RGB WS2812B smart Full color LED strips light 30 60 74 96 144LEDs/m tape

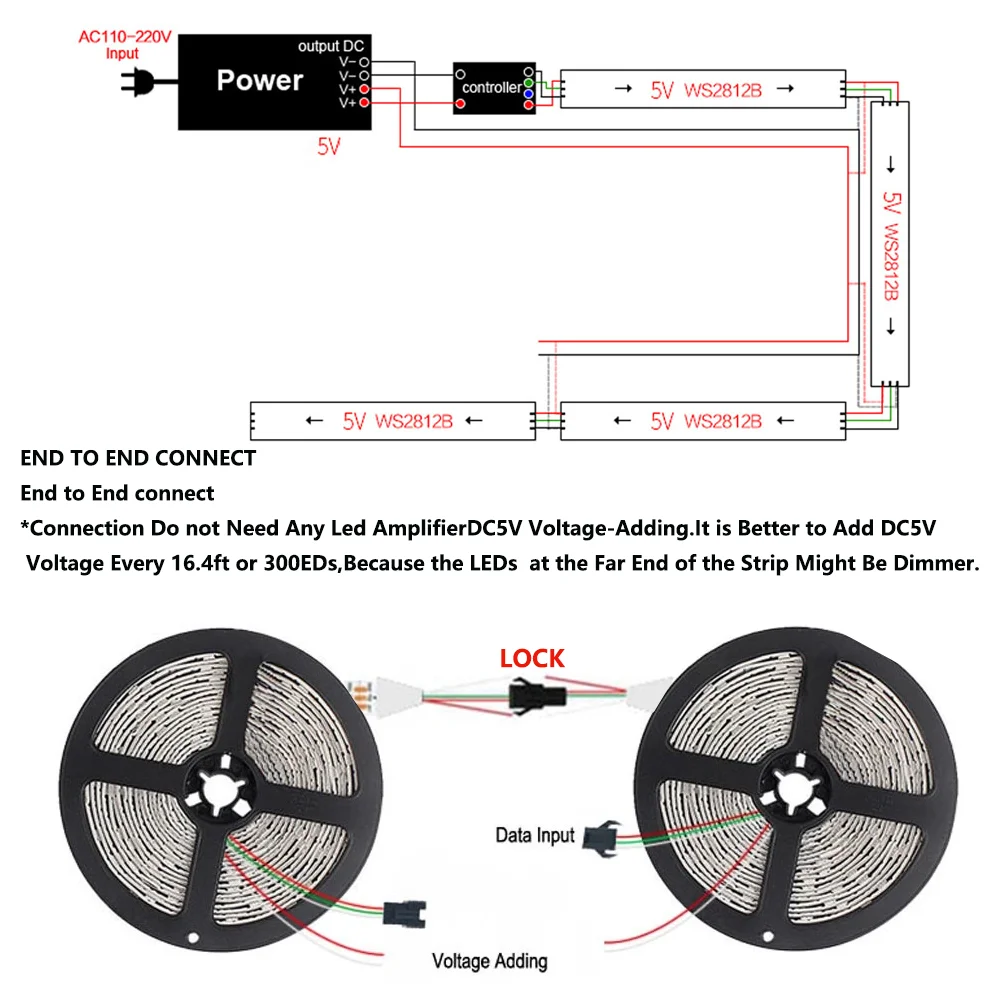

The WS2812 light strip must use a DC5V power supply. Exceeding DC5V will burn out the light strip.

This link DC5V power supply not included

WS2812 LED Strip :

Input Voltage: DC5V

Power: 30Leds/m----9Watt/meter

60Leds/m----18Watt/meter

74Leds/m----22Watt/meter

96Leds/m----36Watt/meter

144Leds/m----43.2Watt/meter

Note: The voltage is the standard voltage. The actual voltage depends on the specific situation

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip

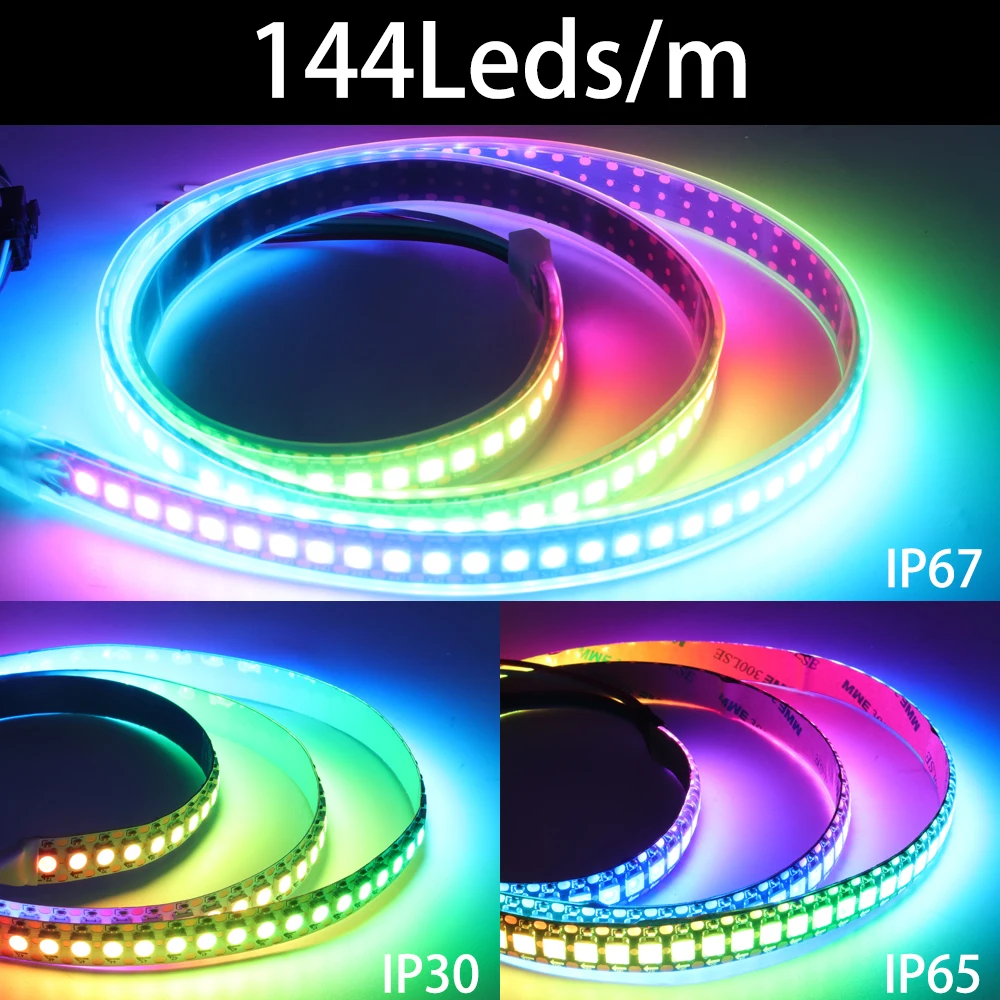

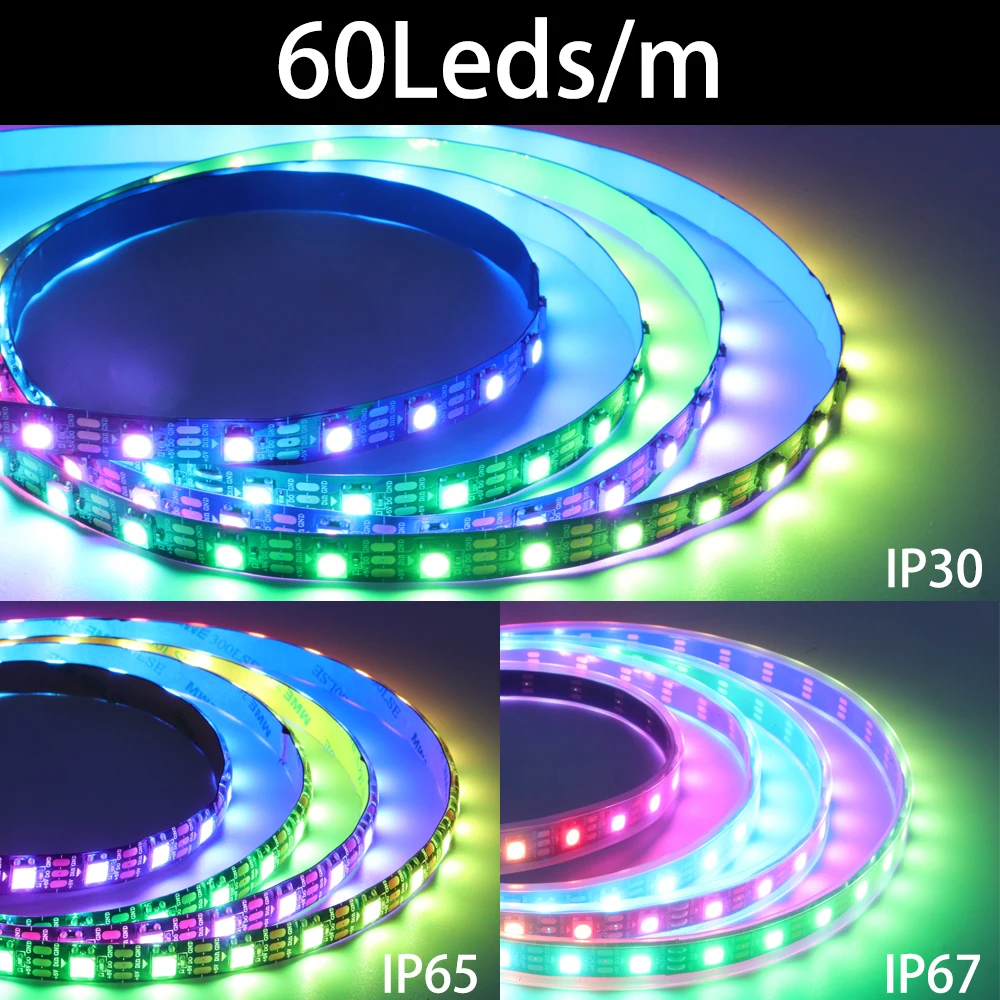

Pixels: 30/60/74/96/144LEDs/Meters

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Bits/Color: 8-Bits/Color

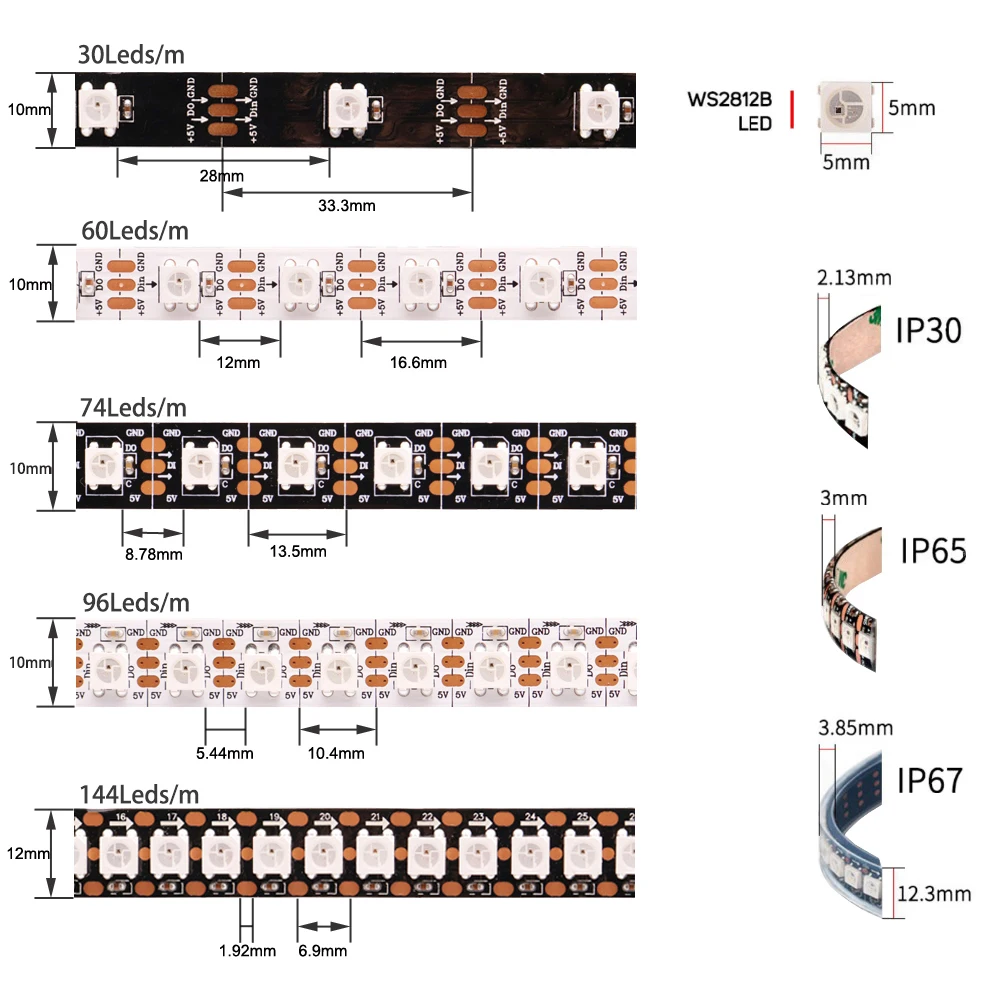

FPC Width:

30Leds/m----10mm

60Leds/m----10mm

74Leds/m----10mm

96Leds/m----10mm

144Leds/m----12mm

FPC color: Black PCB /White PCB

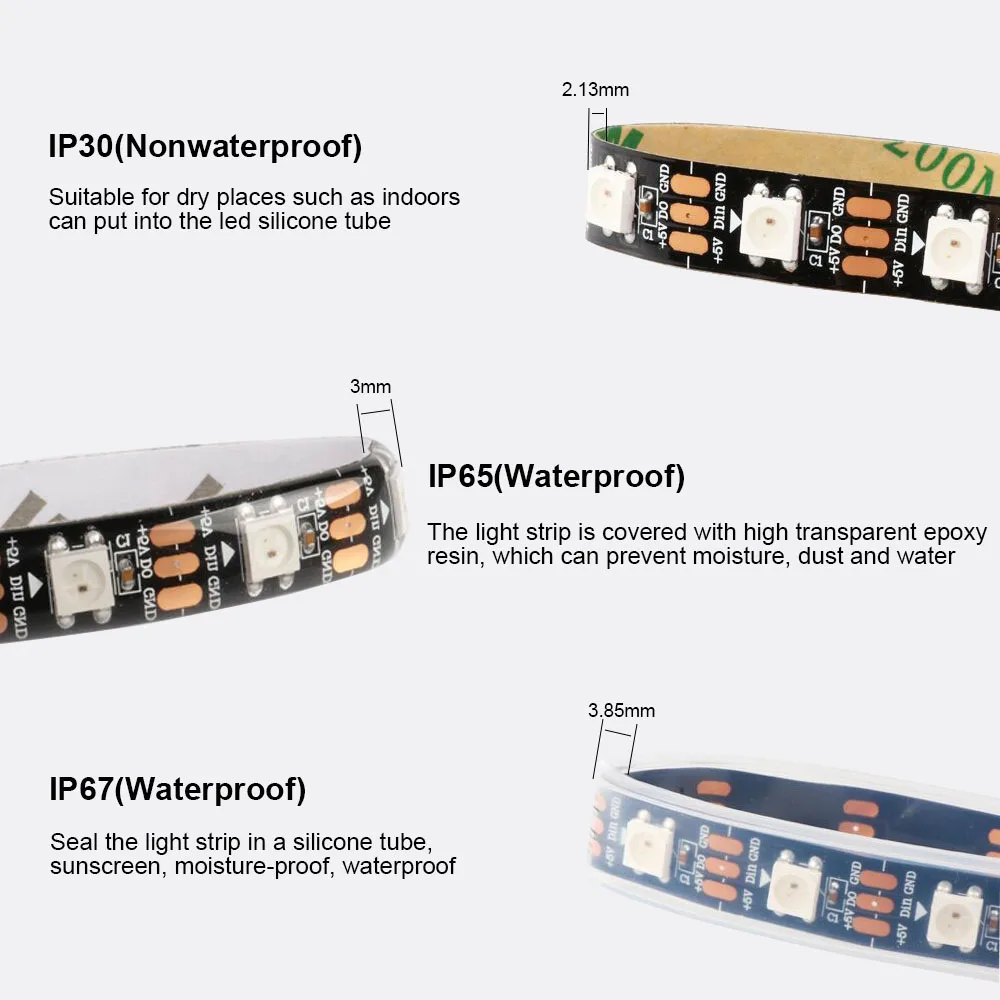

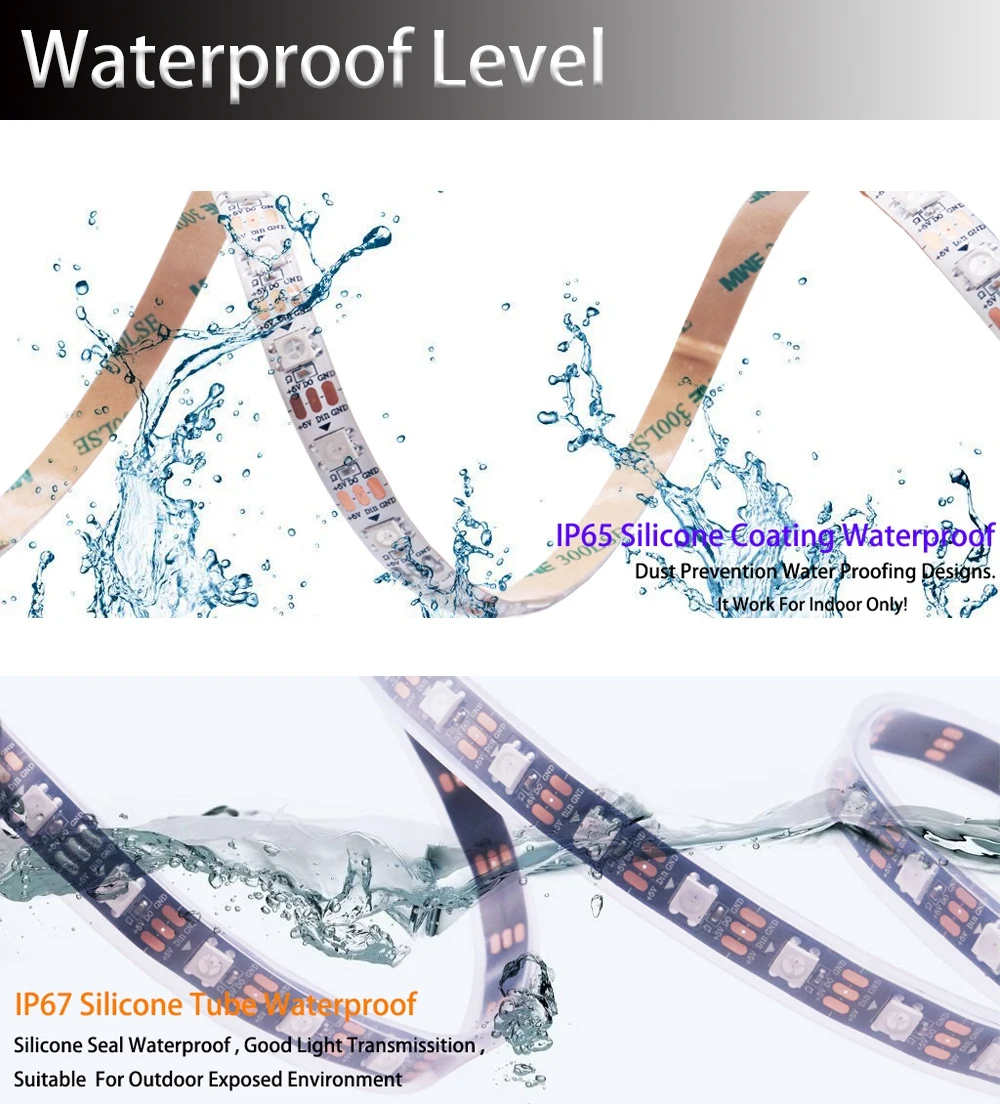

Protection Rate: IP30/ IP65 /IP67

Colors: Full Color RGB, Dream Color Changing

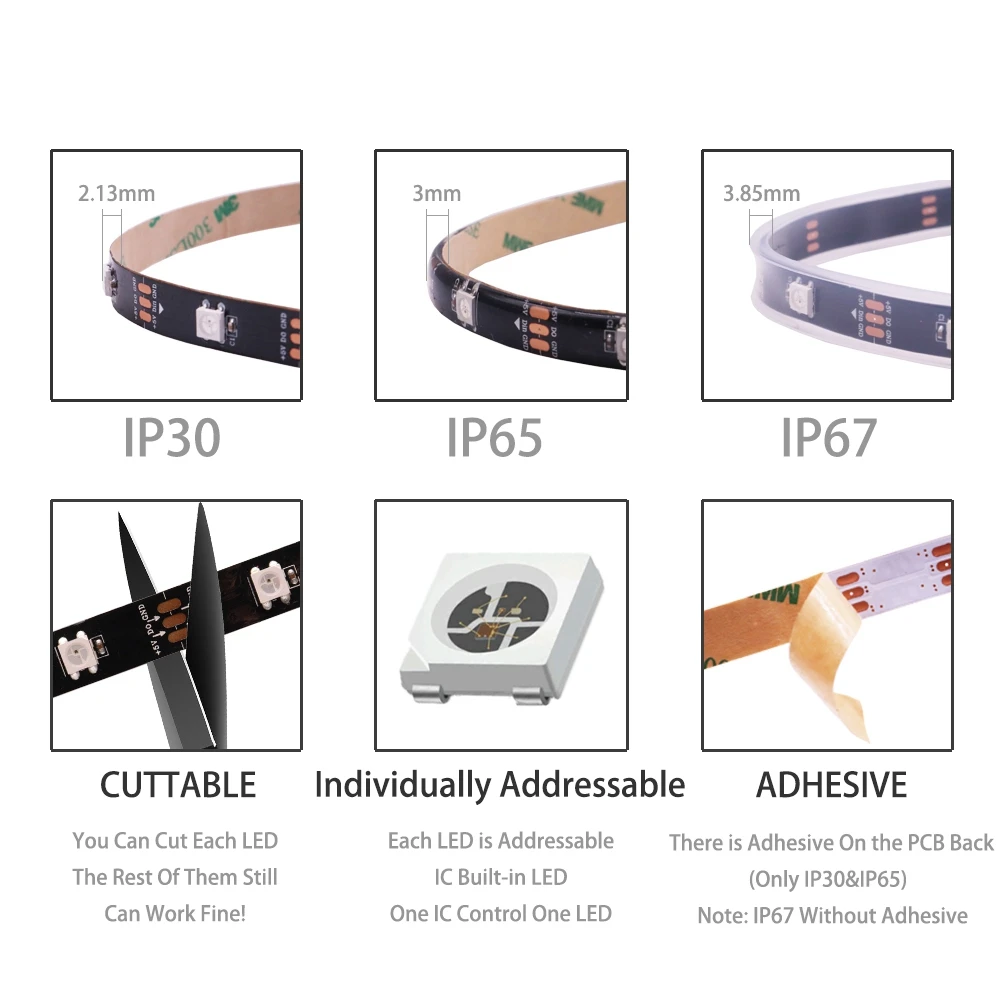

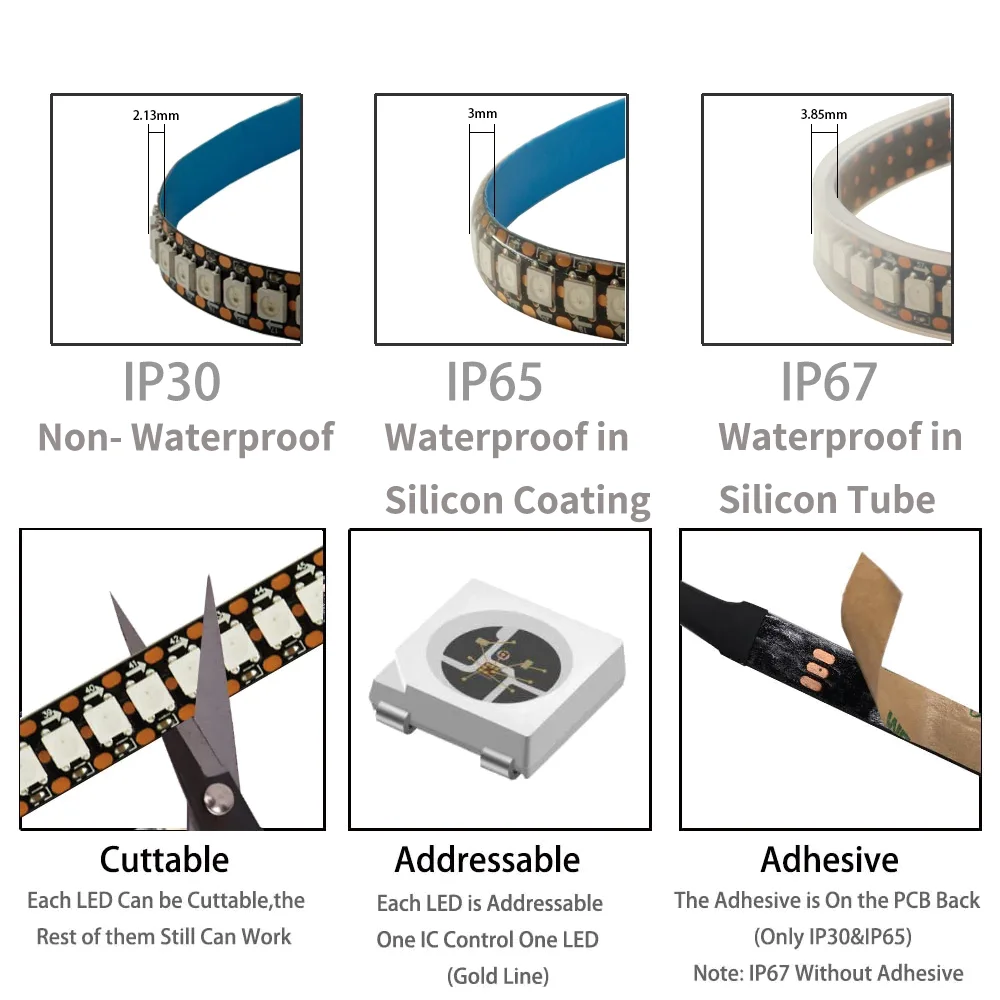

Cuttable: Every LED is Cuttable

Package: In Anti-Static Bag,IP30 IP65 With 3M Adhesive Tape On The Back(IP67 Without 3M Adhesive)
