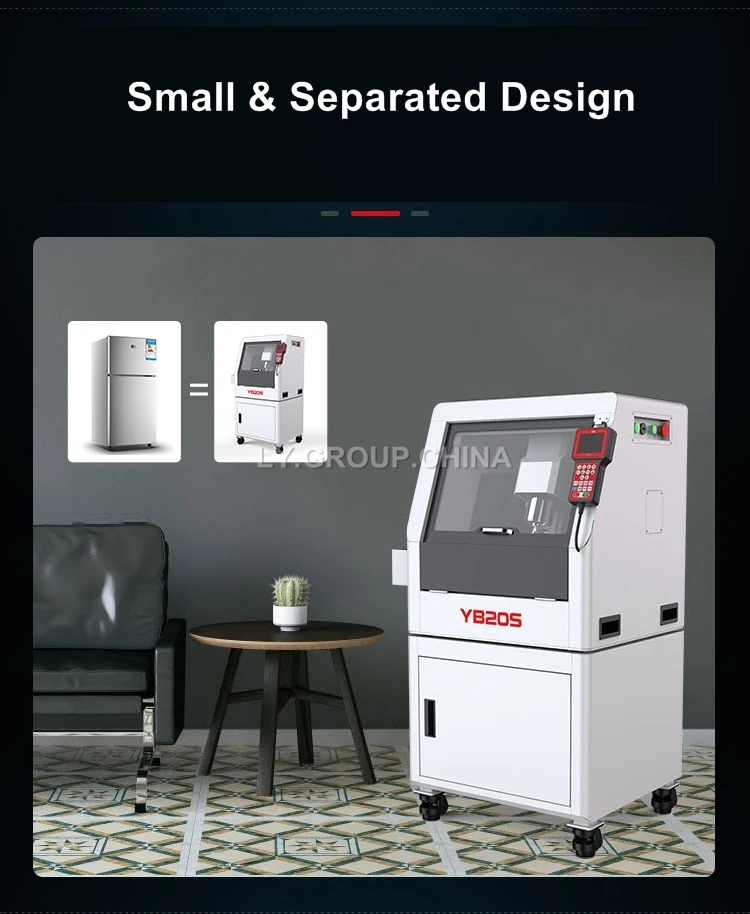

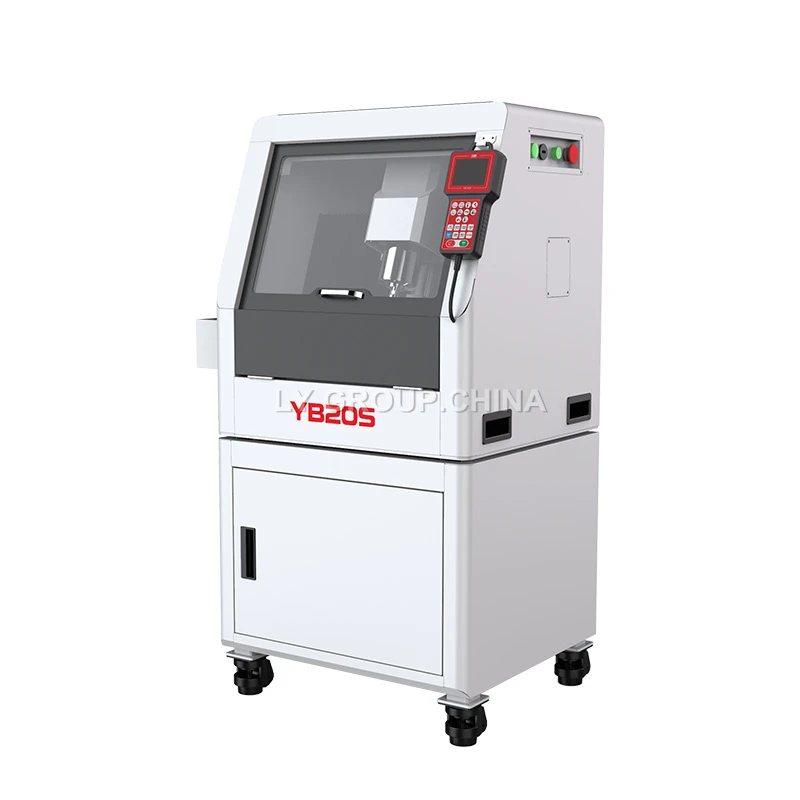

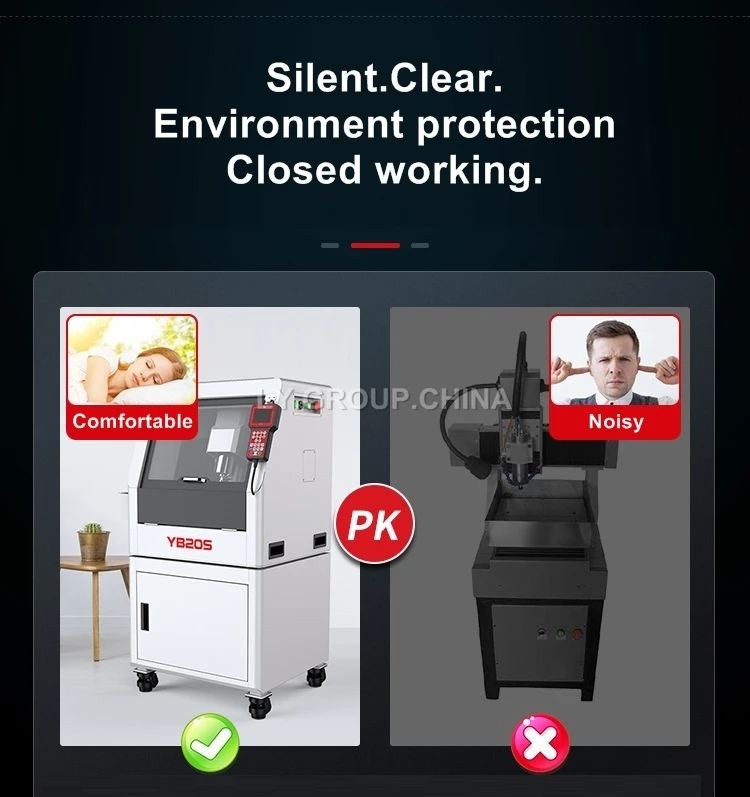

Desktop CNC Engraving Machine 3 Axis Linkage Jewelry Jade Stone Glass Gem Metal Wood Router Carving Machine YB20S

Parameter

Model

YB20S

X/Y/A Stroke

300Mm*200Mm*360°

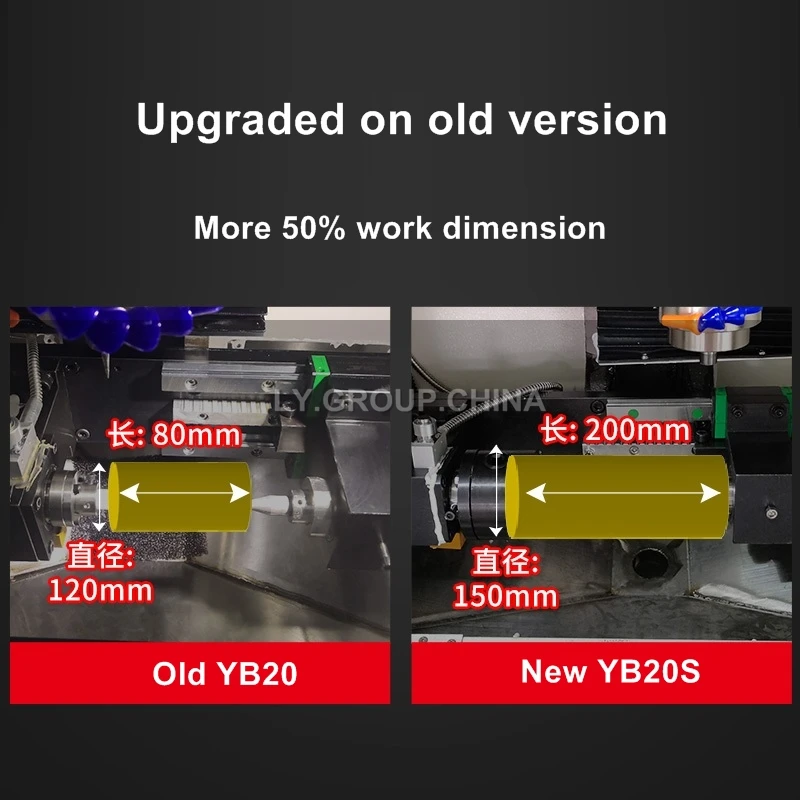

Dimension Of Stereo Processing
(3D)

Φ150*L200MM

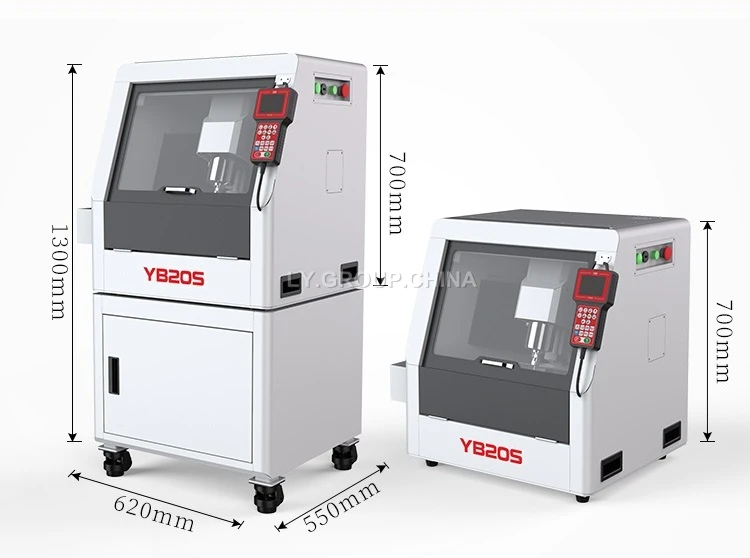

L*W*H

620*550*1200MM

Weight

About 180Kg

Material

Cast Iron/Steel

Engraving And Clamping Mode

Clamp & Glue stick

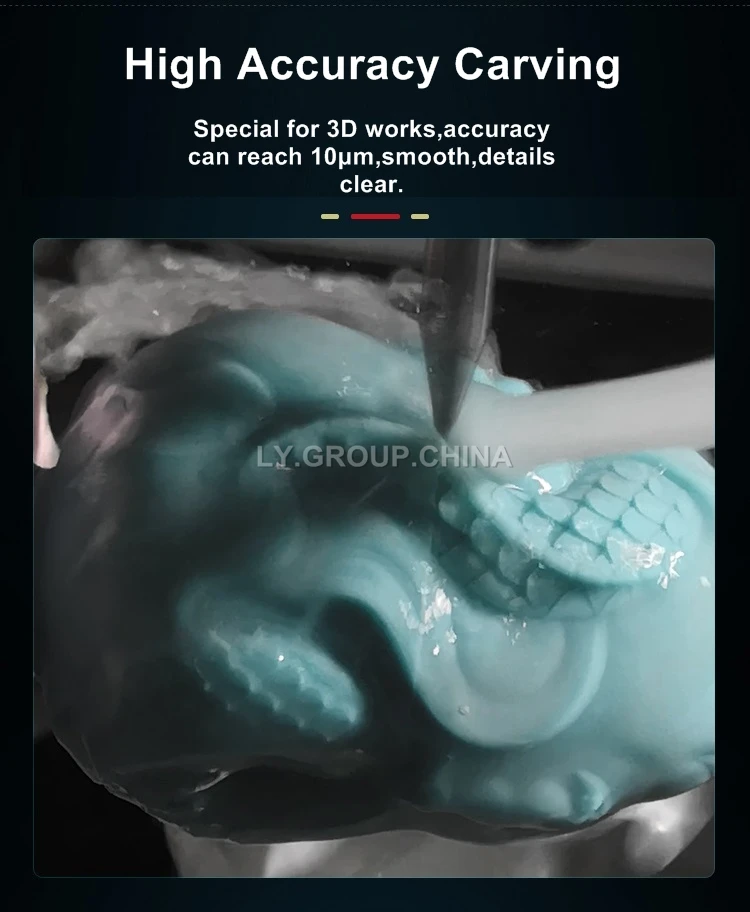

Accuracy

0.01Mm

Spindle Speed

0-24000Rpm/Min

Processing Speed

0-15000Mm/Min

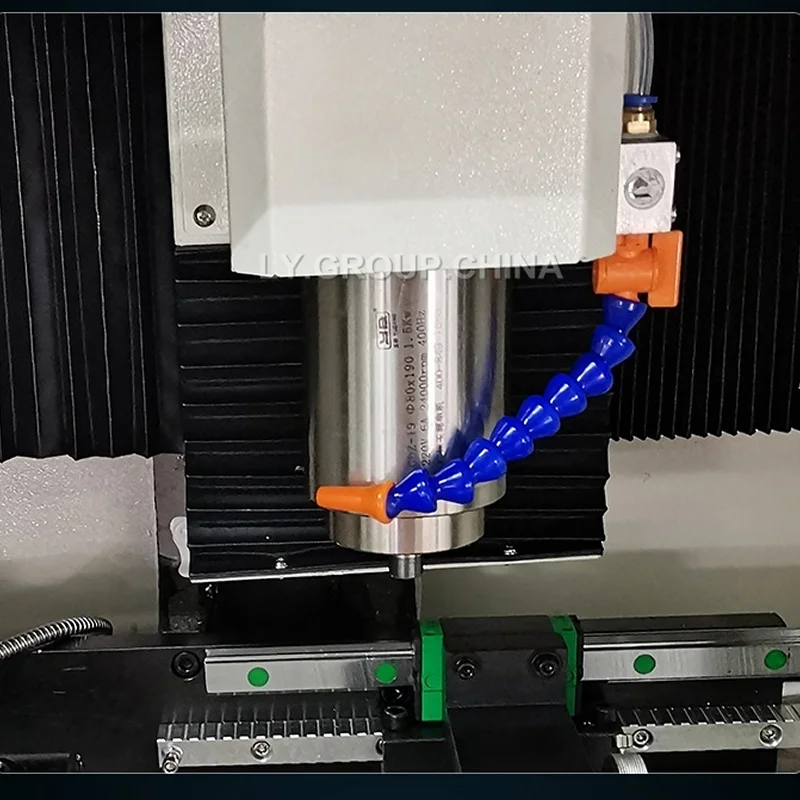

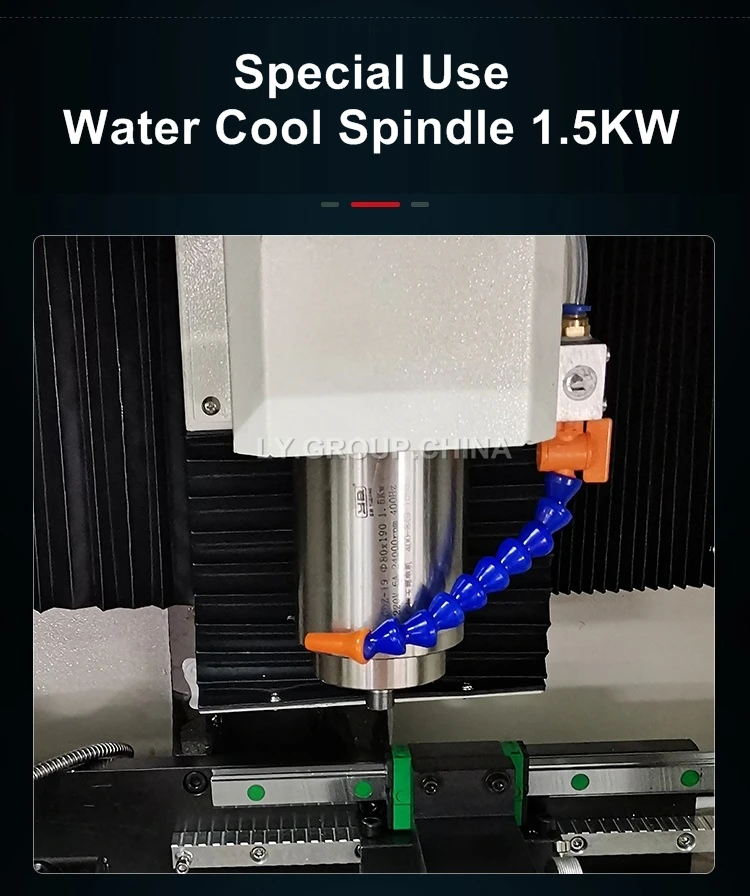

Spindle Power

1500W High speed Water-Cool
Frequency Spindle

Guide Rail

Imported Square Rail TaiWan

Screw Rod

Imported TaiWan

Drive Mode

Hybird Servo System

The Diameter Of Clamping Tool
Shank

2.5mm/3mm/4mm/6mm

Voltage

AC220V 50-60hz

Total Power

1.8KW

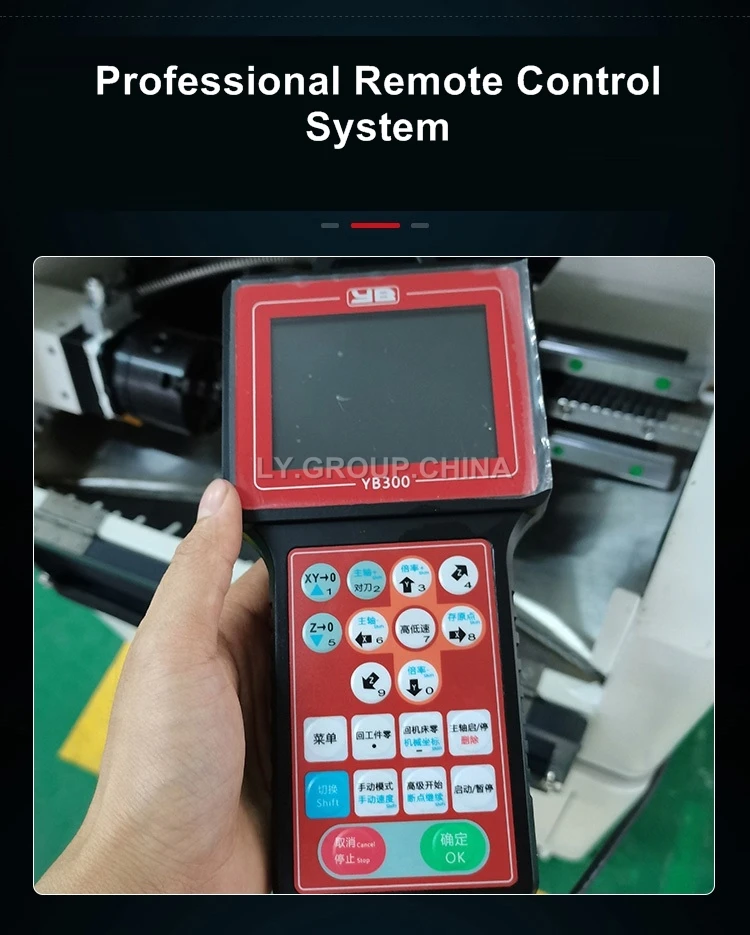

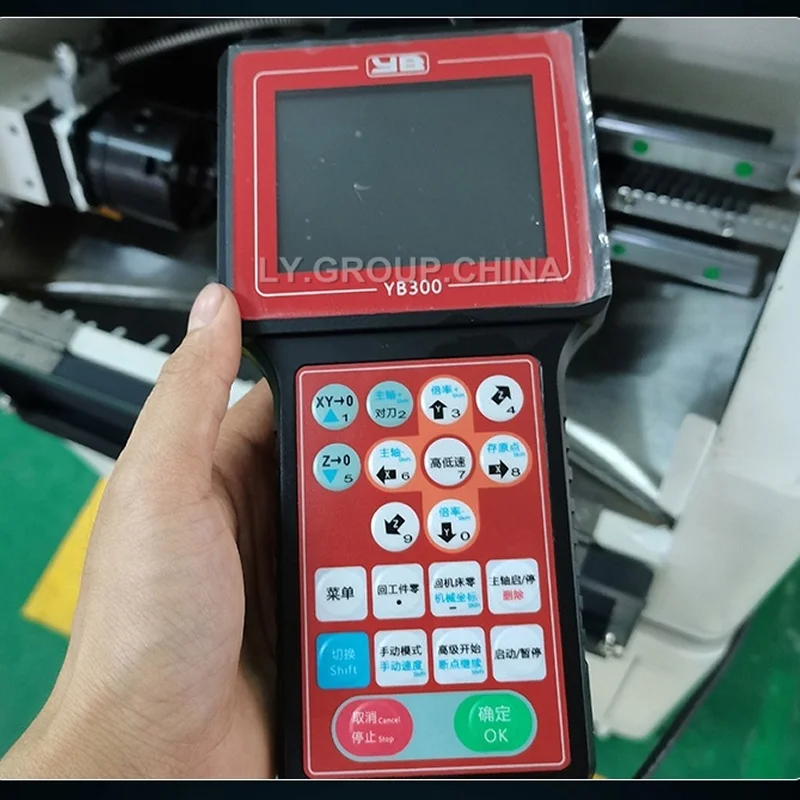

Control System

Off-Line Remote Control System
