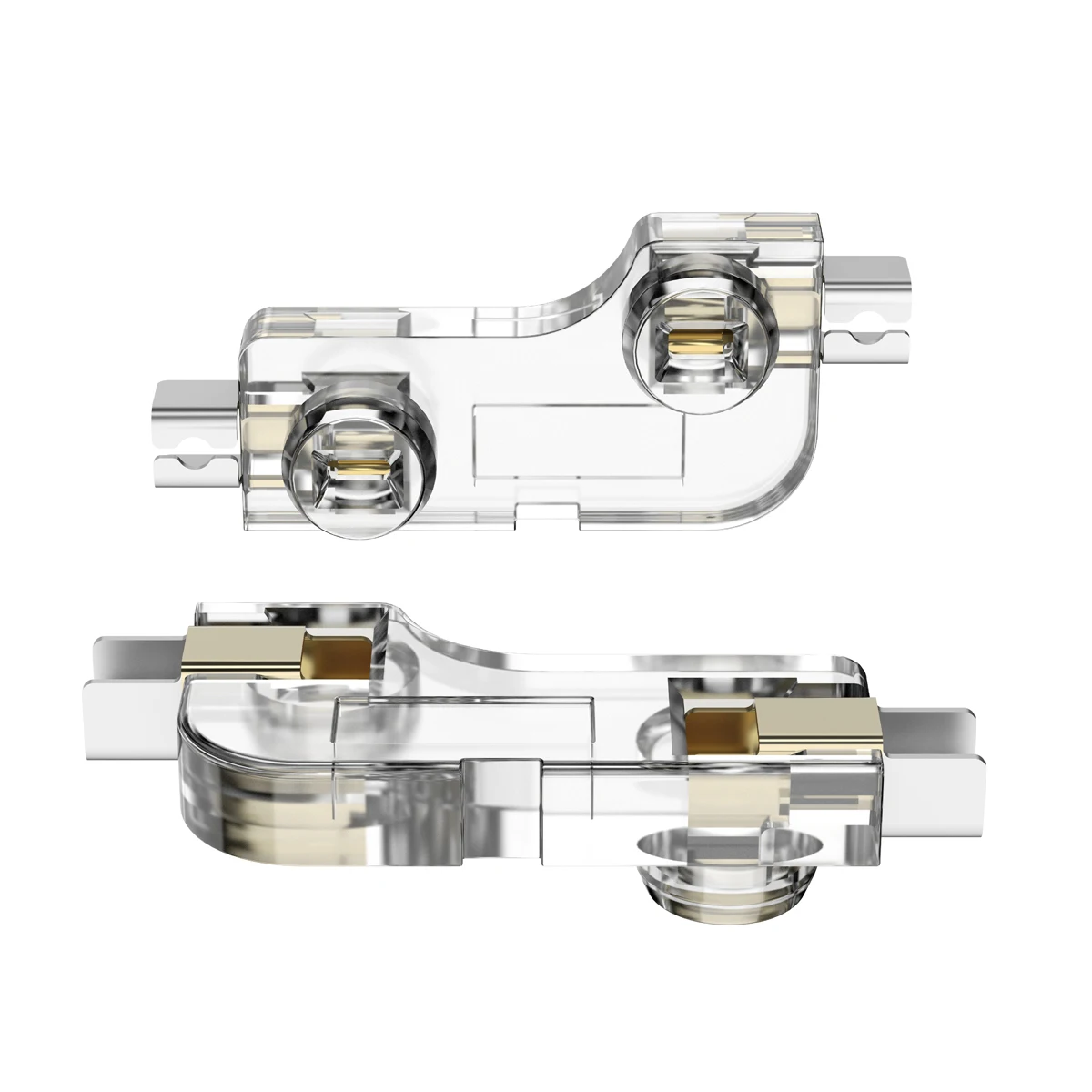

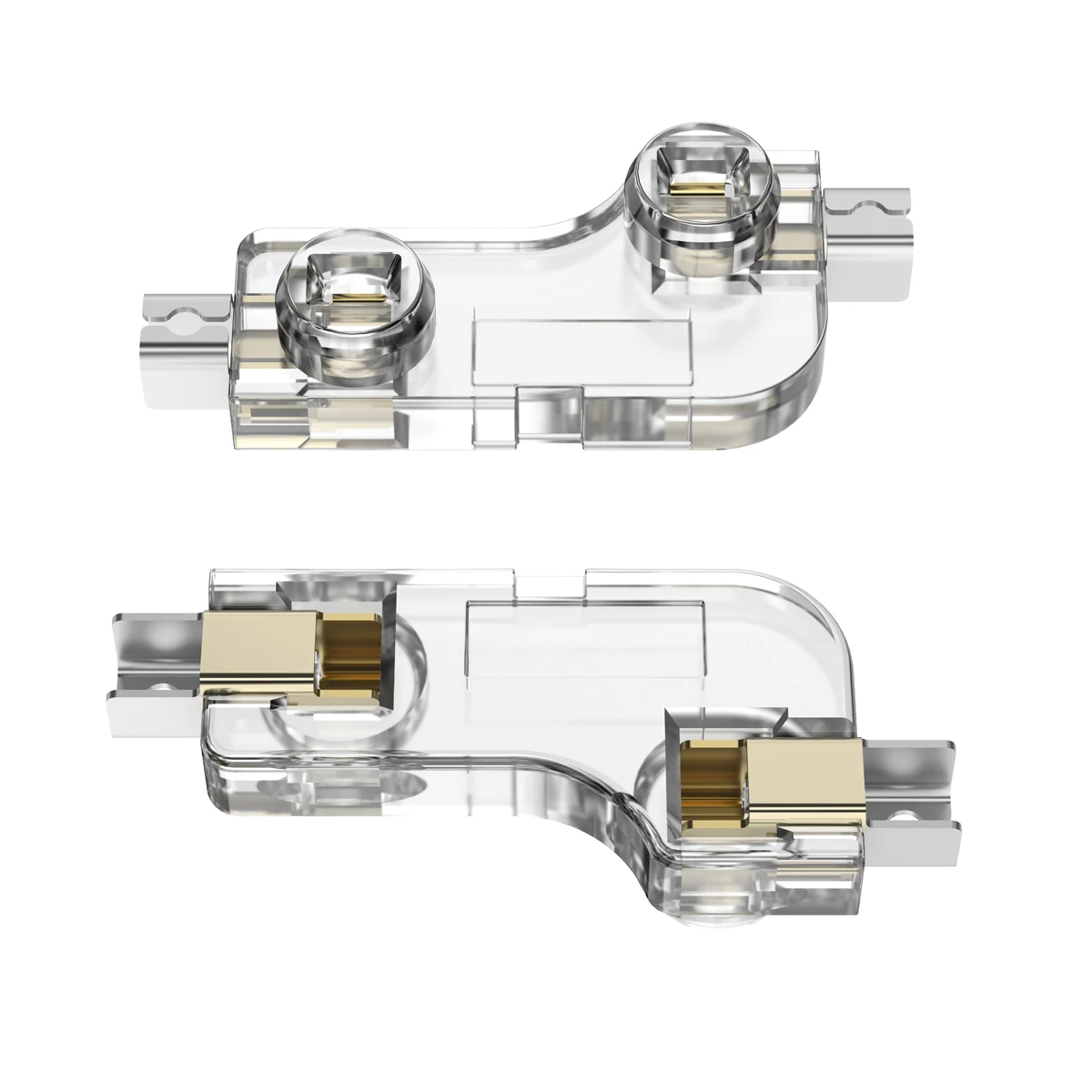

DUROCK Transparent MX Hotswap Sockets PCB Hot Swap Socket Mechanical Keyboard Switches Clear Hot-Swap PCB Sockets
NEW Transparent Color is with special materials.
Specifications
Rating voltage: 12V AC/DC (maximum) and 2V AC (minimum)
Rating current: 10mA AC/DC (maximum) and 10μA DC (minimum)
Contact resistance: 200mΩ (maximum)
Insulation resistance: 100mΩ (minimum) (100V DC)
Withstand Voltage: AC100V(50-60Hz)
Motion Force: 3.0kgf max
Operating Life: 100 Cycles (can replace switches 100 times)
Product Application:
Mechanical keyboards, Cash Registers Equipment and Man-Machine interface.
Technical Data

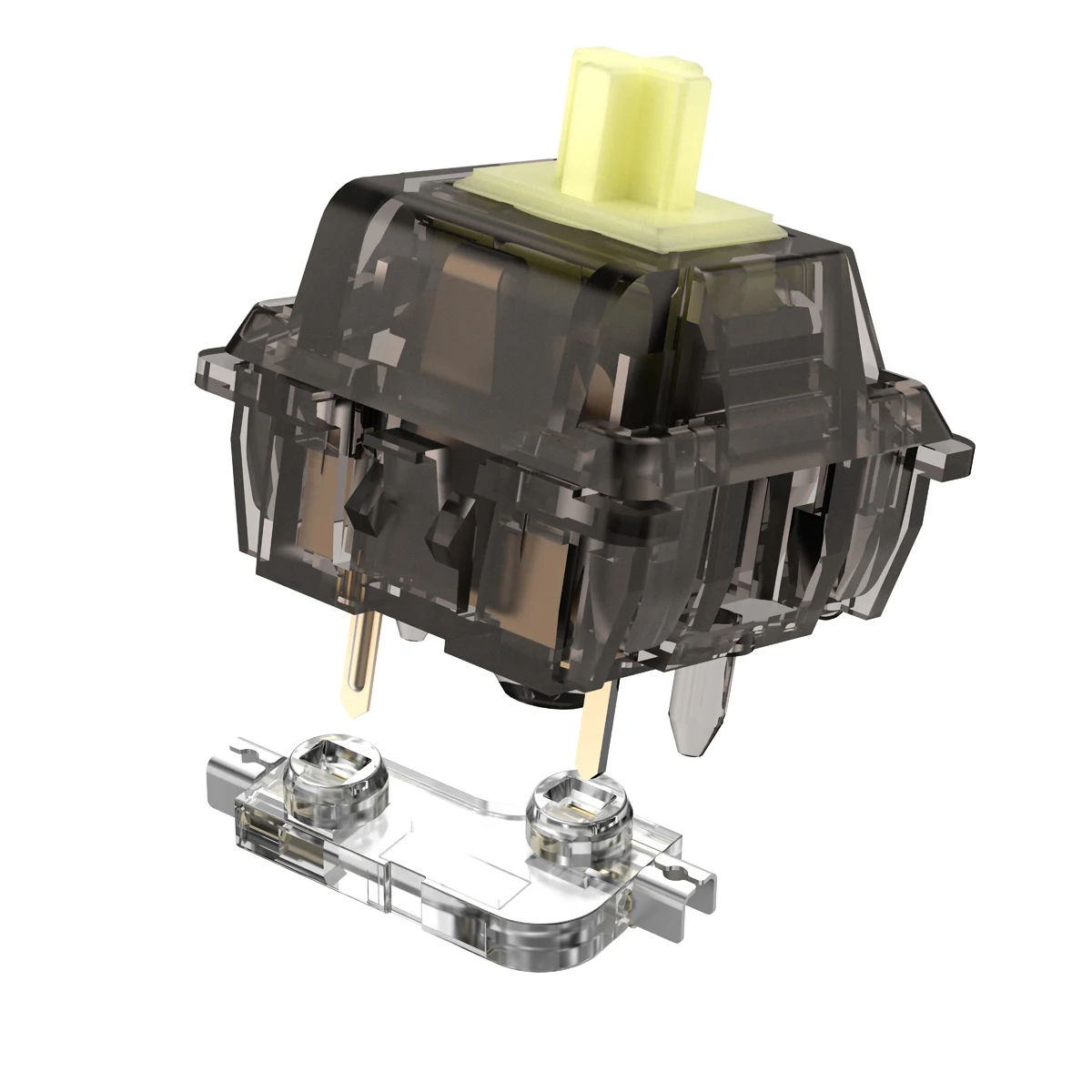

*Supports either MX or Choc switches.
*Rated for an operating life of 100 cycles, meaning you can expect reliable operation until you've swapped out your switches one hundred times.
*Rated for a voltage of 12V and a current of 10mA, making them suitable for use in keyboards.
Remarks
DUROCK sockets can only be used when the PCB itself was designed for it. For example, these sockets are not compatible with kits like the Kyria, along with most other keyboard kits.
8 Colors for Option
1. DUROCK Black Sockets
2. DUROCK White Sockets
3. DUROCK Orange Sockets
4. DUROCK Yellow Sockets
5. DUROCK Green Sockets
6.DUROCK Purple Sockets
7. DUROCK Blue Sockets
8. DUROCK Rose Red Sockets
