Special Note:
The maximum transmission of 100 megabit state is 200 meters, and the maximum transmission of 10 megabit state is 700 meters. LAN is a short distance interface, connected to the local switch or camera SLAN is a long distance transmission port, corresponding to the SLAN of the remote device (you can also choose the 300M port to transmit 300 meters with 2 cores).
Applicable for:
1.Analog video surveillance upgrade network camera.
2.Network extension, network camera video long-distance transmission extension.
3.Elevator monitoring transmission and so on.
Feature:
1.Support 720P, 960P,1080P HD IP network cameras.

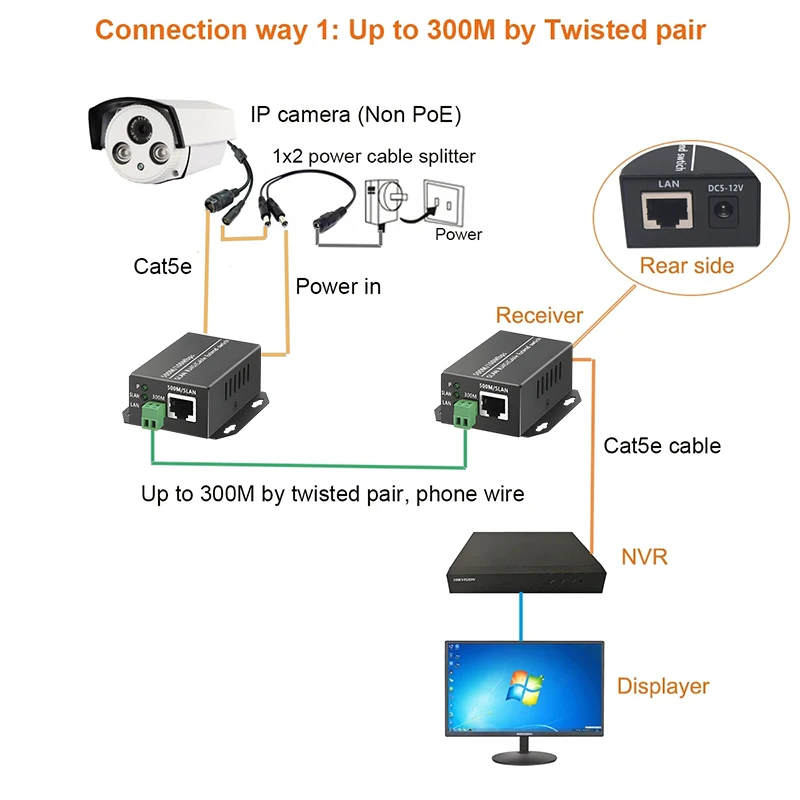

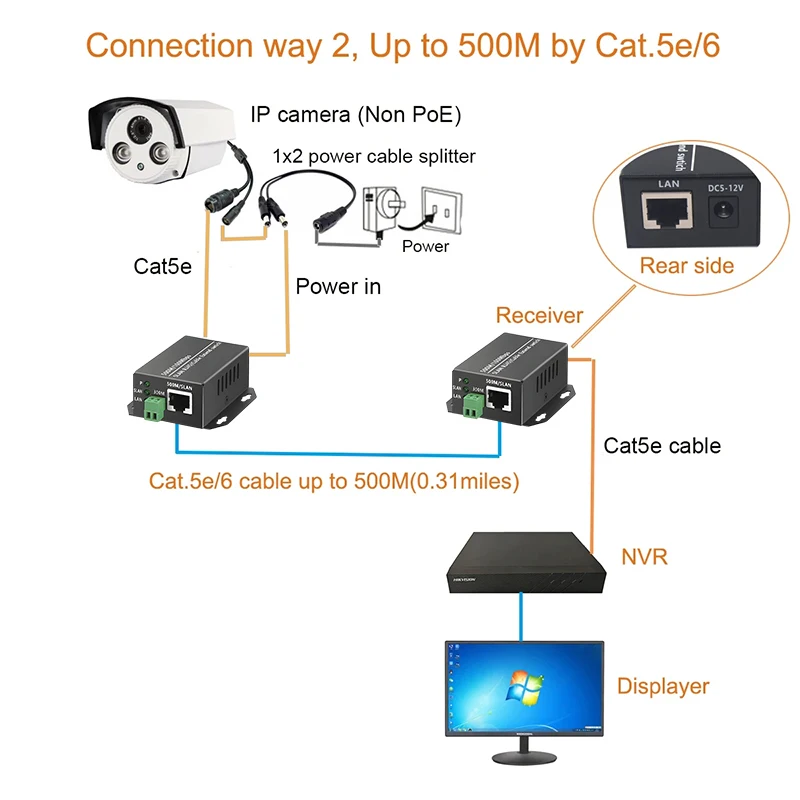

2.Transmission distance: up to 500meters through a cat5e/6 network cable. and up to 300meters through one twisted pair (2 wires).
3.Support plug and play, and no setting of network terminating equipment, including web camera, needs to be changed.

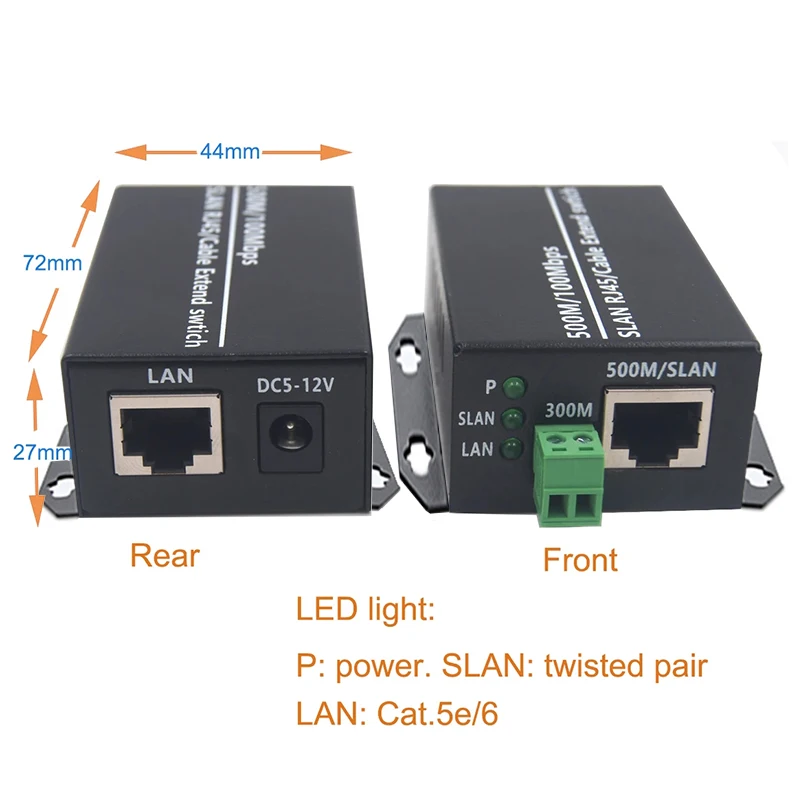

4. Compact design, Durable Metal. Bilateral heat dissipation. LED lights for monitor easily.
5. Cost effective, It is simple to construct at a low cost, for full use can be made of the original coaxial cable, power line or telephone line for cabling; moreover, network installation cost can be reduced since communication media, such as Ethernet, needn’t be-laid.
Specification:
1.Transmission rate: 0-100Mbps max.
2.Suitable Cable Type: Coaxial cable, twisted pair and telephone wires.
3.Power Supply: DC5V-12V.
4.Operating Temperature: Minus 20 degrees Celsius to 40 degrees Celsius above zero.
5.Relative Humidity: 5%-95% Non-condensing.
6.Product Size: 72x44x27mm (LxWxH).
7.Weight: about 0.5KG/pair without power adapter.
Note:
1. Buyer can choose without power adapters when make order. As the units can be supplied power like TX side: share camera side’s power by using a 1x2 power cable splitter. RX side: using rack centralized power supply or use buyer’s own power adapter with 5V-12V. buyer also can choose with power adapters we provided. It equipped with two pieces,
2. This unit doesn't support PoE device, can’t support IP camera with PoE.
Package content:
2x IP Ethernet over Twisted pair Extenders
1x User manual
Power supply adapter is optional.
