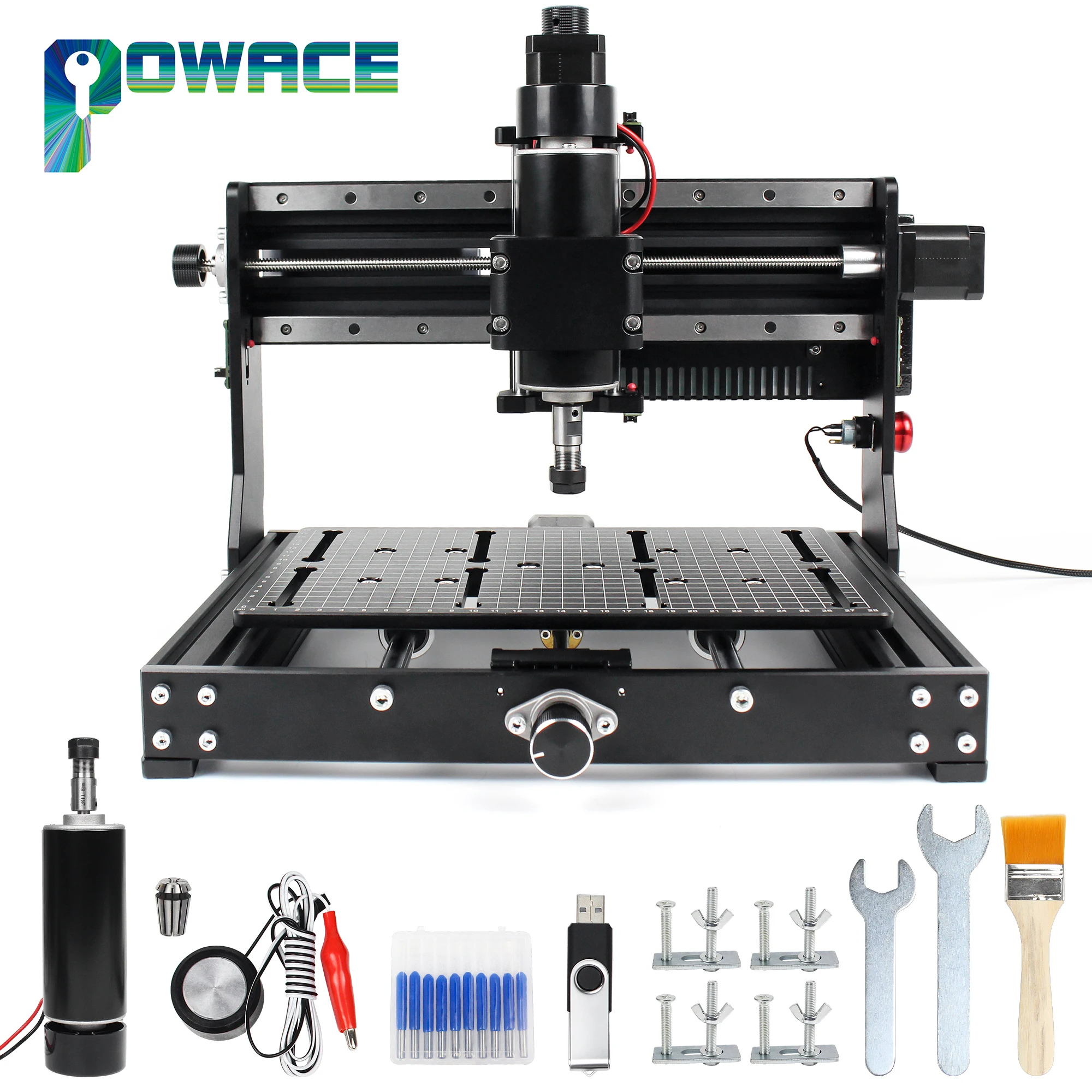

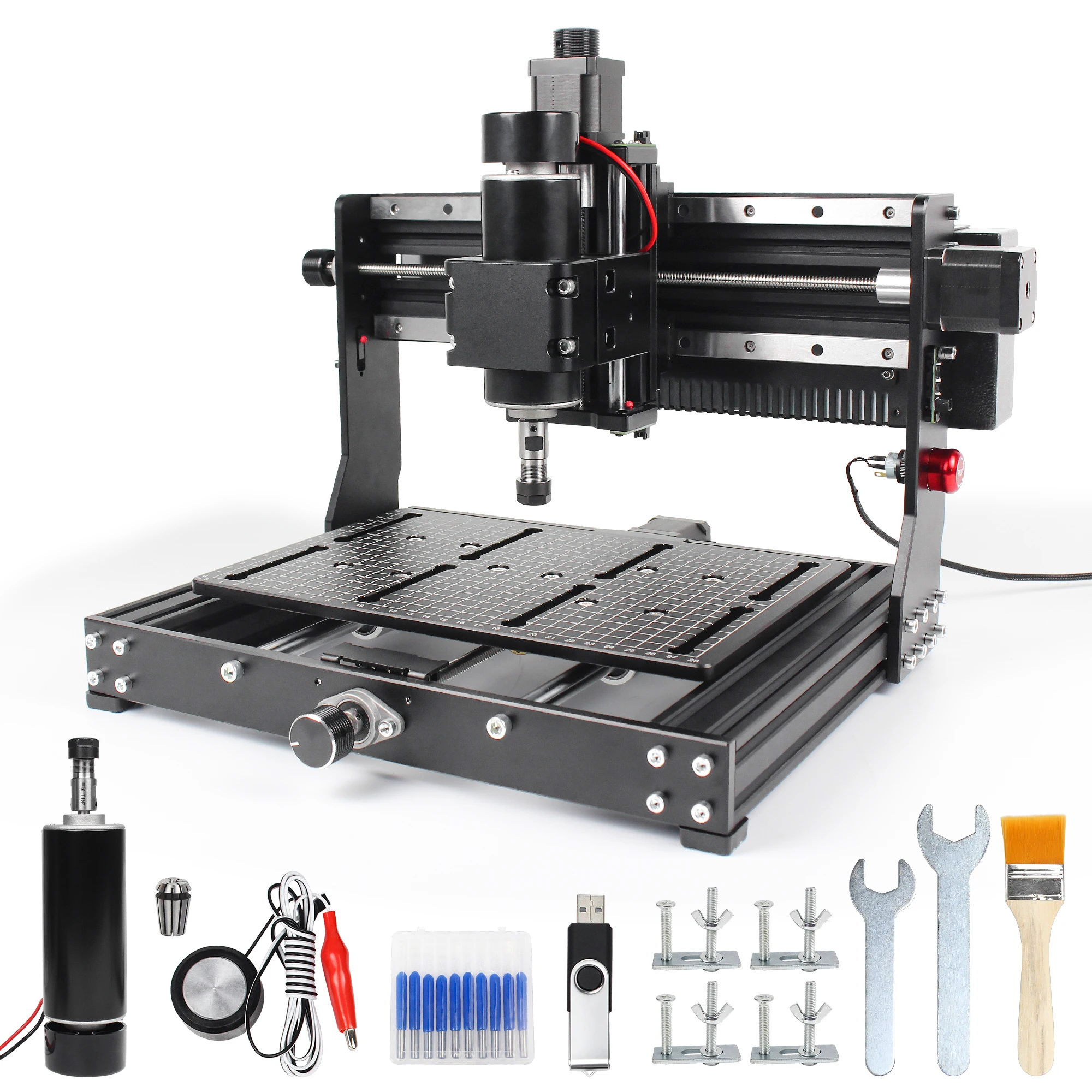

1pcs CNC3020 plus with 500W spindle

4pcs clips

10pcs cutters

1pc ER11 collet

2pcs wrenchs

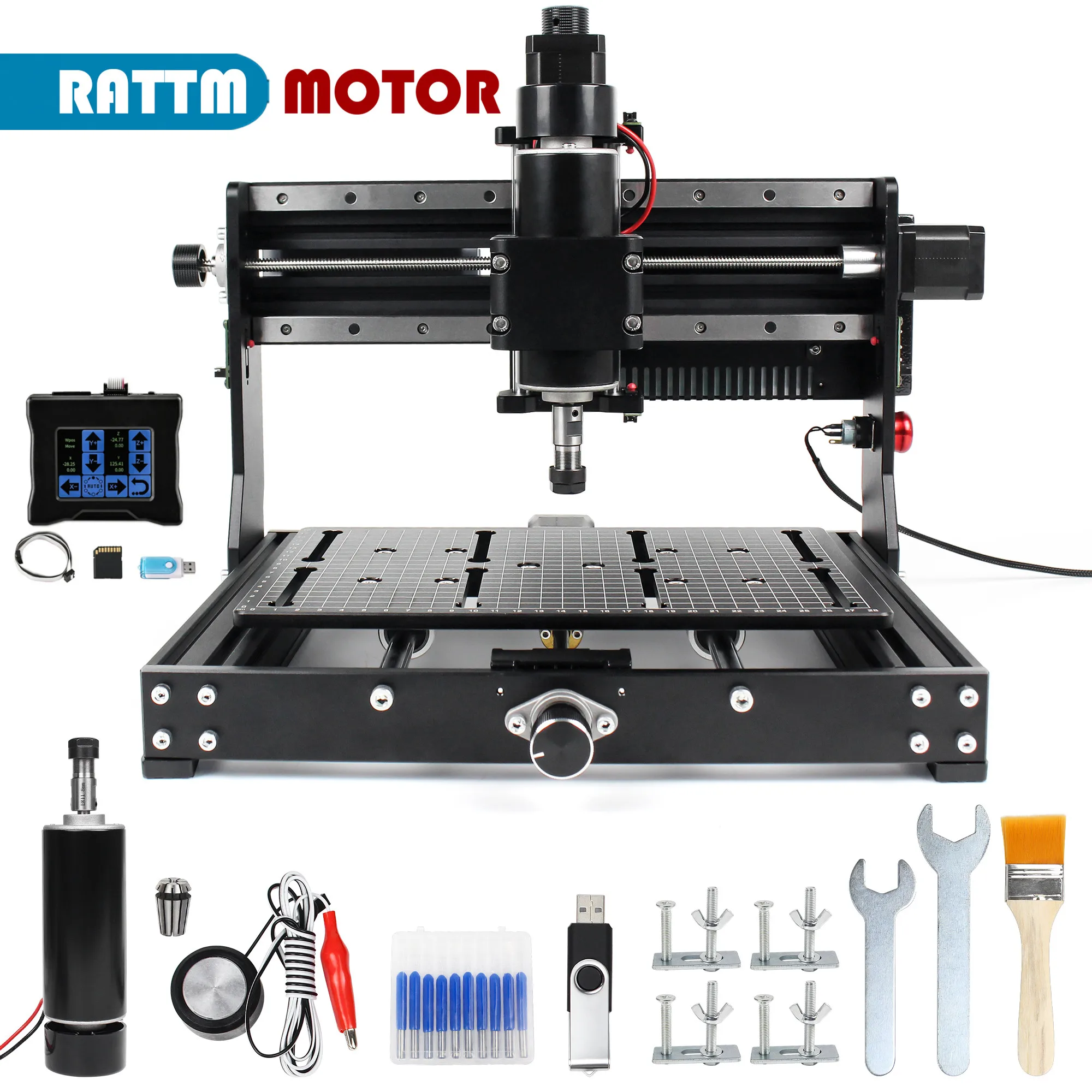

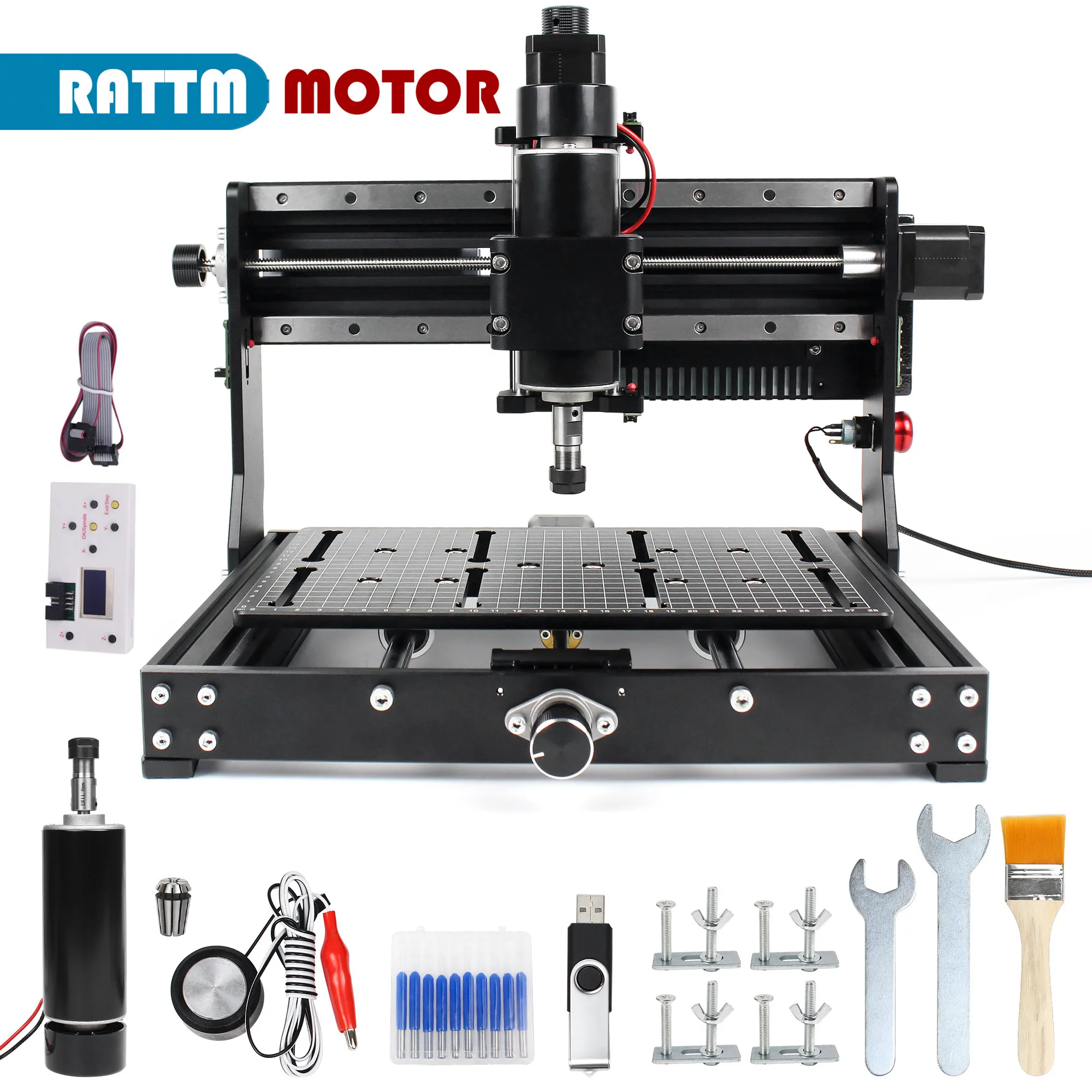

1pcs Offline Controller (option )

1pcs Laser (option )

Pls note:

1) with off-line controller / 5.5W / 10W / 15W laser head, this is based on ur choose.

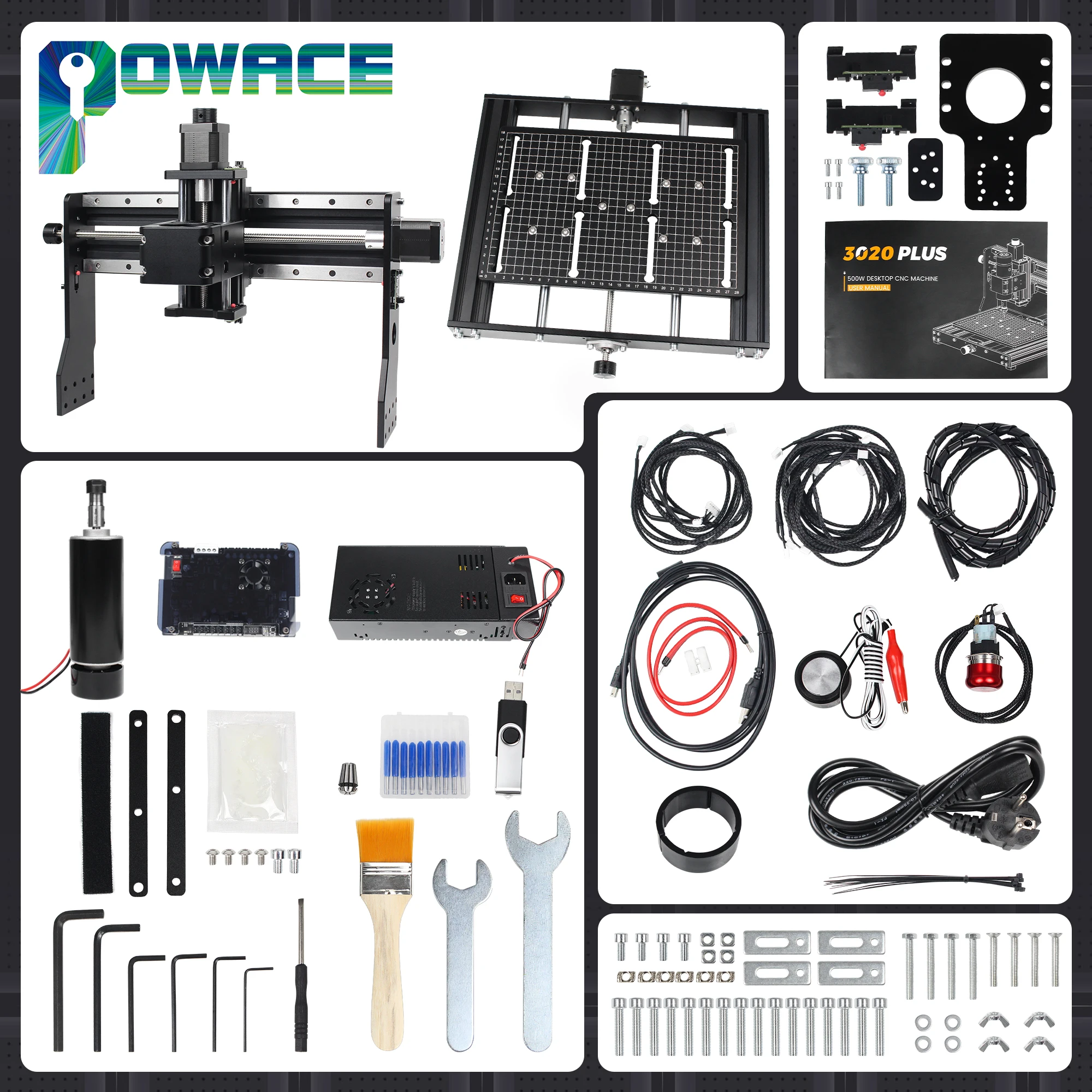

2) In addition, the product is not assembled, the buyer needs to assemble according to the instructions. Thank you for your understanding.

Product description:

Feature：

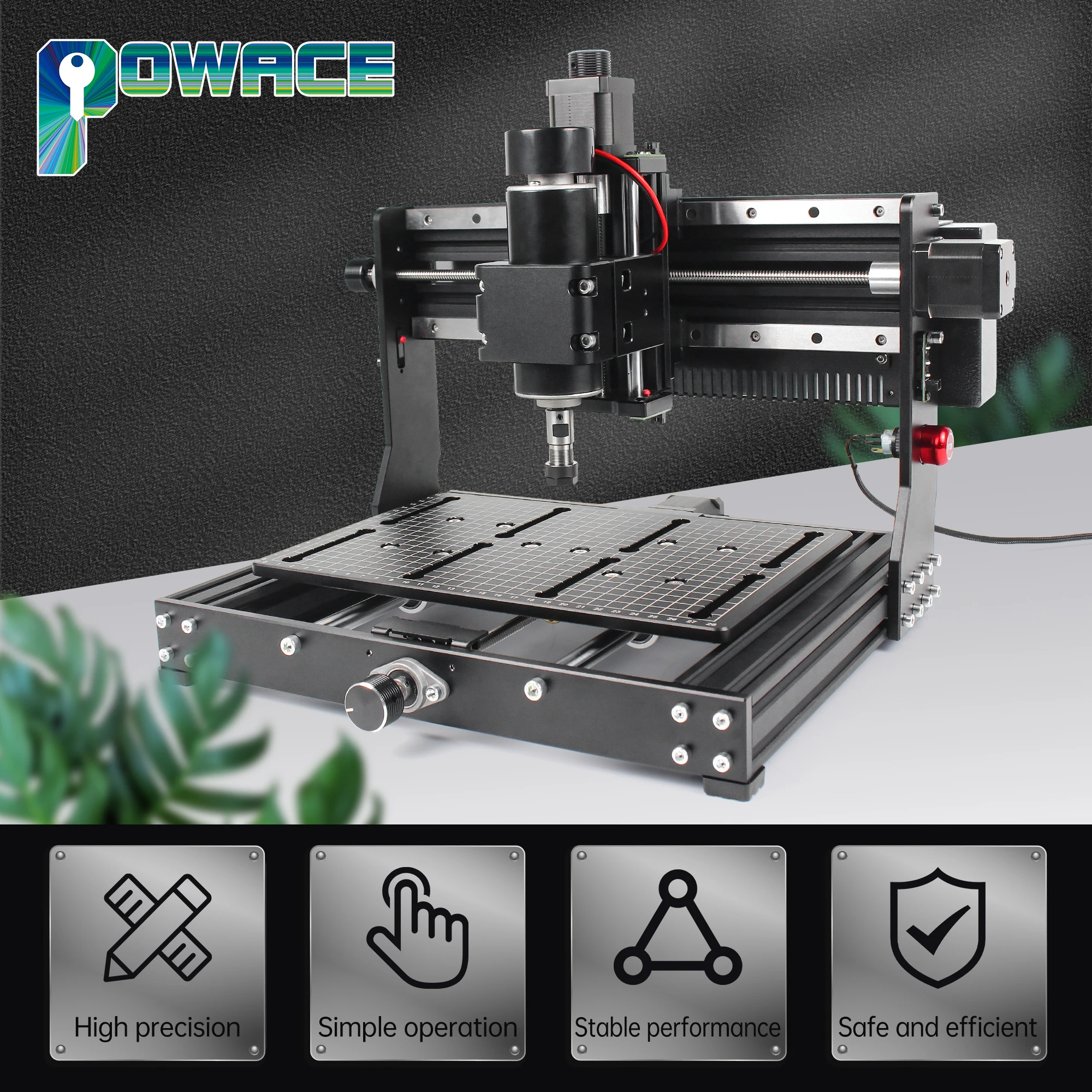

[High-power spindle and all-metal body]: This
3020 PLUS CNC body has a solid structure, built-in all-metal body
structure, and upgraded 500W 52mm spindle and E11 collet, which is more
powerful and efficient, and can cut stainless steel, aluminum and other
metals

[High precision and stability]:
It does not contain any plastic parts. The CNC router is equipped with
solid double-steel linear guide rail with a thickness of 12mm and
bearing slide rail. The all-metal X-Z axis part has a vertical stroke of
up to 70mm, and the stepping motor is more powerful. All these are to
ensure that the movement of the 3-axis is faster and more stable, thus
improving the carving accuracy

[Larger work area]: The
work area of the 3020-PLUS router is larger than that of the 3018-PRO,
increasing to 300 x 200 x 70mm). Our worktable has a special appearance,
with accurate scale lines and flat worktable, which is convenient for
you to locate and measure the size of the carving material. High-quality
emergency stop and 6 limit switches provide all-round protection and
safer use

[Wide compatibility, easy assembly]:CNC engraving machine is compatible with GRBL software and supports
Windows XP/7/8/10, Linux and Mac OS (more complex than Windows
operation). The device has been pre-assembled and can be simply
assembled after unpacking
.

Parameter:

Engraving area: 300x200x70mm;

Construction: Aluminum ;

Control Software: GRBL Control; Laser grbl

Spindle Motor:500w SpindleDC48V, Max.11000rpm;

Stepper Motor: 42 step motor 1.68A 0.55N.M

Power Supply: Output DC48V 10.4A;

Available System for PC: Windows XP/7/8/10(Not support Mac OS);

Milling cutter: 3.175mm

Can engrave: wood, MDF, leather, paper, acrylic, plywood, stainless steel, anodized aluminum and so on.

Package Includes:

1*3020 plus machine 500W

1pcs Emergency Stop

2pcs limit switches Board

1 x 10PCS Cutter

1 x U disk

1 x Product Manual [English Version]

GRBL controller Function:

1. Manually control: manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle, manully open or close cooling fan

2. File engraving: after off-line controller save file, it can connect the GRBL control board and process engraving, no need to connect PC computer

3. Save file: after the off-line controller connect PC, it will be recognized as USB, large capacity storage device, can access engraving file directly.

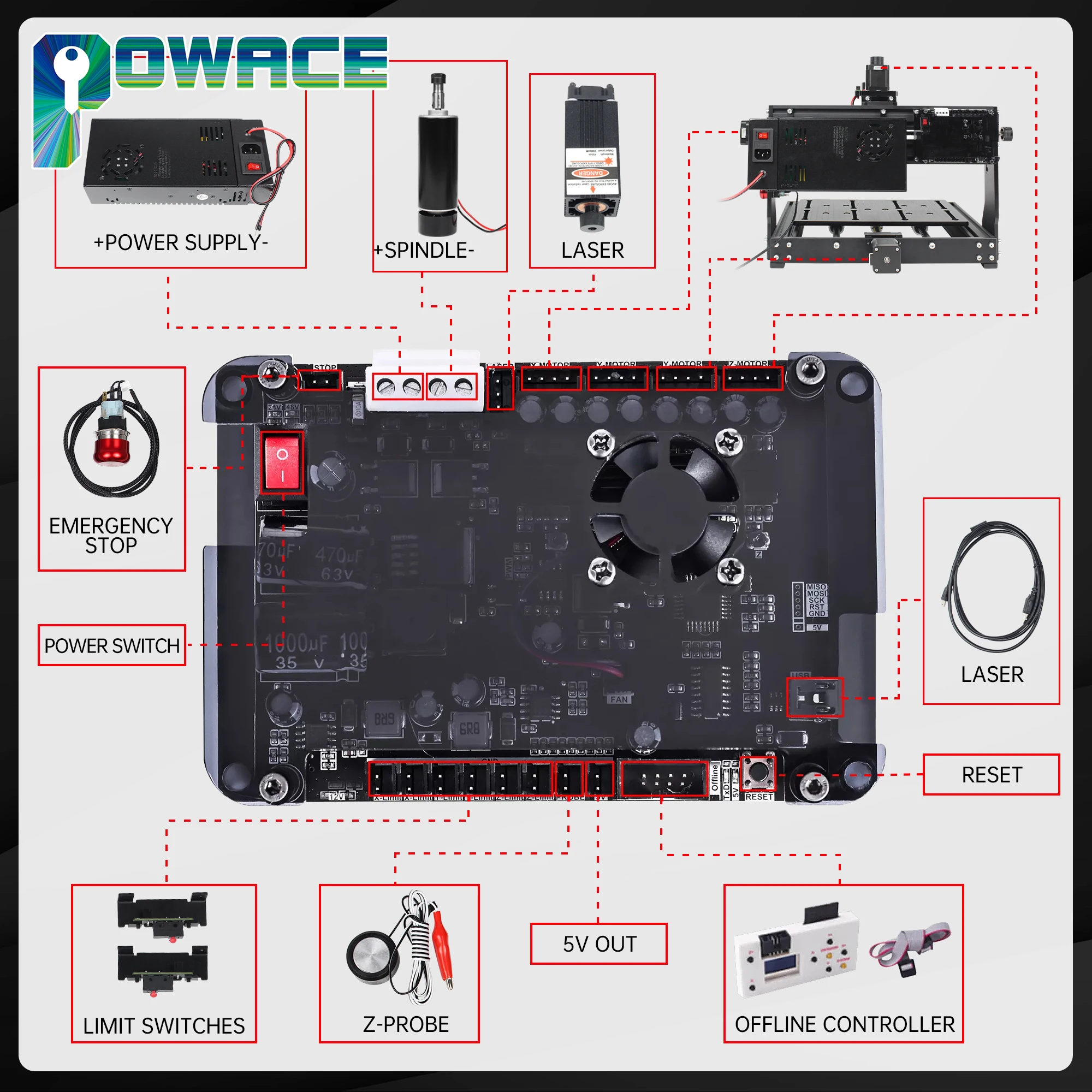

I. GRBL 1.1J,USB port cnc engraving machine control board, 3 axis control

Specification:

can use off-line

1) 3 axes of control

2) Control system: GRBL

3) Driver stepper motor: DRV8825

4) Support Software: grblcontrol / candle (3 axies); laser (laser)

5) System Support: windows XP / Win 7 / Win 8 / Win 10

6) Stepper motor: 42 step motor (1.3A / 0.3Nm / 24V)

7) Spindle motor: 775ER (24V / 10000rmp / support PWM0% -100%)

8) Laser: max 12V 5A (1W / 2.5W / 5.5W / 7W / 10W / 15W)

9) Power input: 24 V (12-24 V)

The advantages over V3.2:

1) Improve the power port: metal shielded port

2) Improve USB port: more robust, hard to fall

3) Improve stepper motor drive: change to DRV8255

4) Add a fuse to avoid burning

【EU US BR】DIY 3 Axis GRBL 3020 Plus CNC 3W 5W 10W 15W 20W Laser Engraver Engraving Machine PCB Milling Machine 2 in 1
