Voltage range：6～16s
Rated power P/W：500W
Maximum power：720W
Rated current I/A：10.5
Maximum current：15
Coil resistance R/Ω：0.34
Coil inductance L/mH 0：0.43
Protection grade ：ip58
Shaft specifications： Φ5
Number of slots & poles： 12N/14P
Lead wire/AWG： 14
Length of lead wire/mm： 500
Connector ：4mm banana head
Maximum operating temperature T/℃：120

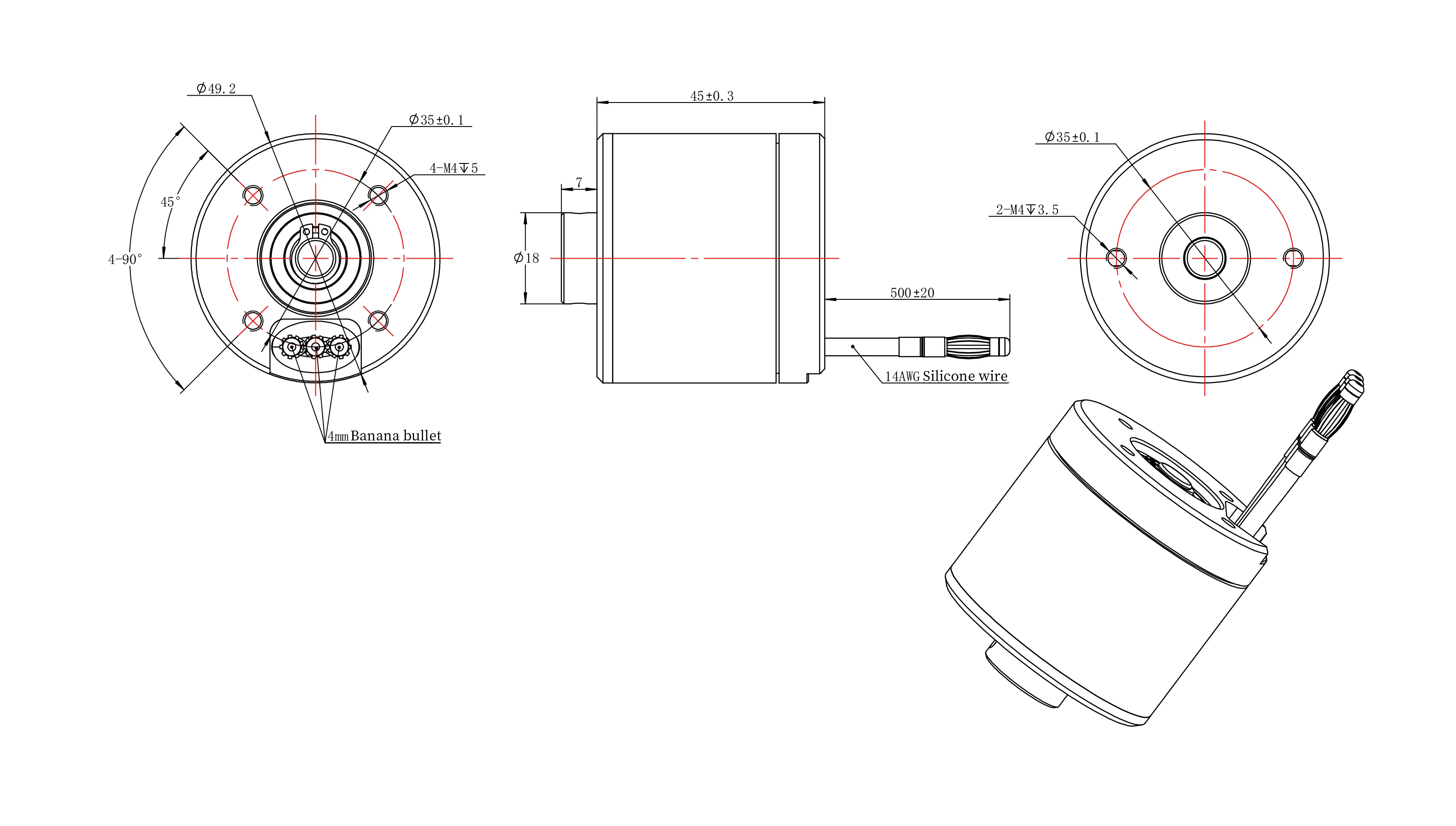

Long shaft Motor diagram:
