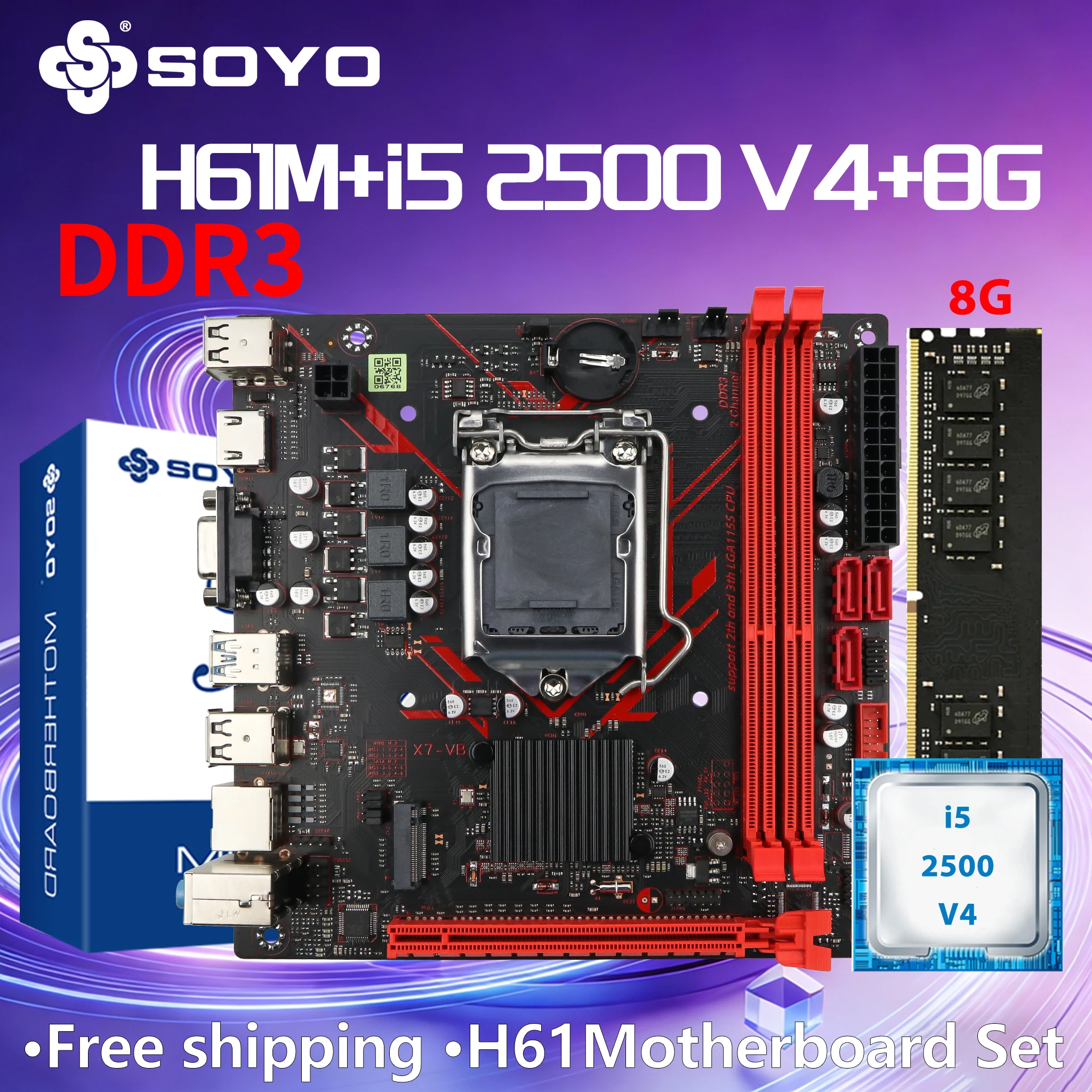

H61M DDR3-AX Motherboard xeon+i5 2500 CPU+8G*1 completo DDR3 Dual Memory InteILGA1155 M.2 SATA2.0 SOYO HDMI VGA PCIE3.0X8 USB2.0

M.2 SATA2.0 Interface

Features M.2 SATA2.0 interface, providing high-speed data transfer for solid-state drives and expanding storage options.

Dual-Channel Memory Support

The motherboard supports dual-channel DDR3 memory, allowing for faster data processing and improved system performance.

Intel Chipset Manufacturer

Equipped with Intel chipset, this motherboard ensures reliable performance and compatibility with a wide range of components.

HDMI & VGA Output

Equipped with HDMI and VGA output ports, this motherboard offers versatile connectivity for various display devices.

Intel i5 2500 CPU Compatibility

Designed to support Intel i5 2500 CPU, ensuring seamless integration and optimal performance for your computing needs.

Differences between packages
Motherboards: 1*SY-H61M D3-AX motherboard

 Motherboards+CPU: SY-H61M D3-AX+i5 2500 CPU

Motherboards+CPU+RAM: SY-H61M D3-AX+i5 2500 CPU+8G*1

Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

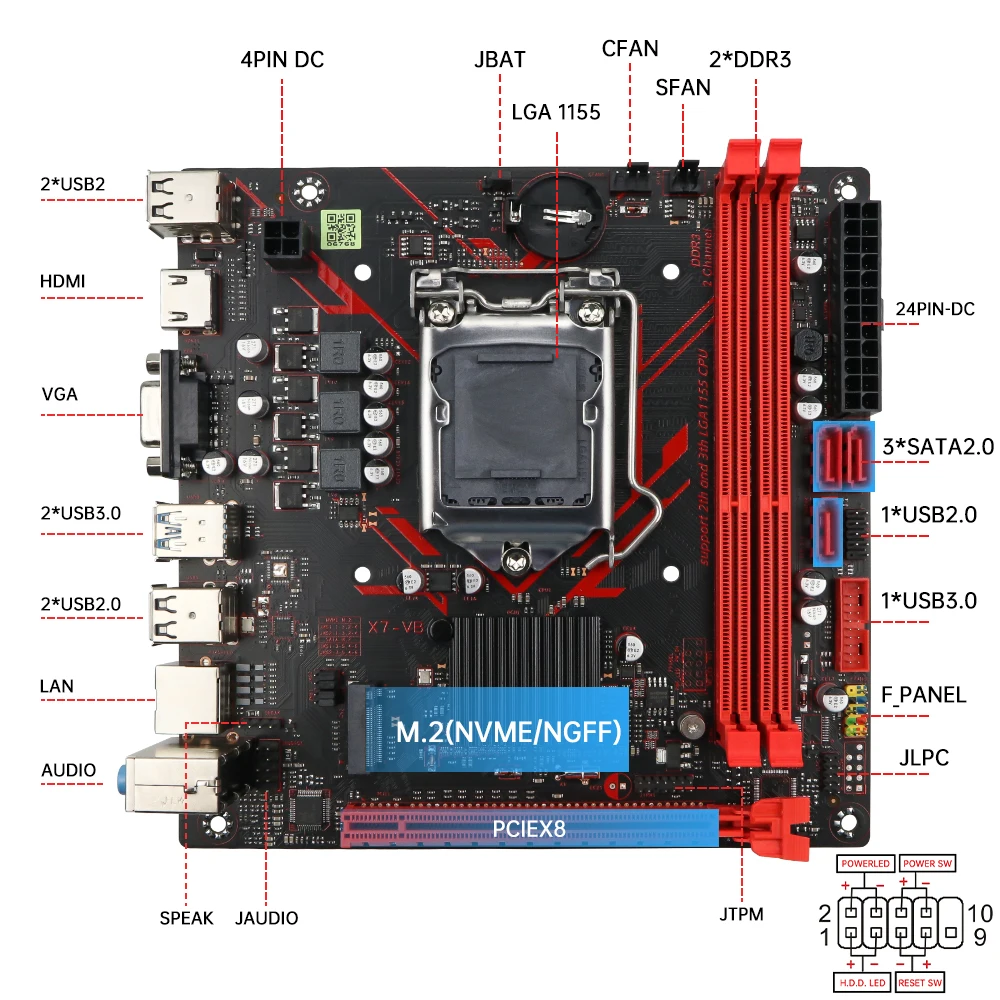

• Motherboard Chipset: Intel H61

• CPU Socket: Intel LGA 1155 (supports 2nd/3rd Gen Intel Core / Pentium / Celeron CPUs, e.g., G1620, i5-2400, i7-3770)

• Memory: 2 x DDR3 DIMM slots, 1600MHz/16G max, single slot up to 8G

• Storage: 1 x M.2 slot (NVME/SATA mode, jumper selectable); 3 x SATA 2.0 ports

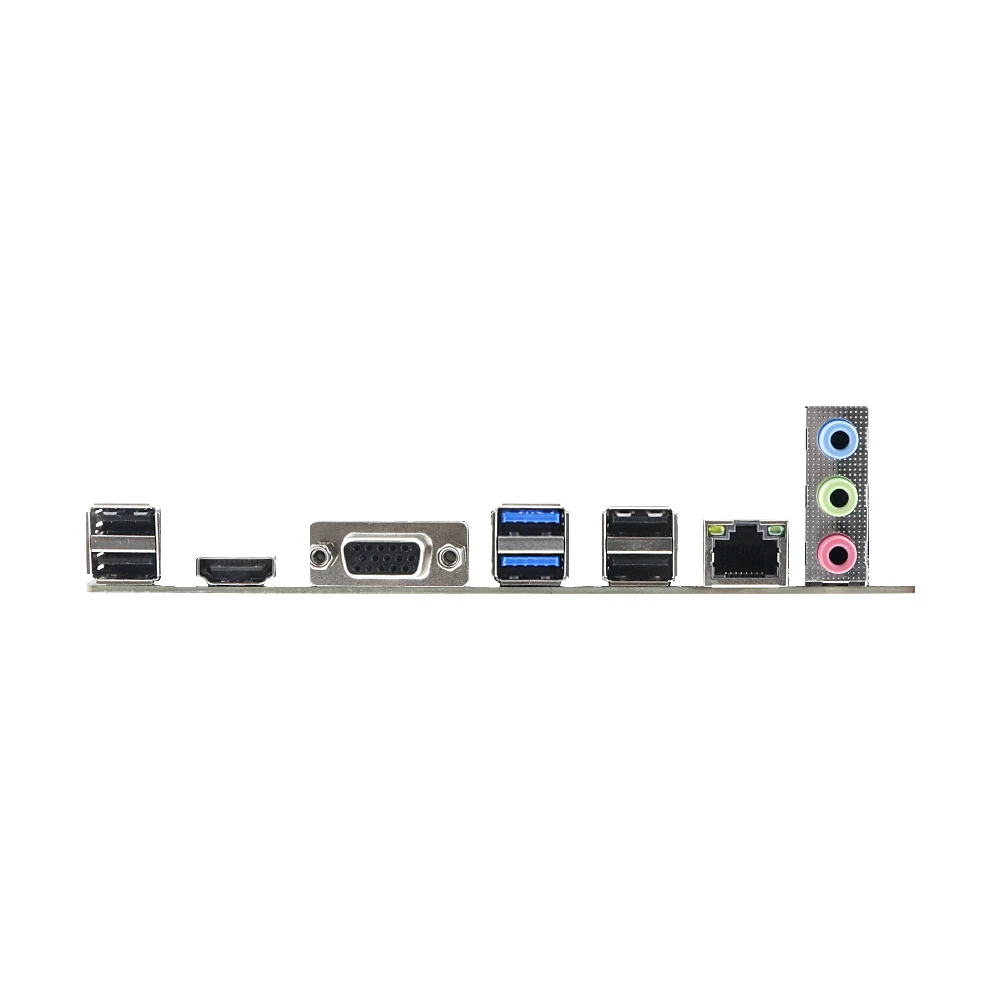

• Display Interfaces: 1 x HDMI, 1 x VGA

• Network: 1 x RJ45 port

• LAN Chipset: Realtek 100Mbps Ethernet

• PCIe Slot: 1 x PCIe x8

• Audio: 1 x Line Out, 1 x Mic In, 1 x Line In, 1 x F_Audio header

• Audio Chipset: Realtek HD Audio

• USB Interfaces: Rear: 6 x USB 2.0; Front headers: 1 x USB 2.0 header (expandable to 4 ports), 1 x USB 3.0 header

• Front Panel Headers: 1 x FPANEL header; 1 x 4Pin buzzer header; 1 x 4Pin CPU fan header; 1 x 3Pin SYS fan header

• Power Input: 24Pin + 4Pin ATX

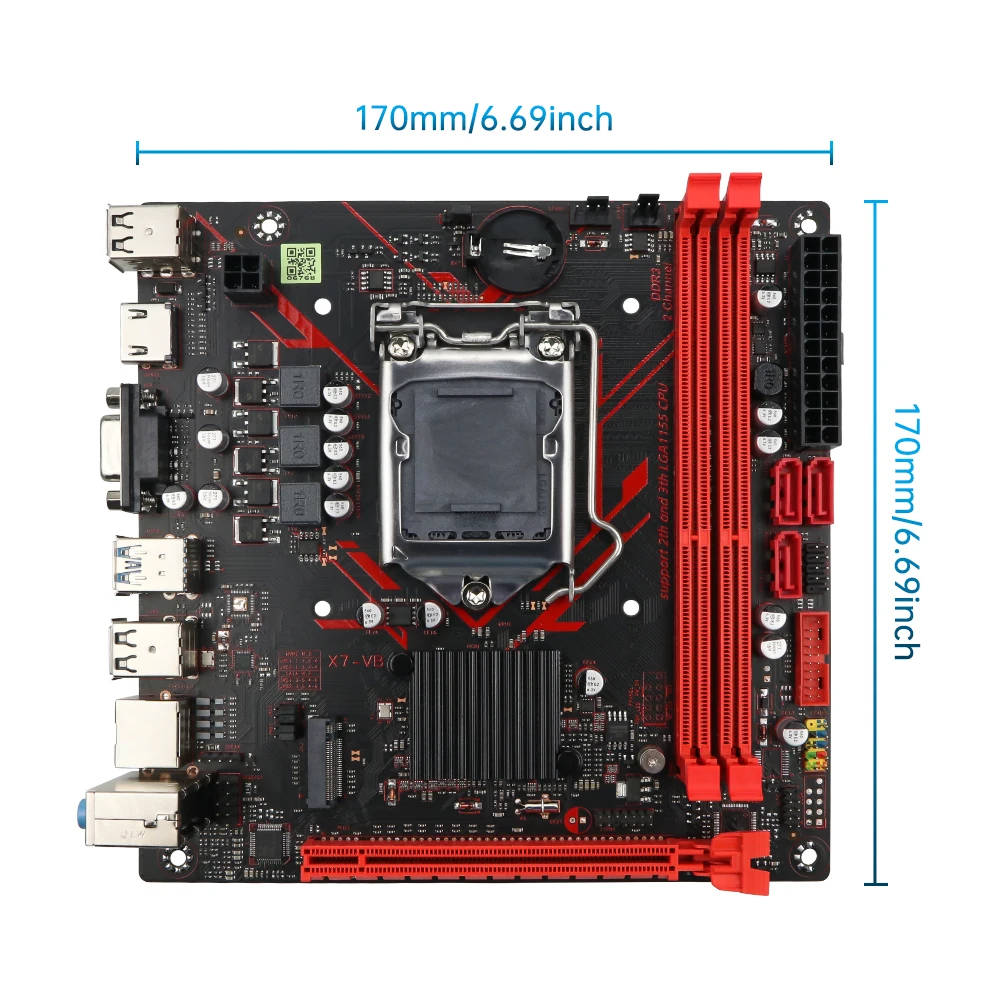

• Form Factor: ITX, 170 x 170 mm

• Operating Temperature: -10℃ ~ 60℃

• Operating Humidity: 10% ~ 90% (non-condensing)

• Storage Temperature: -25℃ ~ 70℃

• Power Consumption: Standby: 20-50W; Full Load: 80-120W (reference only, excluding dedicated GPU power draw)

• Other Interfaces: 2 x 5Pin diagnostic card interface, 1 x BAT jumper, 1 x TPM header

  • Compatible with Windows 7 / Windows 10




  i5 2500 CPU

  ✅ 4 Cores 4 Threads, stable performance for office, study and daily entertainment

  ✅ 3.3GHz base clock, up to 3.7GHz turbo frequency

  ✅ Low power consumption, durable and reliable

  ✅ LGA1155 interface, compatible with H61/B75/Z77 motherboards

  ✅ Perfect for budget assembly, home computer and light game use

  Note:

  (1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).




  (2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.




  (3) All motherboard memory processors are strictly tested before shipment.

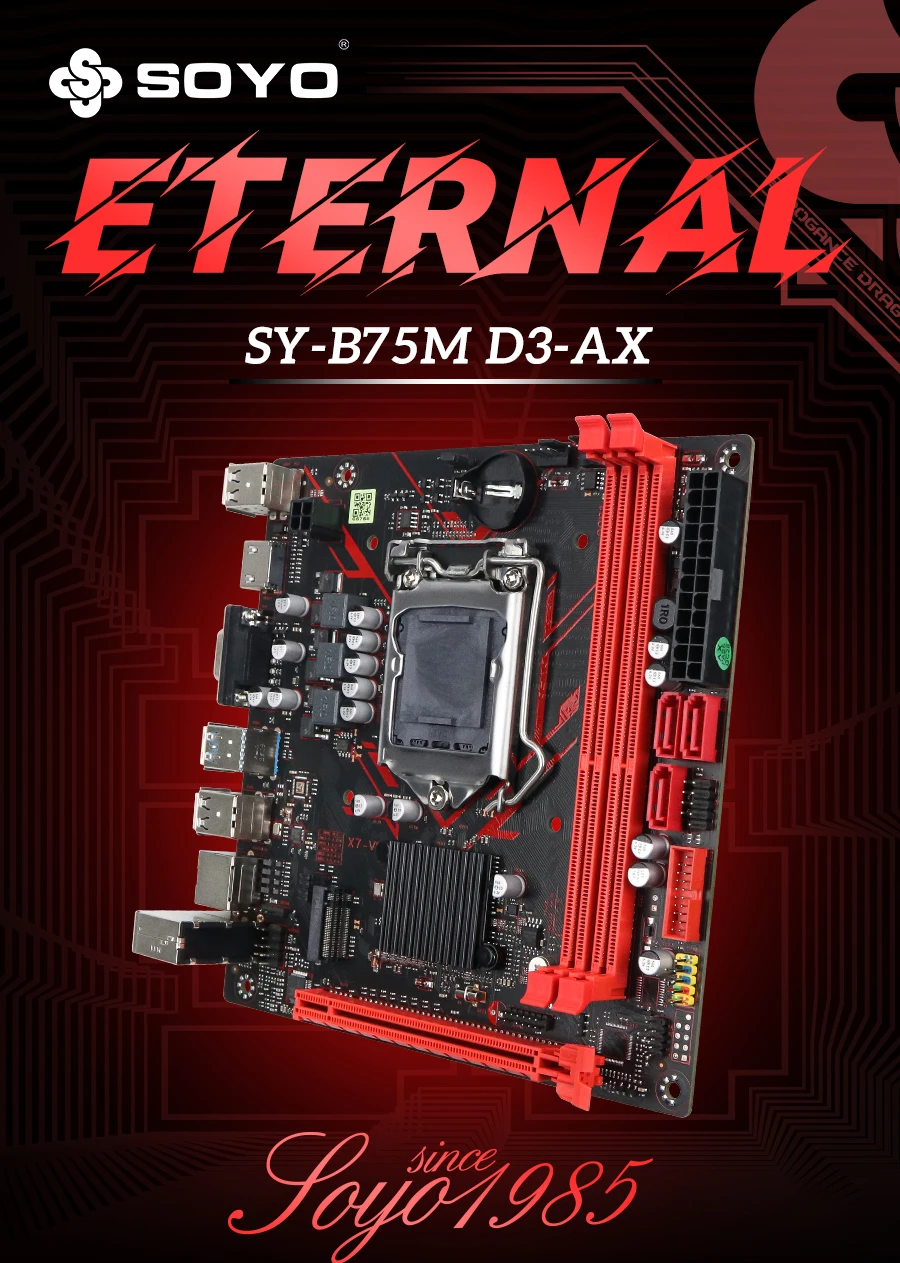

ETERNAL

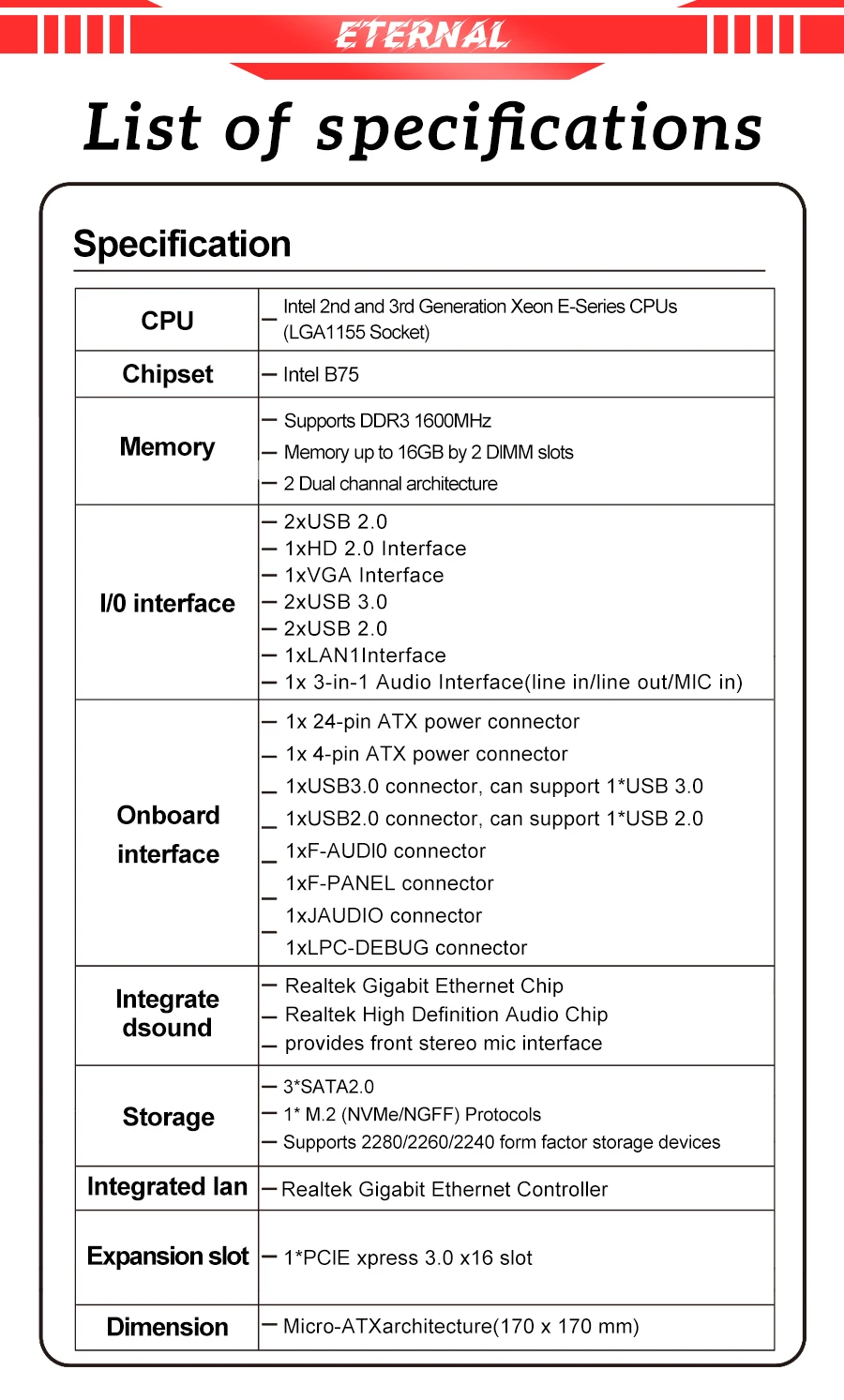

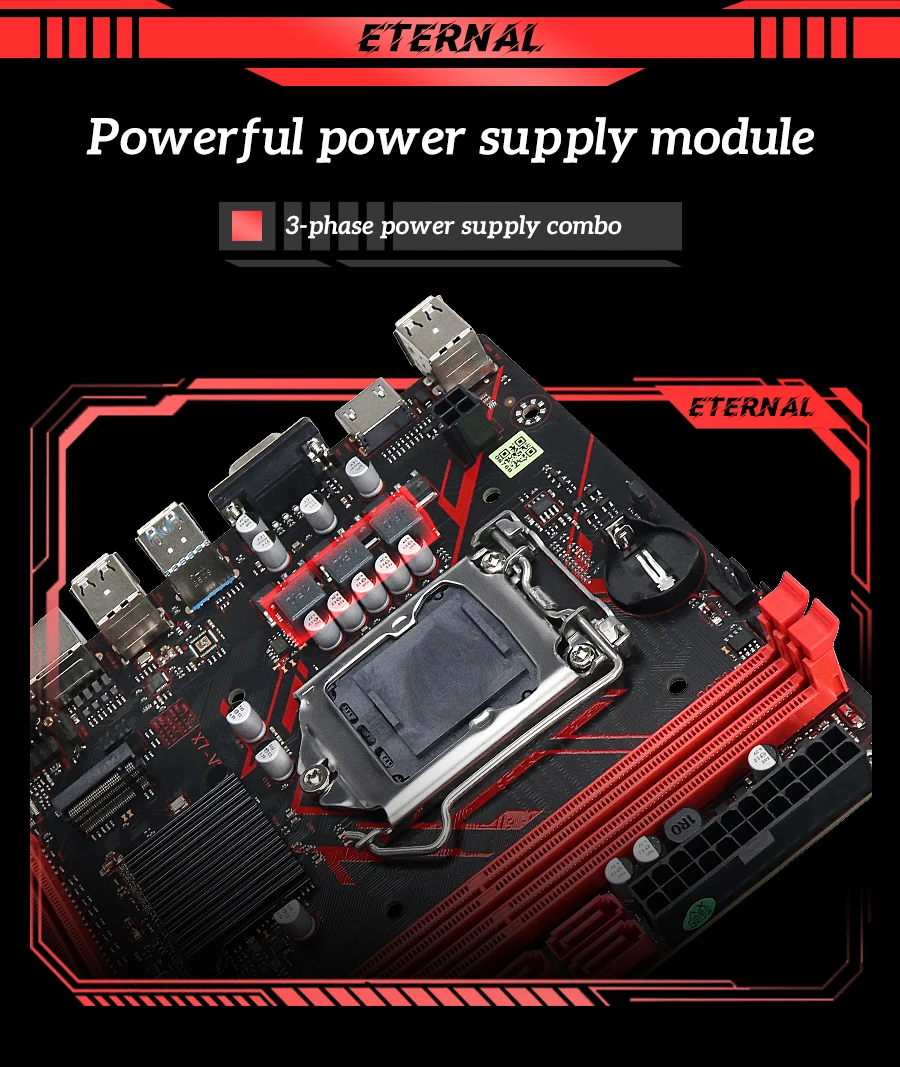

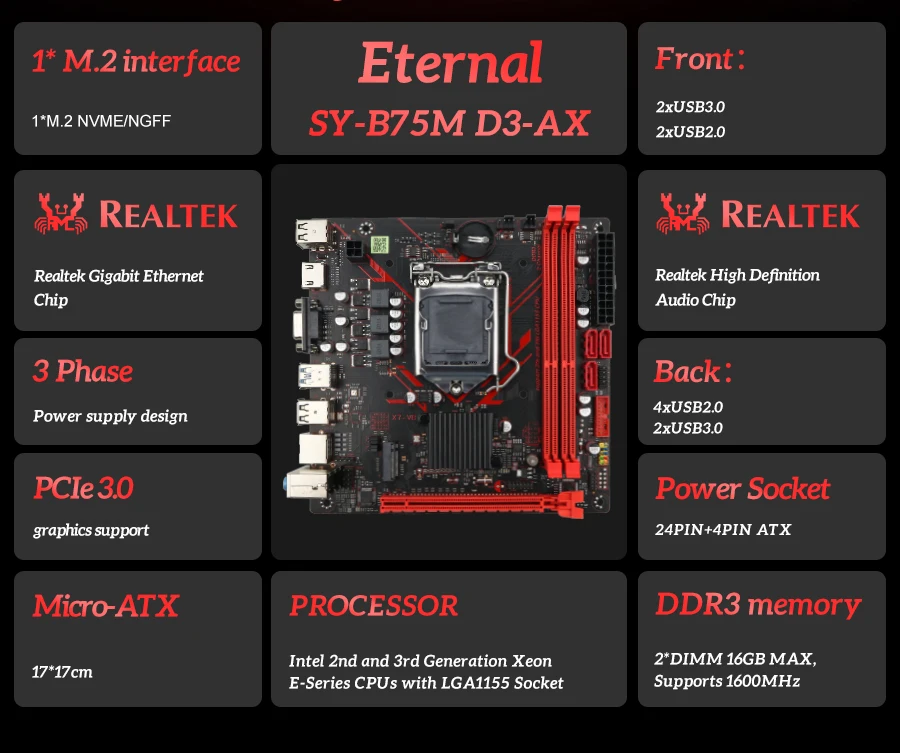

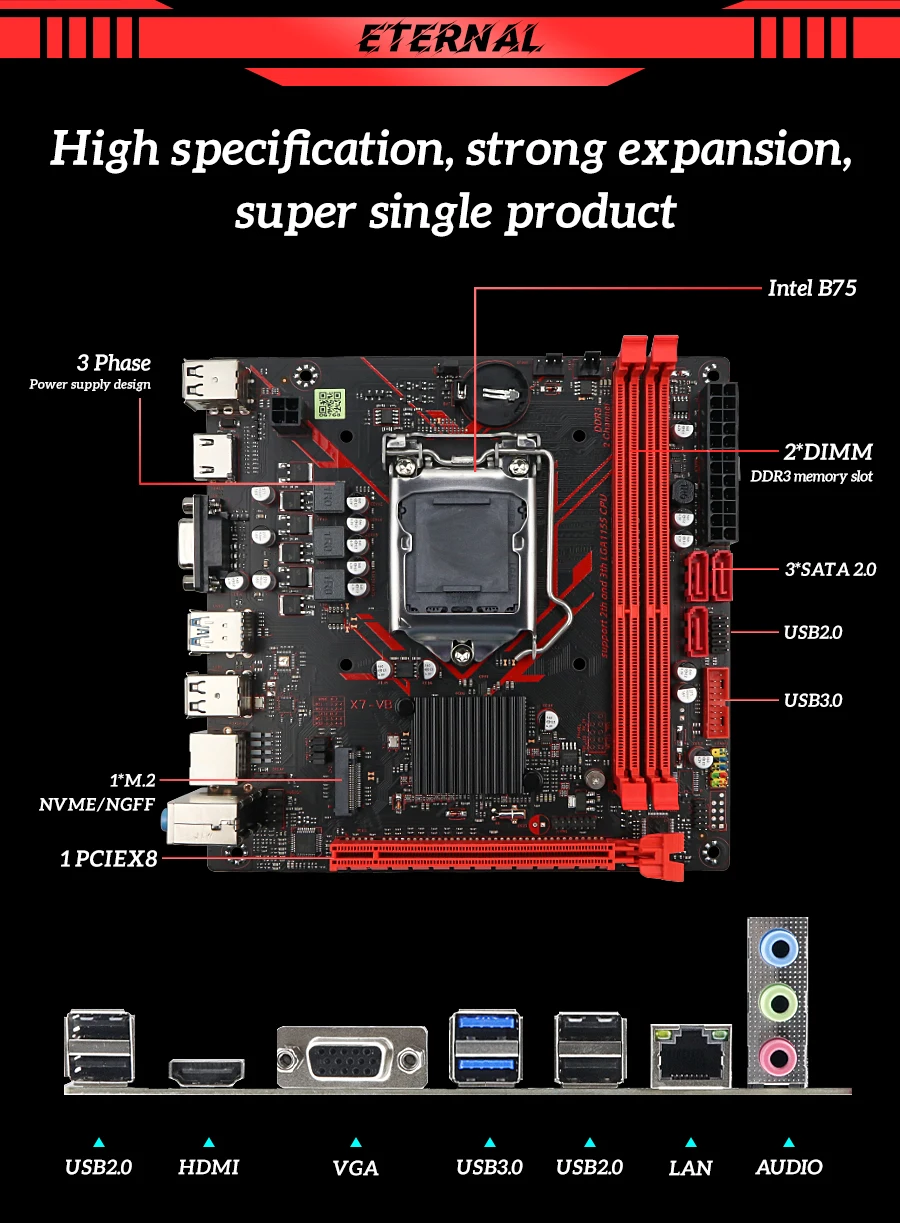

SY-B75M D3-AXHigh specification, strong expansion super single productPowerful power supply module

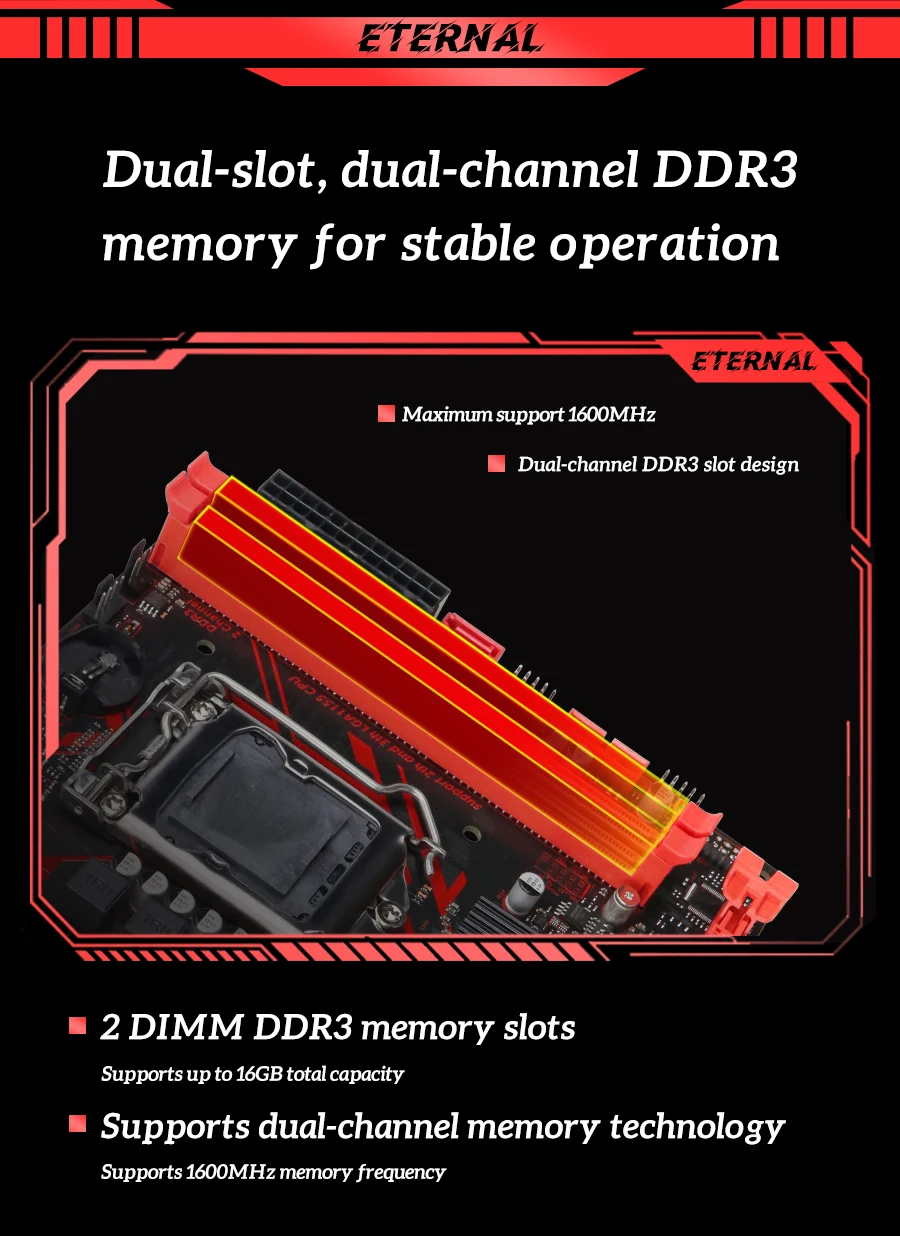

3-phase power supply comboDual-slot, dual-channel DDR3 memory for stable operation

Maximum support 1600MHz

Dual-channel DDR3 slot design

2 DIMM DDR3 memory slots

Supports up to 16GB total capacity

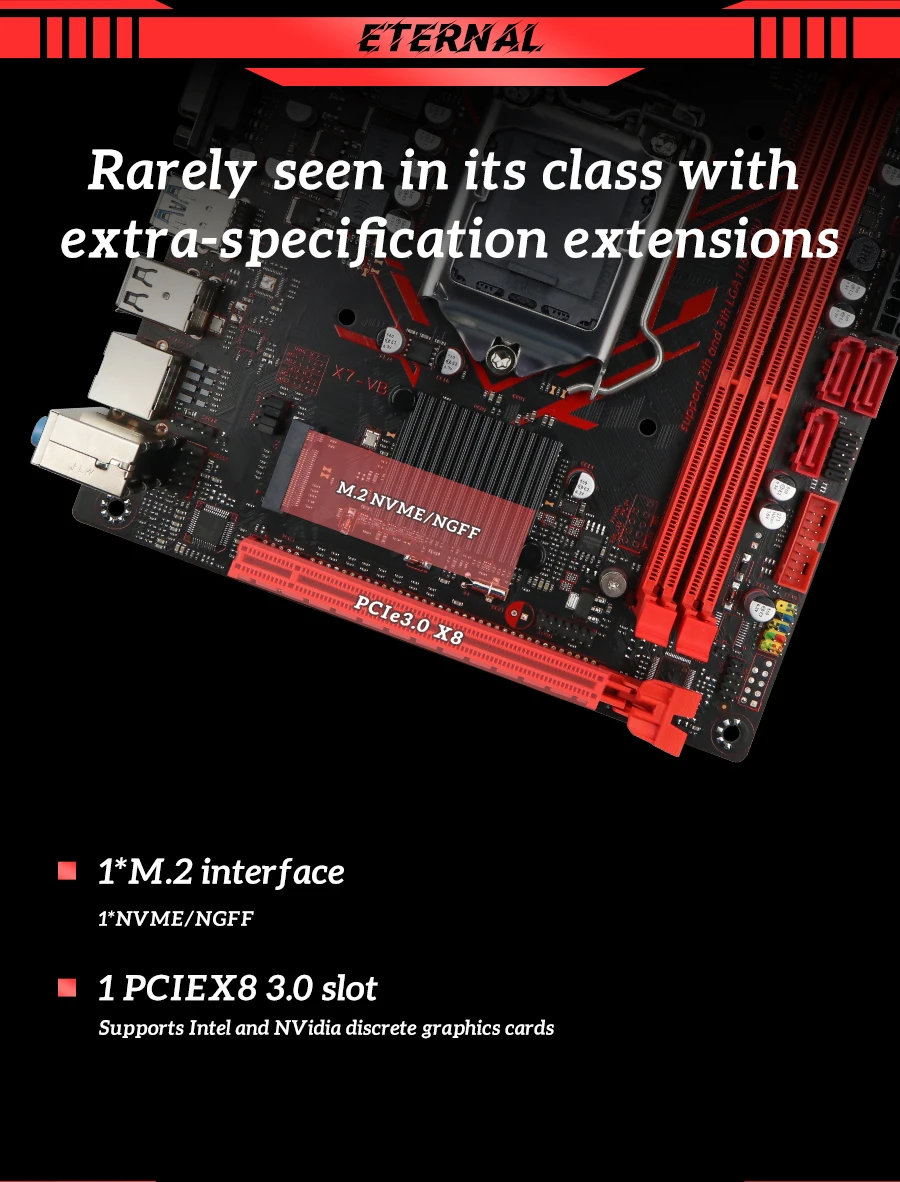

Supports dual-channel memory technology Supports 1600MHz memory frequencyRarely seen in its class with extra-specification extensions

1*M.2 interface1*NVME/NGFF

1PCIEX8 3.0 slot

Supports Intel and NVidia discrete graphics cards
