Helorpc Fanless Industrial Mini PC with Celeron N2840/N2930/J1900/J2900 Support Windows10 2xGigabit Ethernet 4xUSB WIFI Computer

Specification

General

Brand: HLY
Type: Mini PC
Processor:

In-tel Celeron Processor J1900,2M Cache, up to2.40 GHz,4 Core 4 threads,TDP:10W

In-tel Pentium Processor J2900,2M Cache, up to 2.70GHz,4 Cores 4 threads,TDP:10W

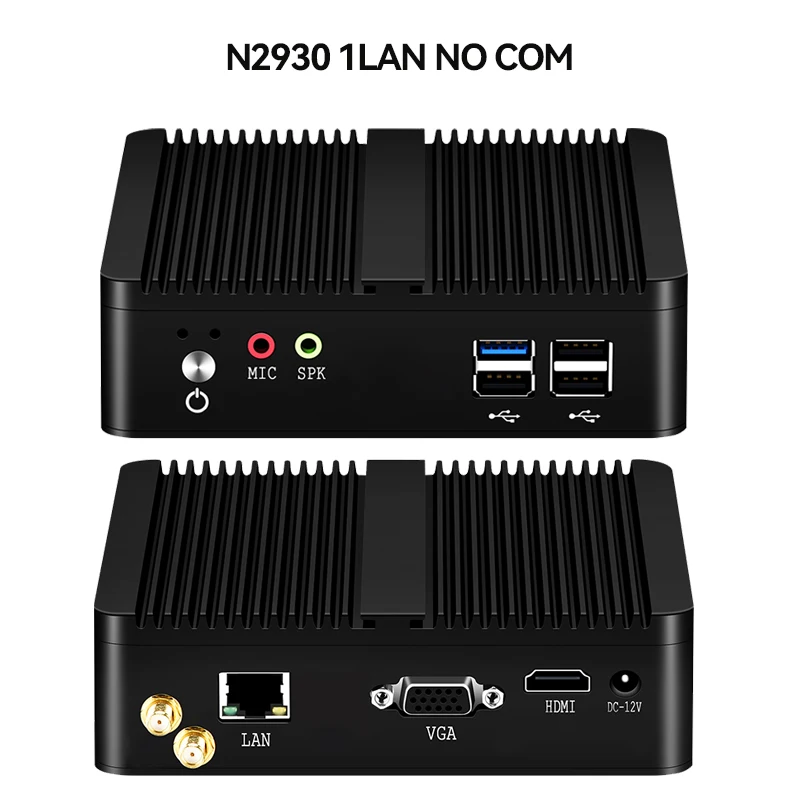

In-tel Celeron Processor N2930,2M Cache, up to 2.20 GHz,4 Core 4 threads,TDP:7.5W

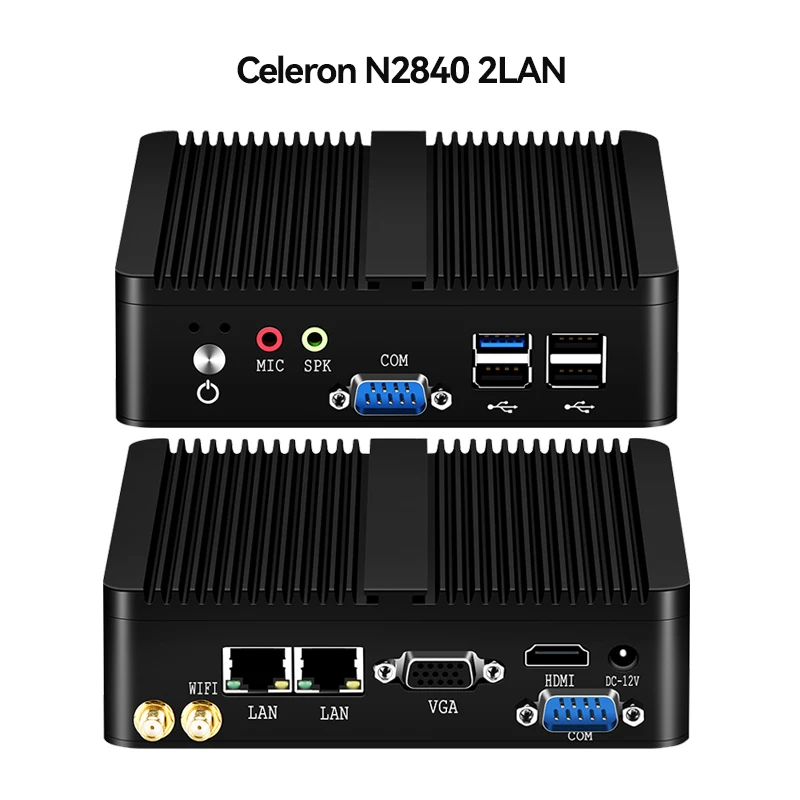

In-tel Celeron Processor N2840,1M Cache, up to 2.60 GHz,2 Cores 2 threads,TDP:7.5W

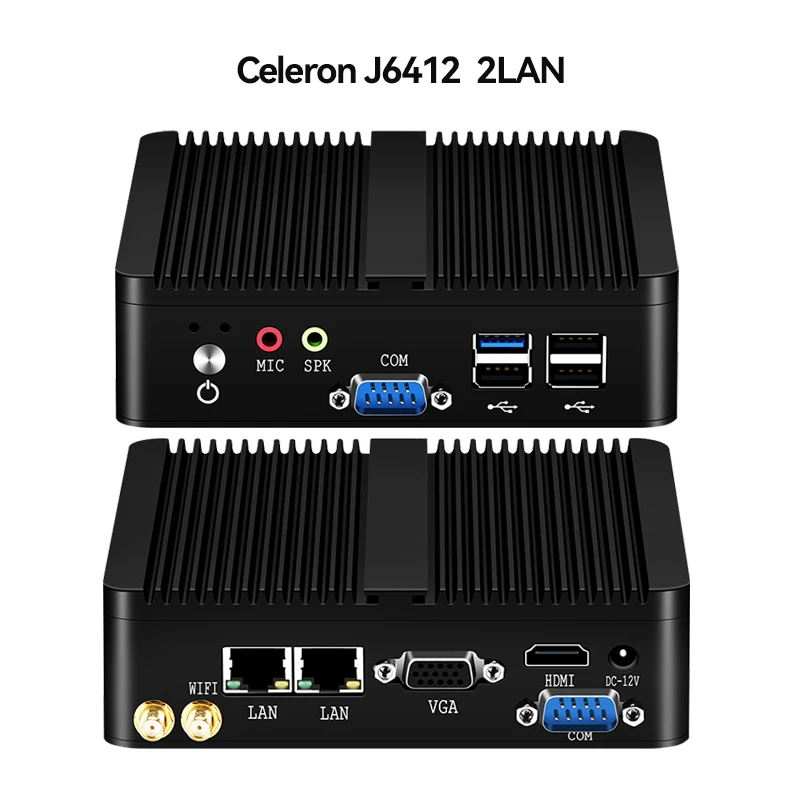

In-tel Celeron Processor J6412,4M Cache, up to 2.60 GHz,4 Cores 4 threads,TDP:10W

GPU: In-tel H-D Graphics for In-tel Atom Processor Z3700 Series
RAM Type: 1 x DDR3L (Low voltage 1.35V) Ram slot,
2G, 4G, 8G Ram for optional J6412:1x SODDIMM DDR4L,max up to 16G
Hard Disk type: Support mSATA and 2.5' inch SATA,
30G, 60G, 120G, 250G,500G SSD and 1TB HDD for optional.
WIFI:mPCIe( half-size) 300M for optional

Product detail

Onboard LAN:10/100/1000/ Mbps Realtek 8111F
Audio Card:high Definition Realtek ALC662 audio control chip

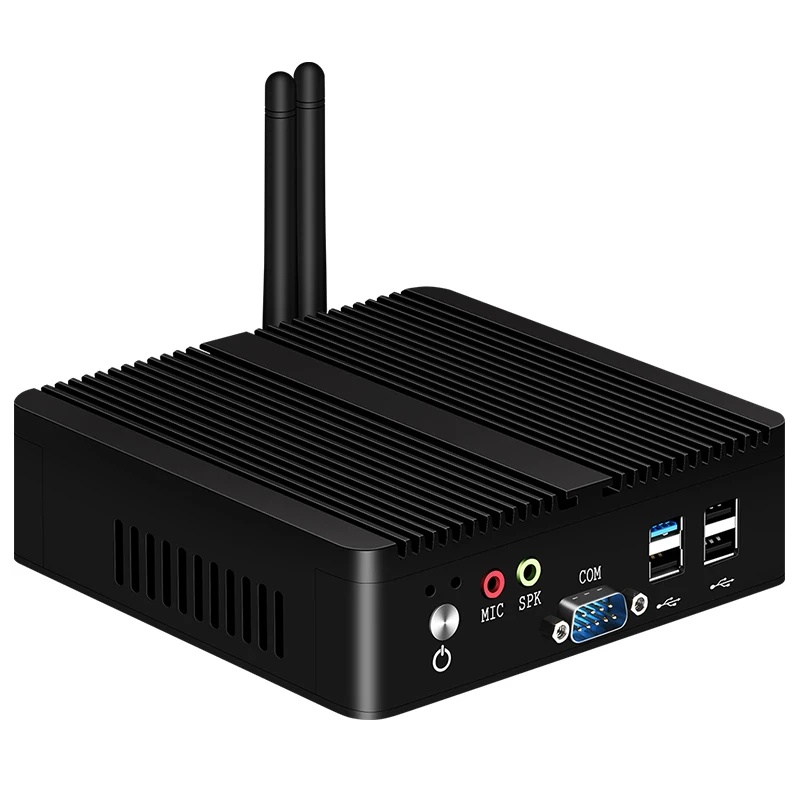

WiFi:With dual antenna, 802.11.b/g/n
System:window10/7/ 8/ Linux.
Color: Black(Other color support customized)
Cooling system: Fanless

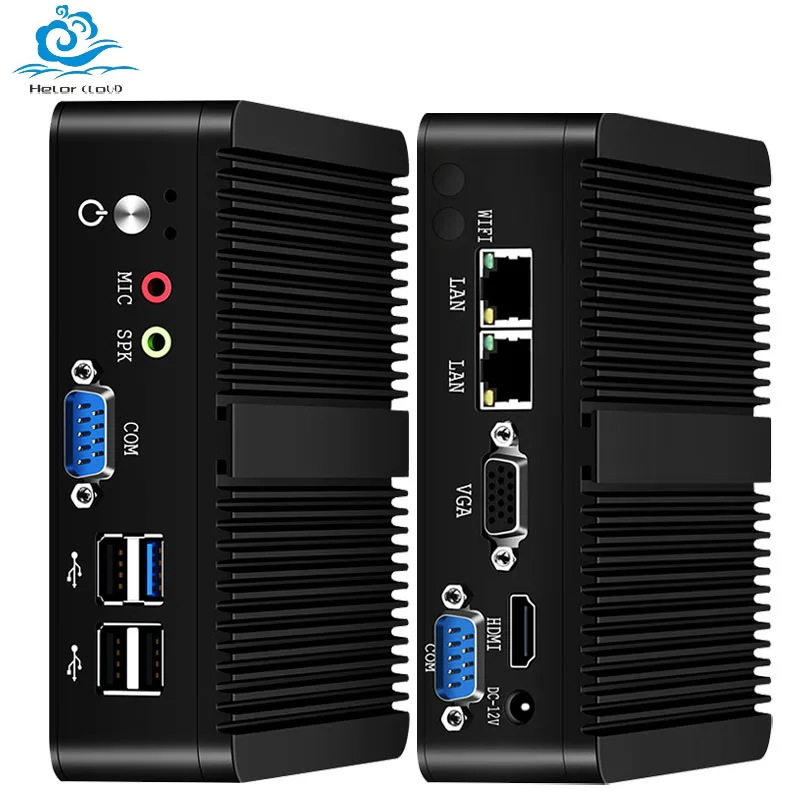

Port

3xUSB2.0
1xUSB3.0
1xVGA
1xH-D
2xLAN
1xMIC and SPK
1x Switch
2xCOM(RS232)

Power Requirement

Power Type: External Power Adapter Mode
Power Input Vol: 12V
Power Input Ampere:5A

Working Environment

Operating Temperature :-20℃-80℃
Storage Temperature: 0℃-80℃
Relative Humidity :10%~90% (non-condensing)

Dimension

136*126*39mm

Package Contents

1 x Mini PC
1 x User manual
1 x Power adapter
1 x VESA mount
1 x WIFI Antenna(Except Barebone computer)
