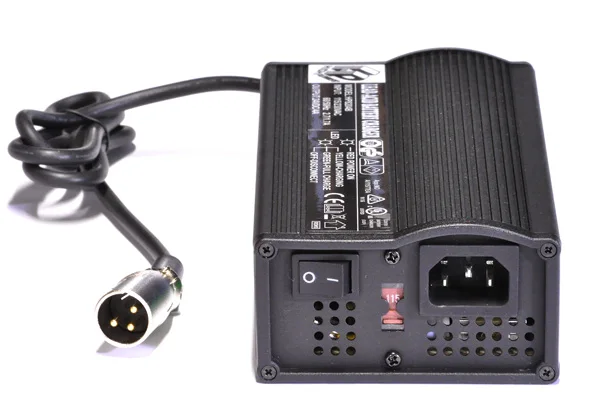

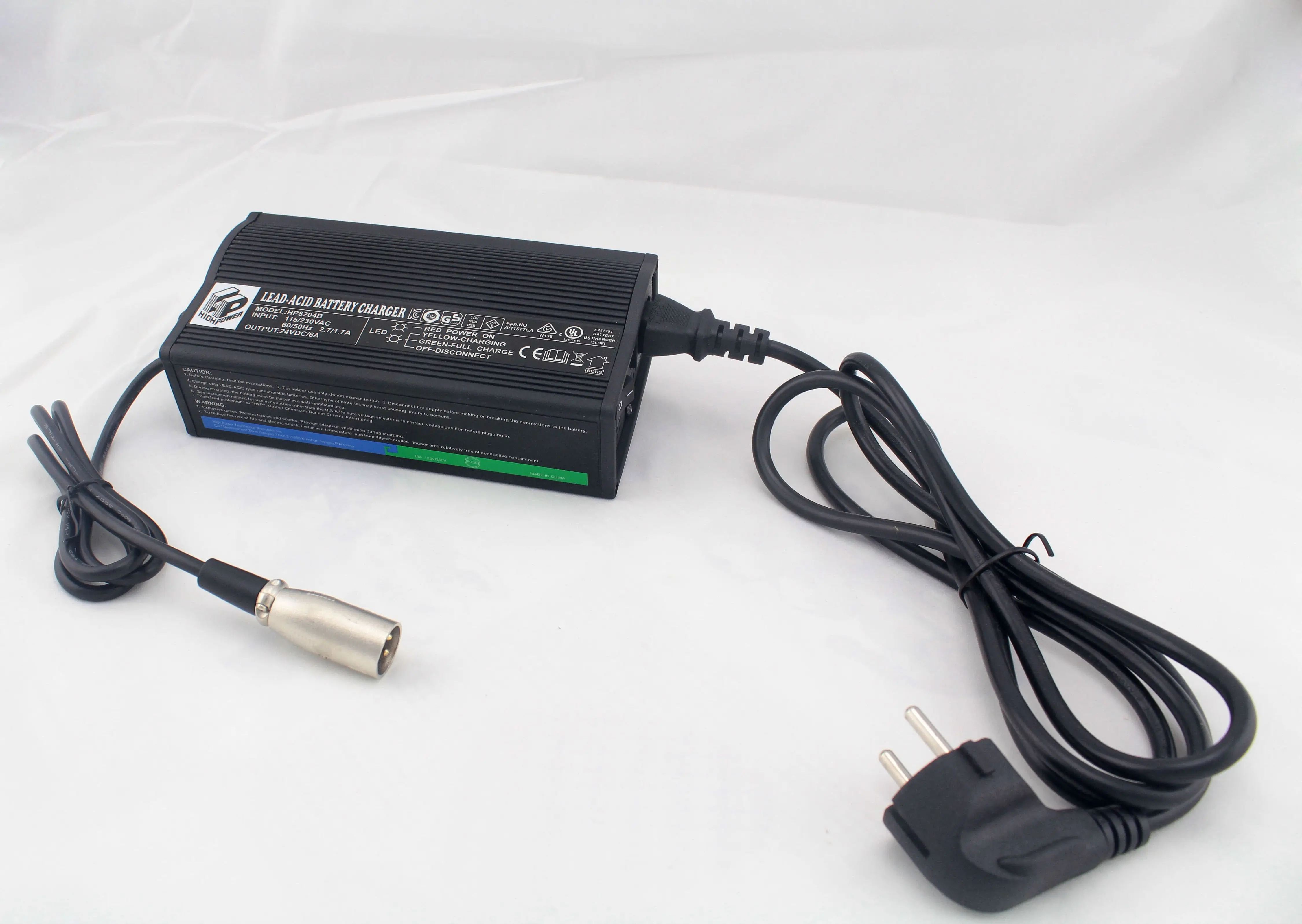

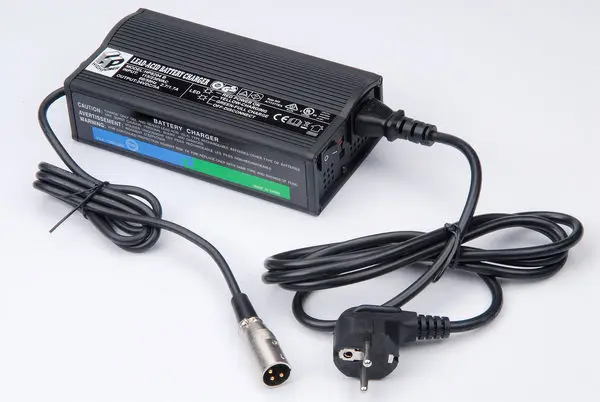

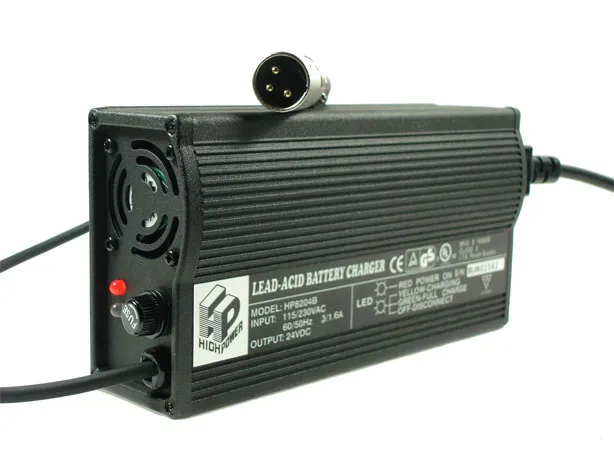

24V 6A Drive Cirrus Plus Power wheel chairmobility scooter charger,Lead acid battery chargerCE, UL, KC for Korea, GS, PSE, ROHS, EEC Certificated BY TUV

Specification:

Brand: High Power

Model: SF-CH.HP06

Input Voltage: 110V-250V adjustalbe

Output Voltage: DC 24V

Current: 6amp

Charger line: 1.8m

HP serise lead acid and gel battery charger has CE, EEC, UL, Rohs certification, can import to all countries.

Important notice:

Please select the correct charger plug of your country in the following pictures and leave message to us when you place order. Just like "". If you have not leave any message when you make order, we will select the charger plug according our experience and buyer can not complain for wrong charger plug sending. If you have not find correct plug of your country, please kindly contact with us.

Charger plug select:

photo showing

Operation Instruction:

(1) Remove the battery from the original equipment.

(2) Make sure the power cord, battery cable, battery terminals are in good condition.

(3)Make sure the charge output voltage is the same as the connecting battery.

(4)Connect the connector of battery charger to the connector of battery firstly, then connect the AC power.

(5)Make sure the AC voltage is correct and plug in the power cord normally.The LED (Power) light will turn on when electric current passes.

(6) During charging, LED (Charge) will indicate orange light. When it turns to green light, that means fully charged.

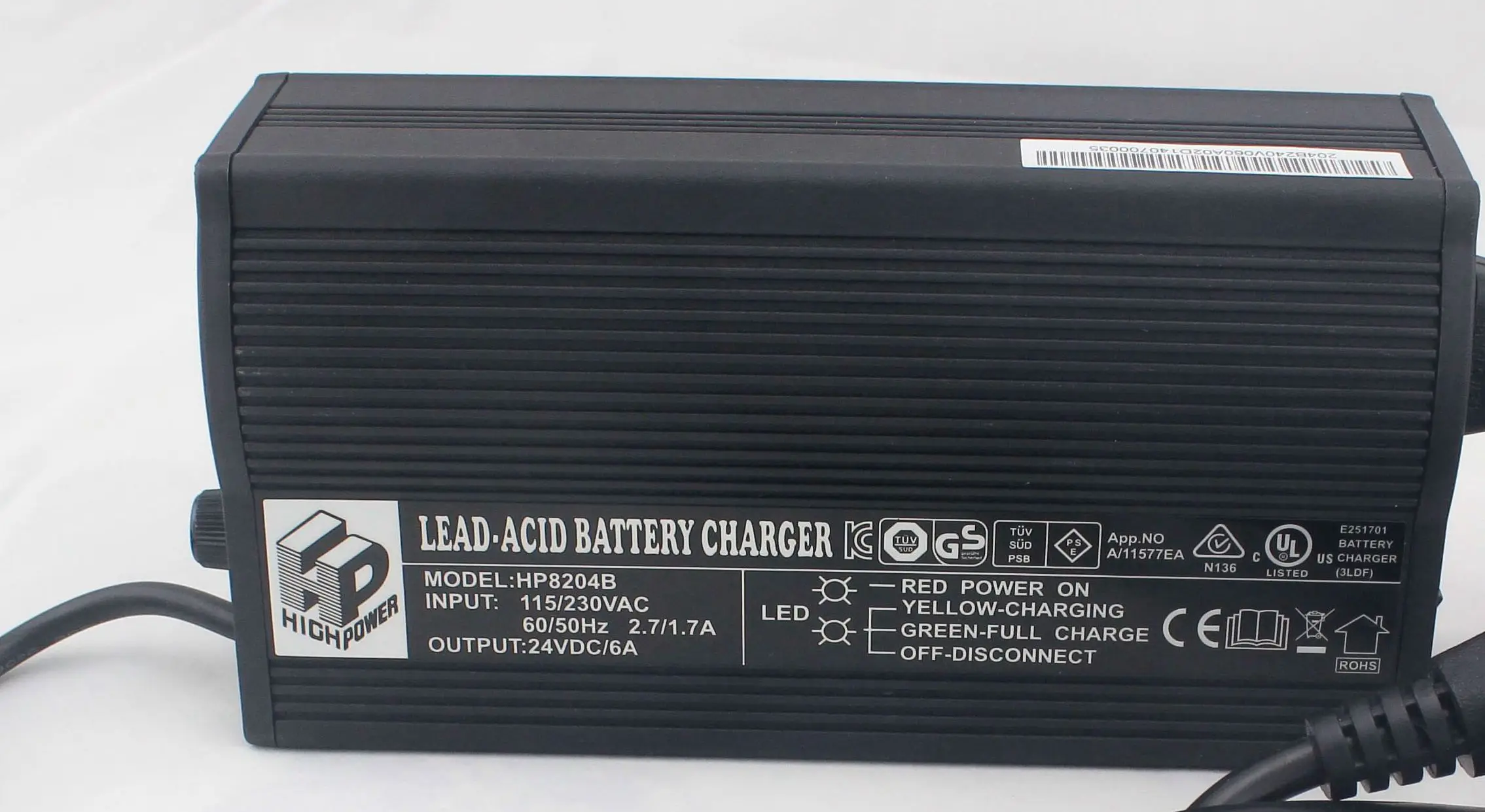

LED Indication:

RED LIGHT ON: Power on

ORANGE LIGHT ON: Charging

GREEN LIGHT ON: Full-Charged

Troubles Shooting

(1)LED(POWER) light is off

Check if the fuse of AC power is normal, if burned, please replace the spare fuse.

Confirm whether there is any normal outset voltage is passed, if the voltage is normal, please send the charger repair.

(2) LED(CHARGE)light is off

Check if the connectors are correctly connected.

Check if the battery has been fully charged.

If light is still off, the battery may be defective.

(3)ORANGE light turn to GREEN immediately.

Check if the battery is fully charged. If not, may be batteries or charger defective.

(4) LED (CHARGE) light turn to GREEN immediately

Please disconnect the battery but keep the power socket plugged into the electricity outlet for 5minutes or expose the chargers to the sunshine for 5 minutes, then connect to the battery and the LED will turn to ORANGE.

Caution:

(1) The charger is only for indoor use, keep away from liquids and use in a well-ventilated area during charging.

(2) Use the charger only with 24V lead acid or gel batteries.

(3) Please make sure the XRL male and female connect is right before charging. This means 1 is positive and 2 is negetive.

About US:

Serfayscooterparts was founded in 2013, who mainly supply different parts and accessories for mobility scooters and power wheelchairs, they mainly include metal frame, forks, leg rest, tire rims, wheels, plastic cover, also include controller, chargers, motors etc. These parts and accessories can be used in most of brands, such as Pride, CTM, Sunrise , Permobil, Shoprider etc...

Serfayscooterparts also can supply whole scooters and power wheelchairs exporting as SKD or CKD , also OEM for some certain model. You can visit out website or contact with us by email to get more detail information. If you are distributors or seller for quantity order, feel free to contact with us by email.

Shipping Information:

1. Worldwide shipping is available (except some special countries and regions which express can not reach).

2. Parts or accessories will be shipped within 3 business days after receiving the payment.

3. Standard shipping take 3-7 days normally, such as DHL, TNT, EMS, UPS, Fedex etc.

4. Economy Shipping take 12-30 days normally, such as E-Packet, China post, Yanwen etc.

5. Big quantity orders and SKD, CKD will be shipped by sea.

Warranty:

1. 8 months warranty is available for motors, electric brakes, gear boxes, controllers and potentiometer. However, warranty do not cover any artificial damage or broken by wrong operation

2. Warranty not include tyres, bearing and plastic parts, but return with no broken as the following return back terms is available.

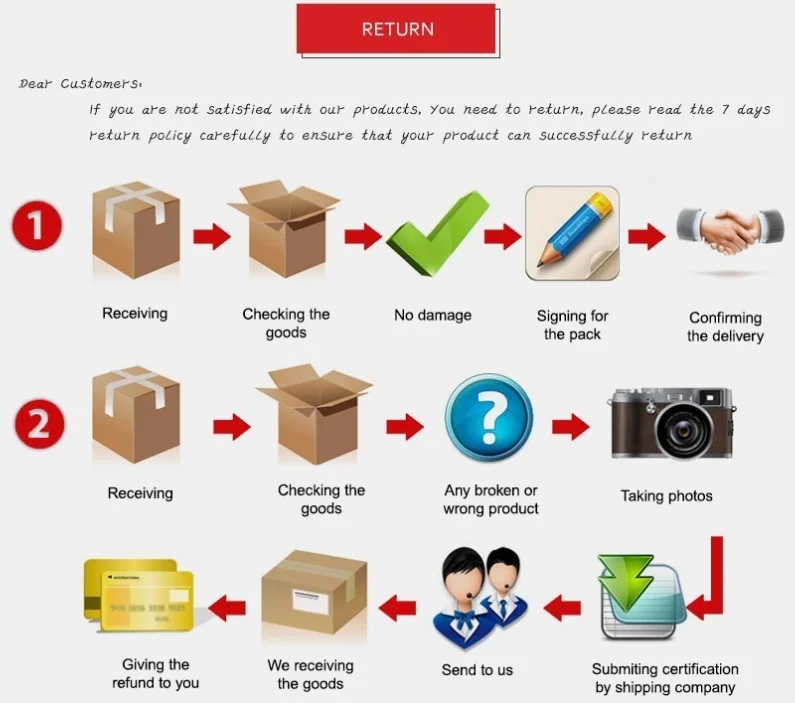

Return And Refund:

1. 7 Days No Reason To Return is Acceptable:

If there is no quality problem, returned goods will be accepted within 7 days after received the goods without any reasons. But customer will bear the freight and make sure the goods returned is in their original conditions.

2. Item not Match Description:

Please ensure follow the operation manual book to equip or use your received items. Any quality problems, please do contact with us first and provide photos and videos according to our request. Buyer can select replace or new one or return the itmes with seller bear the return cost. Any artificial damage or broken because of wrong operation, refund is not acceptable.

Contact With US:

If you're wholesaler or you want to order items in bulk, don't hesitate to contact us for best offer.

Feedbacks:

1. A Positive Feedback and 5-STAR rating from you are greatly appreciated. It is important for us to grow up.

2. Please contact us first before you leave a negative feedback. We will do our best to solve any problems and provide you with the best customer services.

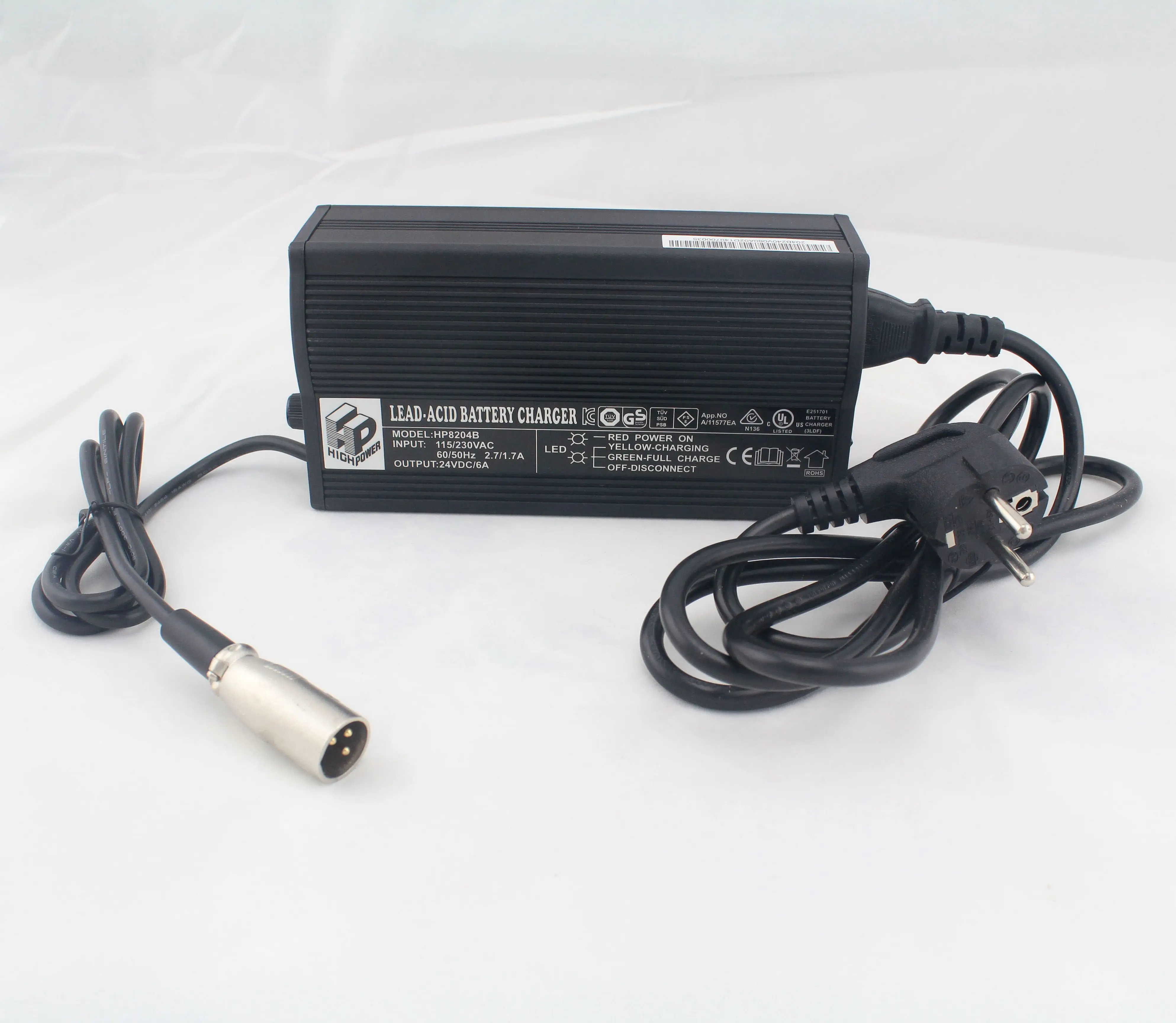

HP8204B 24V 6A Mobility scooter or power wheelchair battery charger Lead Acid Gel Battery Charger KC UL CE
