Industrial Fanless Mini PC Celeron J4125 Core i3-5005U Dual LAN 2*COM HDMI WIFI Windows 10 Nettop Office computer minipc Desktop

Product Description:

- Flexible RAM and storage, 1x memory slot, max support to 8GB; J6412 model supports one M.2 NVME/SATA SSD and one 2.5 inch HDD/SSD, other models support one mSATA SSD and one 2.5 inch SSD/HDD;

- 2x Realtek 8111E Gigabit Ethernet , support Wake on LAN, PXE boot.

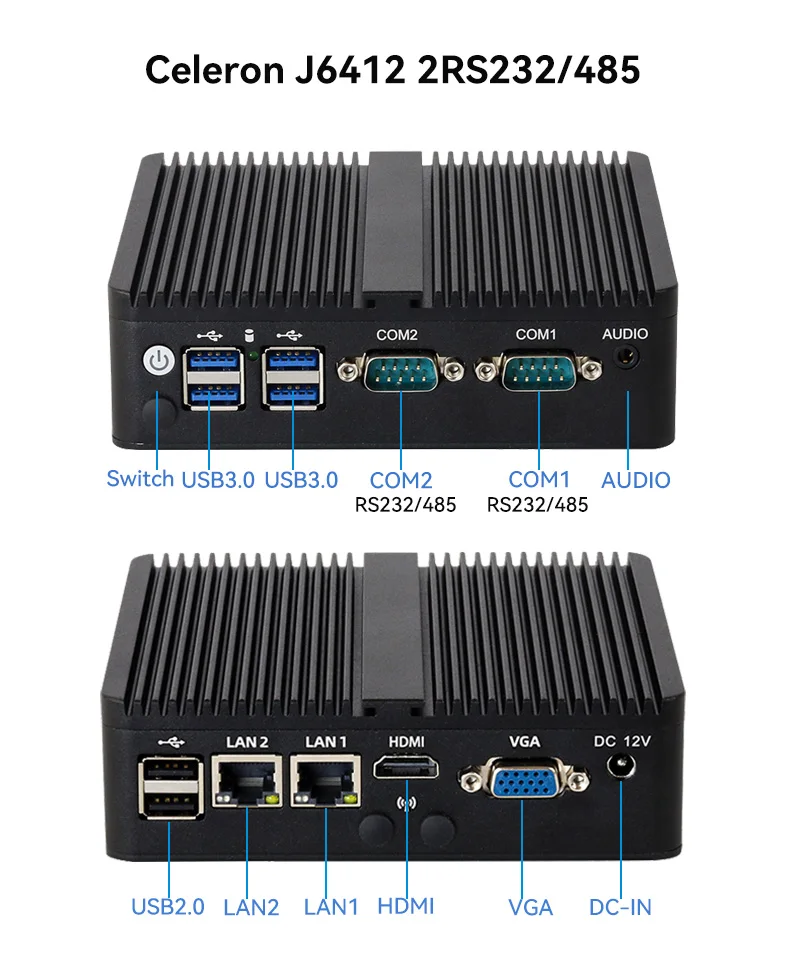

- 2x COM serial ports, J6412 model two COM ports support adjust to RS485/RS232, other models two COM ports are RS232 mode.

- HDMI VGA support independent HD video output;

- Fanless aluminum metal case heat dissipation;

- 1x mini PCIE slot support expandsion of WiFi/4G LTE Modules;

- Support automatically power on after AC power restored;

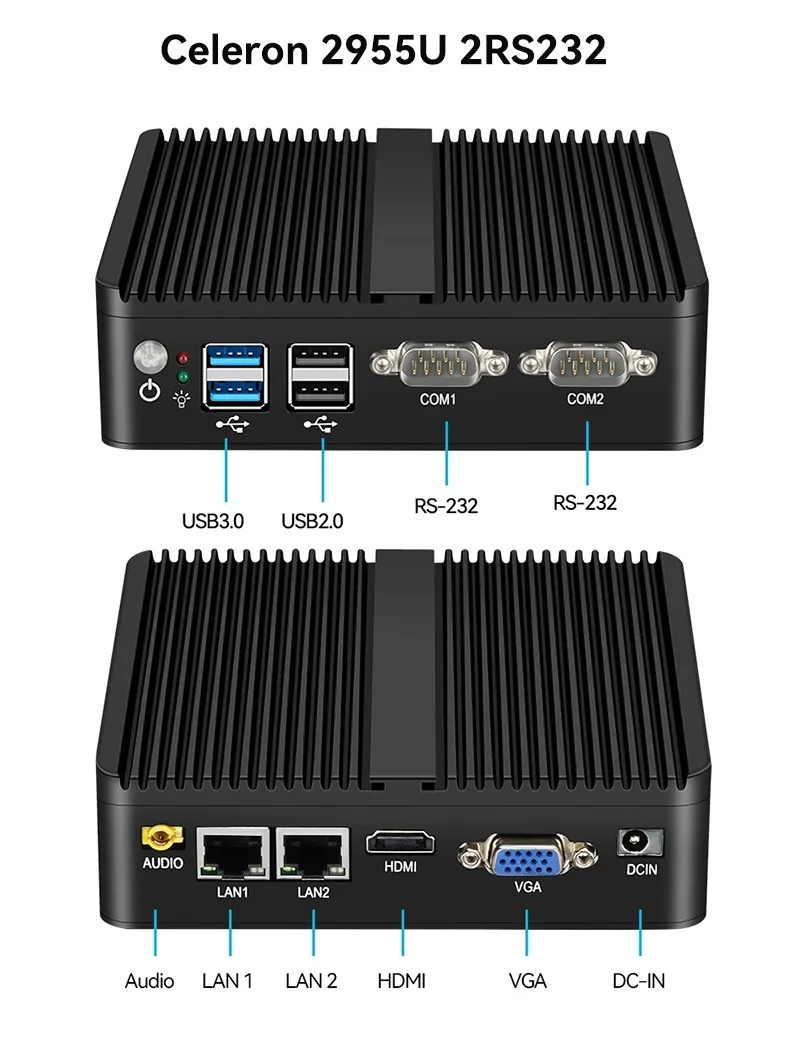

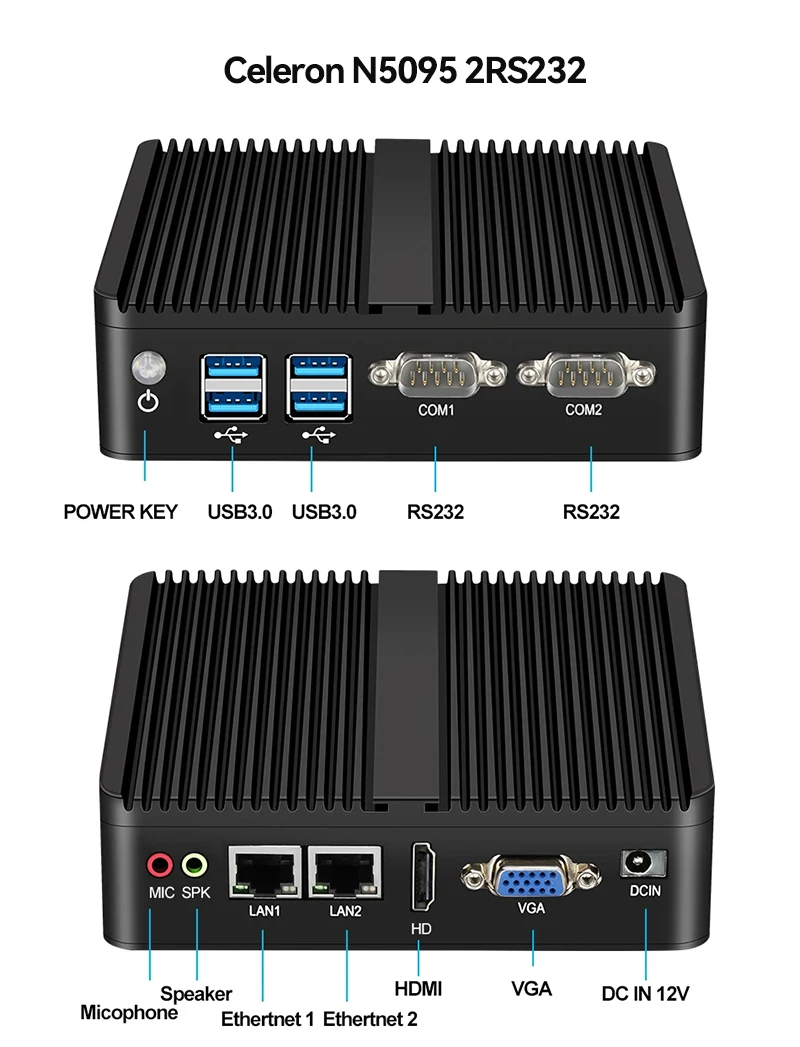

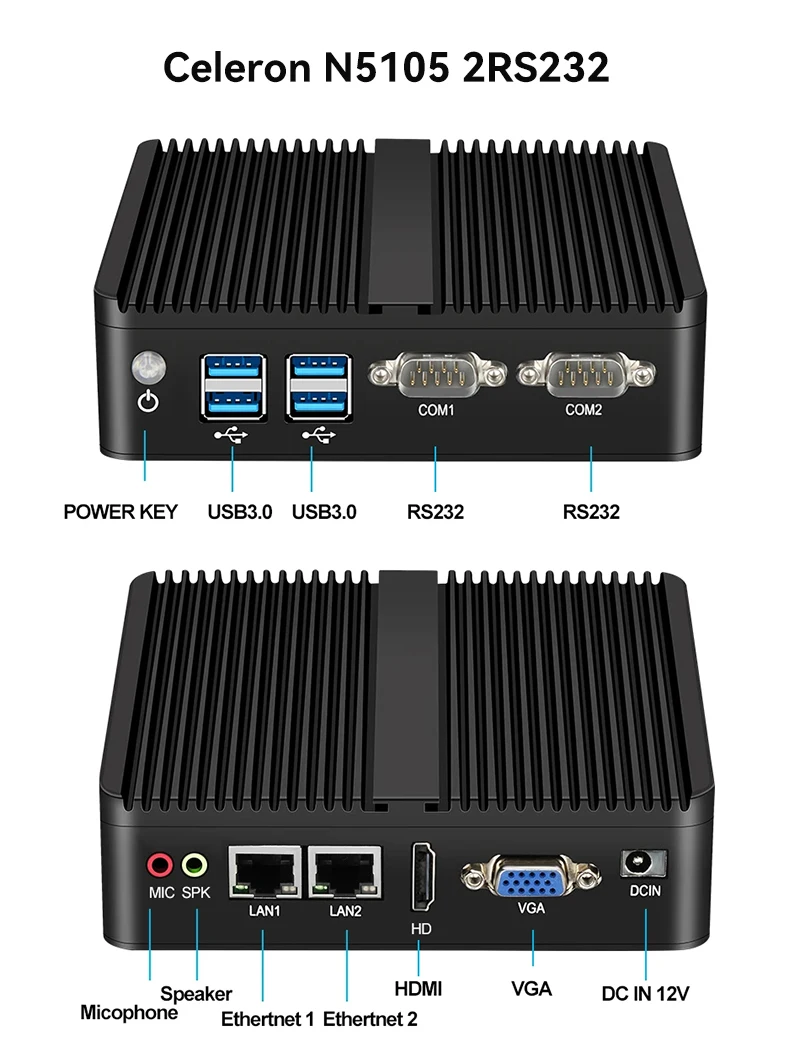

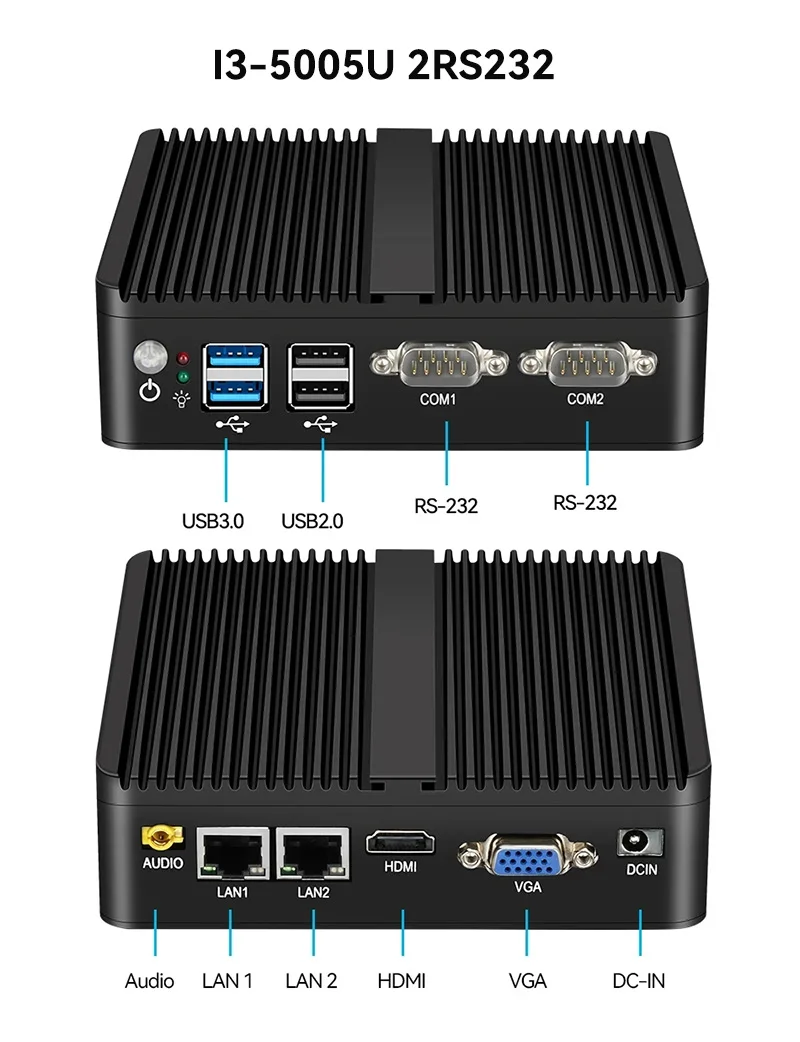

Processors	Intel Celeron J4125, 4 cores 4 threads, 4M Cahce, 2.0GHz, up to 2.70GHz Intel Celeron J6412, 4 cores 4 threads, 1.5M L2 Cache, 2.0GHz, up to 2.60GHz Intel Core i3-5005U, 2 cores 4 threads, 3M Cache, 2.00GHz Intel Celeron N5095, 4 cores 4 threads, 4M Cahce, 2.00GHz,up to 2.90GHz Intel Celeron N5105, 4 cores 4 threads, 4M Cahce, 2.00GHz,up to 2.90GHz Intel Celeron N2830, 2 cores 2 threads, 2M Cahce, 2.16GHz up, to 2.41GHz Intel Celeron 2955U, 2 cores 2 threads, 2M Cahce, 1.40GHz Intel Celeron 3205U, 2 cores 2 threads, 2M Cache, 1.50GHz Intel Pentium 3805U, 2 cores 2 threads, 2M Cahce, 1.90GHz
Memory Types	J4125 J6412 N5095 N5105 processors use 1x SODIMM DDR4 RAM 2400MHz, other processors use 1x SODIMM DDR3L1333/1600MHz i3-5005U / J6412 max support to 1x 16GB RAM, others CPUs max support 1x 8GB RAM
Hard Drive Types	J6412 N5095 N5105 support 1x M.2 NVME/SATA 2280 SSD, 1x 2.5 inch HDD/SSD; Other CPUs support 1x mSATA SSD, 1x 2.5 inch SATA HDD/SSD
Processor Graphics	J4125: Intel UHD Graphics 600 J6412: Intel UHD Graphics for 10th Gen Processor N2830/2955U/3205U/3805U: Intel HD Graphics i3-4005U: Intel HD Graphics 4400 i3-5005U: Intel HD Graphics 5500
Network Interfaces	2x GbE RJ45 Realtek 8111E, Support Wake on LAN, PXE boot
Expansion	1x Mini PCI-E slot, J4125/J6412 model mini PCI-E support WiFi/Bluetooth/3G/4G modules, with SIM slot; other CPUs 's mini PCI-E support WiFi/Bluetooth modules, without SIM slot.
OS Support	J6412 support windows 11, windows 10, Linux/Ubuntu/CentOS J4125 support windows 10, Windows 8.1, Linux/Ubuntu/CentOS i3-4005U/i3-5005U Celeron 2955U/3205U/N2830 Pentium 3805U support Windows 10, Windows 8.1, Windows 7, Linux/Ubuntu/Centos more OS please contact us.
USB Ports	J4125 J6412: 4x USB3.0, 2x USB2.0 others CPUs: 2x USB3.0, 2x USB2.0
Display Port	1x VGA, 1x HDMI, supports dual monitors independently video output
COM Ports	J6412 : 2x RS-232/RS-485, jumper free setting Other CPUs : 2x RS-232
Audio Ports	Realtek RTL662/897 HD Audio, 3.5mm combo audio jack 2-in-1 Support MIC in, Line out
Construction	Fanless passive cooling
Case Materials	Aluminum Case
Dimension	135x124x40mm
Netweight	1.0Kg
Storage Temperature	﹣20℃to +60℃
Operating Temperature	﹣20℃to +60℃
RH	5%~90% @30℃, Non-condensing
Working Voltage	DC12V-3A/5A (customize working voltage please contct us)
Package List	1x Mini PC X30G 1x AC Adapter 1x Power cord ( EU AU US UK type plug shipped according to buyer’s address ) 1x SATA cables 1x User manual
