Product Details:

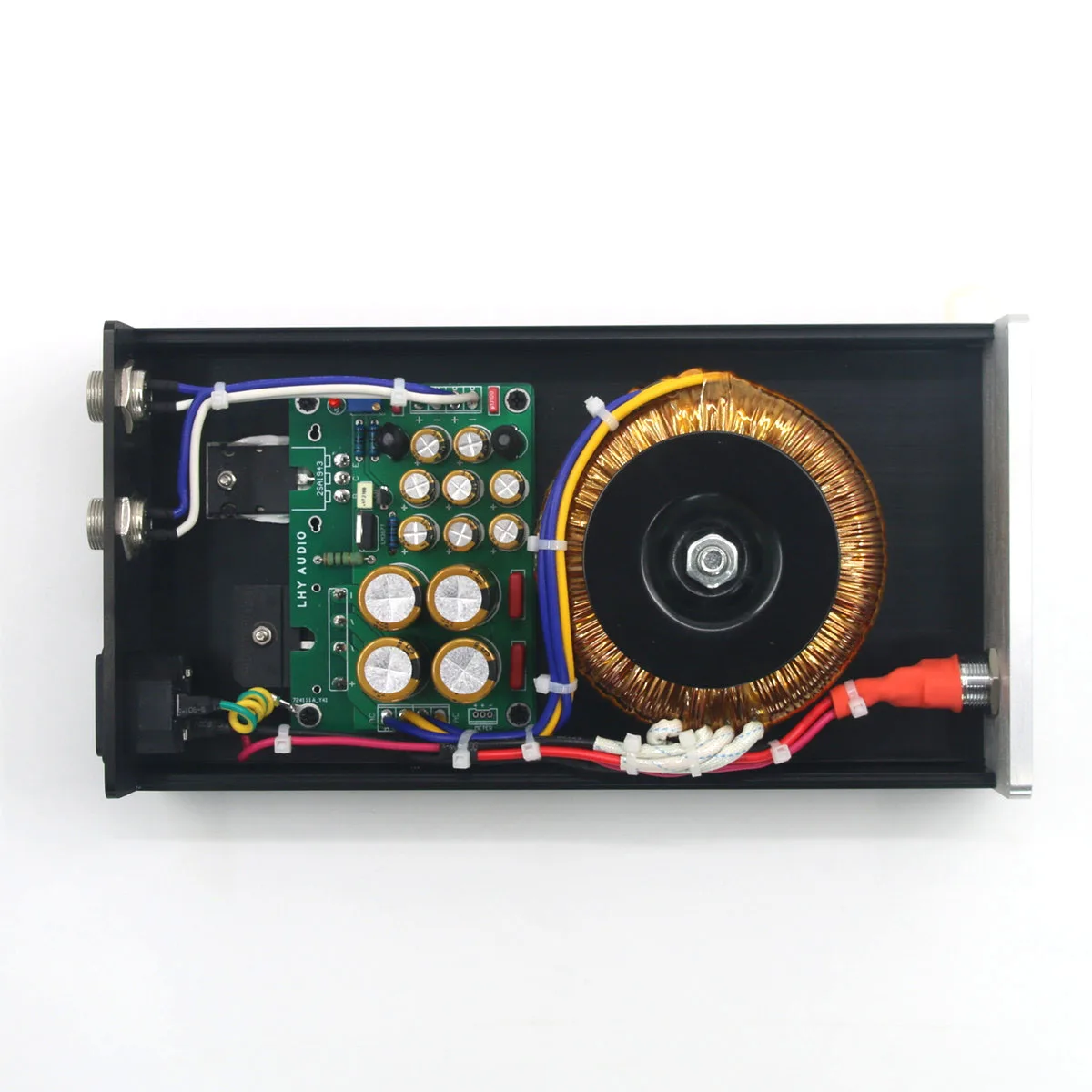

This is a high-current DC voltage regulator circuit with a good price-performance ratio. It uses the new Japanese Yen high-power rectifier bridge, LM317 and TL431 as the voltage reference, and cooperates with the Toshiba high-current tube A1943 as the output tube, and the CLC filter decoupling circuit. It features good output linearity at high current, stable voltage, wider bandwidth than LT1083CP, and excellent cost performance. Very suitable for notebook power supply, NAS hard disk box and other linear power upgrades.

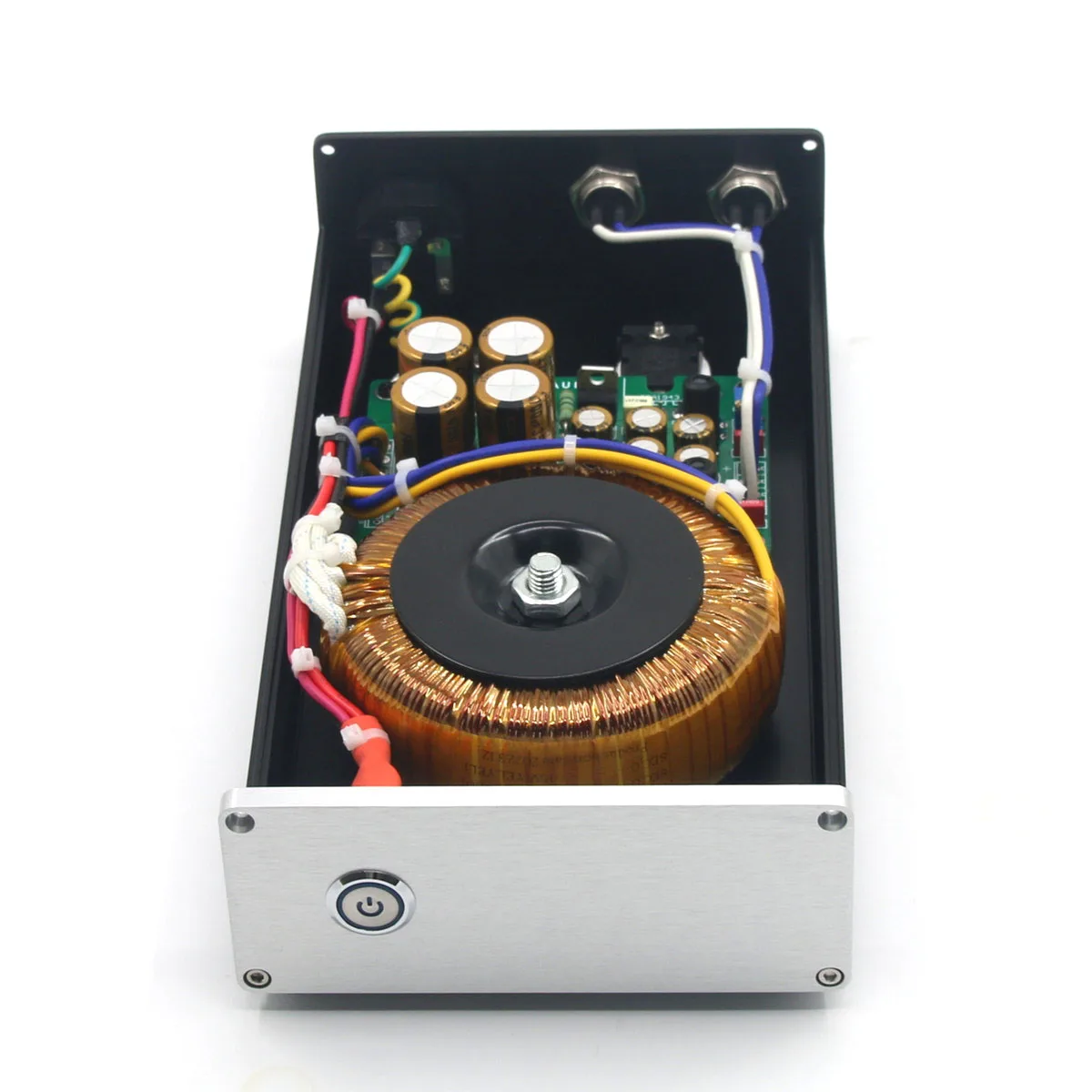

Use a specially customized 120W toroidal transformer.

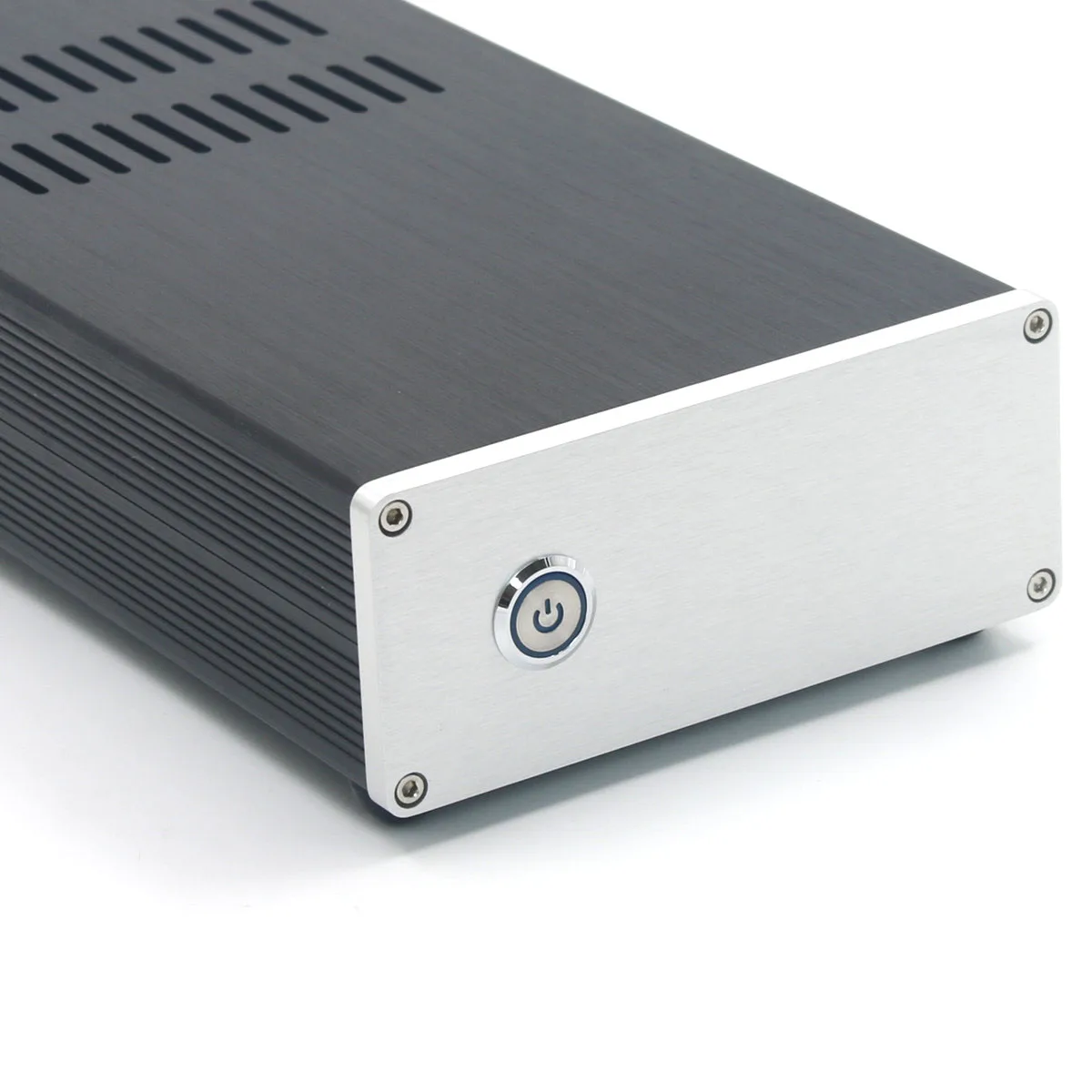

Use an all-aluminum chassis can better dissipate heat for the power supply.
Use all Nichicon capacitors imported from Japan.Wima capacitance.
Use a metal power switch with an indicator light.
Specifications:
Power: 120W
Working voltage: AC115V or AC230V (For choice)
Output voltage(DC dual channels in parallel): DC5V, DC9V, DC12V, DC15V, DC18V, DC21V, DC24V
Two ports in parallel can only output the same voltage.
We also can accept custom-make other voltage.

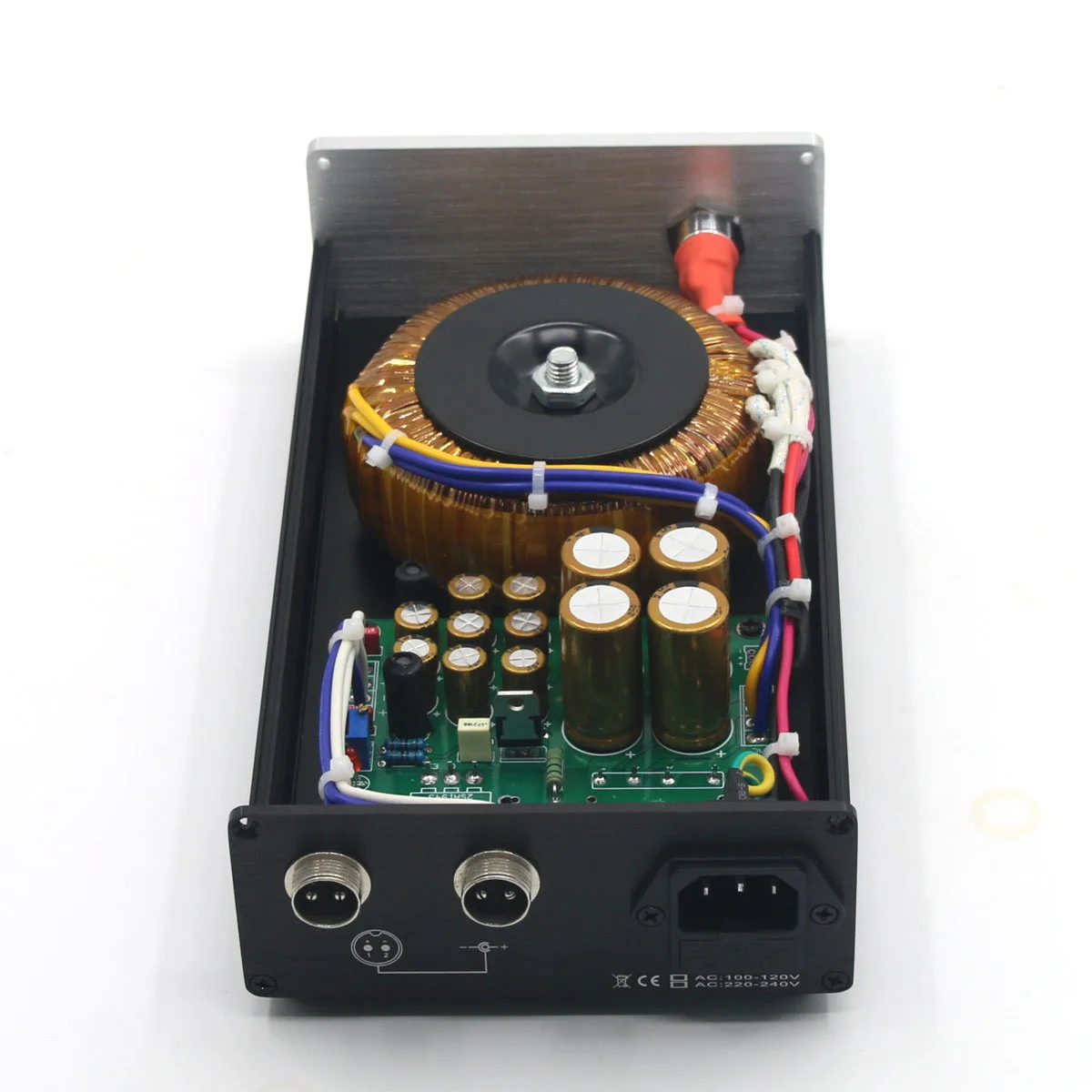

Output terminal: 2*2P output seat (Because the two output ports are in parallel, only the same voltage can be output)
Output DC cable plug type: default 5.5*2.5mm (Polarity: Internal + / outside-)
Dimensions (W*H*D): 130*55*250MM
Net weight: about 2.45KG
Heat dissipation form: chassis heat dissipation, the power tube is installed in the shell. So when the current is large, the chassis will heat up, and the greater the current, the hotter the chassis will be. This is normal. Pay attention to ventilation and heat dissipation.
Package List:
1 × 120W Linear Power Supply
2 × DC5.5-2.5mm DC Power Output Cable
Note: AC power cord is not included.
