Current type | Operating form | Contact form | Connection form | Model number | Remark | Related product |

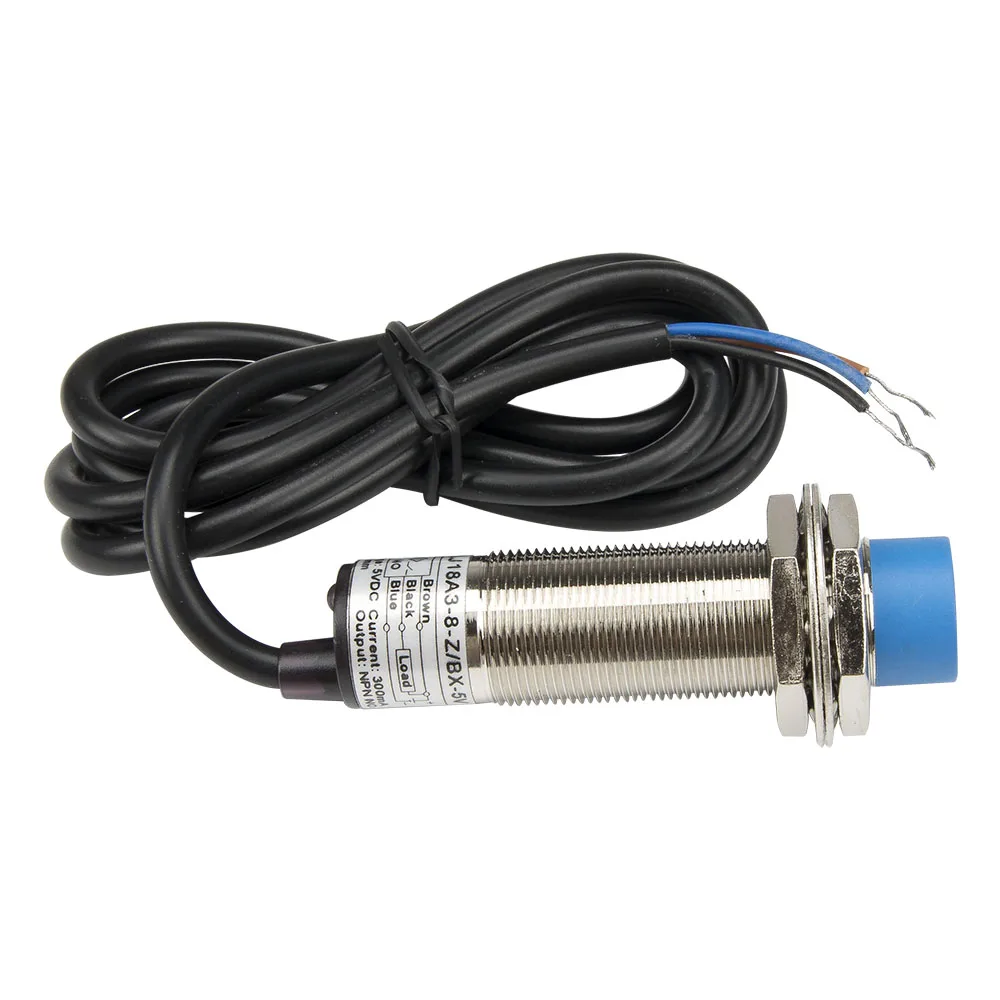

DC | NPN | NO | Wire lead | LJ18A3-8-Z/BX | 6-36Vdc | |
DC | NPN | NO | Wire lead | LJ18A3-8-Z/BX-15MM | 6-36Vdc, 15mm Sn | |
DC | NPN | NO | Wire lead | LJ18A3-8-Z/BX-20MM | 6-36Vdc, 20mm Sn | |
DC | NPN | NO | Wire lead | LJ18A3-8-Z/BX-5V | 5Vdc | Visiting... |
DC | NPN | NC | Wire lead | LJ18A3-8-Z/AX | 6-36Vdc | |
DC | NPN | NC | Wire lead | LJ18A3-8-Z/AX-5V | 5Vdc | Visiting... |
DC | NPN | NO+NC | Wire lead | LJ18A3-8-Z/CX | 6-36Vdc | |
DC | PNP | NO | Wire lead | LJ18A3-8-Z/BY | 6-36Vdc | |
DC | PNP | NO | Wire lead | LJ18A3-8-Z/BY-5V | 5Vdc | Visiting... |
DC | PNP | NC | Wire lead | LJ18A3-8-Z/AY | 6-36Vdc | |
DC | PNP | NO+NC | Wire lead | LJ18A3-8-Z/CY | 6-36Vdc | |
DC | Two wires | NO | Wire lead | LJ18A3-8-Z/EX | 6-36Vdc | |
DC | Two wires | NC | Wire lead | LJ18A3-8-Z/DX | 6-36Vdc | |
AC | Two wires | NO | Wire lead | LJ18A3-8-J/EZ | 90-250Vac | |
AC | Two wires | NO | Wire lead | LJ18A3-8-J/EZ-36V | 36Vac | |
AC | Two wires | NO | Wire lead | LJ18A3-8-J/EZ-380V | 380Vac | |
AC | Two wires | NC | Wire lead | LJ18A3-8-J/DZ | 90-250Vac | |
AC | Two wires | NC | Wire lead | LJ18A3-8-J/DZ-36V | 36Vac | |
AC | Two wires | NC | Wire lead | LJ18A3-8-J/DZ-380V | 380Vac |
Model number | LJ18A3-8 series |
External dimensions | M18x1x68 |
Installation type | Non-shielded |
Detection distance | 8mm, 15mm, 20mm |
Setting distance | 6.4 mm |
Supply voltage | 6-36Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz |
Output current | DC type: 300mA max; AC Type: 400mA |
Standard detected object | Mild steel (18x18x1mm) |
Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
Response frequency | 500Hz |
Matched mounting bracket | M18 90° bending mounting bracket, M18 straight mounting bracket |
Output indication | Red LED |
Short-circuit protection | No |
Reverse connection protection | Yes |
Insulation resistance | 50MΩ min (between charging part and housing) |
Dielectric strength | 1000Vac, 1min (between charging part and housing) |
IP Rating | IP65 |
Operating temperature | -25 to 70 °C (13 to 158 °F) |
Cable length | 1.2m, PVC cable |
Material | Case: Brass-nickel plated; Sensing surface: ABS |

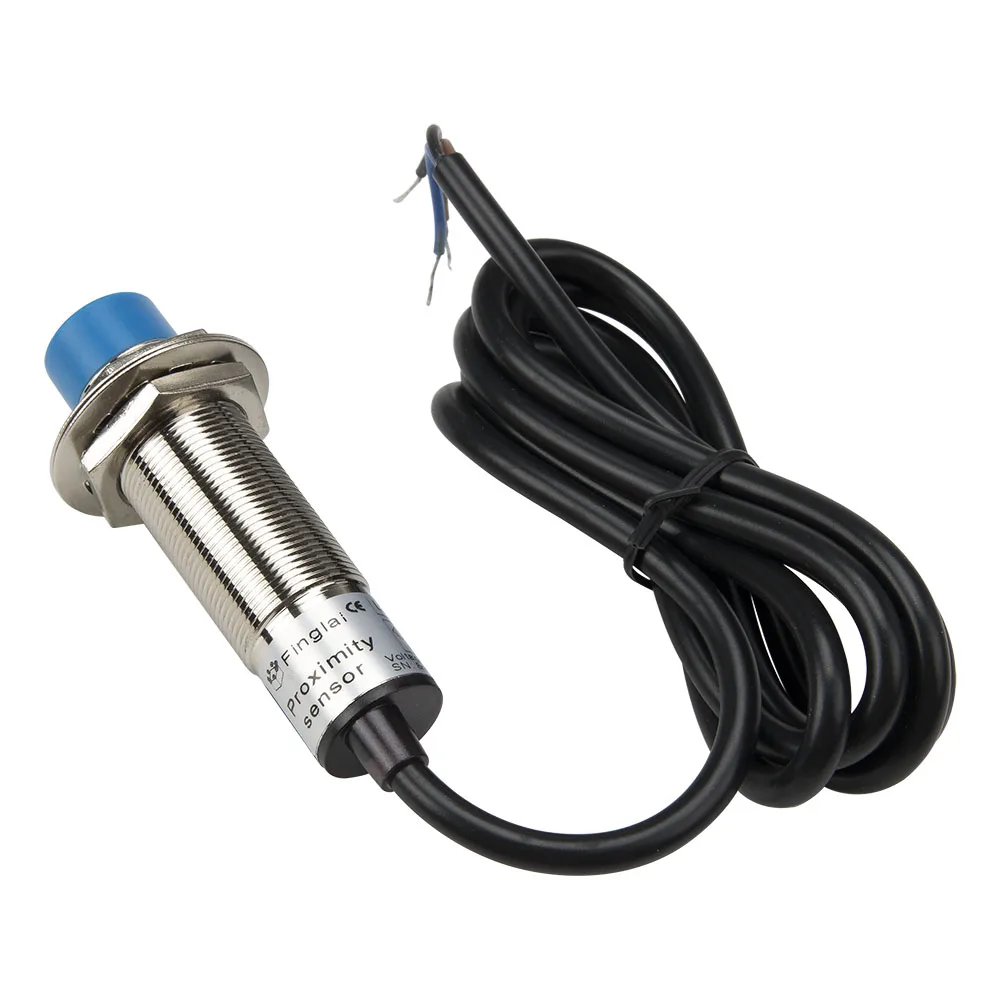

Alias name | LJ18A3-8 series cylinder inductive proximity switches |
