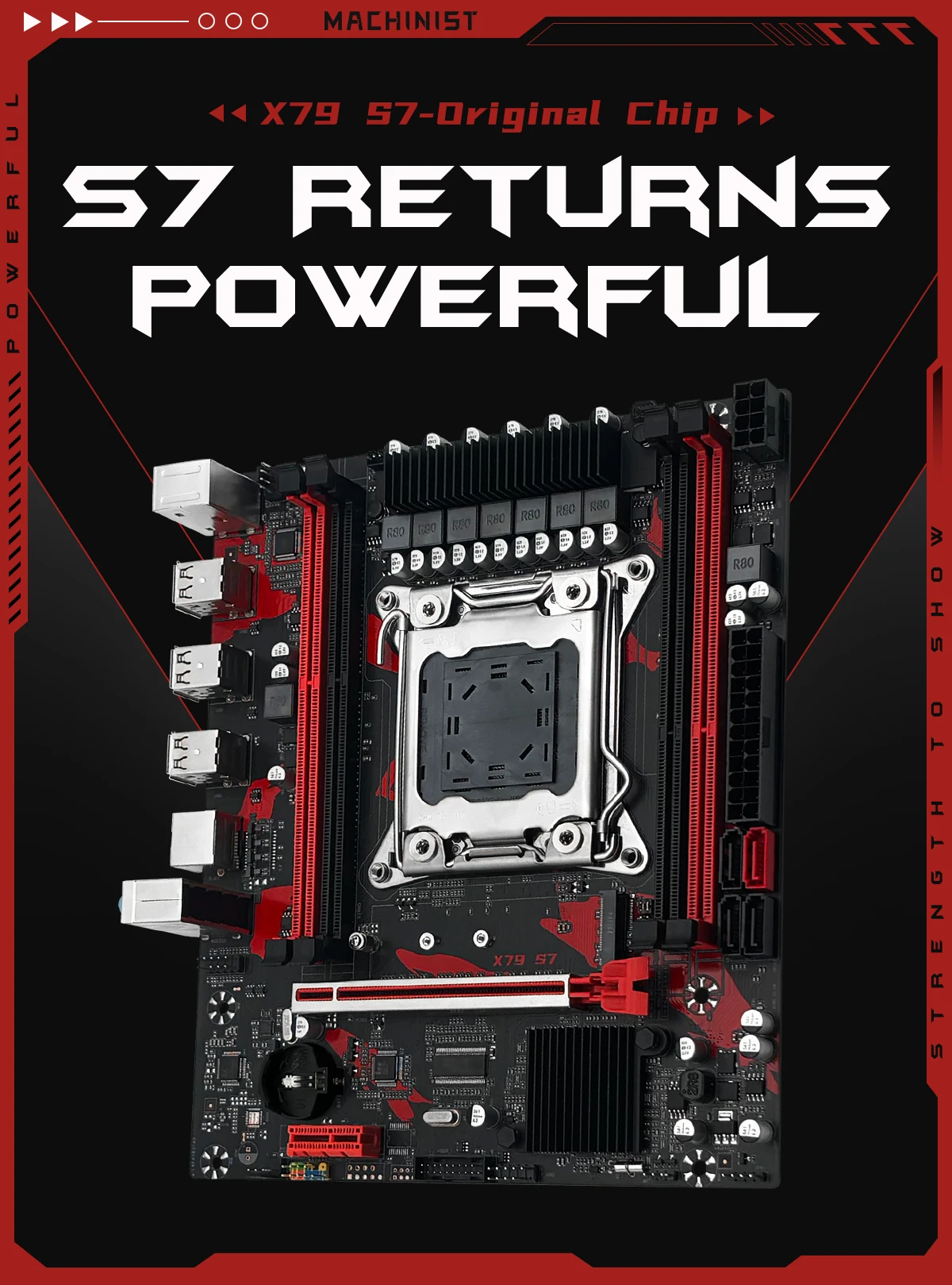

MACHINIST X79 S7 Motherboard, Optional Xeon E5 2650 V2 CPU LGA 2011 Processor and DDR3 16G Memory RAM Kit Set NVME M.2

>> The product has multiple matching options. Before purchasing, please select the desired kit combination. You can choose ↓

1,Motherboard

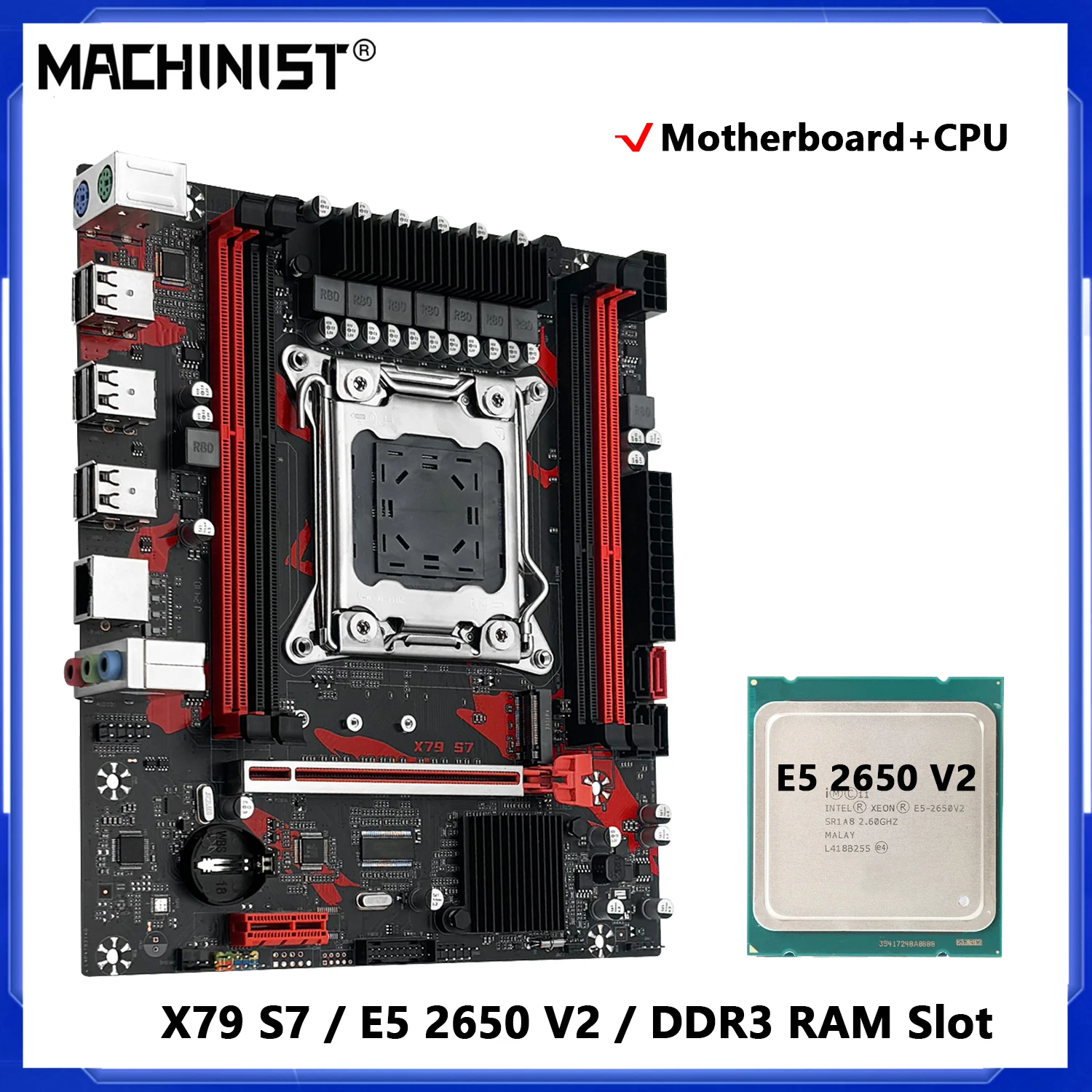

2,Motherboard+CPU

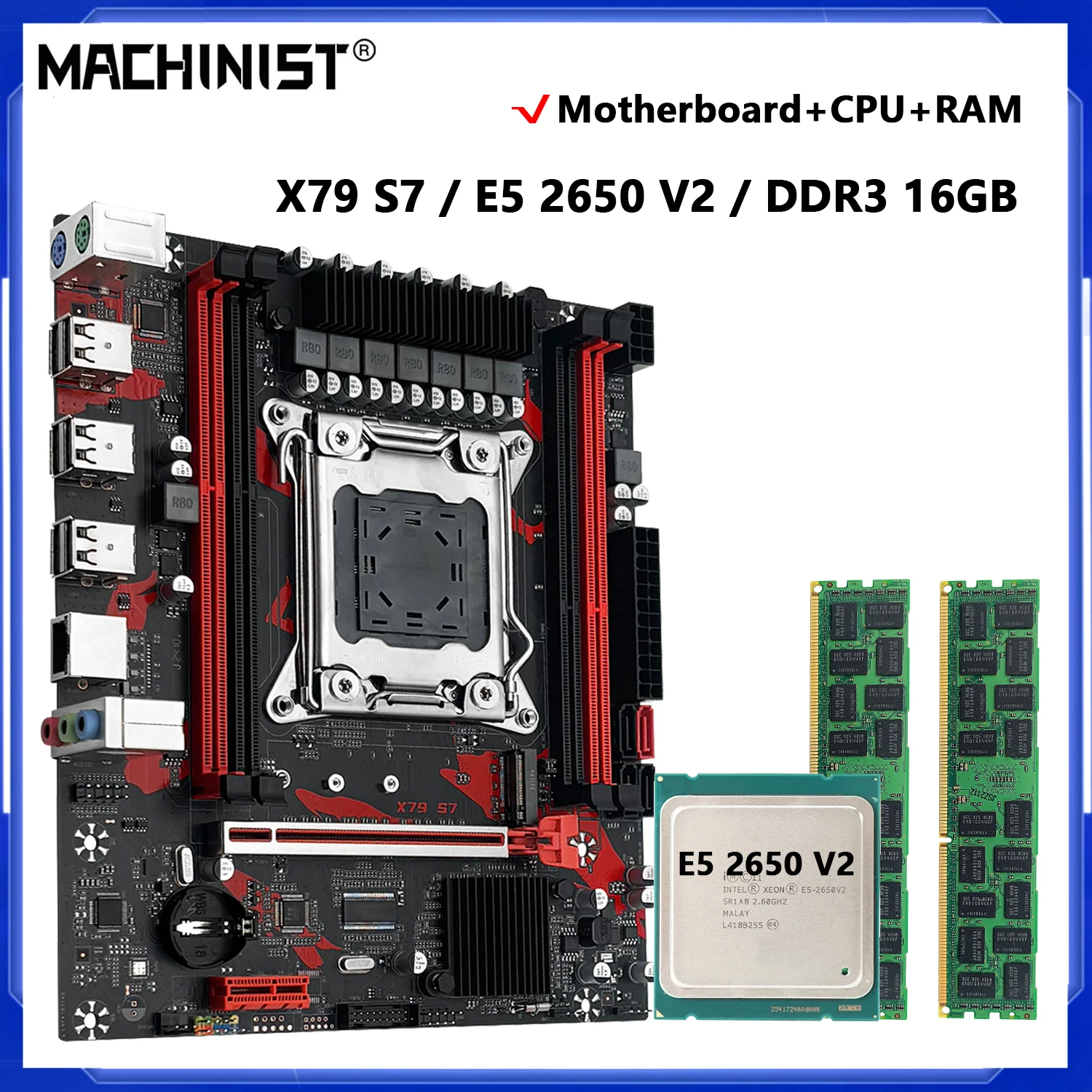

3,Motherboard+CPU+RAM

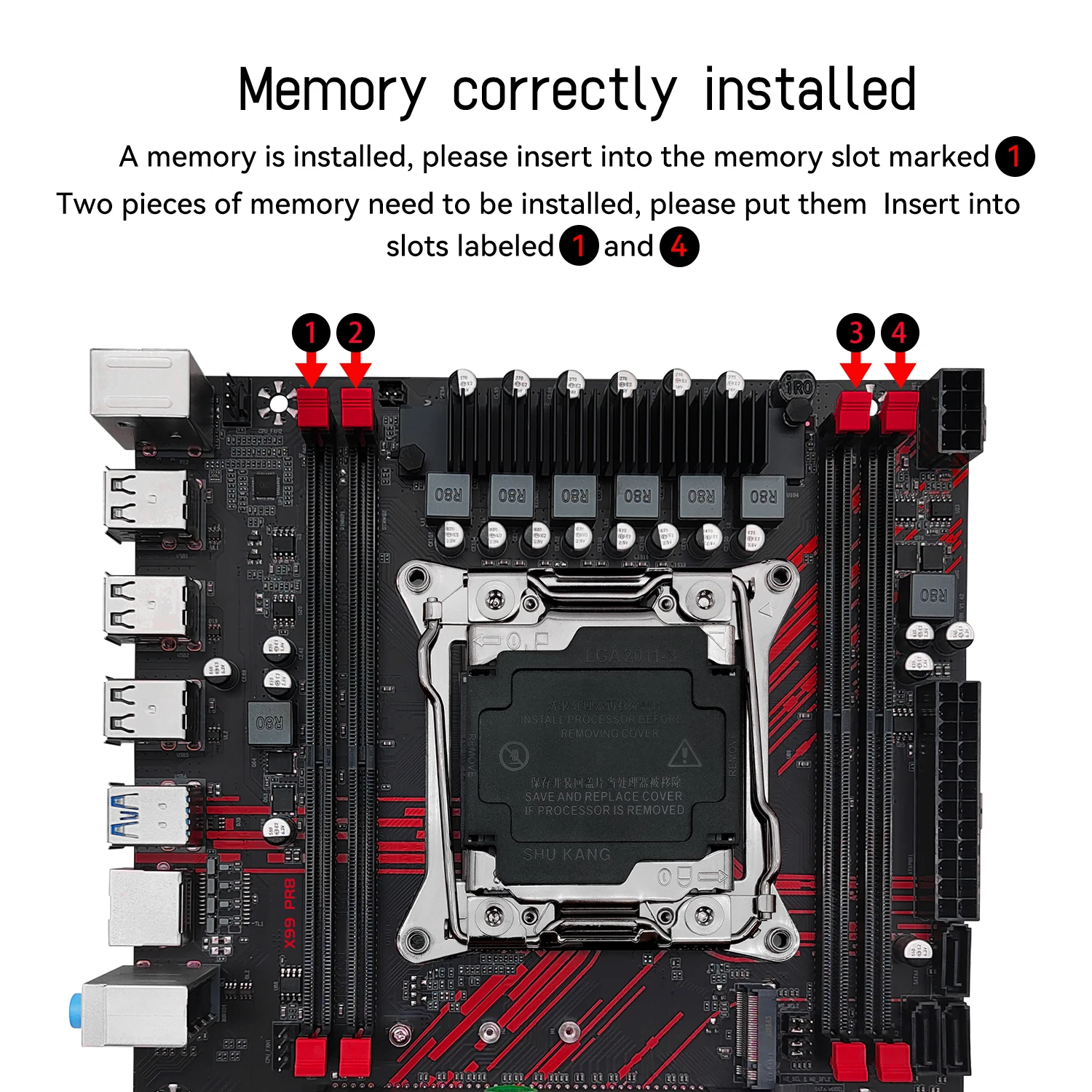

>> Please note that the memory slot on this motherboard should be correctly installed as shown in the fifth picture.

>> The current version uses the default UEFI boot option. If you install the graphics card, you need to confirm whether your graphics card supports UEFI functionality. Alternatively, you can enter the BIOS and change the boot option to legacy mode.

>> Motherboard Information:

Brand: MACHINIST.

Motherboard Model: X79 S7.

Processor: Supports Intel LGA2011-pin series processors.

Chipset: Intel X79 Chipset.

Included Accessories: I/O Shield *1, SATA Cable *1.

(All before sending were tested manually and then packaged. If any gift items are missing, please understand!)

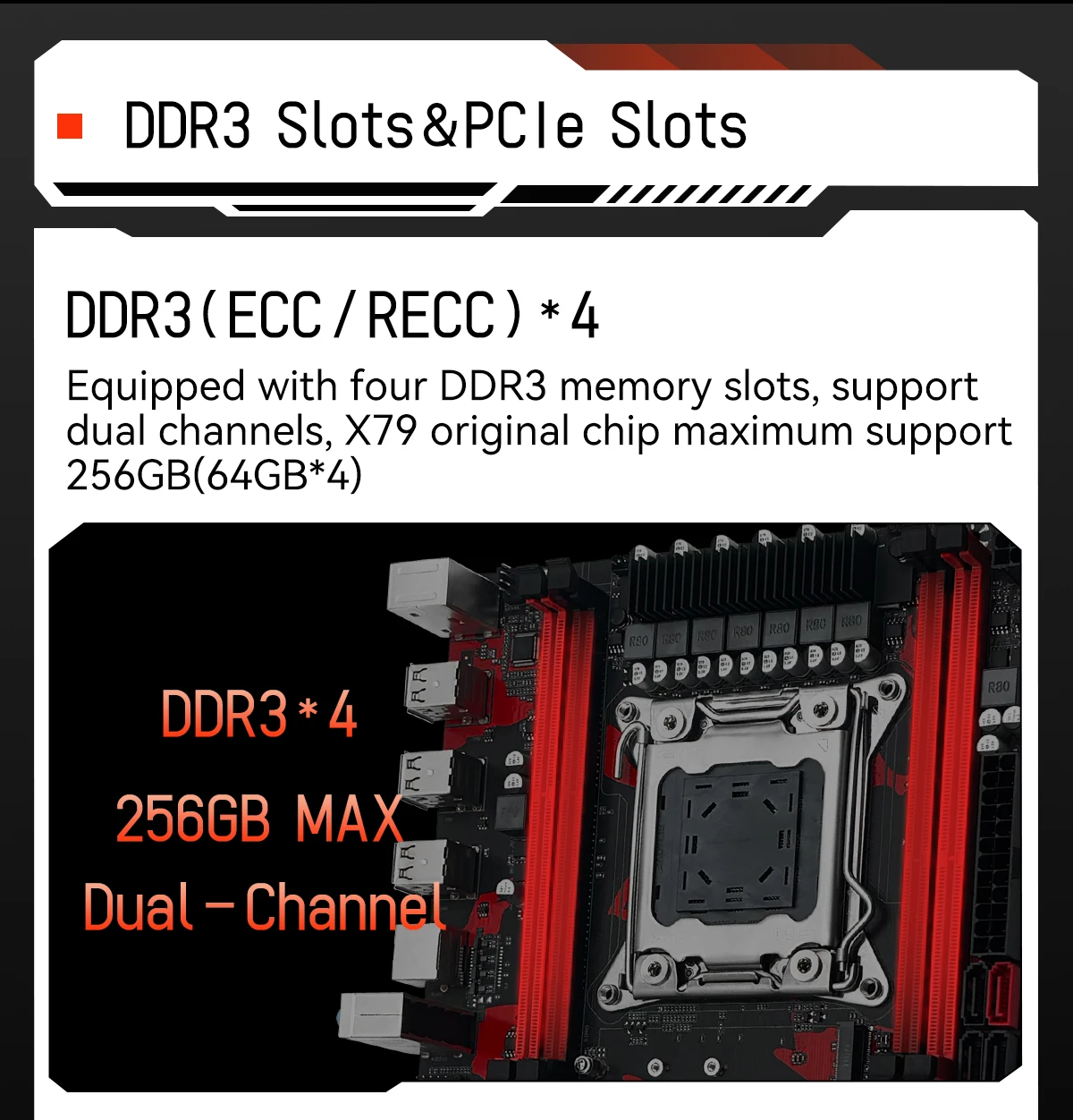

> > Memory:

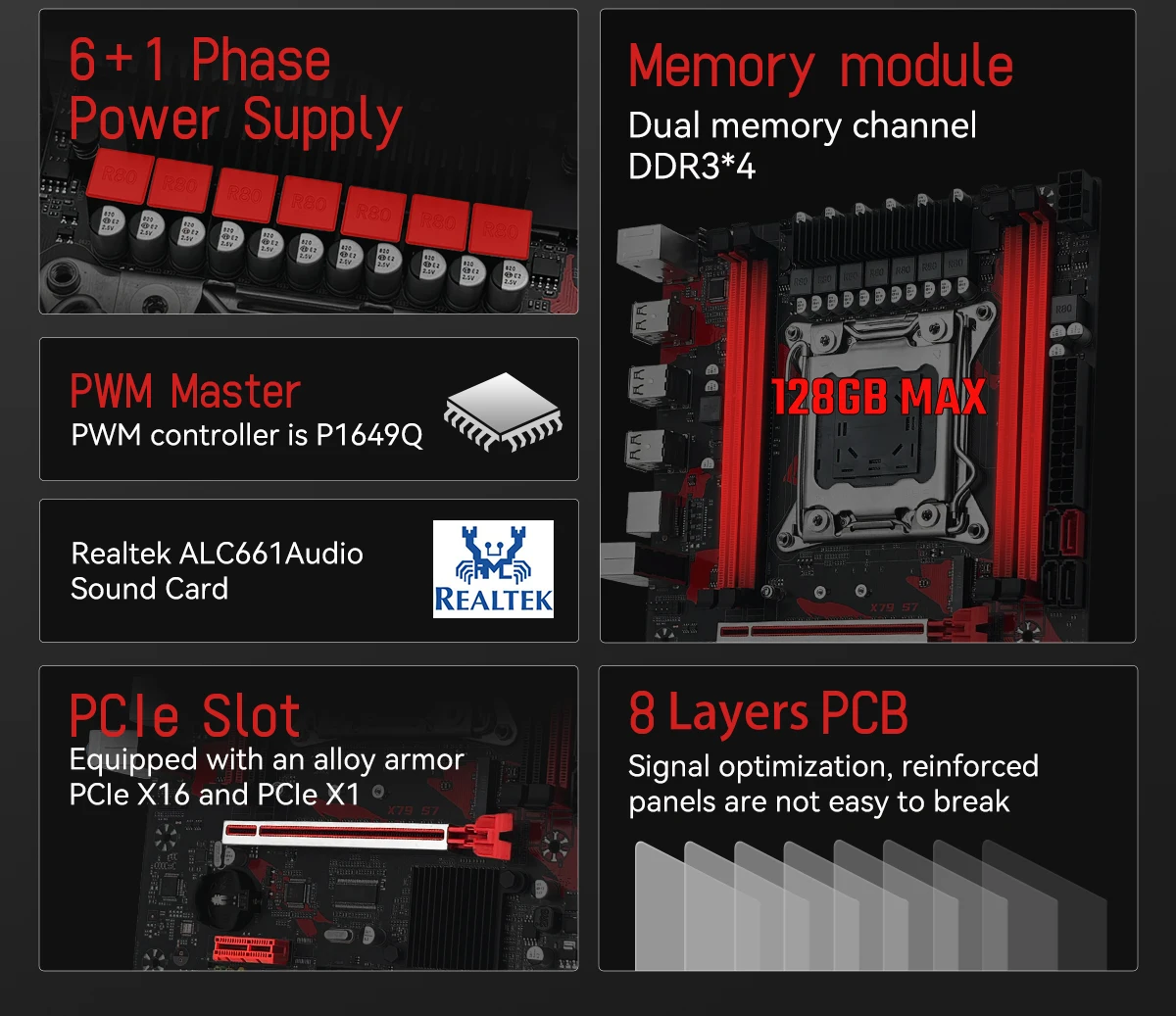

Technology: Dual-channel DDR3. Supports 1066/1333/1600/1866 MHz.

Maximum capacity: 128GB (32G x 4).

Memory slots: 4 * 240 PIN DDR3.

Supported memory types: DDR3 for desktops and servers.

(Notes: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may have incompatibility issues.)

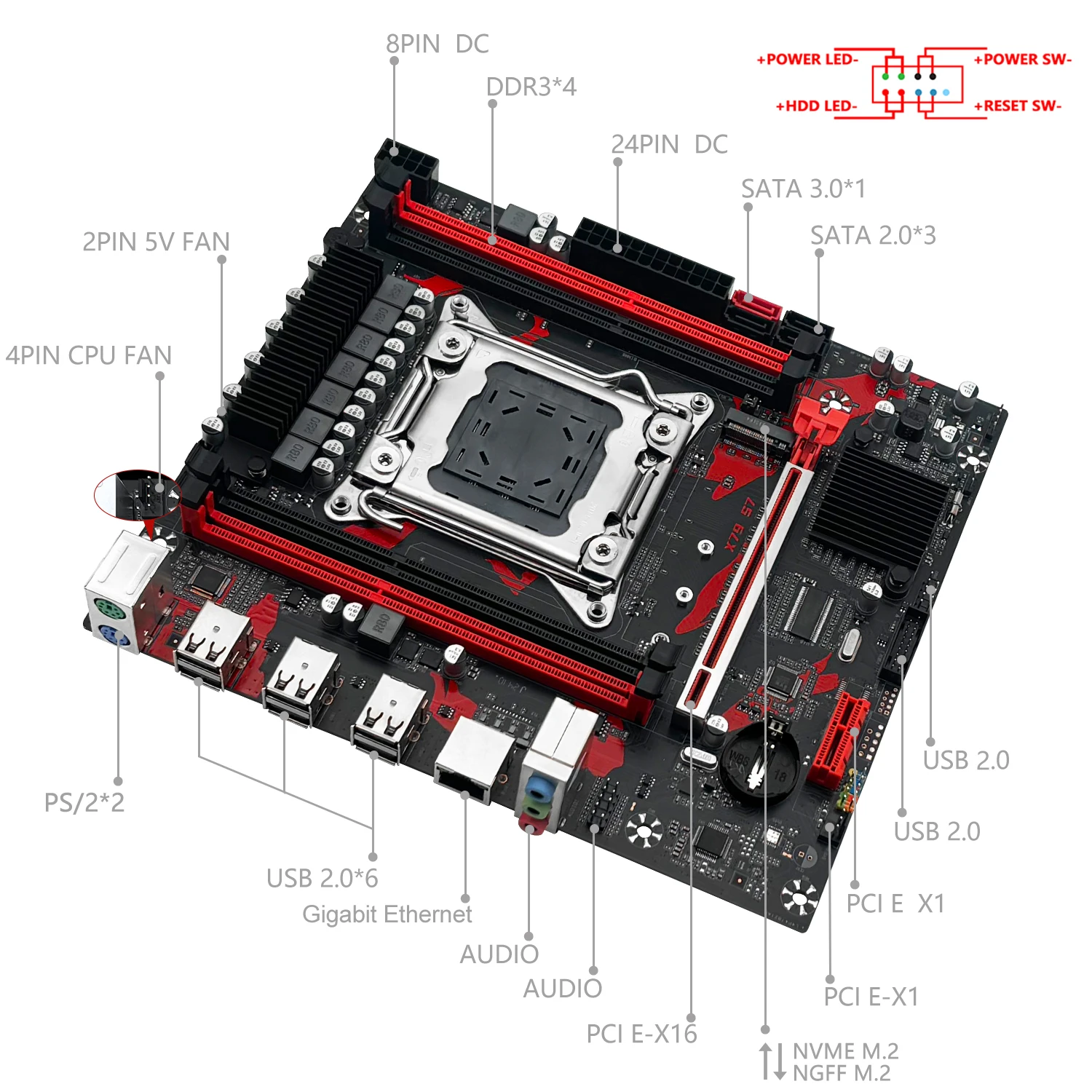

>> Post I/O:

PS/2: 1 KB interface + 1 MS interface.

USB interface: 6 USB 2.0 ports.

Ethernet: 1 Gigabit network card.

Audio: 1 (Mic-in, Line-out, Line-in).

>>Internal Connectors:

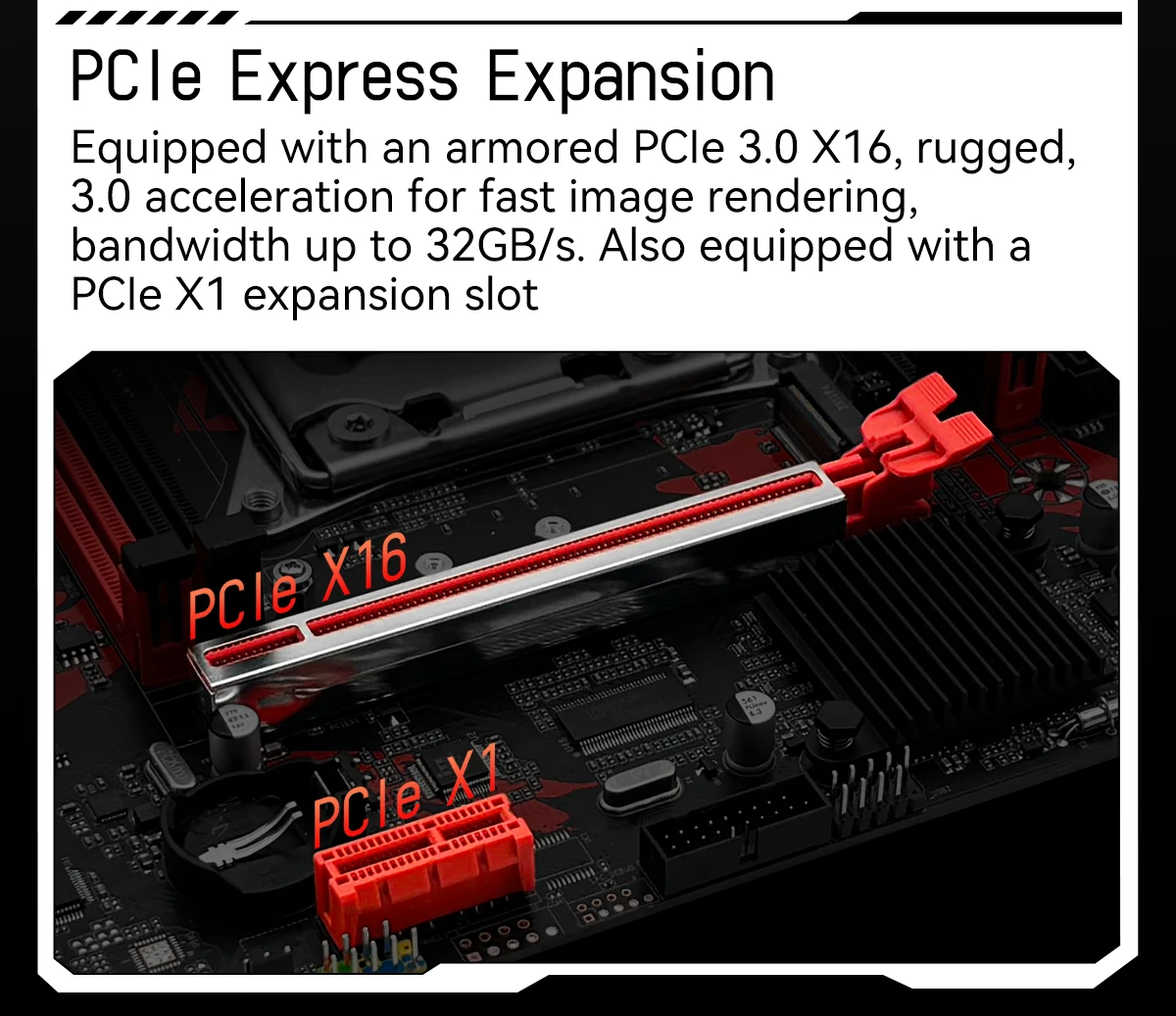

PCIe: 1 PCIe 16x, 1 PCIe 1x.

SATA Ports: 4 (3 SATA2.0; 1 SATA3.0);

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket;

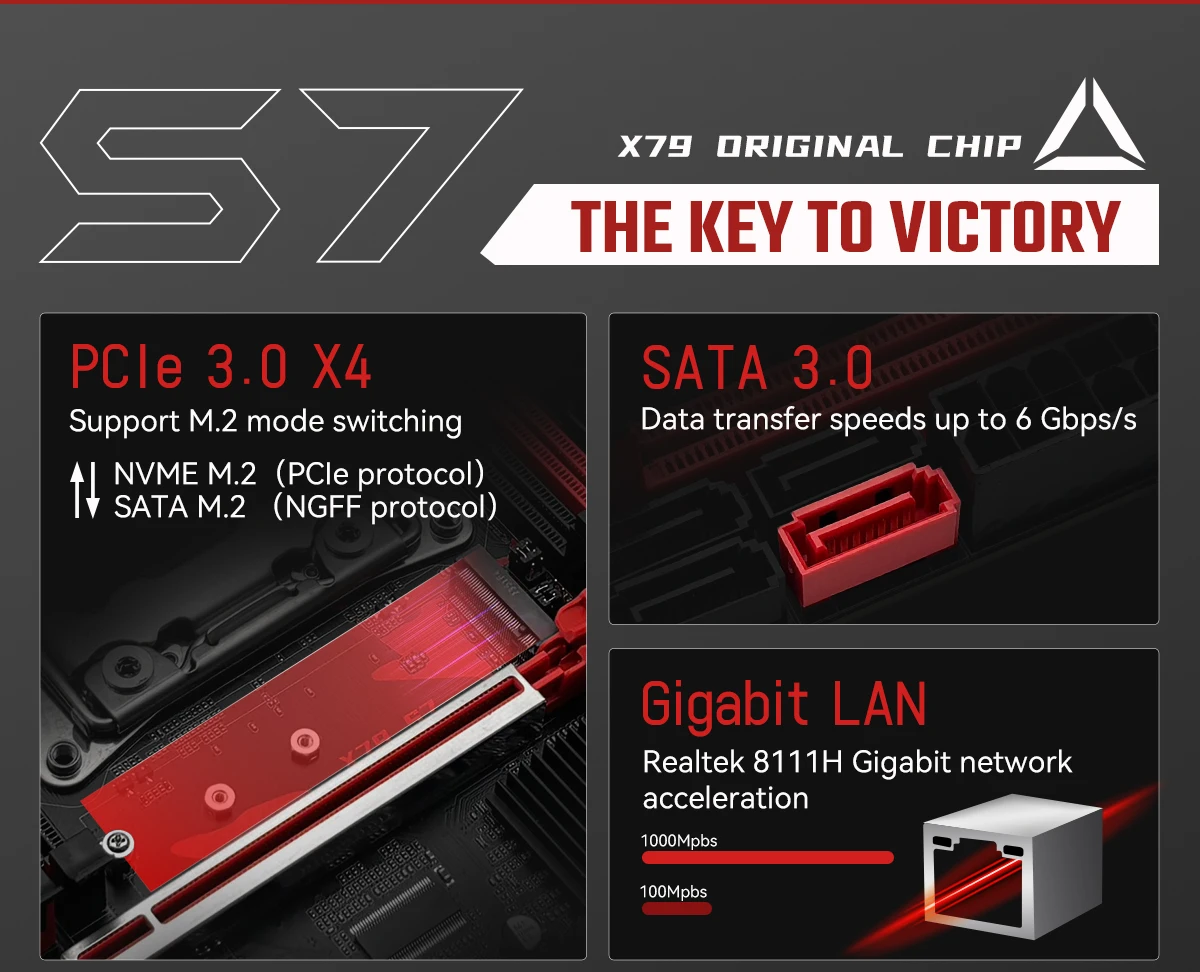

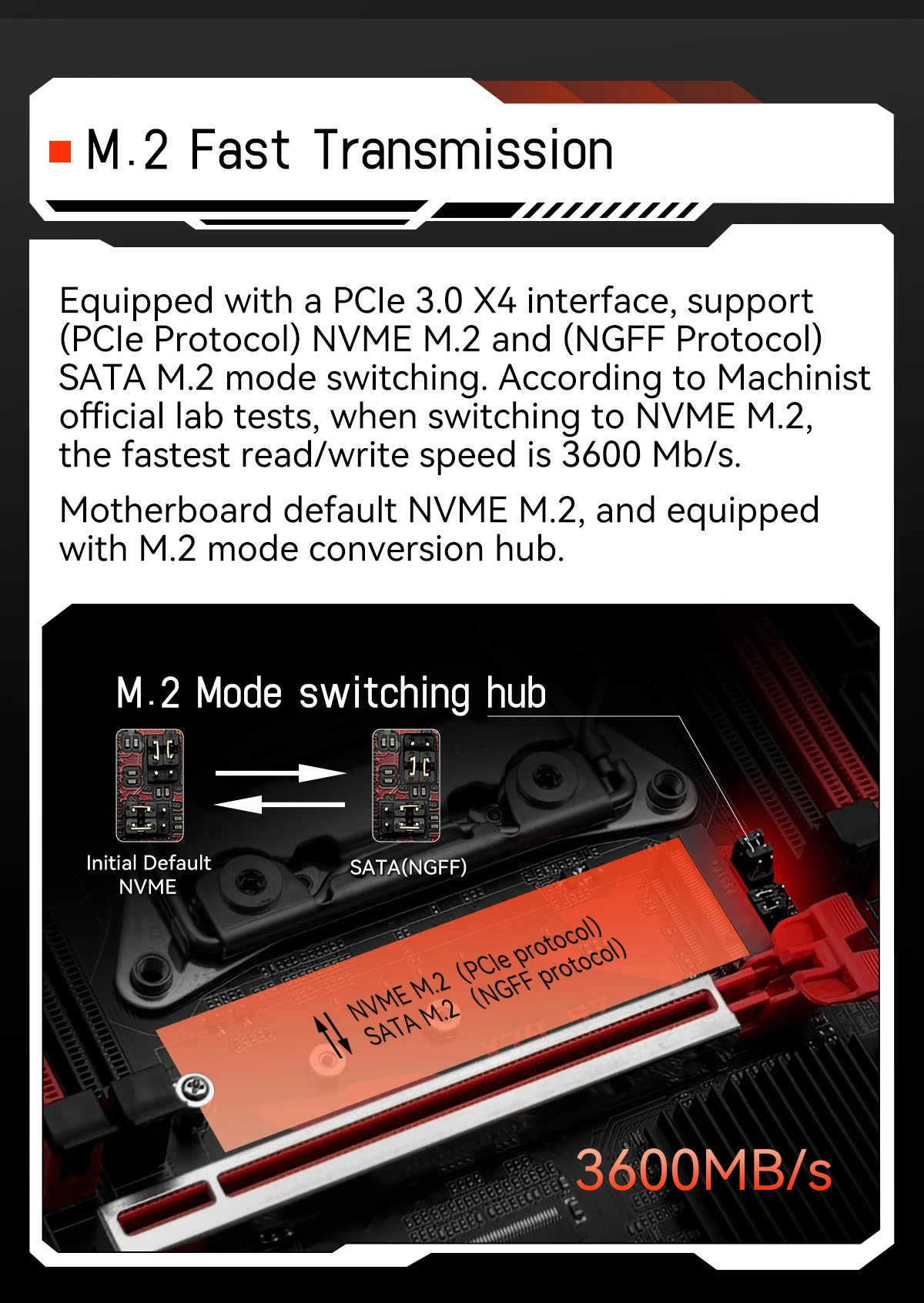

M.2 Interface: 1 (SATA/NVME, default NVME)

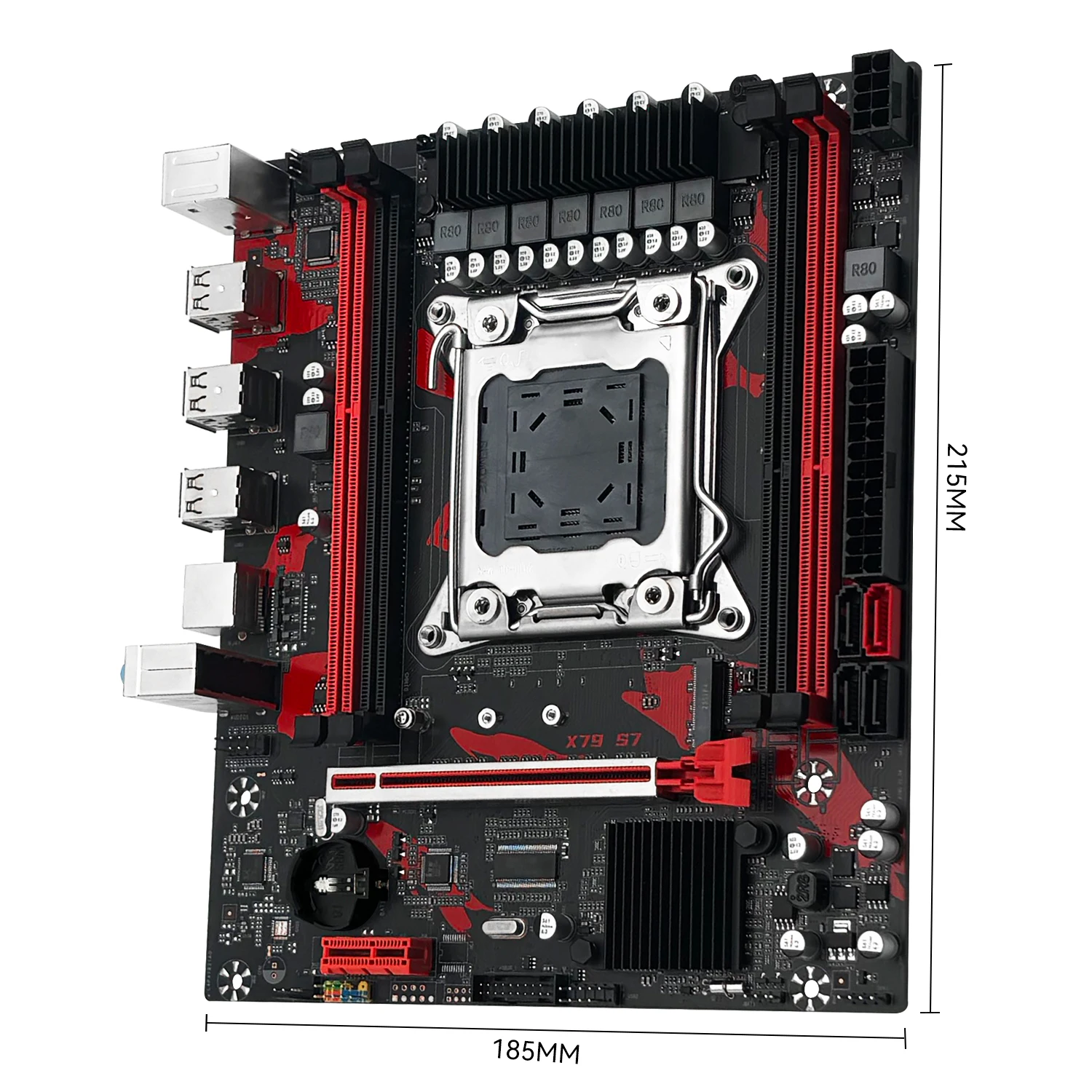

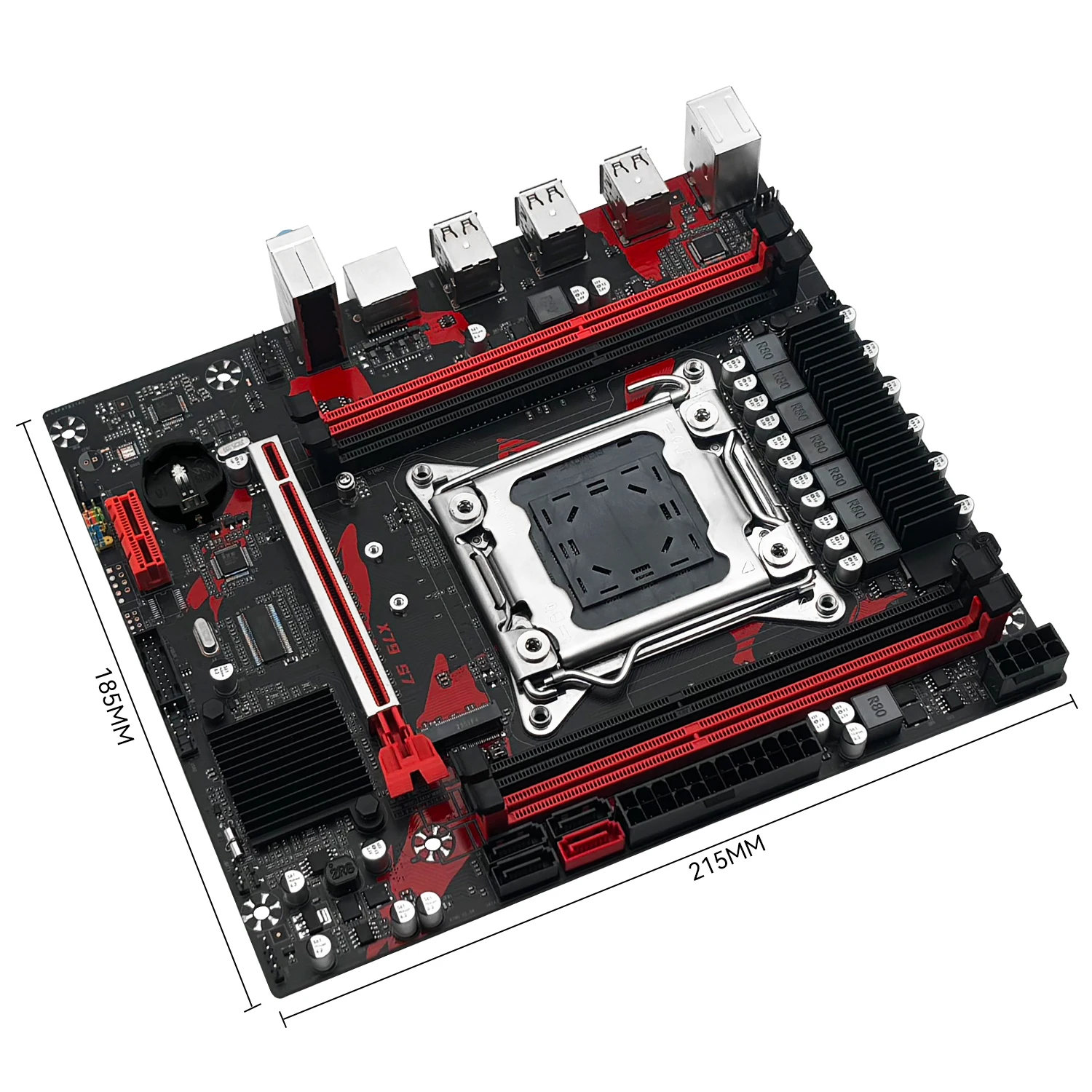

Dimensions: 215mm * 185mm.

Weight of the mainboard (including packaging): approximately 0.8 kilograms .

>> Regarding the issue of tariffs, please make sure that you can handle the customs clearance yourself. If you are unable to resolve it, we do not recommend that you purchase goods in our store. We are not responsible for the tariffs. Thank you for your understanding.

>> Attention:

(1) The color of the bottom plate may vary by batch, but it will not affect the use of the product. The product is constantly being improved and upgraded.

(2) Due to manual measurement, a tolerance of 1-3mm is allowed.

(3) Due to different displays and different light conditions, the pictures may not accurately represent the actual color of the item. Thank you for your understanding.

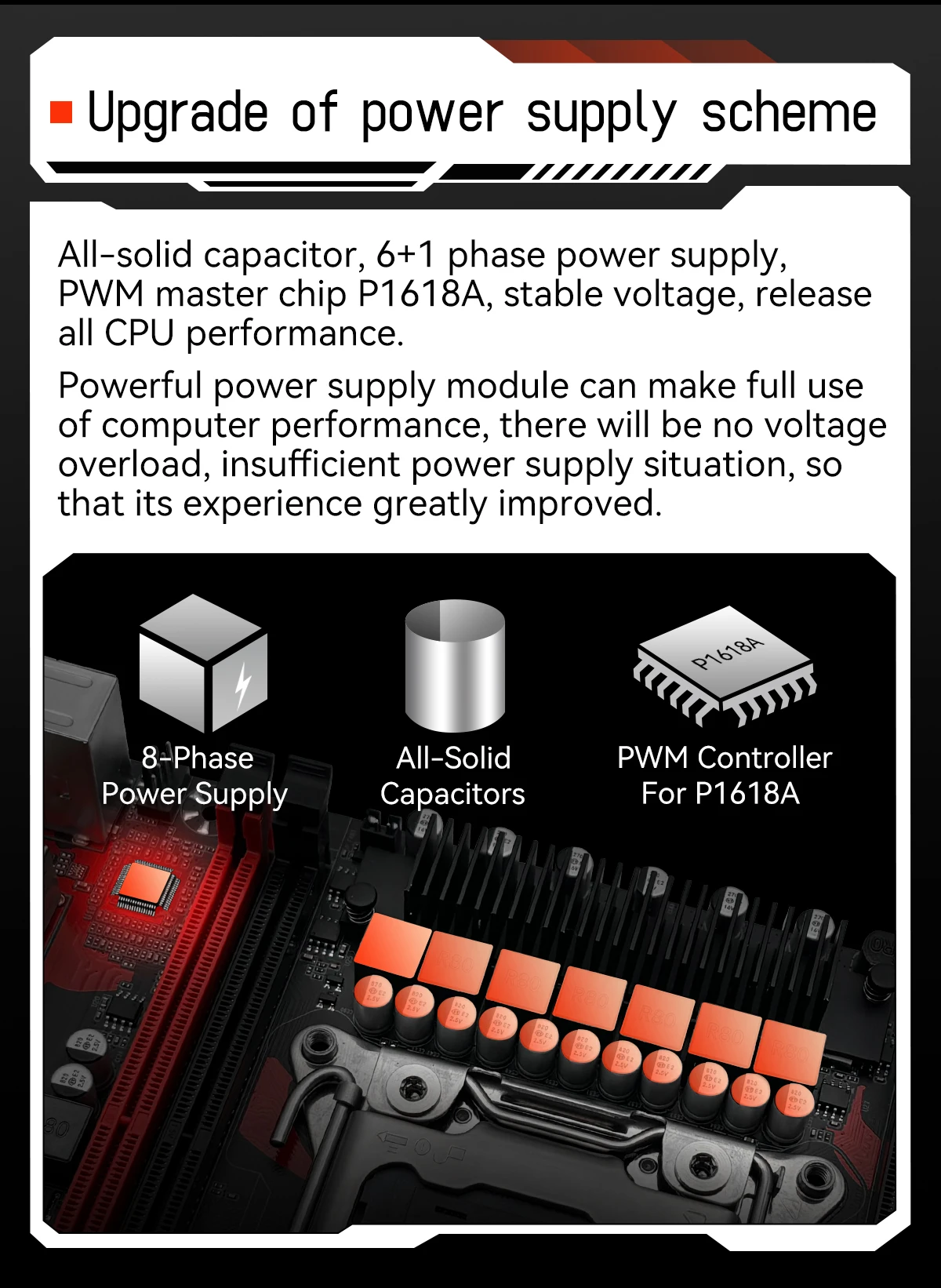

(4) This platform requires a powerful power supply. Please ensure that your power supply is capable of supporting this platform. (At least a 500W brand power supply is required)

(5) The battery shown in the motherboard photo is not included. It will be removed before shipment as the logistics requirements prohibit the use of this battery.
