Hollow or Single Shaft Brake Only
1* Hollow or Single Shaft Magnetic Powder Brake
Hollow or Single Shaft Brake with Controller SJ-180A or TB-200S
1* Hollow or Single Shaft Magnetic Powder Brake
1* Manual Tension Controller
Hollow or Double Shaft Clutch Only
1* Hollow or Double Shaft Magnetic Powder Brake
Hollow or Double Shaft Brake with Controller SJ-180A or TB-200S
1* Hollow or Double Shaft Magnetic Powder Brake
1* Manual Tension Controller
★We can offer 100Nm, 200Nm, 400Nm/brake with base.
★This is a free shipping link for some countries. If you need to pay very high shipping fees, please provide your city name and zip code, and we can recalculate the shipping fees for you

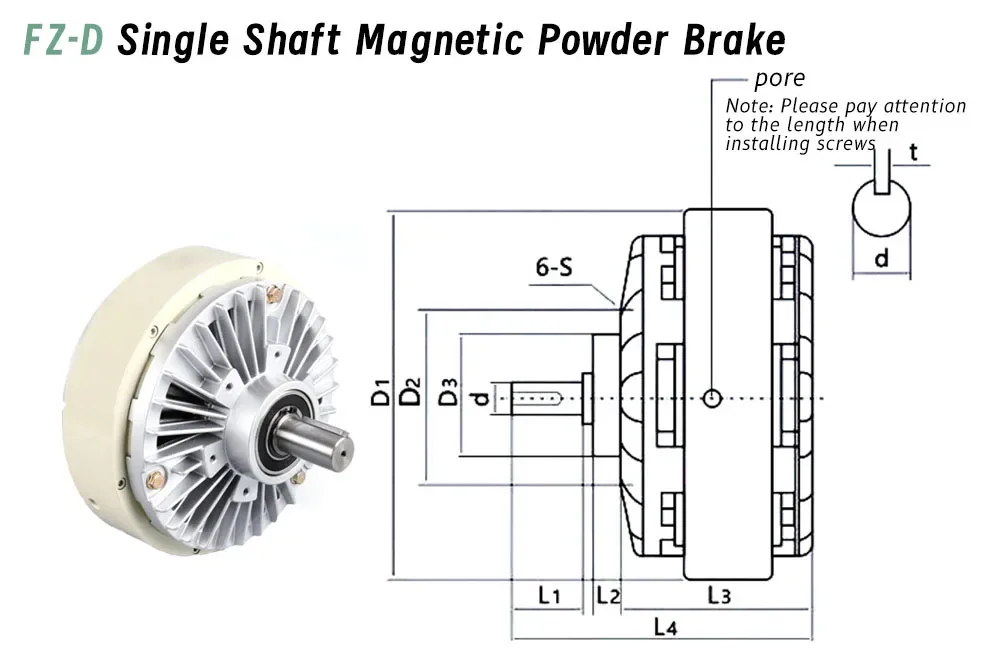

Model	Main technical parameters				Shape size												Net weight (kg)
Model	Torque (N.m)	Voltage (V)	Speed (r/min)	Current (A)	D1	D2	D3	L1	L2	L3	L4	6-S	d	t	Diameter depth		Net weight (kg)
FZ-6-D	6	24	1400	0.8	130	62	44	25	10	68	108	M5	12	4	M4	8	3
FZ-12-D	12			1	157	62	50	30	15	84	133	M5	16	5	M4	8	5
FZ-25-D	25			1.5	182	78	58	40	19	91	154	M6	20	6	M5	10	7.5
FZ-50-D	50			1.8	219	100	75	50	22	110	185	M6	25	8	M6	12	13
FZ-100-D	100		1000	2	290	120	90	65	25	142	237	M8	30	8	M10	20	28
FZ-200-D	200			3	335	140	110	70	30	170	275	M10	35	10	M10	20	47
FZ-400-D	400			4	398	200	130	99	35	199	338	M12	45	14	M10	20	73

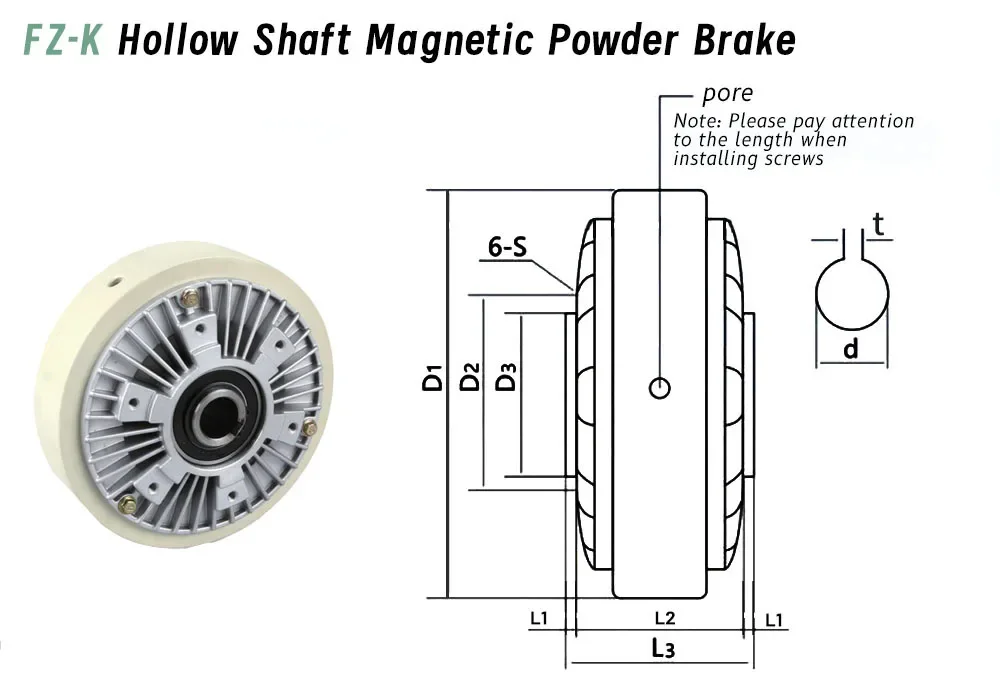

Model	Main technical parameters				Shape size									Net weight (kg)
Model	Torque (N.m)	Voltage (V)	Speed (r/min)	Current (A)	D1	D2	D3	L1	L2	L3	d	t	6-S	Net weight (kg)
FZ-6-K	6	24	1000	0.8	130	62	52	3	54	60	16	5	M4	2.5
FZ-12-K	12			1	150	82	65	3	64	70	20	6	M5	4
FZ-25-K	25			1.5	182	110	90	4	70	78	25	8	M6	6.5
FZ-50-K	50			1.8	219	130	110	5	86	96	30	8	M8	11.5
FZ-100-K	100		800	2	260	140	120	5	100	110	35	10	M10	16
FZ-200-K	200		800	3	320	170	150	5	120	130	45	14	M10	24

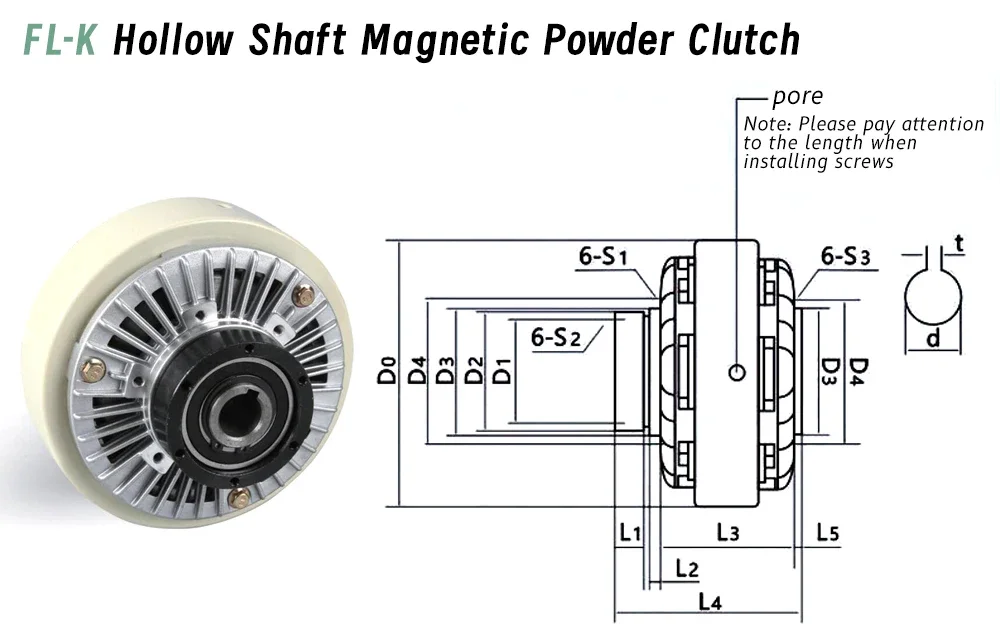

Model	Main technical parameters				Shape size															Net weight (kg)
Model	Torque (N.m)	Voltage (V)	Speed (r/min)	Current (A)	D0	D1	D2	D3	D4	L1	L2	L3	L4	L5	d	t	6-S1	6-S2	6-S3	Net weight (kg)
FL-6-K	6	24	1400	0.8	130	50	60	62	70	16	6	64	91	3	16	5	M5	M4	M5	3
FL-12-K	12			1	157	63	70	72	80	18	7	77	107	3	20	6	M5	M4	M5	6
FL-25-K	25			1.5	182	71	80	82	97	21	10	88	125	4	25	8	M6	M5	M6	9
FL-50-K	50			1.8	219	85	95	97	110	22	11	103	144	4	30	8	M6	M6	M8	14.5
FL-100-K	100		1000	2	290	105	125	128	145	24	14	137	183	5	35	10	M8	M8	M8	33
FL-200-K	200		1000	3	335	125	140	145	165	28	17	145	200	5	45	10	M10	M8	M10	48

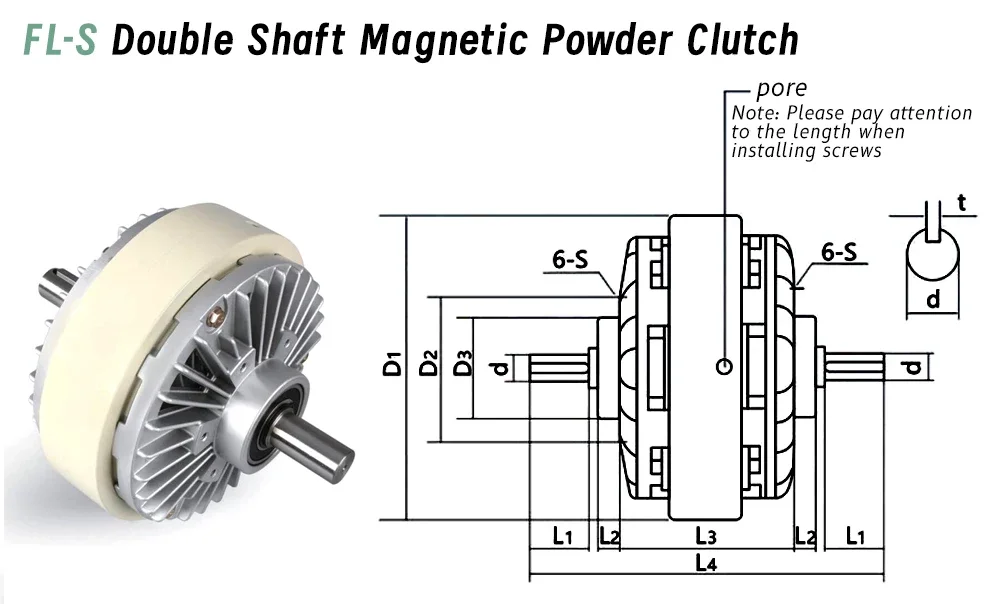

Model	Main technical parameters				Shape size												Net weight (kg)
Model	Torque (N.m)	Voltage (V)	Speed (r/min)	Current (A)	D1	D2	D3	L1	L2	L3	L4	6-S	d	t	Diameter depth		Net weight (kg)
FL-6-S	6	24	1400	0.8	130	62	44	25	10	74	154	M5	12	4	M4	8	3
FL-12-S	12			1	157	62	50	30	15	95	192	M5	16	5	M4	8	7
FL-25-S	25			1.5	182	78	58	40	19	100	225	M6	20	6	M5	10	9
FL-50-S	50			1.8	219	100	75	50	22	120	296	M6	25	8	M6	12	14
FL-100-S	100		1000	2	290	120	90	65	25	158	347	M8	30	8	M10	20	30
FL-200-S	200			3	335	140	110	70	30	186	396	M10	35	10	M10	20	50
FL-400-S	400			4	398	200	130	99	35	222	500	M12	45	14	M10	20	80

Mini Manual Tension Controller Technical Parameter:
Model: SJ-180A

Input/Output Voltage: DC 24V
Output Current: 0~4A
Overall size: 96*69*32MM
Type: Manual controller / PLC / Potentiometer

Manual Tension Controller Technical Parameter:
Model: TB-200S
Power Supply: 185V-265VAC 50/60Hz
Output Voltage: 0~24VDC(0-3A)
External Signal control: 0~10VDC
Precision: 0.01A
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade
Overall size: 160*100*70MM
Mounting size: 163*103*70MM
Installation: wall-mounted, floor-mounted, embedded

Magnetic Powder Clutch Brake Tension Controller Kit 6/12/50/100Nm 0.6/1.2/5/10kg DC24V 1000RPM for Textile/Printing Machine
