HDMI 4k@60HZ Matrix 6x2

Introduction :

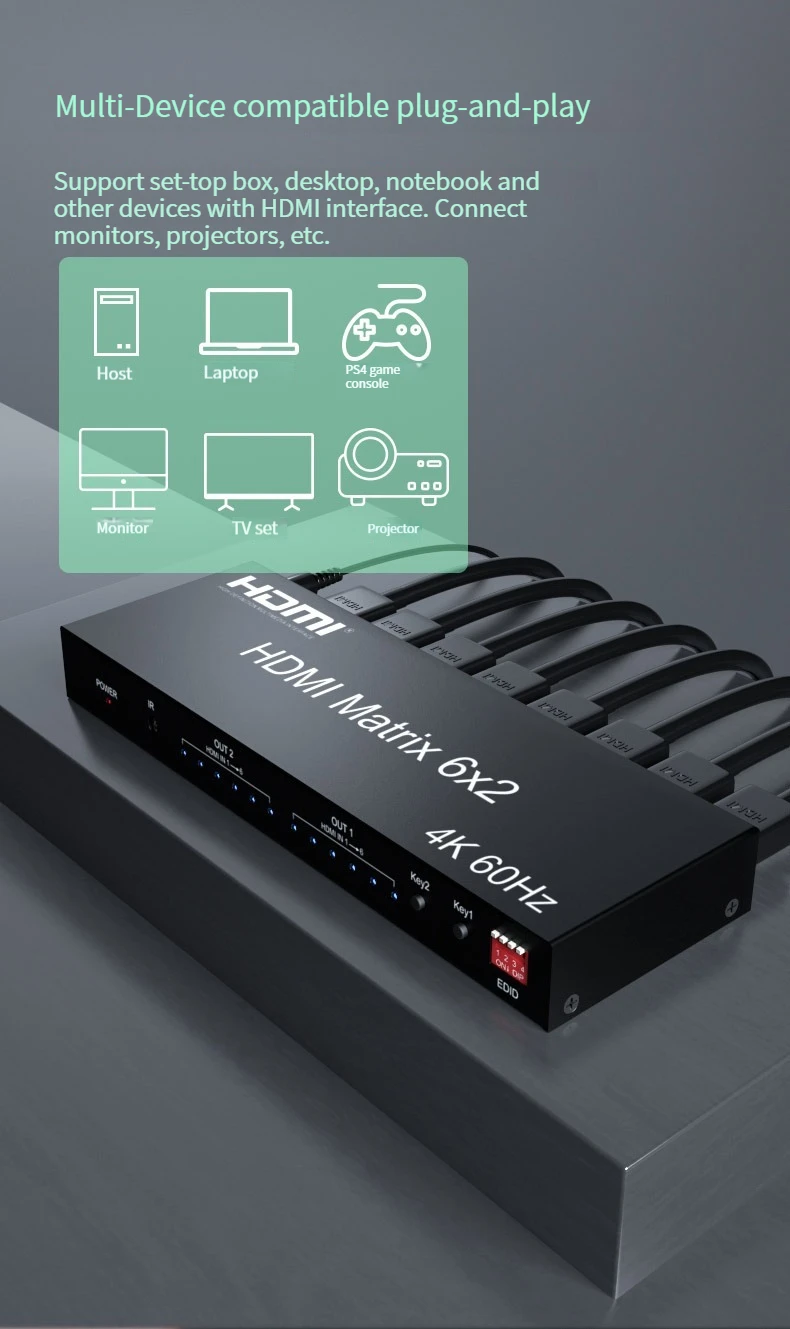

The HDMI 4K 60Hz matrix 6x2 can connect 6 HD signal sources to 2 HD display

terminals with optical fiber or stereo headphone output. The matrix allows six HDMI devices

to be switched or split easily to two HDMI compatible monitors or projectors. And any

output ports can realize independent audio output by optical fiber or stereo head phone.

Our devices offer solutions for noise, space and security concerns, data center

control, information distribution, conference room presentation, school and corporate

training environments.

Features :

* Support 3D video format

* Support for 4K (input) resolution 2K (output)（Down scaler）

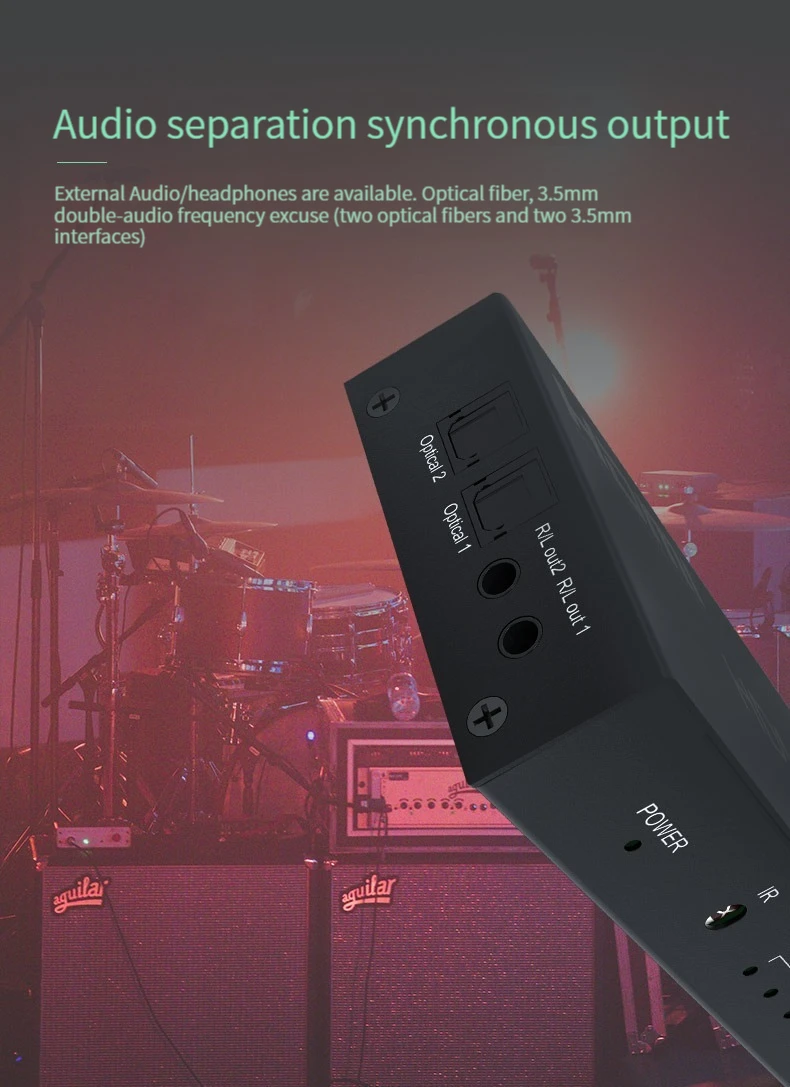

* Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time

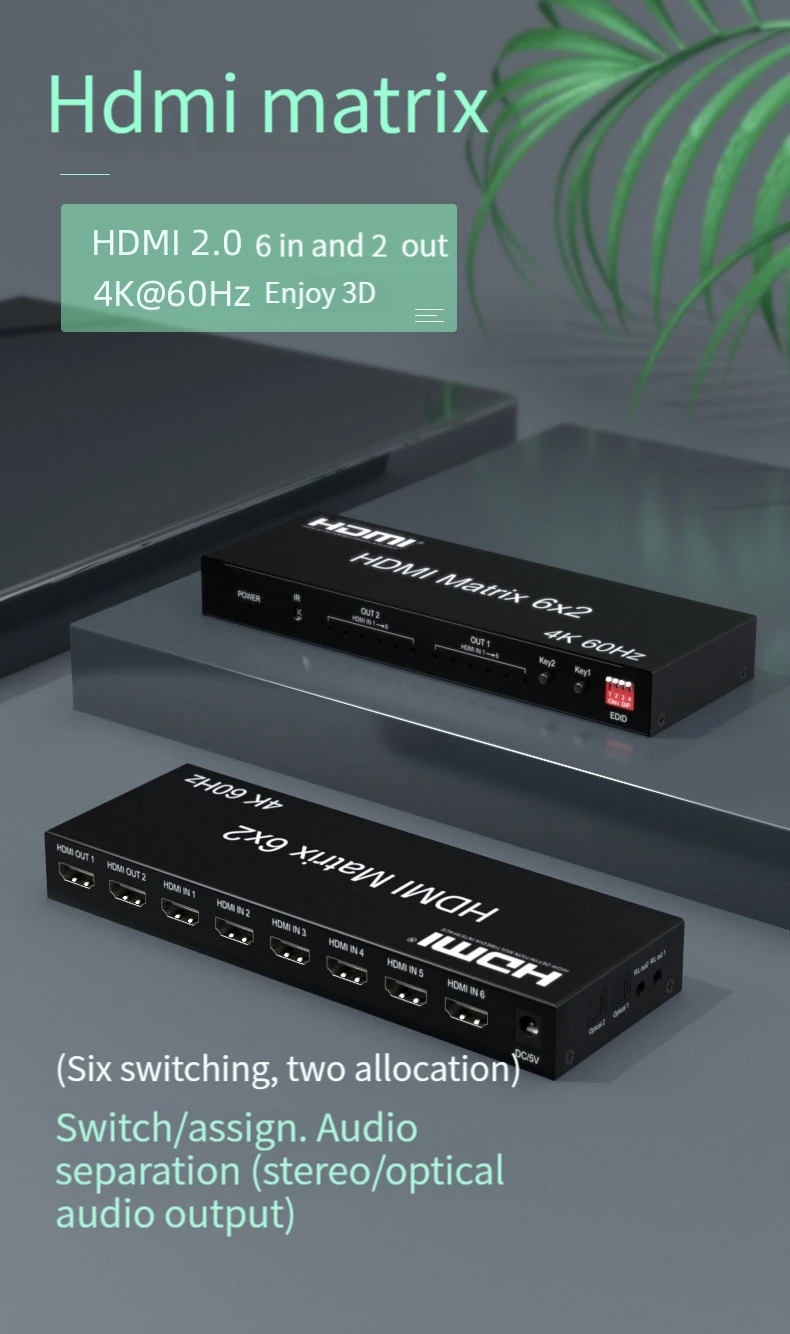

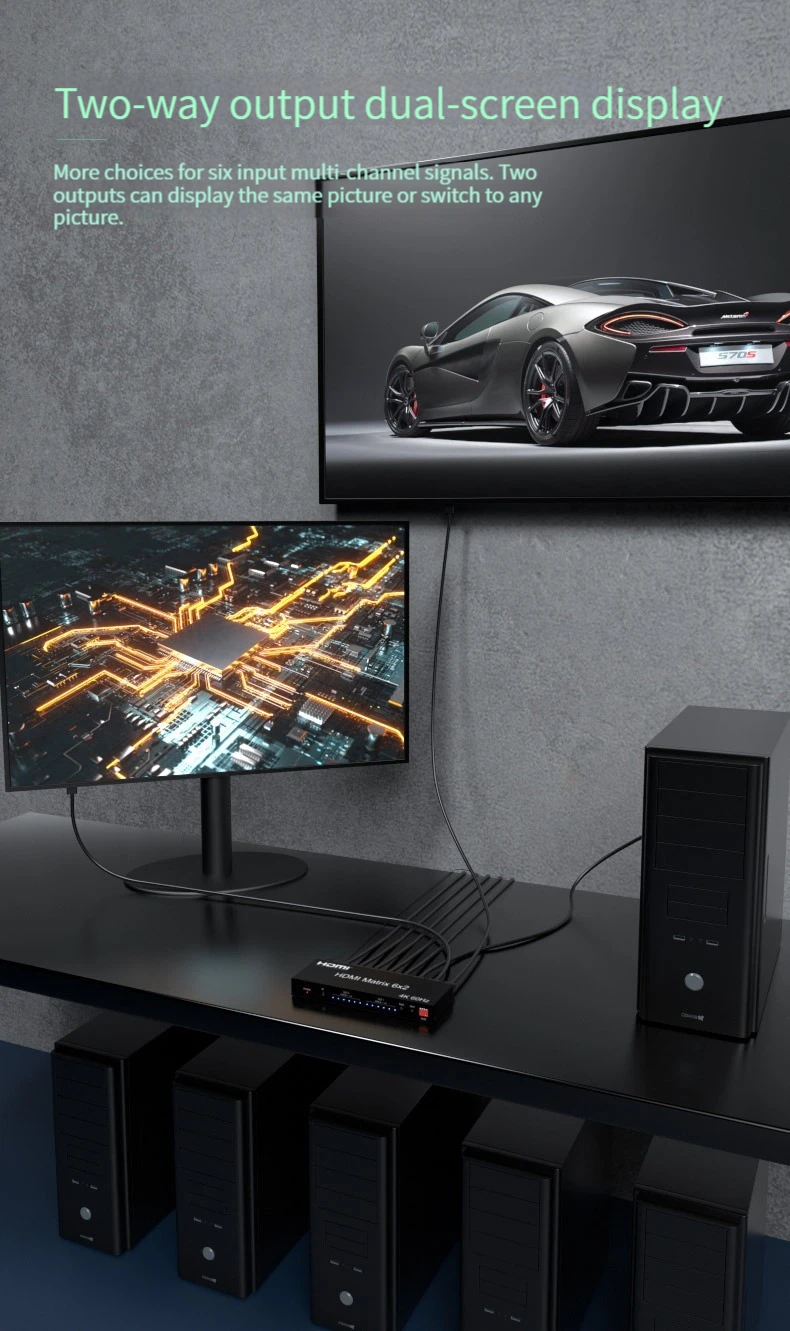

* 6 HDMI inputs switch and split to 2 HDMI displays.

* Support LPCM/Dolby/DTS 5.1 channel.

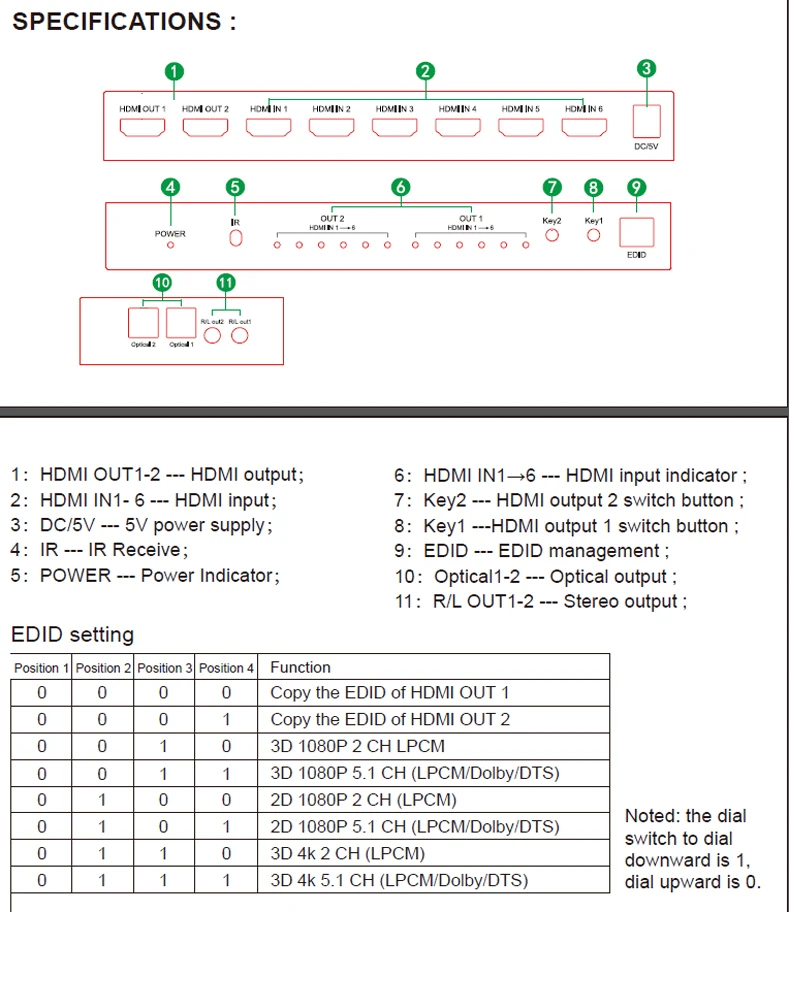

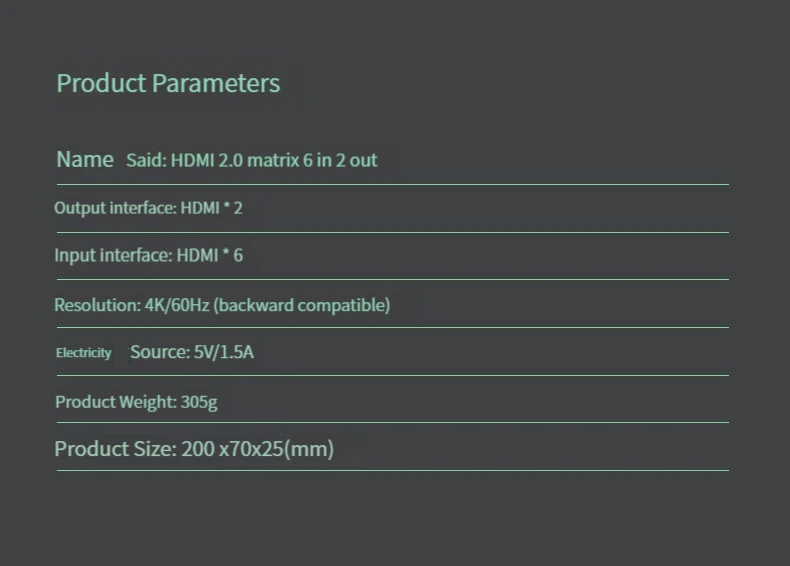

SPECIFICATIONS :

HDMI resolution …………………….…....….…....…...................…....up to 3840*2160/60Hz

Support video format ……………................................................…....8/10/12 bit deep color

Support audio format ……………...............................................…...LPCM/DTS/Dolby-AC3

Max bandwidth …………………………………………………..........….…….…....…. 600MHz

Max baud rate ……………….…….……..………….…..….…...…………….…..…... 3x6Gbps

Input cable distance ..…...….....................… 4K/30Hz ≤15M AWG26 HDMI standard cable

4K/60Hz ≤5M HDMI 2.0 standard cable

Output cable distance …..................…......... 4K/30Hz ≤15M AWG26 HDMI standard cable

4K/60Hz ≤5M HDMI 2.0 standard cable

HDMI Input .......……...………………………………....………...………..……….…....….….. 6

HDMI Output ……………...…………………..........………......…………………..….…....….. 2

Max working current ...………………………………….…..…..………………..……........… 1A

Power adapter format ................. Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1.5A

Operating Temperature range ……...........….…...……..………………………. (-15 to +45℃)

Operating Humidity range ……....….....……...……..….….. 5 to 90%RH (No Condensation)

Dimension (L x W x H) ...……………...……….……....…………..……...…. 200x70x25 (mm)

Weight …..………………………..………………..…....……….….........….…....….…...... 305g
