Only Powder Brake/ Only Powder Clutch
1* Single Axis Magnetic Powder Brake
or
1* Double Axis Magnetic Powder Clutch
Brake/Clutch with SJ-180A or TB-200S
1* Single Axis Magnetic Powder Brake or 1* Double Axis Magnetic Powder Clutch
1* Manual Tension Controller
Brake/Clutch with KTC-812
1* Single Axis Magnetic Powder Brake or 1* Double Axis Magnetic Powder Clutch
1* Manual/ Automatic Tension Controller
1* Hall Sensor

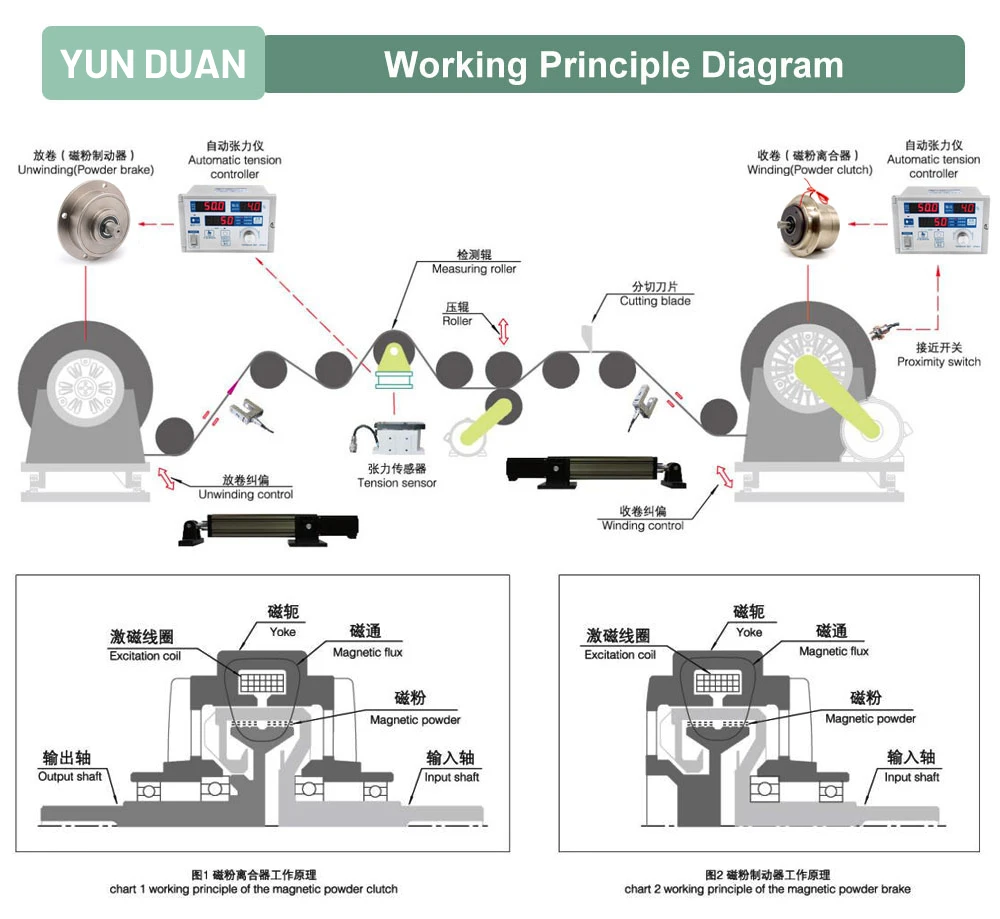

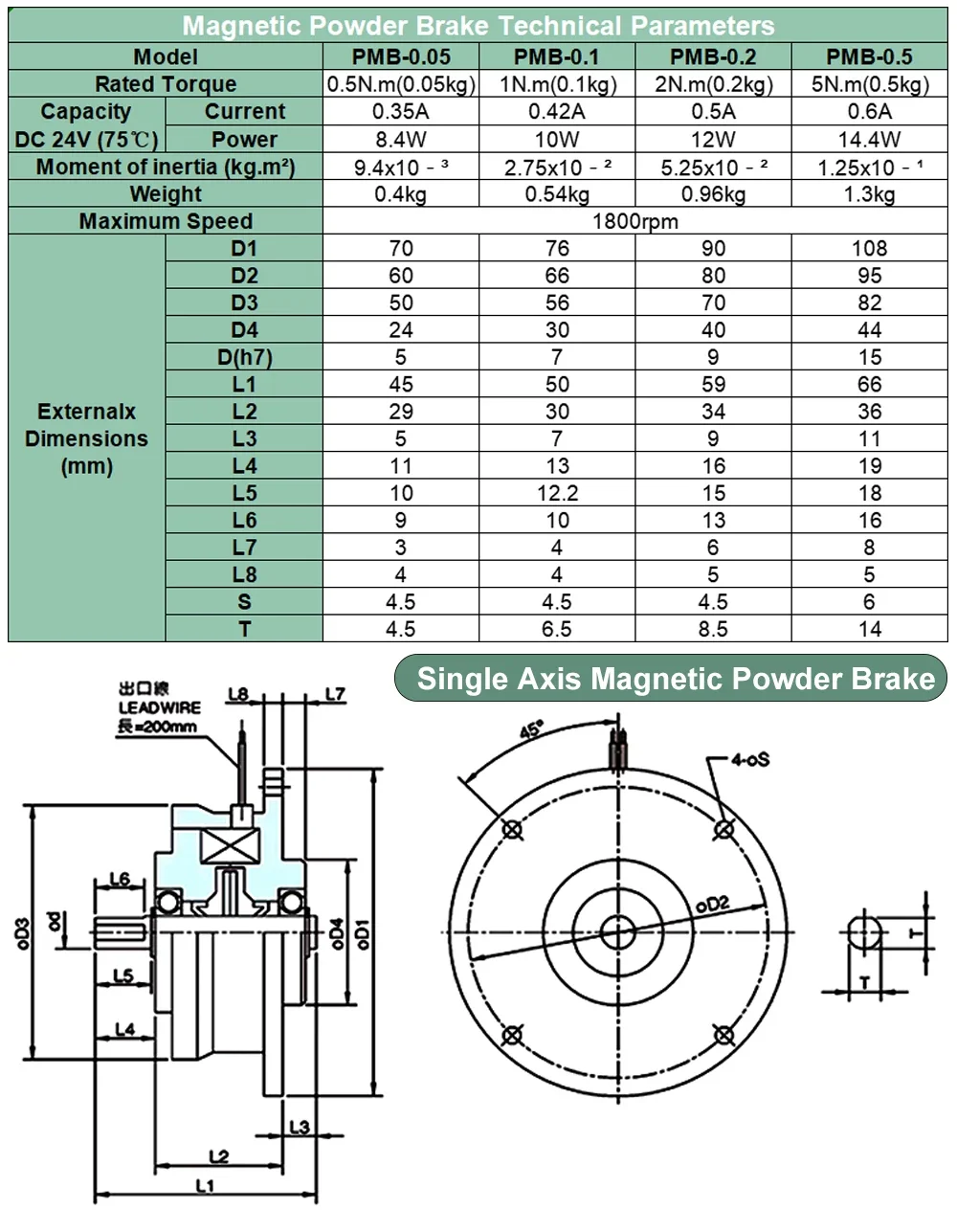

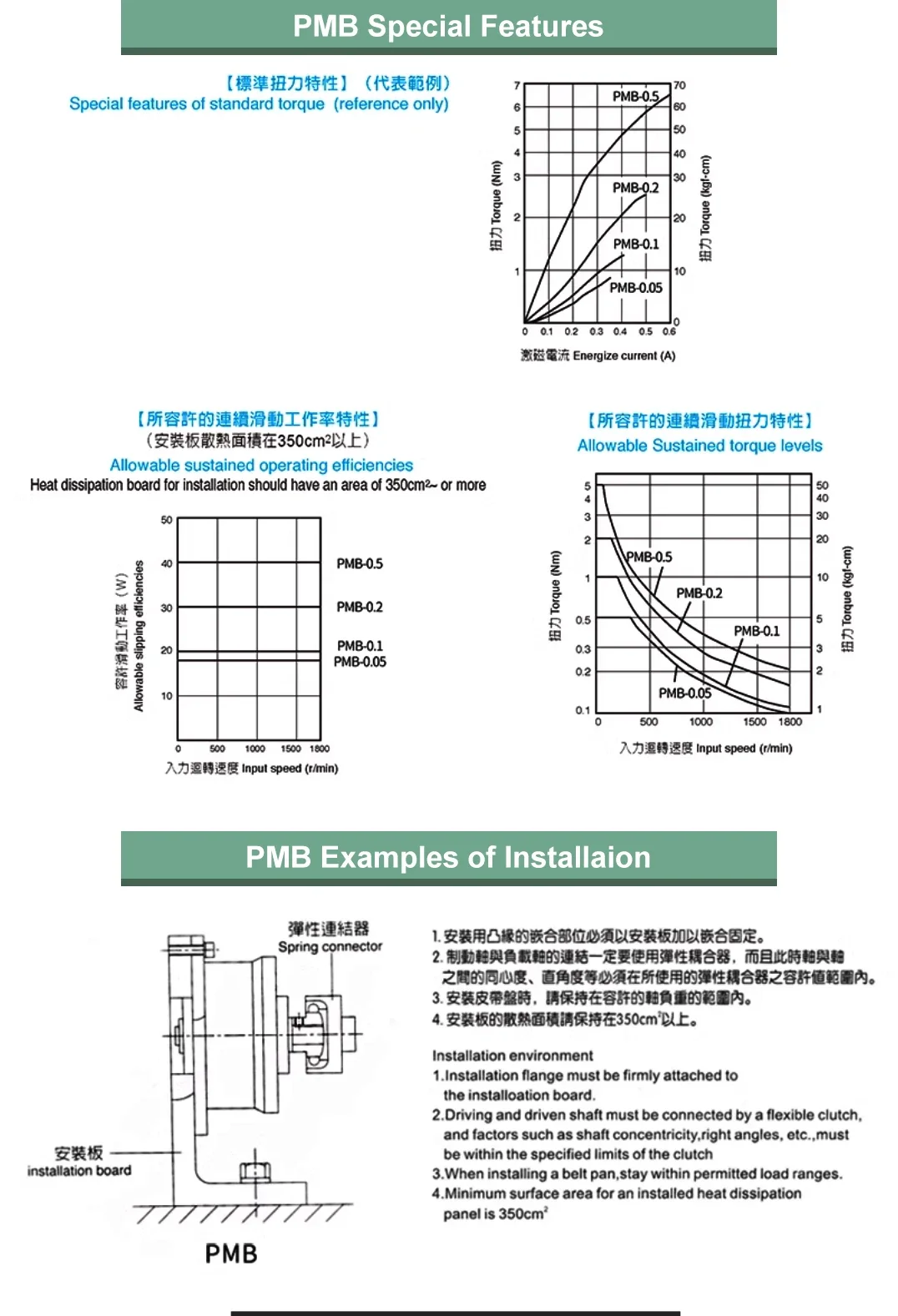

Magnetic powder brake
Advantages and characteristics:
Precise control: Magnetic powder brakes can precisely control the braking torque by adjusting the excitation current, which is very useful for testing environments that require precise load control.
Fast response speed: Magnetic powder brakes have a fast response speed, which can quickly adapt to load changes and improve testing efficiency.
Good stability: The work is stable and reliable, which can ensure the stability of the testing process and improve the credibility of the test results.
Simple structure: The magnetic powder brake has a relatively simple structure, easy maintenance, and long service life.
Application scenarios:
Suitable for testing environments that require precise control of load and torque, such as dynamic and static detection of input and output torque, speed, power, and efficiency of power machinery and transmission machinery.
Commonly used in dynamometer as a simulated load to achieve precise adjustment and control of the load.

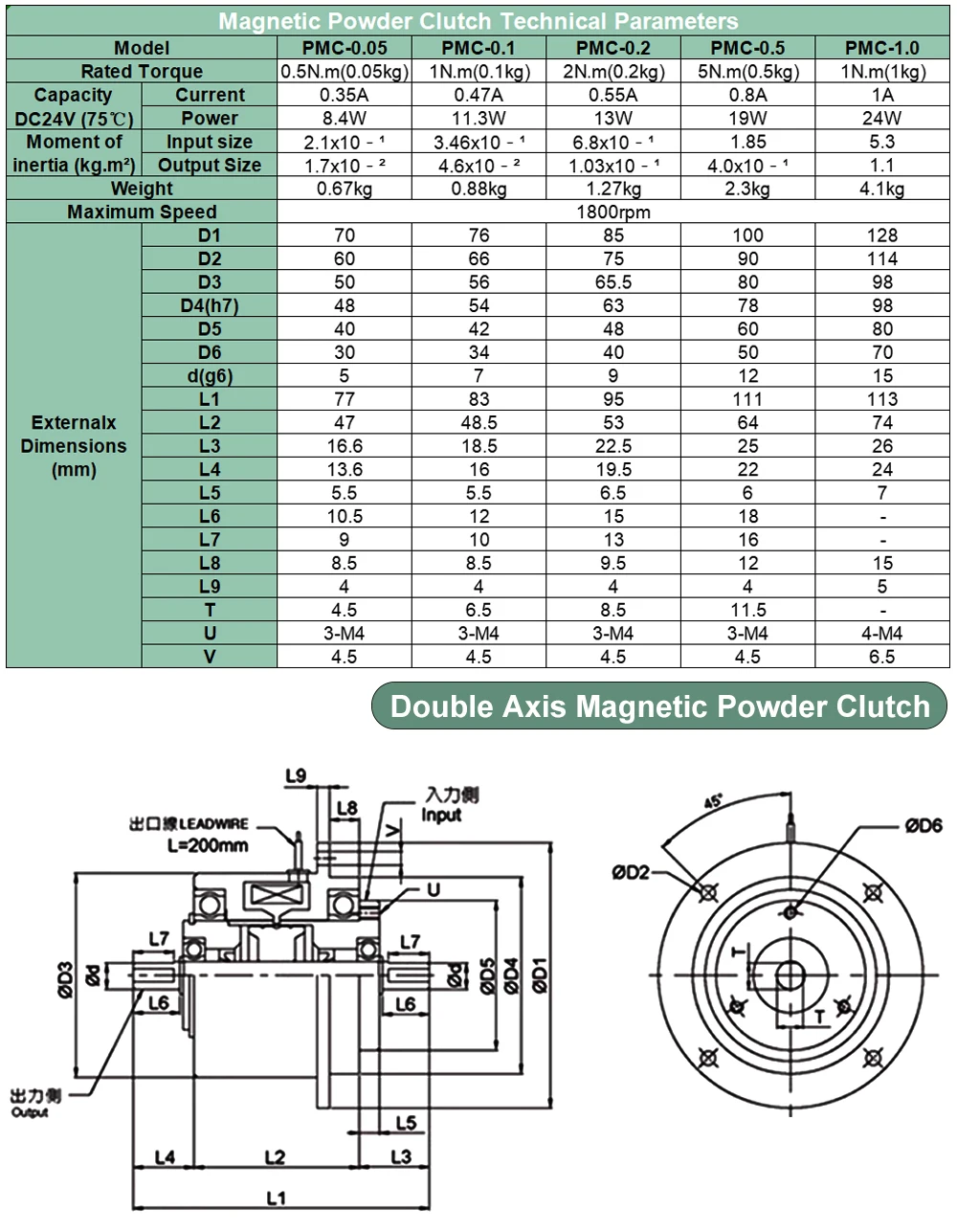

Magnetic powder clutch
Advantages and characteristics:

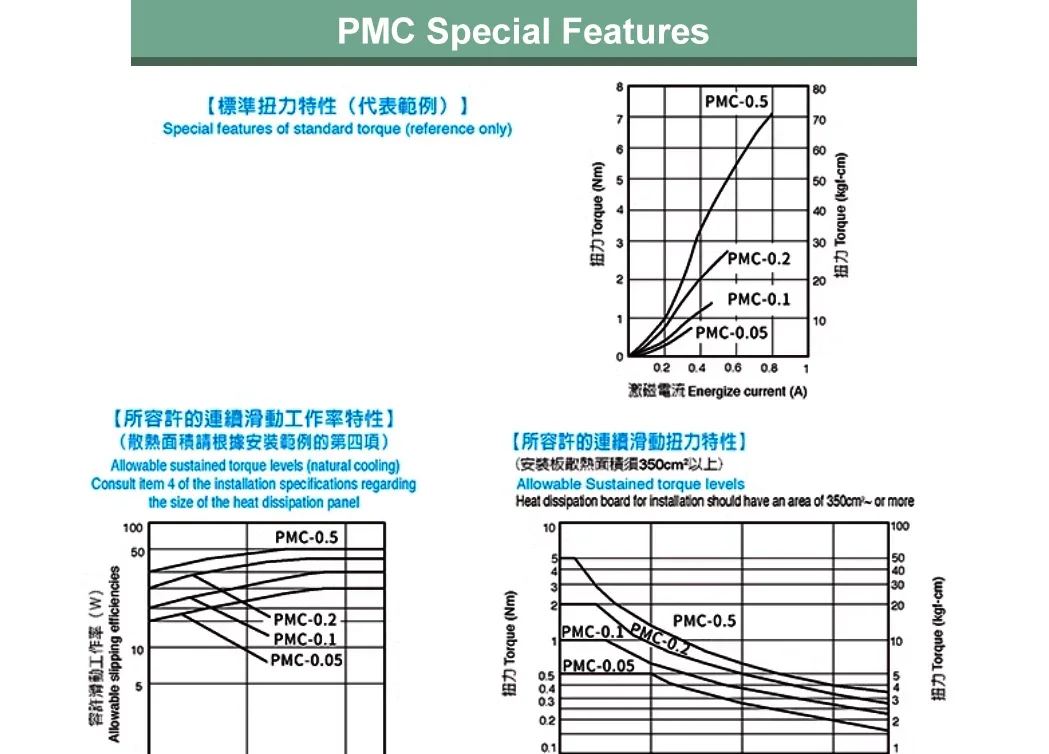

High linearity: The torque of the magnetic powder clutch is basically linearly related to the excitation current, which facilitates precise control.
Multifunctionality: In addition to transmitting torque, magnetic powder clutches can also be used for buffering starting, overload protection, speed regulation, and other applications.
No pollution, no noise: runs smoothly, without impact, vibration, or noise, suitable for situations with high requirements for the working environment.
Application scenarios:
Widely used in industries such as papermaking, printing, plastics, rubber, textiles, printing and dyeing as tension control systems.
Suitable for occasions that require frequent engagement and disengagement, such as fast clutch of machine tools, CNC devices, etc.

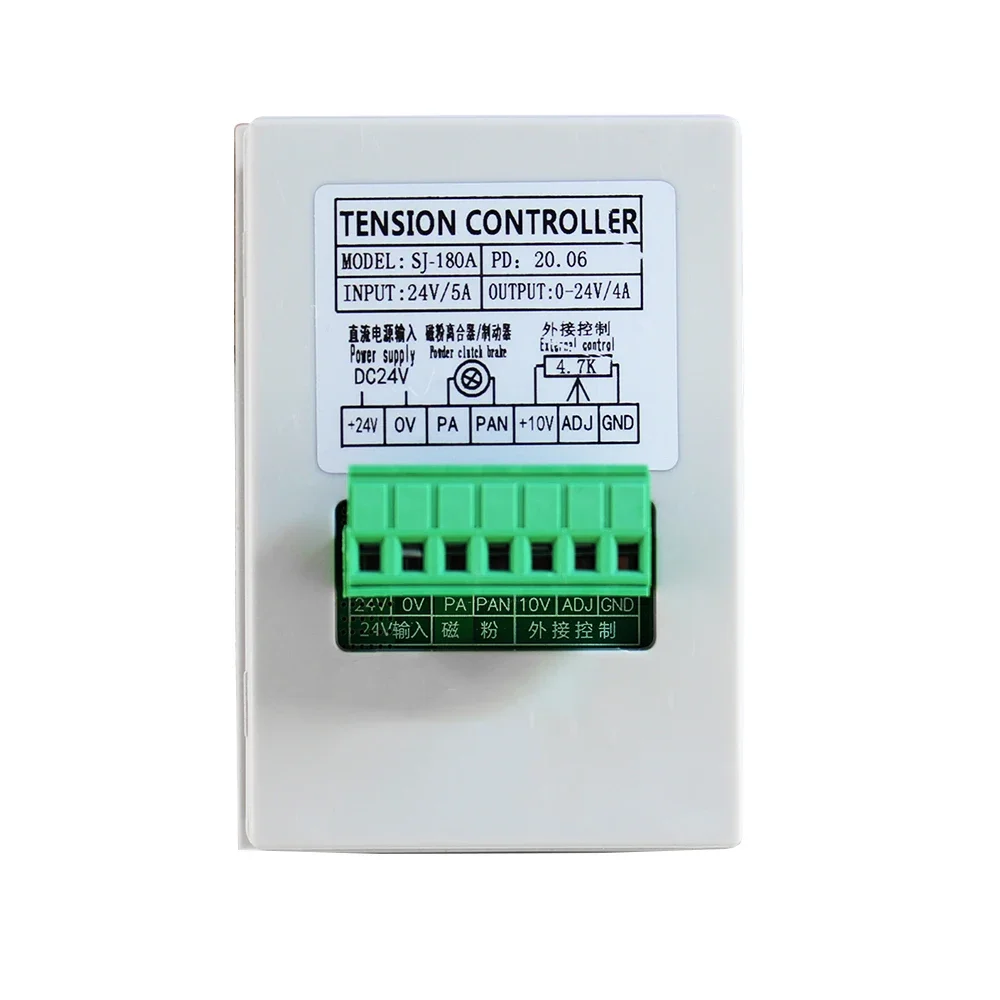

SJ-180A---Mini Manual Tension Controller
Input Voltage: DC 24V
Output Voltage: DC 24V
Output Current: 0~4A
Overall size: 96*69*32MM

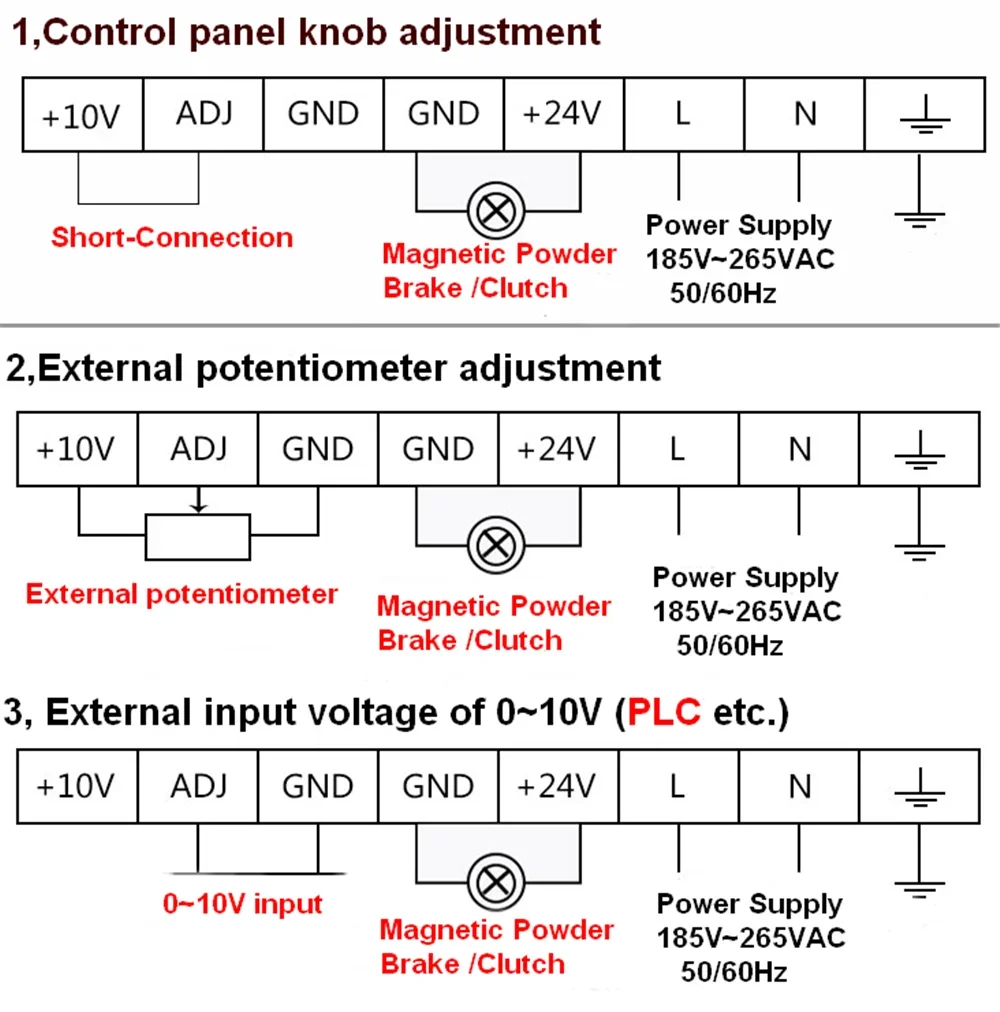

Type: Manual controller / PLC / Potentiometer

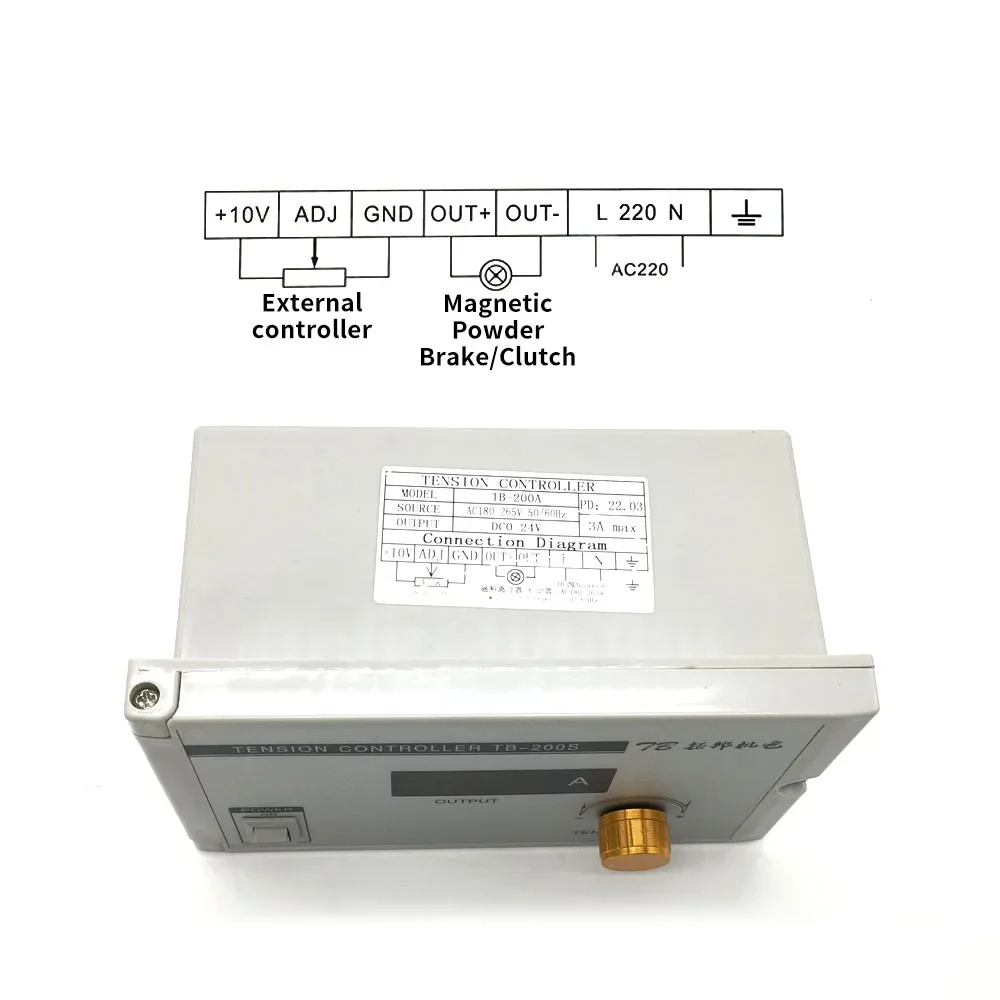

TB-200S---Manual Tension Controller
Power Supply: 185V-265VAC 50/60Hz
Output Voltage: 0~24VDC(0-3A)
External Signal control: 0~10VDC
Precision: 0.01A
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade
Overall size: 160*100*70MM
Mounting size: 163*103*70MM

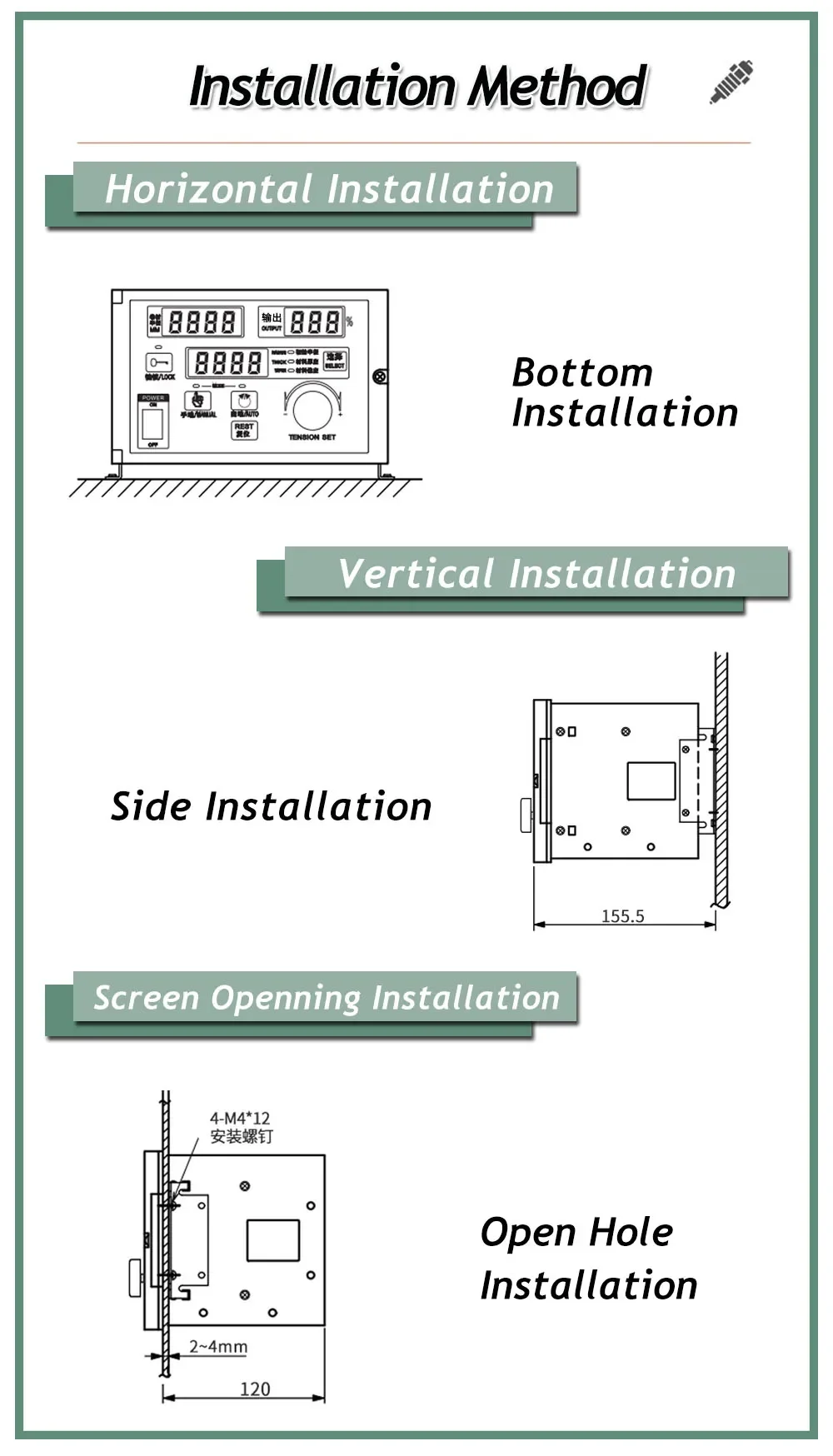

Installation: wall-mounted, floor-mounted, embedded
KTC-812---Semi-automaticTension Controller
Features:
★ Manual/automatic operation
★ Encoder or Hall switch can be connected
★ Automatic calculation of coil radius
★ It can store the parameters of 9 different materials
★ Constant tension/taper tension control
★ Output 0 - 2 4 V/4 A, automatic overcurrent protection
★ All parameters and states of the automatic memory system
★ Adjustable magnetic powder brake/clutch torque compensation
Power Supply: 185V-265VAC 50/60Hz
Output Voltage: 0~24VDC
Output current: 0-4A
External Signal control: 0~10VDC
Precision: 0.01A
Overall size: 181*110*120MM
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade
